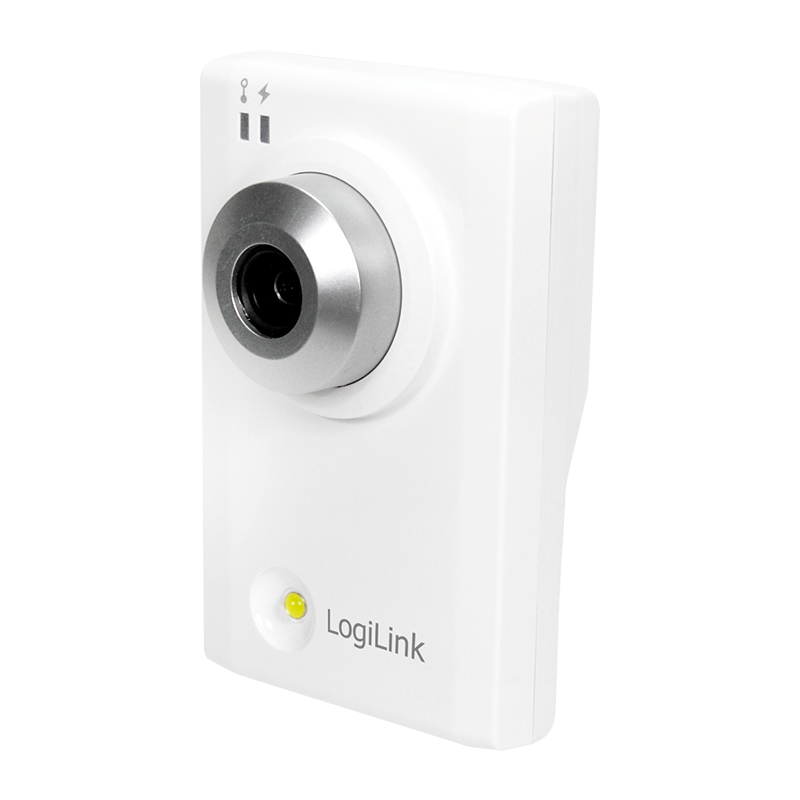

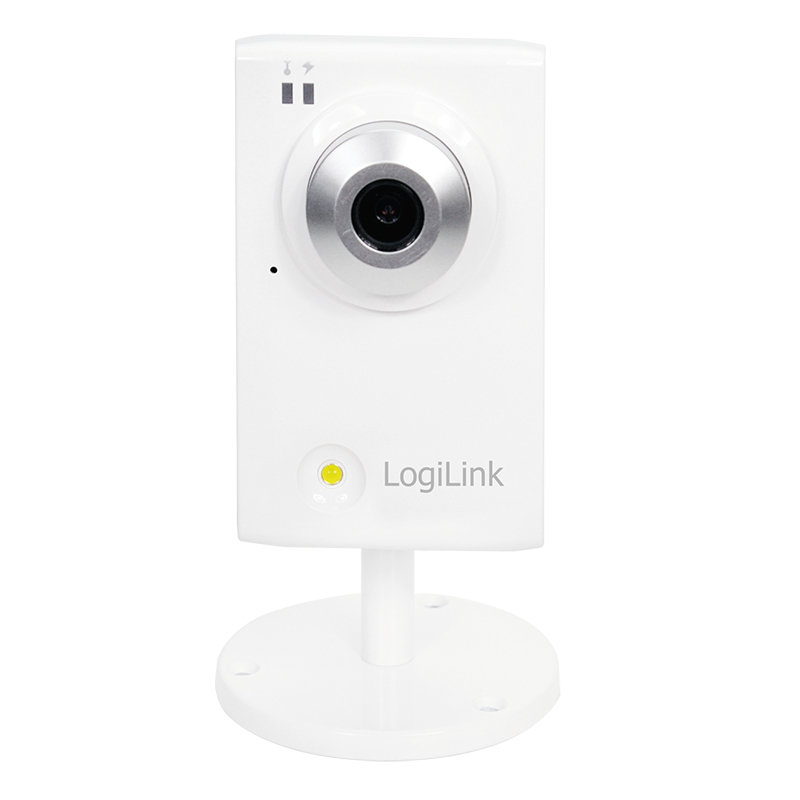

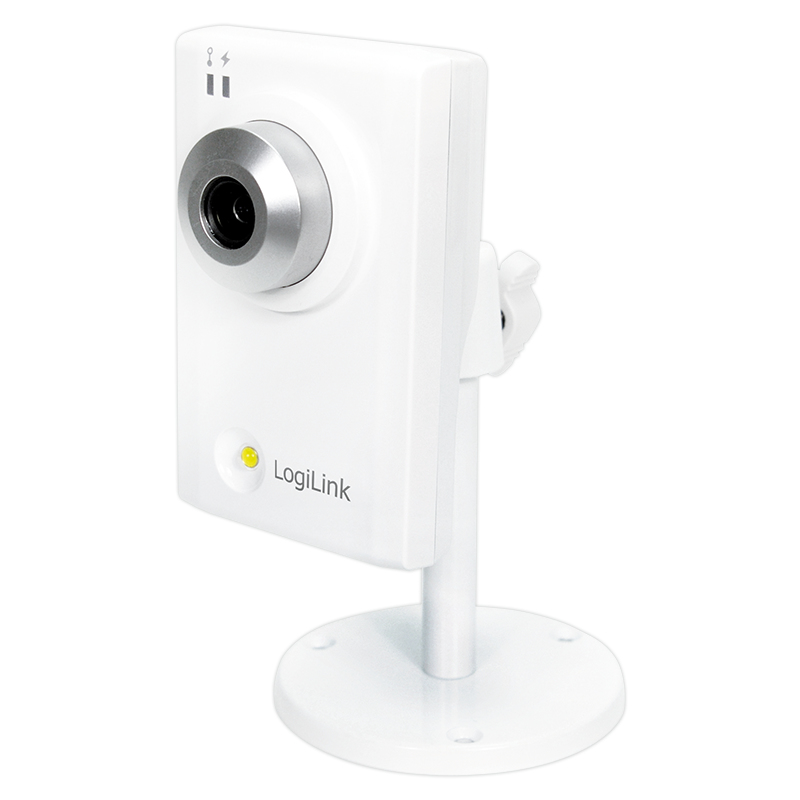

LogiLink WC0020 webcam
1.3 MP 1280 x 1024 pixels RJ-45 White
Model WC0020EAN 4014619520299
53 specifications
- ConnectivityRJ-45
- ColourWhite
- Megapixel (approx.)1.3 MP
- Windows operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
- Width95.4 mm
Overview
- Connectivity
- RJ-45
- Colour
- White
- Megapixel (approx.)
- 1.3 MP
- Windows operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 95.4 mm
- Brand
- LogiLink
- Category
- Webcam
- Model
- WC0020
- Part number
- WC0020
- EAN / UPC
- 4014619520299, 4260113574447
- Also known as
- LogiLink WC0020 webcam 1.3 MP 1280 x 1024 pixels RJ-45 White
Specifications
53 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Megapixel (approx.) | 1.3 MP |
| Maximum video resolution | 1280 x 1024 pixels |
| Maximum frame rate | 30 fps |
| Supported video modes | 720p |
| Video formats supported | H.264, MPEG, MPEG4 |
| Photo feature | Yes |
| Maximum image resolution | 1280 x 1024 pixels |
| Auto focus | Yes |
| Face tracking | Yes |
| Focal length range | 0 - 3.8 mm |
| Focus adjustment | Auto |
| Camera shutter speed | 1/60 - 1/10000 s |
| Viewing angle, vertical | 75° |
| Night mode | Yes |
| Normal focusing range | 1.5 m |
| Signal-to-Noise Ratio (SNR) | 48 dB |
| Operating voltage | 5 V |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|

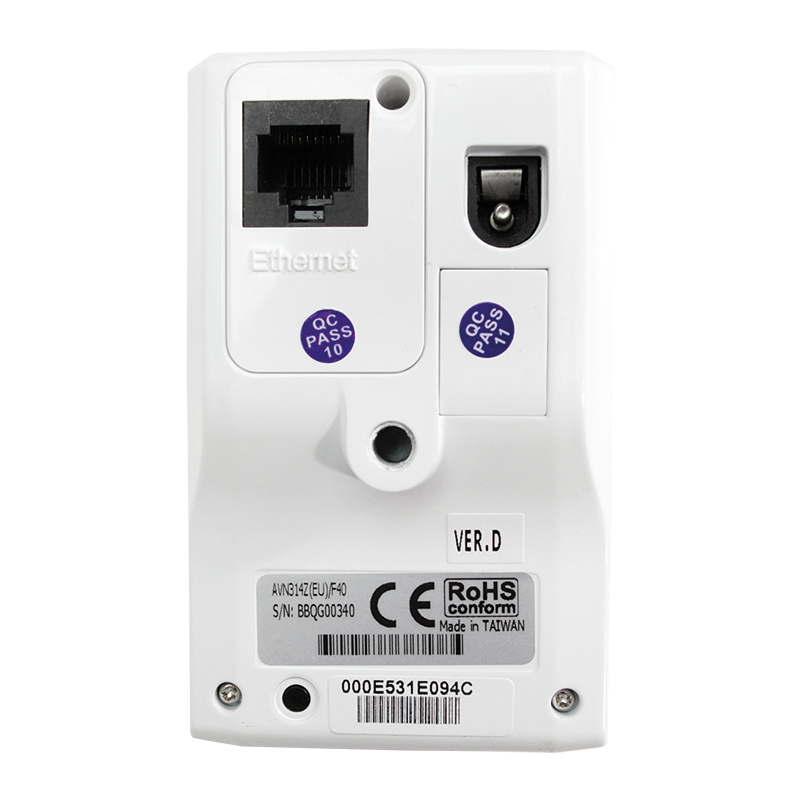

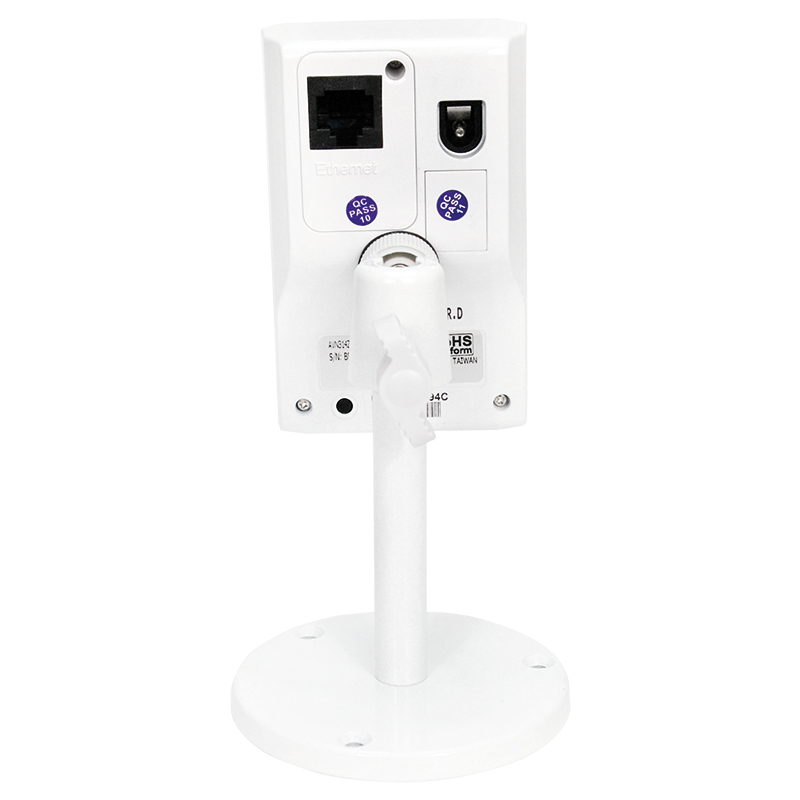

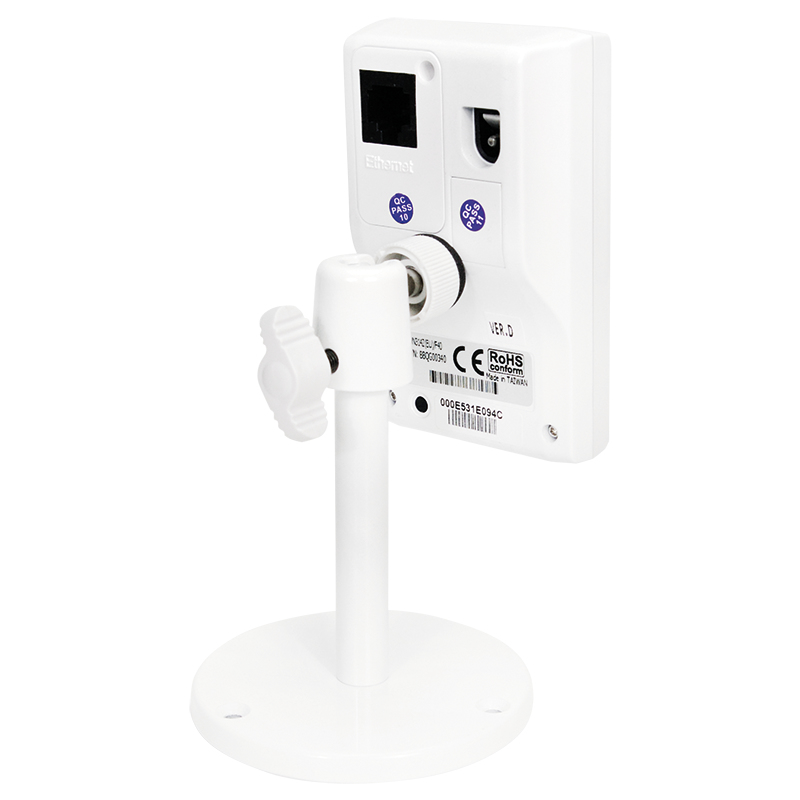

| Interface | RJ-45 |
| Product colour | White |

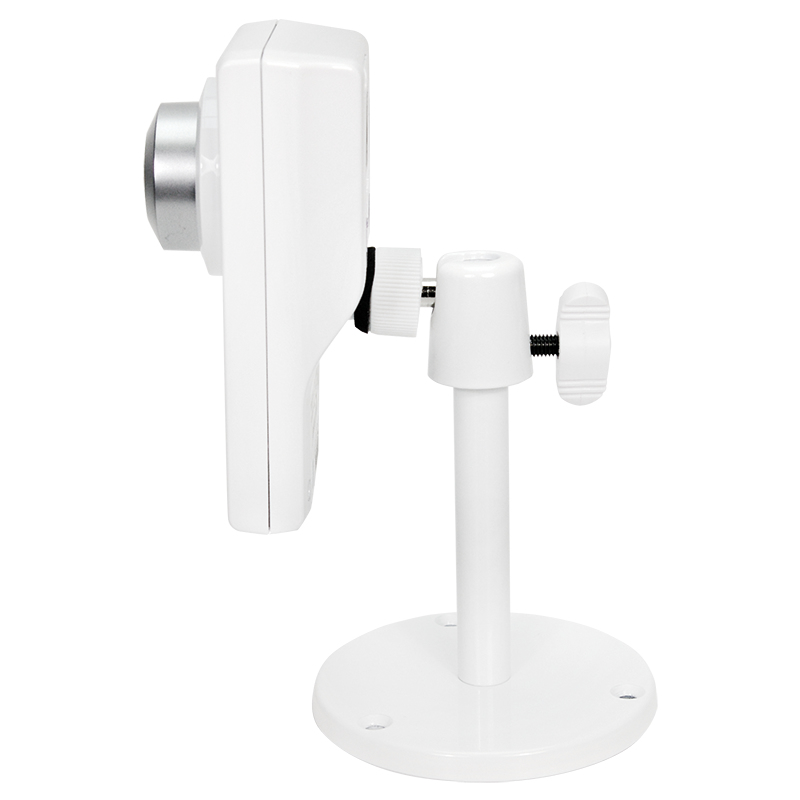

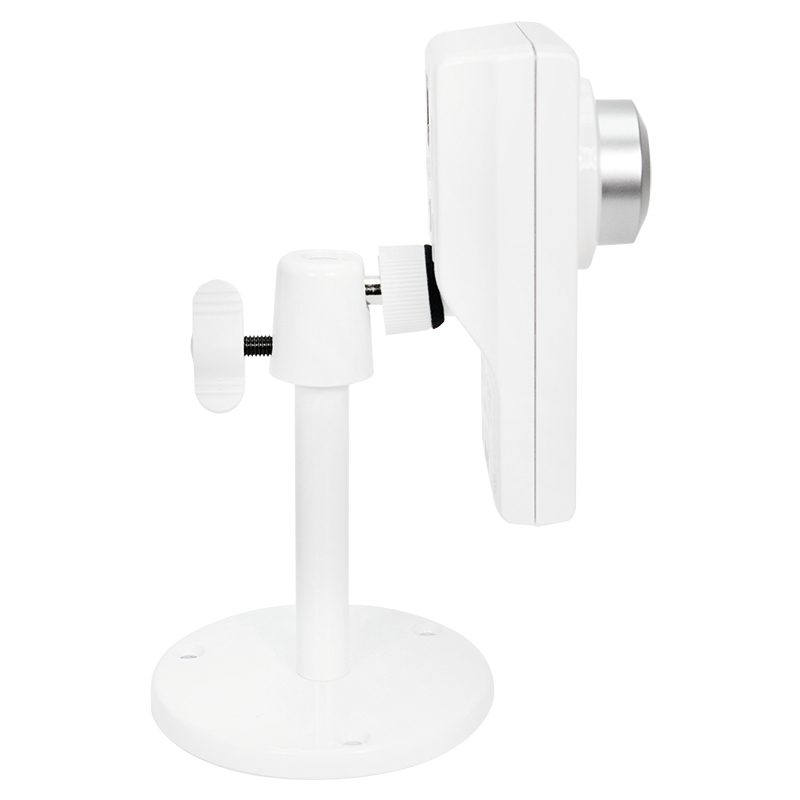

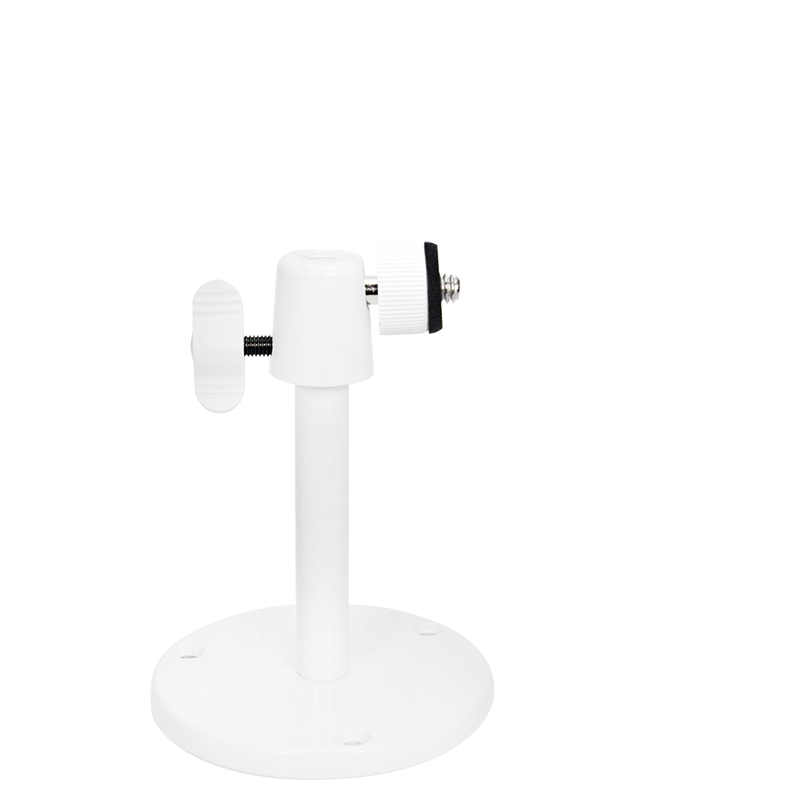

| Mounting type | Stand |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Built-in flash | Yes |
| LED indicators | Power |
| Certification | CE, RoHS |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iPadOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95.4 mm |
| Depth | 59 mm |
| Height | 41 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Package type | Box |
| Package width | 208 mm |
| Package depth | 104 mm |
| Package height | 99 mm |
| Package weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Microphone
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 256 MB |
| Internet connection required | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 514 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 345 mm |
| Master (outer) case gross weight | 15.6 kg |
| Products per master (outer) case | 30 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Features | Fast Ethernet |
Other features
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Manual focus | Yes |
| Supported network protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, UPnP |
