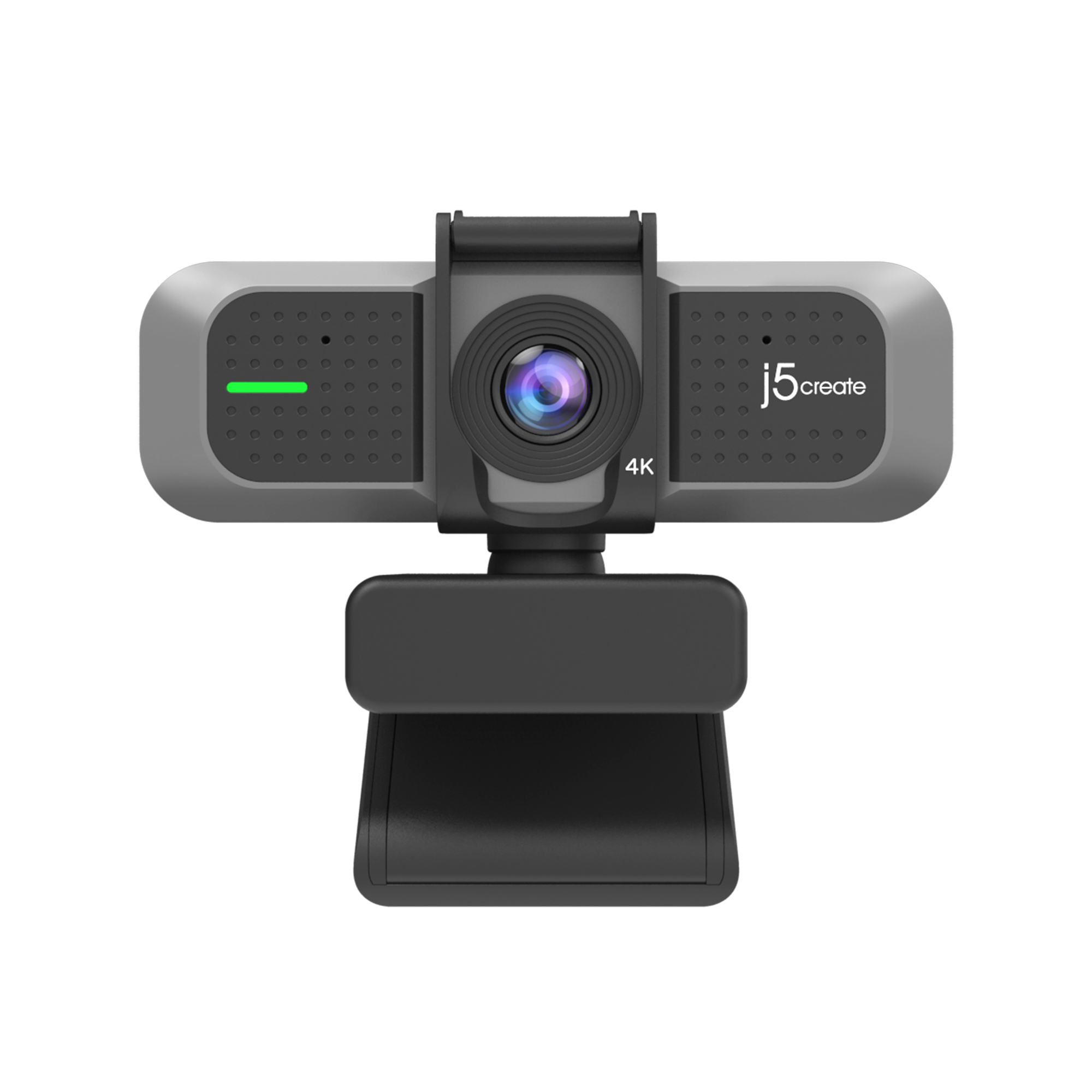

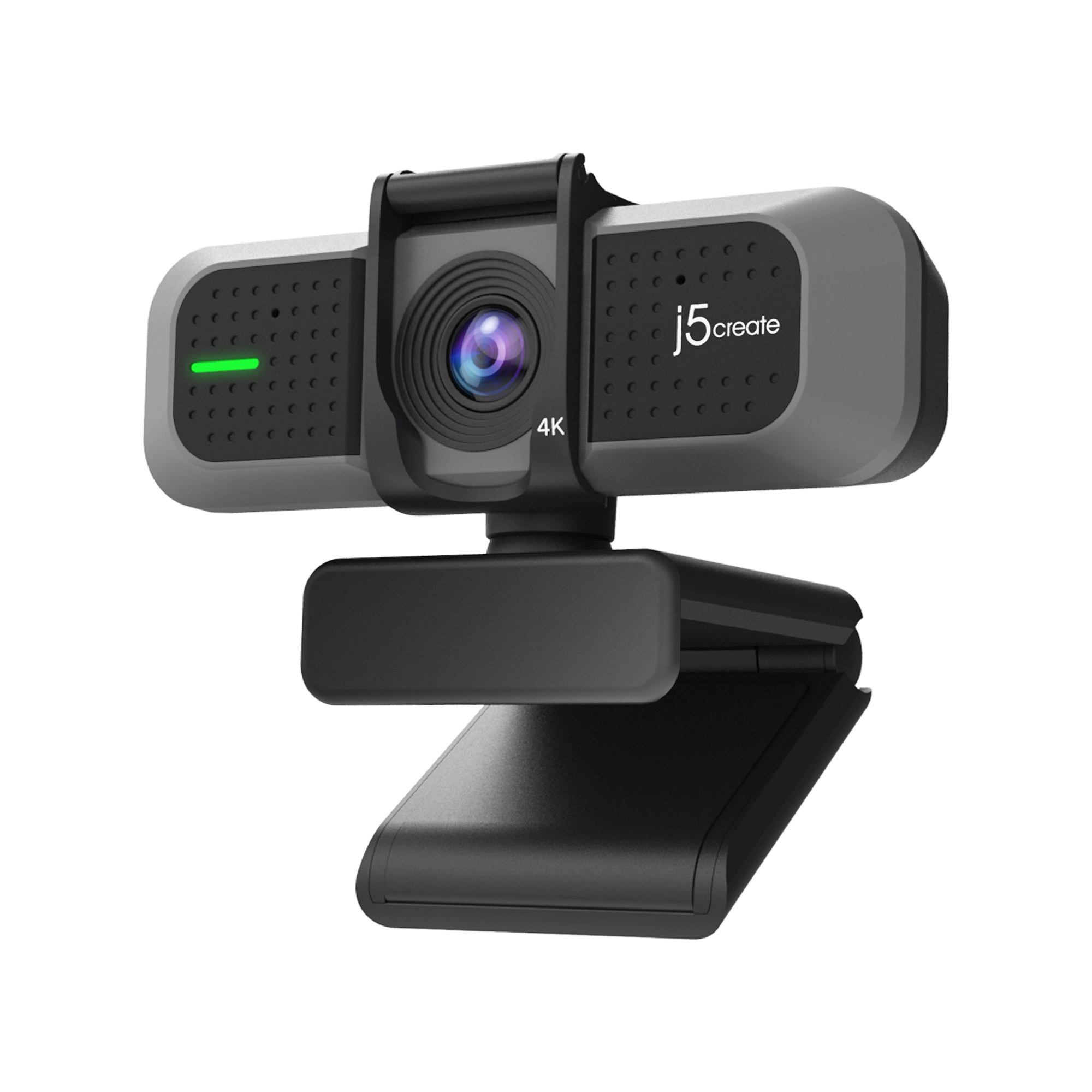

JVU430 USB 4K Ultra HD Webcam
3840 x 2160 Video Capture Resolution, Black and Silver
Model JVU430Part no. JVU430-NEAN 24712795086069
73 specifications
- ConnectivityUSB 2.0
- Weight215 g
- ColourBlack, Silver
- Megapixel (approx.)8 MP
- Windows operating systems supportedWindows 10, Windows 8.1
- Storage relative humidity (H-H)0 - 90%
Overview
- Connectivity
- USB 2.0
- Weight
- 215 g
- Colour
- Black, Silver
- Megapixel (approx.)
- 8 MP
- Windows operating systems supported
- Windows 10, Windows 8.1
- Storage relative humidity (H-H)
- 0 - 90%
- Brand
- j5create
- Category
- Webcam
- Model
- JVU430
- Part number
- JVU430-N
- EAN / UPC
- 24712795086069, 4712795086065
- Also known as
- j5create JVU430 USB 4K Ultra HD Webcam, 3840 x 2160 Video Capture Resolution, Black and Silver
Specifications
73 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Maximum video resolution | 3840 x 2160 pixels |
| Camera HD type | Full HD |
| Maximum frame rate | 60 fps |
| Resolution at capture speed | 720x480@30fps, 1280x720@30fps, 1920x1080@30fps, 2560x1440@30fps, 3840x2160@30fps |
| Supported video modes | 360p, 480p, 540p, 720p, 1080p, 1440p, 2160p |
| Video formats supported | H.264, MPEG, YUY2 |
| Maximum image resolution | 3840 x 2160 pixels |
| Image formats supported | MJPEG |
| Auto focus | Yes |
| Digital zoom | 2x |
| Face tracking | No |
| Focus adjustment | Auto |
| Viewing angle, horizontal | 87° |

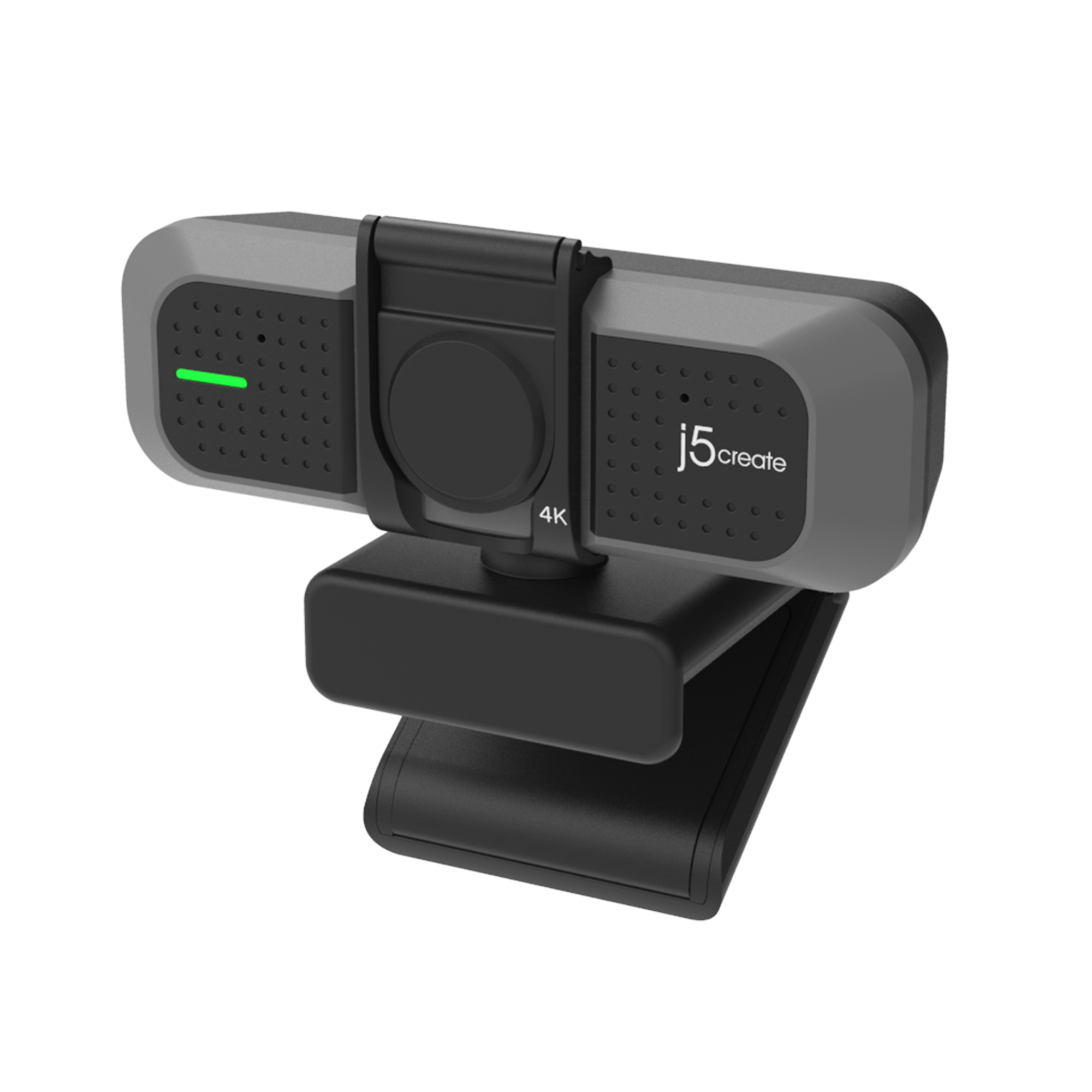

| Privacy camera | Yes |
| Privacy type | Privacy cover |
| Diagonal field of view | 94° |
| Firmware upgradeable | Yes |
| Power consumption (typical) | 5 W |
| Operating current | 0.5 A |
| Operating voltage | 5 V |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| Product colour | Black, Silver |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Mounting type | Clip/Stand |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Lens material | Glass |
| Built-in flash | No |
| Image stabilizer | No |
| USB powered | Yes |
| Cable length | 2 m |
| LED indicators | Power, Status |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 8.1 |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106 mm |
| Depth | 63.6 mm |
| Height | 64.6 mm |
| Weight | 215 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Package type | Box |
| Package width | 155 mm |
| Package depth | 95 mm |
| Package height | 70 mm |
| Package weight | 258.5 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Box contents | 1 x JVU430 USB™ 4K Ultra HD Webcam, 1 x Quick Installation Guide |
Microphone
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
System requirements
| Specification | Value |
|---|---|

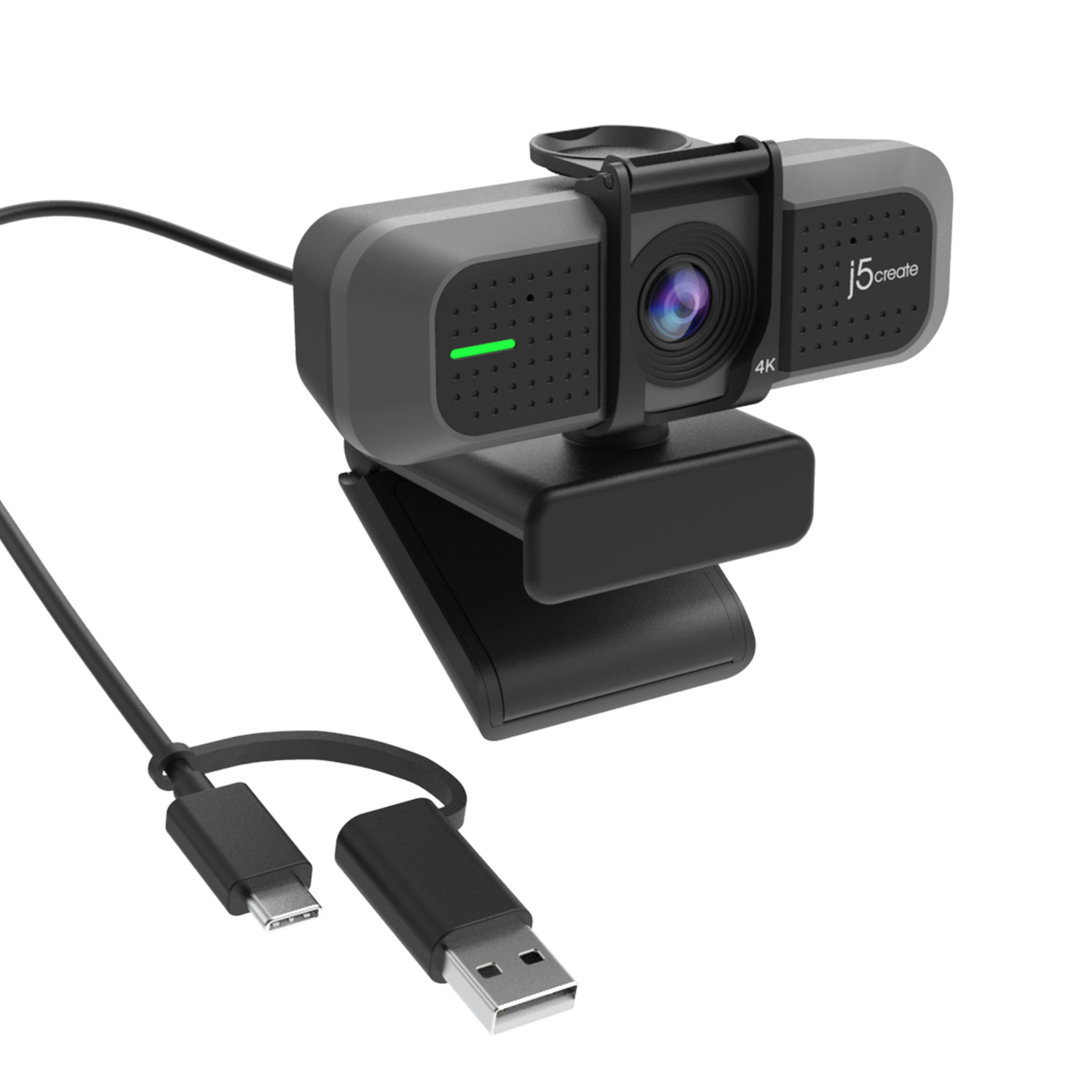

| Minimum system requirements | -AvailableUSB-C®or USB™Type-A port -Windows® 10 -macOS with UVC support -Chrome OS with UVC support -Operating systemswith standardUVC1.1/1.5&UAC 1.0support |
Logistics data
| Specification | Value |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8525.50.0000 |
| Export Control Classification Number (ECCN) | EAR99 |
| Minimum order quantity | 12 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case height | 16.5 cm |
| Shipping (inner) case length | 21.8 cm |
| Shipping (inner) case net weight | 860 g |
| Shipping (inner) case width | 10.3 cm |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 3.84 kg |
| Master (outer) case GTIN (EAN/UPC) | 24712795086069 |
| Products per master (outer) case | 12 pc(s) |
| Country of origin | Taiwan |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|
| Output power | 5 W |
