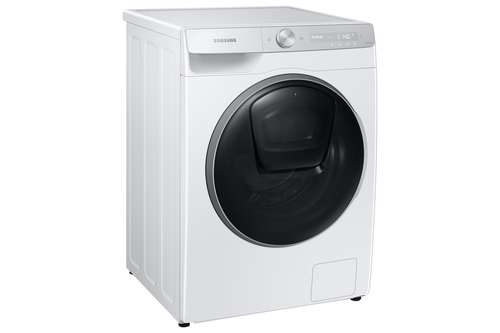

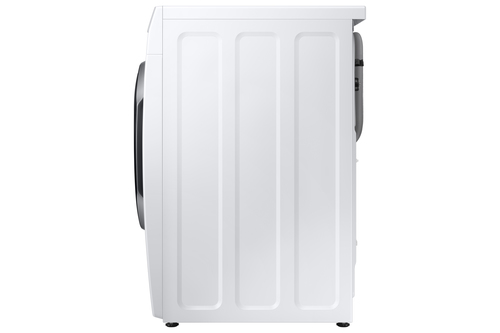

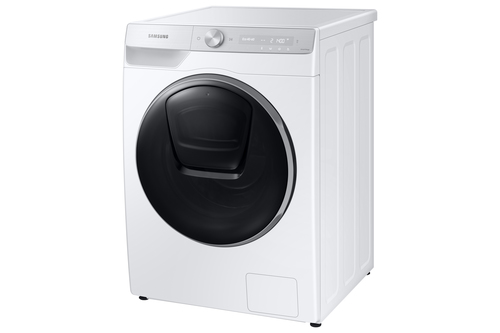

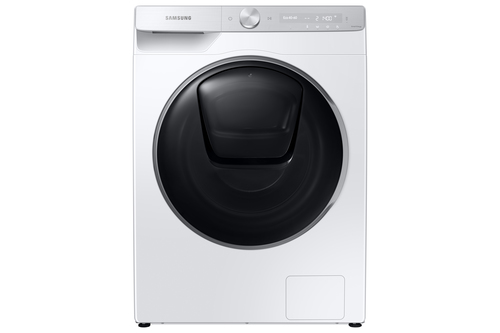

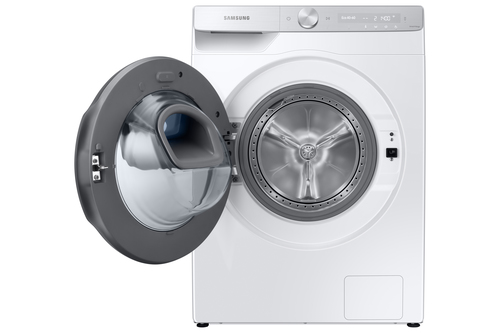

QuickDrive 8000 Series WW90T986ASH washing machine Front-load
9 kg 1600 RPM White
Model WW90T986ASHPart no. WW90T986ASH/S2EAN 8806090608193
61 specifications
- Energy classA+++
- Noise75 dB
- Weight79 kg
- ColourWhite
- Appliance placementFreestanding
- Rated capacity9 kg
Overview
- Energy class
- A+++
- Noise
- 75 dB
- Weight
- 79 kg
- Colour
- White
- Appliance placement
- Freestanding
- Rated capacity
- 9 kg
- Brand
- Samsung
- Category
- Washing Machine
- Model
- WW90T986ASH
- Part number
- WW90T986ASH/S2
- EAN / UPC
- 8806090608193
- Also known as
- Samsung QuickDrive 8000 Series WW90T986ASH washing machine Front-load 9 kg 1600 RPM White
Specifications
61 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Freestanding |
| Loading type | Front-load |
| Product colour | White |
| Custom panel-ready | Yes |
| Inverter technology | Yes |

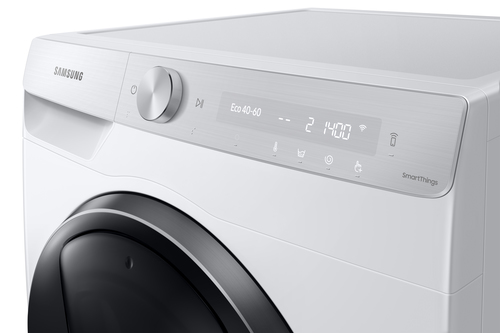

| Built-in display | Yes |
| Control type | Rotary, Touch |
| Door hinge | Left |
| Door colour | Black |

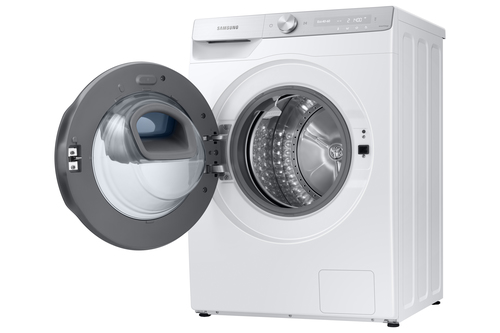

| Door opening angle | 125° |

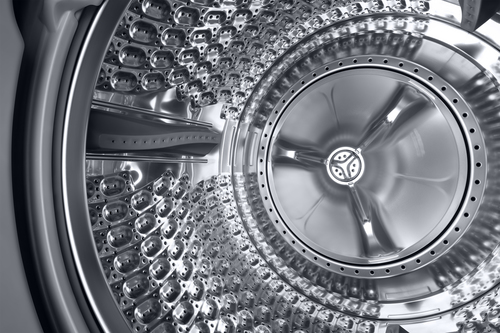

| Drum volume | 63 L |
| Motor type | Digital inverter |
Performance
| Specification | Value |
|---|---|
| Rated capacity | 9 kg |
| Maximum spin speed | 1600 RPM |
| Spin-drying class | A |
| Number of washing programs | 23 |
| Noise level (spin) | 75 dB |
| Noise level (wash) | 52 dB |
| Delayed start timer | Yes |
| Cycle time (max) | 211 min |
| Cycle time (quick washing program) | 39 min |
| Washing programs | Bedding, Baby care, Blouse/shirt, Cold, Cotton, Eco, Wool, Intensive/outdoor, Jeans/denim, Quick, Silent, Steam, Synthetics, Towel, Colour, Cloudy day, Rinse & spin, Spin/drain, Delicate/silk |
| Number of rinse selections | 5 |
| Adjustable spin speed | Yes |
| Load balancing system | Yes |

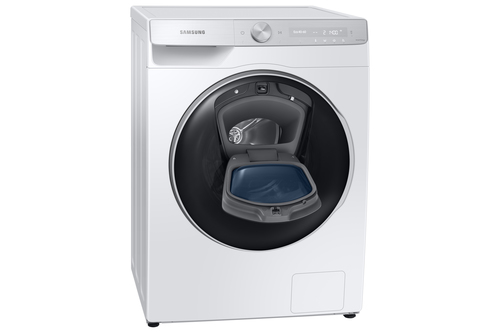

| Add garment (pause) function | Yes |
| Adjustable temperature | Yes |
| AquaStop function | Yes |
| Foam control system | Yes |
| Residual moisture | 44% |
| Smartphone/tablet remote support | Yes |
| AI control | Yes |
| AI wash | Yes |
| Wi-Fi controlled | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Child lock | Yes |
| Self-cleaning | Yes |
| Remaining time indication | Yes |
| On/off button | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (clothes care) | QuickDrive™, AddWash™ |
Power
| Specification | Value |
|---|---|
| Energy efficiency scale | A+++ to D |
| Energy efficiency class (legacy scale) | A+++ |
| Energy consumption washing per cycle | 0.58 kWh |
| Water consumption per cycle | 50 L |
| Power consumption (off) | 0.48 W |
| Power consumption (left-on) | 5 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 600 mm |
| Height | 850 mm |
| Weight | 79 kg |
| Door diameter | 31.1 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 666 mm |
| Package depth | 697 mm |
| Package height | 890 mm |
| Package weight | 81 kg |
Other features
| Specification | Value |
|---|---|
| Annual energy consumption washing | 130 kWh |
| Annual water consumption washing | 9400 L |
Logistics data
| Specification | Value |
|---|---|
| Products per intermodal container (20ft) | 48 pc(s) |
| Products per intermodal container (40ft) | 102 pc(s) |
| Products per intermodal container (40ft, HC) | 150 pc(s) |
