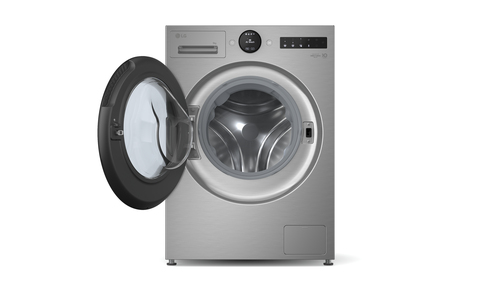

VX70 Series AI Direct Drive™ F4X7009TSB
9 kg 1400 Spin Washing Machine - Silver - A-40% Rated
Model F4X7009TSBEAN 8806096106402
215 specifications
- Energy classA
- Noise71 dB
- Weight70 kg
- ColourSilver
- Appliance placementFreestanding
- Rated capacity9 kg
Overview
- Energy class
- A
- Noise
- 71 dB
- Weight
- 70 kg
- Colour
- Silver
- Appliance placement
- Freestanding
- Rated capacity
- 9 kg
- Brand
- LG
- Category
- Washing Machine
- Model
- F4X7009TSB
- Part number
- F4X7009TSB
- EAN / UPC
- 8806096106402
- Also known as
- LG VX70 Series AI Direct Drive™ F4X7009TSB 9 kg 1400 Spin Washing Machine - Silver - A-40% Rated
Specifications
215 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Freestanding |
| Loading type | Front-load |
| Product colour | Silver |
| Colour name | Silver |
| Inverter technology | Yes |
| Built-in display | Yes |
| Display type | LCD |
| Display illumination | Yes |
| Control type | Rotary, Touch |
| Illumination colour | White |
| Door hinge | Left |
| Door opening | Side opening |
| Door colour | Black |
| Door opening angle | 150° |
| Door type | Tempered glass |
| Reversible doors | No |
| Rim colour | Black |
| Drum material | Stainless steel |
| Drum type | Embossing |
| Tub material | Polyurethane |
| Cord length | 1.9 m |
| Inlet hose length | 1.3 m |
| Outlet hose length | 1.75 m |
| Dispenser tray type | 3-way |
| Drum volume | 68 L |
| Motor type | Beltless |
| Universal motor | Yes |
| Viewing window | Yes |
| Water fill | Cold |
| Suitable for undercounter installation | No |
| Removable top | No |
| Country of origin | China |
| Dutch control panel | No |
Performance
| Specification | Value |
|---|---|
| Rated capacity | 9 kg |
| Maximum spin speed | 1350 RPM |
| Spin-drying class | B |
| Number of washing programs | 24 |
| Noise emission class | A |
| Noise level (spin) | 71 dB |
| Noise level (wash) | 56 dB |
| Delayed start timer | Yes |
| Delay start (max) | 19 h |
| Delay start (min) | 1 h |
| Timer | Yes |
| Cycle time (max) | 228 min |
| Cycle time (quick washing program, small load) | 14 min |
| Cycle time (quick washing program) | 39 min |
| Washing programs | Baby care, Bedding, Blouse/shirt, Cold, Cotton, Delicate/silk, Down wear/duvet, Easy care, Eco 40-60°C, Hand/wool, Hygiene/anti-allergy, Microfiber, Mix, Quick, Quick 14min, Rinse & spin, Silent, Smart AI, Spin/drain, Sport, Towel |
| Half-load | No |
| No rinse | No |
| Rinse hold | Yes |
| Rinse Plus function | Yes |
| Water Plus | No |
| Rinsing effectiveness | 5 g/kg |
| Number of rinse selections | 5 |
| Custom program | Yes |
| Overflow protection | Yes |
| Adjustable spin speed | Yes |
| Minimum spin speed | 400 RPM |
| Automatic load recognition | Yes |
| Load balancing system | Yes |
| Self adjusting water level | Yes |
| Add garment (pause) function | Yes |
| Adjustable temperature | Yes |
| Anti-Crease function | No |
| AquaStop function | No |
| Built-in spirit level | No |
| Easy iron function | No |
| Fast+ function | Yes |
| Foam control system | Yes |
| Left-on mode duration | 10 min |
| Menu languages | English |
| Residual moisture | 53.9% |
| Smartphone/tablet remote support | Yes |
| Stain remover option | No |
| Sterilization function | Yes |
| UV Hygiene technology | No |
| AI control | Yes |
| AI wash | Yes |
| Minimum water flow pressure | 50 kPa |
| Maximum water flow pressure | 800 kPa |
| Independently connects to the internet | No |
| Wi-Fi controlled | Yes |
| App required for full functionality | No |
| Near Field Communication (NFC) | No |
| Bluetooth | No |
| Apps supported | LG ThinQ |
| Apps functions | Downloadable additional programs, Favourite programs, Remote diagnostic, Remote monitoring, Remote start |
| Cycle time (40°C, partial load) | 138 min |
| No spin | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Child lock | Yes |
| Sensor program selection | Yes |
| Auto diagnostic | Yes |
| Voice commands | No |
| Automatic dosing system | No |
| Dosage assistant | No |
| Auto-restart | Yes |
| Overdosage indication | Yes |
| TurboWash | Yes |
| Over voltage protection | Yes |
| Self-cleaning | Yes |
| Drum Clean | Yes |
| Eco Drum Clean | No |
| Liquid detergent container | No |
| Powder detergent function | Yes |
| Filter cleaning indicator | No |
| Remaining time indication | Yes |
| Error message indicator | Yes |
| Water supply lacking indicator | Yes |
| Electrical component fault indicator | Yes |
| LED program stage indicator | Yes |
| Door open alarm | Yes |
| Buzzer | Yes |
| Automatic locking | Yes |
| Castor wheels | No |
| Adjustable back feet from front | Yes |
| Adjustable feet | Yes |
| Drum interior light | No |
| Feet adjustment | 2 cm |
| Machine care | Yes |
| Number of adjustable feet | 4 |
| On/off button | Yes |
| Stackable | Yes |
| Feet adjustment type | Front & Rear |
| Feet extension (min) | 1 cm |
Brand-specific features
| Specification | Value |
|---|---|
| LG technologies (clothes care) | 6 Motion DD, AI DD™, Allergy Care, Big capacity, Inverter Direct Drive Motor, Pause & Add, Smart Pairing, Speed 14, Stainless steel lifters, Steam™, ThinQ™, TurboWash™360 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A to G |
| Energy consumption per 100 cycles | 29 kWh |
| Energy consumption washing per cycle | 0.294 kWh |
| Water consumption per cycle | 46 L |
| Power consumption (typical) | 2 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (left-on) | 2 W |
| Power plug type | Type G |
| Energy efficiency index (EEI) | 30.9 |
| Washing efficiency index (EU 2017/1369) | 1.031 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 620 mm |
| Height | 850 mm |
| Weight | 70 kg |
| Depth with door closed | 62 cm |
| Depth with door open | 110 cm |
| Installation compartment width | 64 cm |
| Installation compartment depth | 72 cm |
| Installation compartment height | 85.5 cm |
| Door opening diameter | 30 cm |
| Gross weight | 73.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Laundry wash bag included | No |
| Manual | Yes |
| Manual languages | English |
| Product languages | English |
| Package width | 660 mm |
| Package depth | 660 mm |
| Package height | 890 mm |
| Package weight | 73.8 kg |
| Package type | Box |
| Package dimensions (WxDxH) | 660 x 660 x 890 mm |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 600 x 620 x 850 mm |
| Category | Washing Machine |
| Doesn't contain | Chlorofluorocarbon (CFC), Hydrofluorocarbon (HFC) |
| Energy consumption | 29 kWh |
| Hand wash | Yes |
| Hose extender compatible | No |
| Indication light | Yes |
| Model year | 2024 |
| Number of programs | 24 |
| Pause function | Yes |
| Power requirements | Mains |
| Professional installation required | No |
| Rated capacity (washing) | 11 kg |
| Required tools | Standard tool box |
| Spare part retention | 7 year(s) |
| Spin speed | 1400 RPM |
| EAN | 8806096106402 |
| Eco program duration | 240 min |
| Fuzzy Logic controls | Yes |
| Net weight | 70 kg |
| Sportswear program | Yes |
| Warranty period | 5 year(s) |
| Washing class | A |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| PSTI certified | Yes |
| Chemical tax (Sweden) | No |
Supplier features
| Specification | Value |
|---|---|
| Product or Article Information Sheet available? | Yes |
Logistics data
| Specification | Value |
|---|---|
| Expanded Polystyrene (EPS) packaging weight | 541 g |
| Metal packaging weight | 0 g |
| Paper packaging weight | 3.09 kg |
| Plastic packaging weight | 137 g |
| Wood packaging weight | 0 g |
| Cardboard packaging weight | 3.09 kg |
| Customs product code (TARIC) | 8450119000 |
| Harmonized System (HS) code | 84501190 |
| Intrastat code | 8450119000 |
| Master (outer) case GTIN (EAN/UPC) | 8806096106402 |
| Master (outer) case gross weight | 73.8 kg |
| Master (outer) case height | 890 mm |
| Master (outer) case length | 660 mm |
| Master (outer) case volume | 387684 cm³ |
| Master (outer) case width | 660 mm |
| Package volume | 387684 cm³ |
| Polyethylene (PE) packaging weight | 52 g |
| Polypropylene (PP) packaging weight | 85 g |
| Polystyrene (EPS/EPP) packaging weight | 541 g |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 2 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Quantity per pack | 1 pc(s) |
| Rubber packaging weight | 0 g |
| Products per intermodal container (40ft) | 159 pc(s) |
| Minimum order quantity | 1 pc(s) |
| Proper shipping name | F4X7011TBB.AEBQPUK |
| UK Trade Tariff code | 8450119000 |
