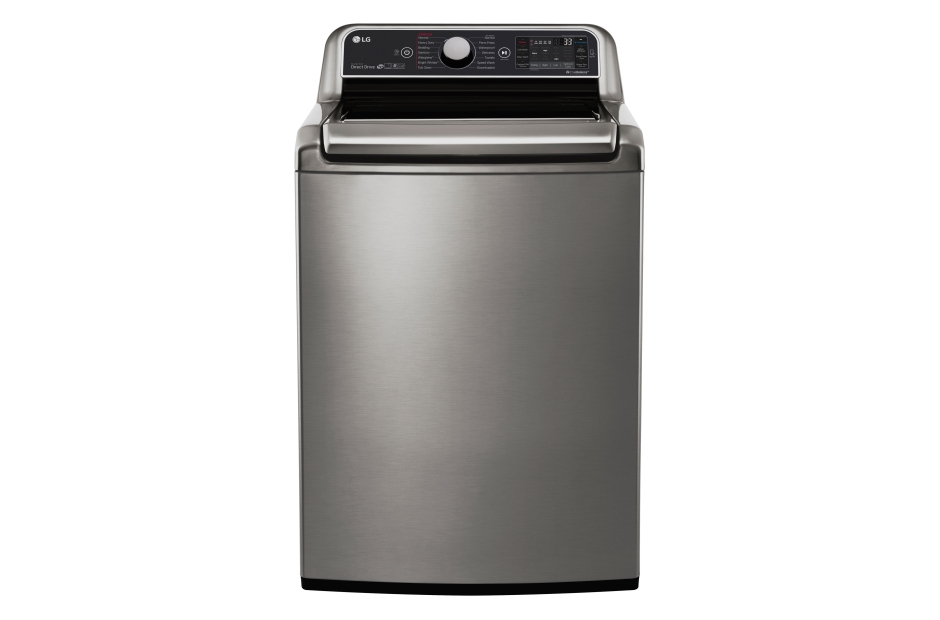

WT7710HVA washing machine Top-load 950 RPM Graphite
Model WT7710HVAEAN 048231015202
41 specifications
- Weight75.3 kg
- ColourGraphite
- Appliance placementFreestanding
- Maximum spin speed950 RPM
- Child lockYes
- LG technologies (clothes care)Inverter Direct Drive Motor
Overview
- Weight
- 75.3 kg
- Colour
- Graphite
- Appliance placement
- Freestanding
- Maximum spin speed
- 950 RPM
- Child lock
- Yes
- LG technologies (clothes care)
- Inverter Direct Drive Motor
- Brand
- LG
- Category
- Washing Machine
- Model
- WT7710HVA
- Part number
- WT7710HVA
- EAN / UPC
- 048231015202
- Also known as
- LG WT7710HVA washing machine Top-load 950 RPM Graphite
Specifications
41 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Freestanding |
| Loading type | Top-load |
| Product colour | Graphite |
| Inverter technology | Yes |
| Built-in display | Yes |
| Display type | LED |
| Control type | Buttons, Rotary, Touch |
| Door hinge | Up |
| Door colour | Graphite |
| Drum material | Stainless steel |
| Dispenser tray type | 3-way |
| Drum volume | 161.4 L |
| Motor type | Beltless |
| Viewing window | Yes |
| Certification | CSA |
Performance
| Specification | Value |
|---|---|
| Maximum spin speed | 950 RPM |
| Number of washing programs | 14 |
| Delayed start timer | Yes |
| Washing programs | Hygiene/anti-allergy, Cold, Cotton, Quick, Steam, Spin/drain, Delicate/silk |
| Rinse Plus function | Yes |
| Adjustable spin speed | Yes |
| Load balancing system | No |
| Add garment (pause) function | Yes |
| Adjustable temperature | Yes |
| Near Field Communication (NFC) | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Child lock | Yes |
| TurboWash | Yes |
| Buzzer | Yes |
| Adjustable feet | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| LG technologies (clothes care) | Inverter Direct Drive Motor |
Power
| Specification | Value |
|---|---|
| AC input voltage | 120 V |
| Current | 10 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 737 mm |
| Depth | 737 mm |
| Height | 1149 mm |
| Weight | 75.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 857 mm |
| Package depth | 811 mm |
| Package height | 1220 mm |
| Package weight | 86.3 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Energy efficiency
ENERGY STAR certified
Clothes washers · model WT7710H*A · certified Mar 26, 2019 · United States, Canada
| Measurement | Value |
|---|---|
| Annual energy use | 150 kWh/year |
| Annual water use | 5,381 US gal/year |
