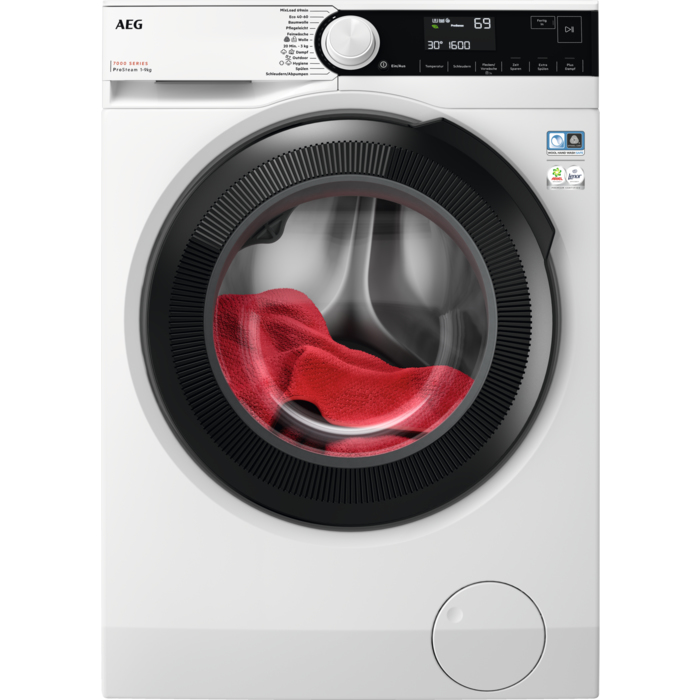

LR7A70690 washing machine Front-load
9 kg 1600 RPM White
Model LR7A70690Part no. 914 501 511EAN 7332543848683
48 specifications
- Energy classA
- Noise76 dB
- Weight76.5 kg
- ColourWhite
- Appliance placementFreestanding
- Rated capacity9 kg
Overview
- Energy class
- A
- Noise
- 76 dB
- Weight
- 76.5 kg
- Colour
- White
- Appliance placement
- Freestanding
- Rated capacity
- 9 kg
- Brand
- AEG
- Category
- Washing Machine
- Model
- LR7A70690
- Part number
- 914 501 511
- EAN / UPC
- 7332543848683
- Also known as
- AEG LR7A70690 washing machine Front-load 9 kg 1600 RPM White
Specifications
48 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Freestanding |
| Loading type | Front-load |
| Product colour | White |
| Inverter technology | Yes |
| Built-in display | Yes |
| Display type | LED |
| Control type | Rotary, Touch |
| Door hinge | Left |
| Door colour | Black |
| Door handle colour | Black |
| Inlet hose length | 1.5 m |
| Outlet hose length | 1.45 m |
| Dispenser tray type | 4-way |
| Viewing window | Yes |
Performance
| Specification | Value |
|---|---|
| Rated capacity | 9 kg |
| Maximum spin speed | 1600 RPM |
| Spin-drying class | B |
| Noise emission class | B |
| Noise level (spin) | 76 dB |
| Delayed start timer | Yes |
| Cycle time (max) | 220 min |
| Washing programs | Cotton, Easy care, Eco, Hand/wool, Hygiene/anti-allergy, Outdoor, Rinse |
| Rinsing effectiveness | 4.9 g/kg |
| Adjustable temperature | Yes |
| Residual moisture | 52.8% |
Ergonomics
| Specification | Value |
|---|---|
| Child lock | Yes |
| Remaining time indication | Yes |
| Buzzer | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A to G |
| Energy consumption per 100 cycles | 49 kWh |
| Energy consumption washing per cycle | 0.493 kWh |
| Water consumption per cycle | 46 L |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Connected load | 2200 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current | 10 A |
| Energy efficiency index (EEI) | 51.8 |
| Washing efficiency index (EU 2017/1369) | 1.031 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 597 mm |
| Depth | 660 mm |
| Height | 847 mm |
| Weight | 76.5 kg |
| Depth with door closed | 66 cm |
| Depth with door open | 110.1 cm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 78 kg |
