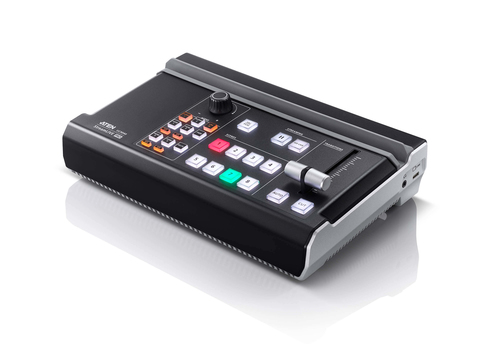

UC9040-AT-E video mixer 4K Ultra HD
Model UC9040-AT-E
28 specifications
- Weight2.5 kg
- ColourBlack, Grey
- HD type4K Ultra HD
- Video formats supportedH.264, H.265
- Ethernet LANYes
- Built-in displayNo
Overview
- Weight
- 2.5 kg
- Colour
- Black, Grey
- HD type
- 4K Ultra HD
- Video formats supported
- H.264, H.265
- Ethernet LAN
- Yes
- Built-in display
- No
- Brand
- ATEN
- Category
- Video Mixer
- Model
- UC9040-AT-E
- Part number
- UC9040-AT-E
- Also known as
- ATEN UC9040-AT-E video mixer 4K Ultra HD
Specifications
28 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Video resolutions | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050 |
| Supported video modes | 1080p, 2160p |
Performance
| Specification | Value |
|---|---|
| Video formats supported | H.264, H.265 |
| Audio formats supported | AAC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

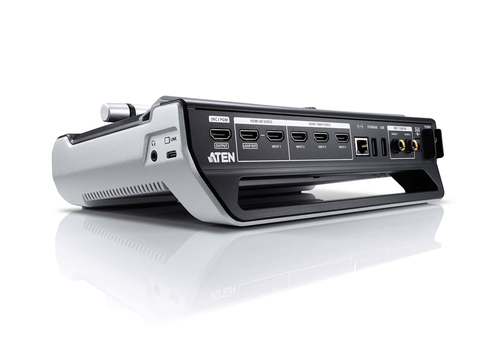

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black, Grey |
| Housing material | Metal |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 288.5 mm |
| Depth | 189.9 mm |
| Height | 96.6 mm |
| Weight | 2.5 kg |
| Package width | 290 mm |
| Package depth | 365 mm |
| Package height | 133 mm |
| Package weight | 3.59 kg |
