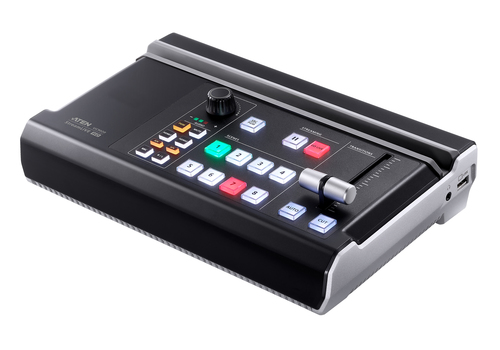

UC9020 video mixer 4K Ultra HD
Model UC9020EAN 672792010972
26 specifications
- Weight1.89 kg
- ColourBlack
- HD type4K Ultra HD
- Video formats supportedH.264
- Ethernet LANYes
- Built-in displayNo
Overview
- Weight
- 1.89 kg
- Colour
- Black
- HD type
- 4K Ultra HD
- Video formats supported
- H.264
- Ethernet LAN
- Yes
- Built-in display
- No
- Brand
- ATEN
- Category
- Video Mixer
- Model
- UC9020
- Part numbers
- UC9020, UC9020-AT-E
- EAN / UPC
- 672792010972
- Also known as
- ATEN UC9020 video mixer 4K Ultra HD
Specifications
26 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Video resolutions | 640 x 480,720 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1600 x 1200,1680 x 1050,1920 x 1080,3840 x 2160,4096 x 2160 |
| Supported video modes | 480p, 720p, 1080p |
| Compression ratio | 4:2:2 |
| Video processing | 8 bit |
Performance
| Specification | Value |
|---|---|
| Video formats supported | H.264 |
| Audio formats supported | AAC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

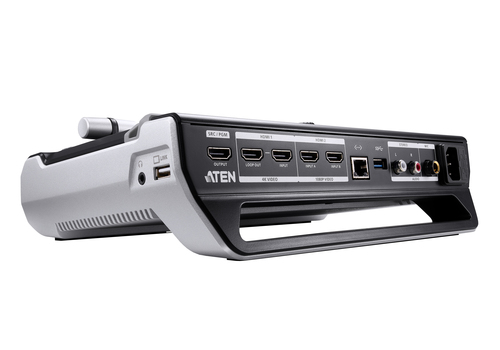

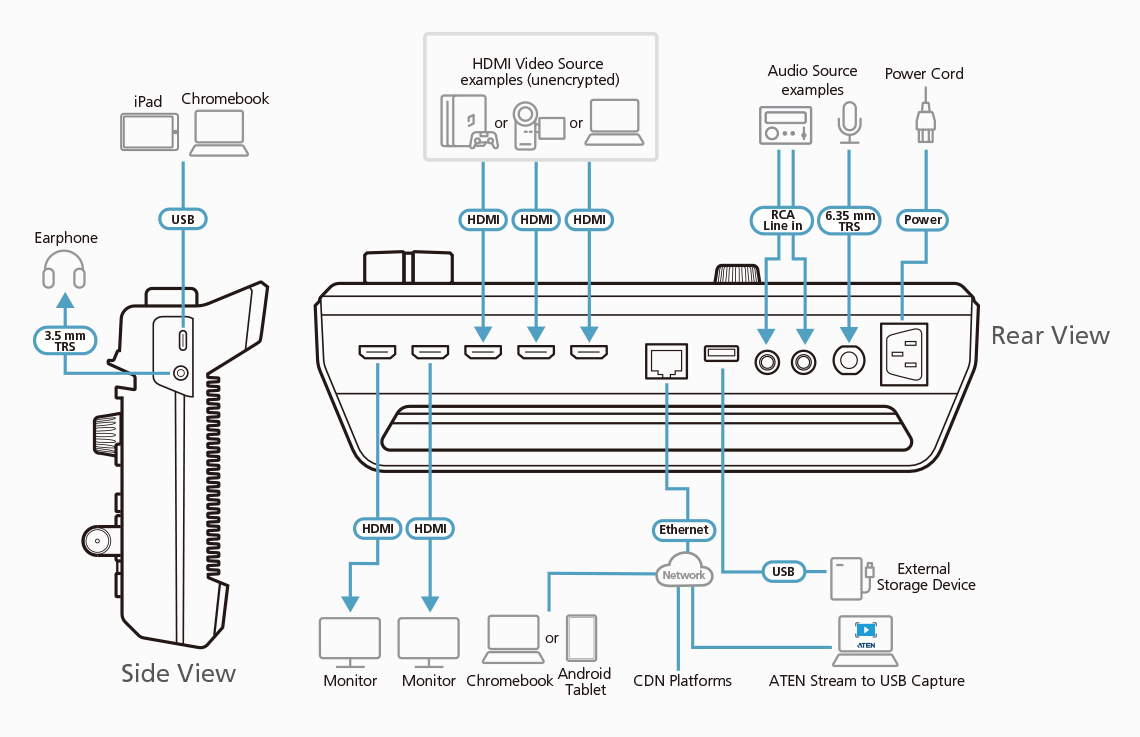

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 3 |
| Number of HDMI outputs | 2 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| USB 2.0 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 12.9 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 189.9 mm |
| Depth | 288.5 mm |
| Height | 96.6 mm |
| Weight | 1.89 kg |
