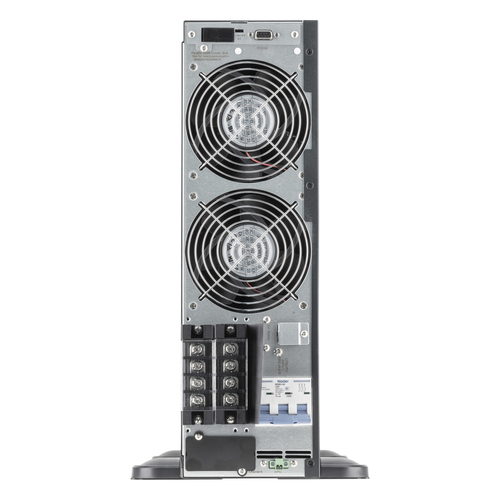

Legrand UPS DAKER DK PLUS 10000VA 3/1 NO BATT

Legrand UPS DAKER DK PLUS 10000VA 3/1 NO BATT

Model UPS DAKER DK PLUS 10000VA 3/1 NO BATTPart no. 310178EAN 3414970827005

62 specifications
  • Noise50 dB
  • TypeRackmount
  • Weight28 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
See all specifications

Overview

Noise
50 dB
Type
Rackmount
Weight
28 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Brand
Legrand
Model
UPS DAKER DK PLUS 10000VA 3/1 NO BATT
Part number
310178
EAN / UPC
3414970827005
Also known as
Legrand Daker DK+ UPS DAKER DK PLUS 10000VA 3/1 NO BATT uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 9000 W 1 AC outlet(s)

Specifications

62 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power9000 W
WaveformSine
Input operation voltage (min)176 V
Input operation voltage (max)280 V
Input frequency47/63 Hz
Output operation voltage (min)228 V
Output operation voltage (max)232 V
Output frequency50/60 Hz
Output voltage regulation1%
Surge energy rating1900 J
Number of input phases3
Number of output phases1
Efficiency90%
Efficiency (ECO mode)98%
Power factor0.9
Input power factor0.99
Output power factor0.9
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Noise level50 dB
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Potential-free outputNo
Auto shut-offNo
Detachable power cordYes
Power source typeAC

Ports & interfaces

AC outlet typesHardwire
Power plugHardwire
AC outlets quantity1 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRS-232

Design

Form factorRackmount
Product colourBlack
Rack capacity3U
Display typeLCD
LED indicatorsStatus
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

CertificationEN 62040-1, EN 62040-2, EN 62040-3

Weight & dimensions

Width132 mm
Depth680 mm
Height440 mm
Weight28 kg

Packaging data

Package width132 mm
Package depth39.5 mm
Package height440 mm
Package weight30.6 kg

Logistics data

Products per pallet4 pc(s)
Pallet net height95 cm
Pallet net length100 cm
Pallet net weight128.8 kg
Pallet net width120 cm
Master (outer) case width560 mm
Master (outer) case length890 mm
Master (outer) case height265 mm
Master (outer) case gross weight32.2 kg
Products per master (outer) case1 pc(s)
