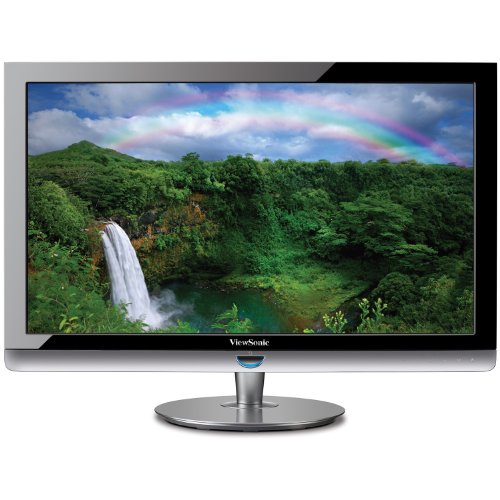

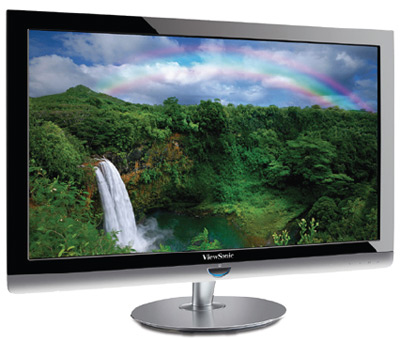

VT2300LED 58.4 cm (23") Full HD Black 250 cd/m²
Model VT2300LEDPart no. VT2300-LED
57 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ColourBlack
- Number of speakers2
- HDMI ports quantity1
- On Screen Display (OSD)Yes
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Number of speakers
- 2
- HDMI ports quantity
- 1
- On Screen Display (OSD)
- Yes
- Brand
- Viewsonic
- Category
- TV
- Model
- VT2300LED
- Part numbers
- VT2300-LED, VT2300LED
- Also known as
- Viewsonic VT2300LED 58.4 cm (23") Full HD Black 250 cd/m²
Specifications
57 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Contrast ratio (dynamic) | 8000:1 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 170° |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Stand-by |

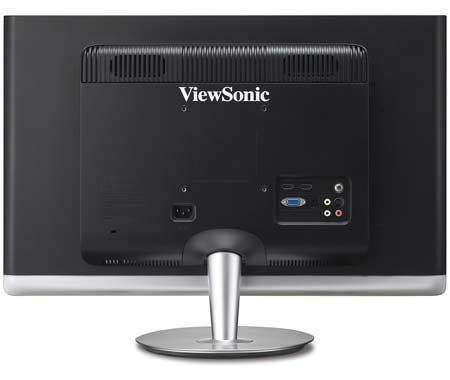

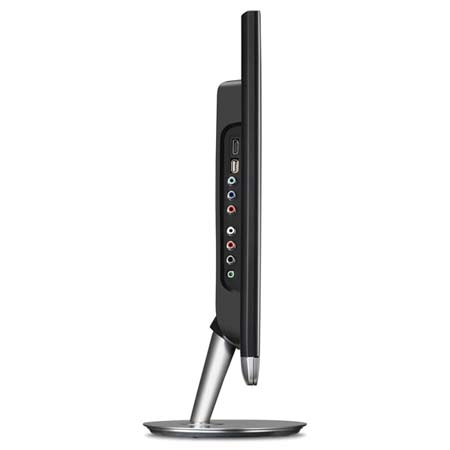

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDCP | Yes |
| PC in (D-Sub) | Yes |
| USB 2.0 ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 0 |
| Headphone outputs | 1 |
| RS-232 ports | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 1 |
| Common interface (CI) | No |
| S-Video inputs quantity | 1 |
Management features
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| On/Off timer | Yes |
| Sleep timer | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, cUL (UL), RoHS, NOM, BETS-7, CB |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 565 mm |
| Depth (with stand) | 191 mm |
| Height (with stand) | 418 mm |
| Weight (with stand) | 4.5 kg |
| Width (without stand) | 565 mm |
| Depth (without stand) | 45 mm |
| Height (without stand) | 358 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Tilt angle range | -5 - 15° |
| Depth (imperial) | 19.1 cm (7.5") |
| Headphone connectivity | 3.5 mm |
| Height (imperial) | 41.9 cm (16.5") |
| Mean time between failures (MTBF) | 30000 h |
| Operating relative humidity (H-H) | 10 - 65% |
| Power requirements | 100-240V |
| Width (imperial) | 56.4 cm (22.2") |
| Digital horizontal frequency | 30 - 64 kHz |
| Digital vertical frequency | 60 - 75 Hz |
