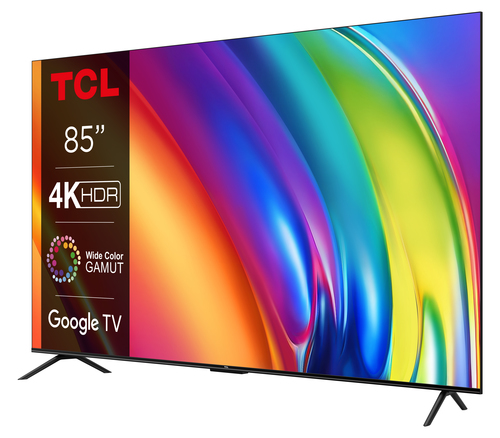

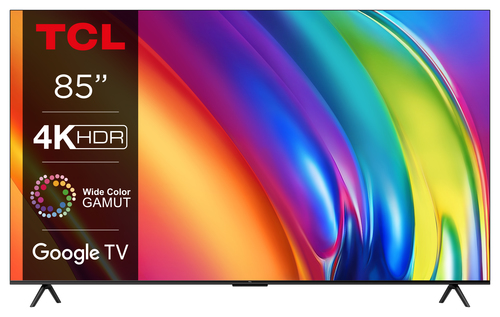

P745 85P745 4K LED Google TV
Model 85P745EAN 5901292520298
216 specifications Checked today
- Display2.16 m (85")
- Resolution3840 x 2160 pixels
- Energy classG
- OSGoogle TV
- ColourBlack
- Tuner typeAnalog & digital
Overview
- Display
- 2.16 m (85")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- OS
- Google TV
- Colour
- Black
- Tuner type
- Analog & digital
- Brand
- TCL
- Category
- TV
- Model
- 85P745
- Part number
- 85P745
- EAN / UPC
- 5901292520298
- Also known as
- TCL P745 85P745 4K LED Google TV
Specifications
216 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 2.16 m (85") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Display brightness | 350 cd/m² |
| Progressive scan | Yes |
| Response time | 14 ms |
| Motion interpolation technology | PPI (Picture Perfomance Index) 2700 |
| Native refresh rate | 60 Hz |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Colour depth | 10 bit |
| Anti-glare screen | No |
| Colour gamut standard | Rec. 709 |
| Display diagonal (metric) | 248.9 cm |
| Peak luminance ratio | 65% |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Analog signal format system | NTSC, PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Number of tuners | 1 tuner(s) |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | Google TV |
| Operating system version | 11.0 |
| Timeshift | No |
| Screen mirroring | Yes |
| Apple AirPlay 2 support | No |
| Video on Demand (VOD) support | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.3 |
| Smart modes | Dolby Vision, Dynamic, Game, Movie, Normal, Smart HDR, Sports, Standard |
| Built-in Chromecast | Yes |
| Far-field voice interaction | Yes |
| Universal guide | Yes |
| App distribution platform | Google Play |
| Lifestyle apps | Google Apps |
| Music apps | Spotify, Tidal, YouTube Music |
| Video apps | Amazon Prime Video, Apple TV, Disney+, HBO, Netflix, Twitch, YouTube |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| Audio output channels | 2.0 channels |
| RMS rated power | 30 W |
| Built-in subwoofer | No |
| Audio decoders | DTS, Dolby Atmos, DTS Virtual:X, DTS-HD |
| Equalizer | Yes |
| Equalizer bands quantity | 7 |
| Auto volume leveller | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Bluetooth profiles | A2DP, HID |
| Miracast | Yes |
| Browsing | Yes |
| Web browser | Yes |
| HID support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 300 mm |
| On/off switch | Yes |
| Rollable display | No |
| Ambient lighting | No |
| LED indicators | Yes |
| Frameless design | Yes |
| Introduction year | 2023 |
| Bezel type | 3 Bezel-less |
| Stand type | Legs stand |
| Stand colour | Black |
| Heavy metals free | Cd (cadmium) |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| Game mode | Yes |
| Teletext function | Yes |
| Subtitles function | Yes |
| Audio formats supported | MP3, WMA |
| Image formats supported | BMP, HEIF, JPG |
| Video compression formats | H.264, H.265, MPEG2 |
| Video formats supported | AVI, H.264, H.265, MKV, MP4, MPG, TS, VP9, WEBM, WMV |
| Ambient light sensor | No |
| Ambient mode | Intelligent Picture |
| AI Upscale | Yes |
| Backlight dimming technology | Local Dimming |
| Picture processing technology | TCL AiPQ 3.0 Engine |
| Noise reduction | Yes |
| Processor cores | 4 |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Game features | Auto Low Latency Mode (ALLM), Game Bar |
| Calman Ready | No |
| 4K Ultra HD upscaling | Yes |
| Adaptive picture | Yes |
| Multi View | Yes |
| Video upscaling | Yes |
| Smartphone/tablet remote support | Yes |
| USB recording | No |
| DVD player | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| HDMI Quick Switch | Yes |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| PC in (D-Sub) | No |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio (L/R) out | 1 |
| Digital audio optical out | 1 |
| Digital audio coaxial in | 0 |
| Digital audio coaxial out | 0 |
| Headphone outputs | 1 |
| RF ports quantity | 2 |
| RF connector type | F, IEC |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
| AC (power) in | Yes |
| Component video (YPbPr/YCbCr) out | 1 |
| Consumer Electronics Control (CEC) | T-link |
| Intel® Wireless Display (Intel® WiDi) | Yes |
Management features
| Specification | Value |
|---|---|
| Control type | Buttons |
| Voice control | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Programming period | 8 day(s) |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 29 |
| On Screen Display (OSD) languages | ALB, Bulgarian, Croatian, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hungarian, Italian, LAT, Lithuanian, MAC, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Slovenian, Swedish, Turkish, Ukrainian |
| Picture-in-Picture | Yes |
| Hotel mode | No |
| ECO mode | Yes |
| Auto power off | Yes |
| On/Off timer | Yes |
| Sleep timer | Yes |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network, USB |
| Works with Amazon Alexa | Yes |
| Works with Samsung Bixby | No |
| Works with the Google Assistant | Yes |
| Works with Apple Siri | No |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 168 kWh |
| Energy consumption (HDR) per 1000 hours | 310 kWh |
| AC input voltage | 220-240 V |
| AC input frequency | 50/60 Hz |
| Energy saving mode | Yes |
Battery
| Specification | Value |
|---|---|
| Battery weight | 15 g |
| Battery technology | Alkaline |
Technical details
| Specification | Value |
|---|---|
| Chemical tax (Sweden) | Yes |
| Chemical tax reduction (Sweden) | 0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1897 mm |
| Depth (with stand) | 408 mm |
| Height (with stand) | 1167 mm |
| Weight (with stand) | 31.2 kg |
| Width (without stand) | 1897 mm |
| Depth (without stand) | 79 mm |
| Height (without stand) | 1092 mm |
| Weight (without stand) | 30.5 kg |
| Stand width | 189.7 cm |
| Stand depth | 40.8 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2055 mm |
| Package depth | 207 mm |
| Package height | 1205 mm |
| Package weight | 43.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Mounting kit | No |
| Cables included | AC |
| Remote control included | Yes |
| Remote control type | RC833 |
| Smart Remote included | Yes |
| Soundbar included | No |
| E-manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Maximum number of stacking cartons | 1 pc(s) |
| Master (outer) case gross weight | 49.9 kg |
| Master (outer) case height | 1275 mm |
| Master (outer) case length | 245 mm |
| Master (outer) case width | 2058 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet layer | 3 pc(s) |
| Pallet net width | 2.2 m |
| Pallet net length | 80 cm |
| Pallet net height | 141.5 cm |
| Pallet net weight | 162.6 kg |
| Pallet gross width | 2.2 m |
| Pallet gross length | 80 cm |
| Pallet gross height | 141.5 cm |
| Pallet gross weight | 162.6 kg |
| Products per pallet | 3 pc(s) |
| Layers per pallet | 1 pc(s) |
| Quantity per truck | 54 pc(s) |
| Number of pallets per truck | 18 pc(s) |
Other features
| Specification | Value |
|---|---|
| Channel list copy function | Yes |
| Cord length | 1.5 m |
| Processor architecture | ARM Cortex-A55 |
| Processor frequency | 1.3 GHz |
| Access time | 15 ms |
| Built-in camera | No |
| Country of origin | Poland |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Power plug type | Type E |
| Quantity per box | 1 pc(s) |
| User memory | 9.2 GB |
| Presence of lead | No |
| Warranty period | 2 year(s) |
