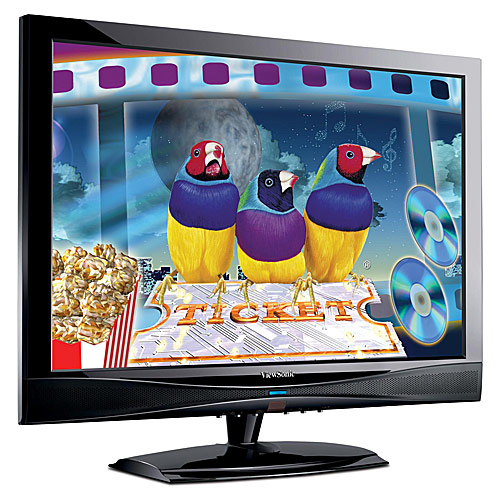

A Series N2230w
55.9 cm (22") WSXGA+ Black 300 cd/m²
Model N2230wPart no. N2230WEAN 766907299717
41 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- Number of speakers2
- HDMI ports quantity1
- Power consumption (typical)48 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- Number of speakers
- 2
- HDMI ports quantity
- 1
- Power consumption (typical)
- 48 W
- Brand
- Viewsonic
- Category
- TV
- Model
- N2230w
- Part number
- N2230W
- EAN / UPC
- 766907299717
- Also known as
- Viewsonic A Series N2230w 55.9 cm (22") WSXGA+ Black 300 cd/m²
Specifications
41 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| HD type | WSXGA+ |
| Display resolution | 1680 x 1050 pixels |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (dynamic) | 8000:1 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Viewable size diagonal | 58.5 cm |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 2.5 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| PC in (D-Sub) | Yes |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| S-Video inputs quantity | 1 |
| RGB ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 48 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL, FCC, NOM, EN 55013, CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 518 mm |
| Depth (with stand) | 156 mm |
| Height (with stand) | 422 mm |
| Weight (with stand) | 6.7 kg |
| Width (without stand) | 518 mm |
| Depth (without stand) | 77 mm |
| Height (without stand) | 368 mm |
| Weight (without stand) | 5.9 kg |
Other features
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Compatible operating systems | Power Mac G3/G4/G5 |
| Operating relative humidity (H-H) | 10 - 65% |
| Power requirements | AC 100-240V 47-63Hz |
| Digital horizontal frequency | 30 - 64 kHz |
| Digital vertical frequency | 60 - 75 Hz |
