Q7D Pro SQD-Mini LED TV

Q7D Pro SQD-Mini LED TV

Model Q7D Pro SQD-Mini LED TVPart no. TCL65Q7DPROGTVEAN 6937574872921

98 specifications Checked today

Display165.1 cm (65")
Resolution3840 x 2160 pixels
Memory3 GB
Energy classE
OSGoogle TV
Smart TVYes

See all specifications

Overview

Display: 165.1 cm (65")
Resolution: 3840 x 2160 pixels
Memory: 3 GB
Energy class: E
OS: Google TV
Smart TV: Yes

Brand: TCL
Category: TV
Model: Q7D Pro SQD-Mini LED TV
Part numbers: TCL65Q7DPROGTV, TCL75Q7DPROGTV, TCL55Q7DPROGTV
EAN / UPC: 6937574872921, 6937574872891, 6937574872839
Also known as: TCL Q7 Q7D Pro SQD-Mini LED TV

Specifications

98 specifications in 16 groups

Display

Specification	Value
Display diagonal	165.1 cm (65")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	SQD-Mini LED
LED backlight	Yes
LED backlighting type	Mini LED
Screen shape	Flat
Native aspect ratio	16:9
Display brightness	2200 cd/m²
Native refresh rate	144 Hz
Display refresh rates supported	120 Hz, 144 Hz, 48 Hz, 288 Hz, 60 Hz
Display number of colours	1.07 billion colours
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Colour gamut standard	Rec. 2020

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Google TV
Apple AirPlay 2 support	Yes
Smart modes	Vivid, Sports, Filmmaker, Standard, Movie, Game, PC, Auto AI, IMAX Enhanced

Audio

Specification	Value
Audio output channels	2.1 channels
RMS rated power	40 W
Built-in subwoofer	Yes
Subwoofer RMS power	20 W
Audio decoders	Dolby Atmos, DTS Virtual:X, DTS:X
Sound modes	Dynamic, Standard, Movie, Music, Sports, Game, Voice

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.4
Ethernet LAN	Yes
Miracast	Yes

Design

Specification	Value
VESA mounting	Yes
Panel mounting interface	300 x 300 mm
Frameless design	Yes
Introduction year	2026
Stand type	Center stand

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG), Dolby Vision IQ, High Dynamic Range 10 (HDR10)
Subtitles function	Yes
Audio formats supported	MP3, WMA
Image formats supported	BMP, JPEG, PNG, HEIF
Video compression formats	H.264, H.265, MPEG1, MPEG2, MPEG4, VC1, VP8, VP9, WMV, AV1, MKV
Video formats supported	AV1, MKV, WMV, VC-1, VP9, VP8, MPEG1, MPEG2, MPEG4, H.264, H.265
Backlight dimming technology	Precision Dimming
Picture processing technology	TSR AiPQ Processor
Noise reduction	Yes
Processor cores	4
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium Pro
Game features	Game Master, Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR)
Parental control	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	4
HDMI version	1.4/2.0/2.1
HDCP	Yes
HDCP version	1.4/2.2
PC in (D-Sub)	No
Ethernet LAN (RJ-45) ports	1
Digital audio optical out	1
RF ports quantity	2
RF connector type	F, IEC
Common interface (CI)	Yes
Consumer Electronics Control (CEC)	T-link

Management features

Specification	Value
Electronic Programme Guide (EPG)	Yes
Works with the Google Assistant	Yes

Power

Specification	Value
Power consumption (typical)	350 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	85 kWh
Energy consumption (HDR) per 1000 hours	300 kWh
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Technical details

Specification	Value
RAM capacity	3 GB
Internal memory	64000 MB
Processor	MT9653

Brand-specific features

Specification	Value
TCL technologies (AV/TV)	Onkyo Sound, HVA Screen, Google Cast, Chromecast Built-In

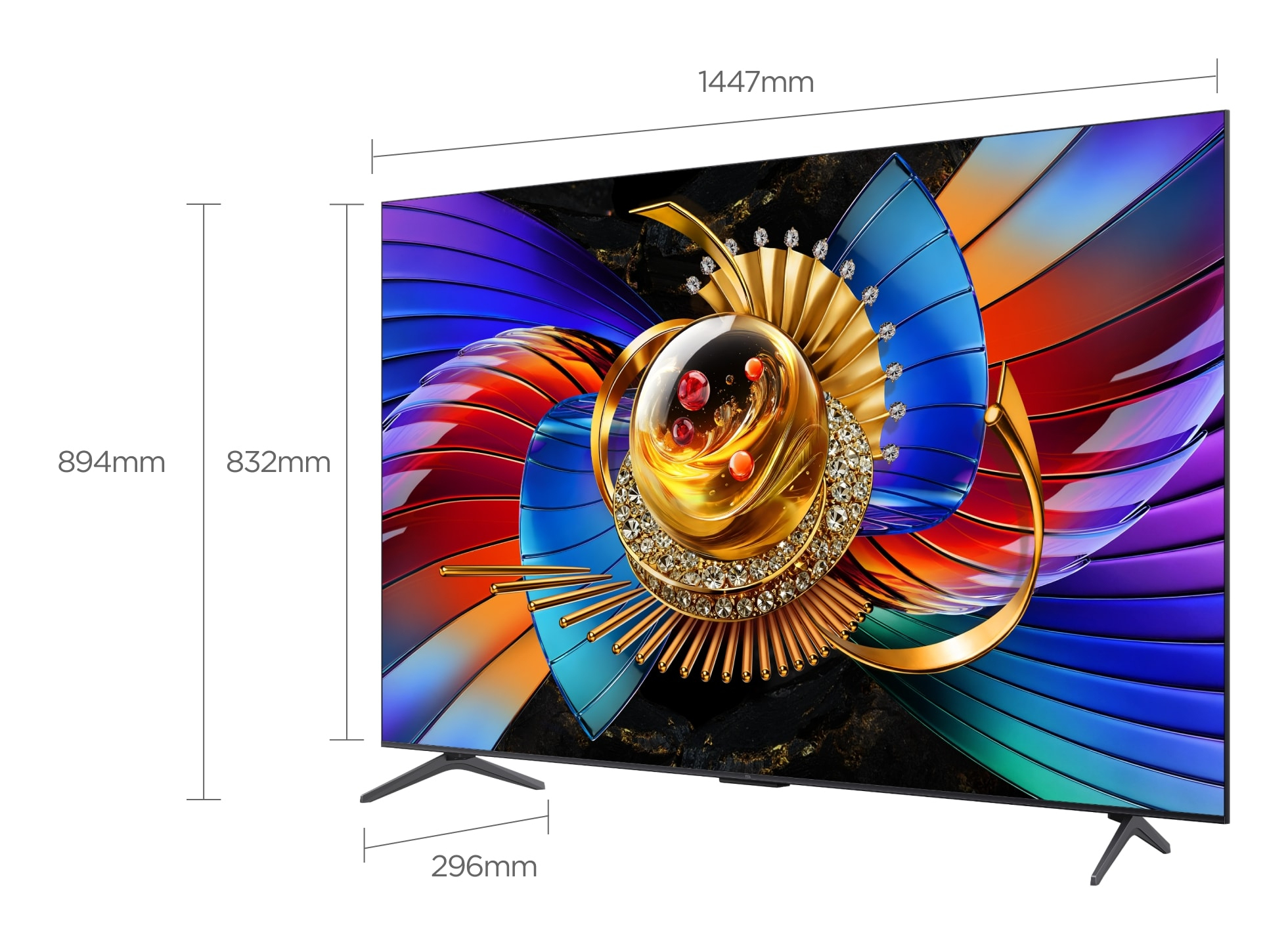

Weight & dimensions

Specification	Value
Width (with stand)	1447 mm
Depth (with stand)	296 mm
Height (with stand)	894 mm
Weight (with stand)	18.2 kg
Width (without stand)	1447 mm
Depth (without stand)	56 mm
Height (without stand)	832 mm
Stand width	29.6 cm

Packaging data

Specification	Value
Package width	1608 mm
Package depth	145 mm
Package height	1000 mm
Package weight	25.2 kg

Packaging content

Specification	Value
Desktop stand	Yes
Cables included	AC
Remote control included	Yes
Remote control type	RC833A

Logistics data

Specification	Value
Products per intermodal container (20ft)	126 pc(s)
Products per intermodal container (40ft, HC)	380 pc(s)

Other features

Specification	Value
Processor architecture	ARM Cortex-A73
Warranty period	2 year(s)
