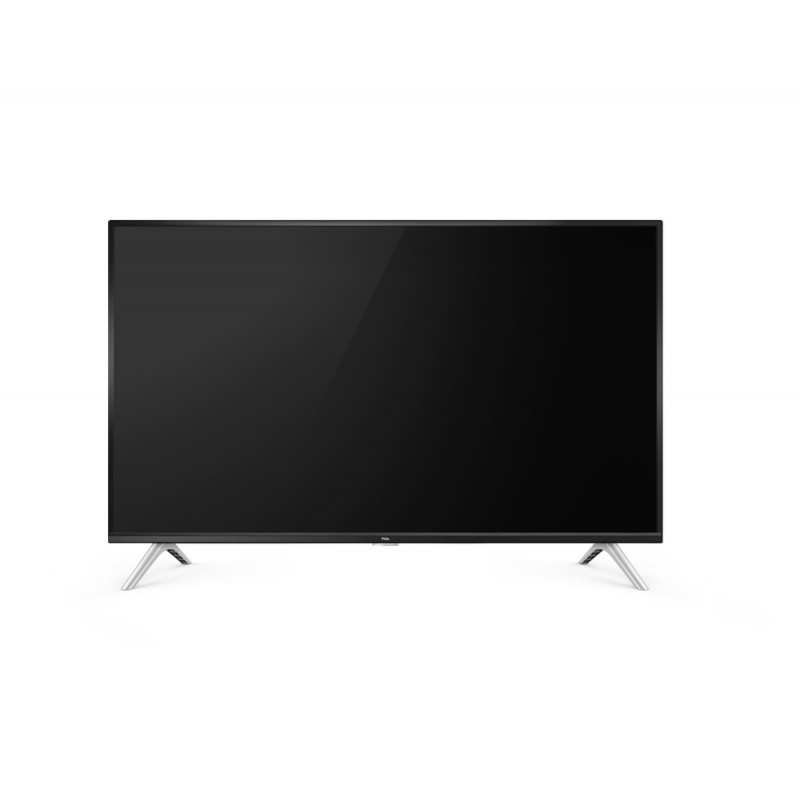

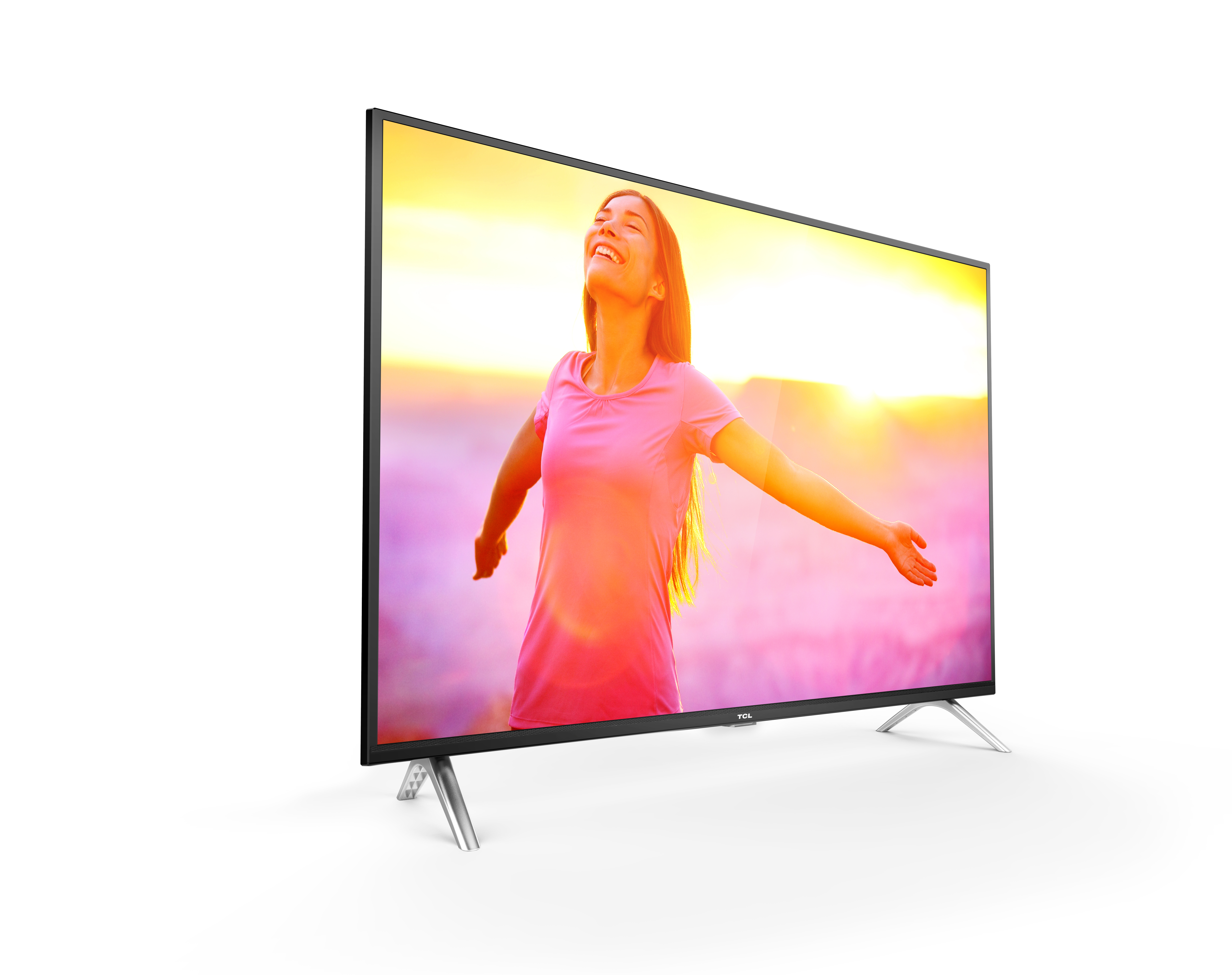

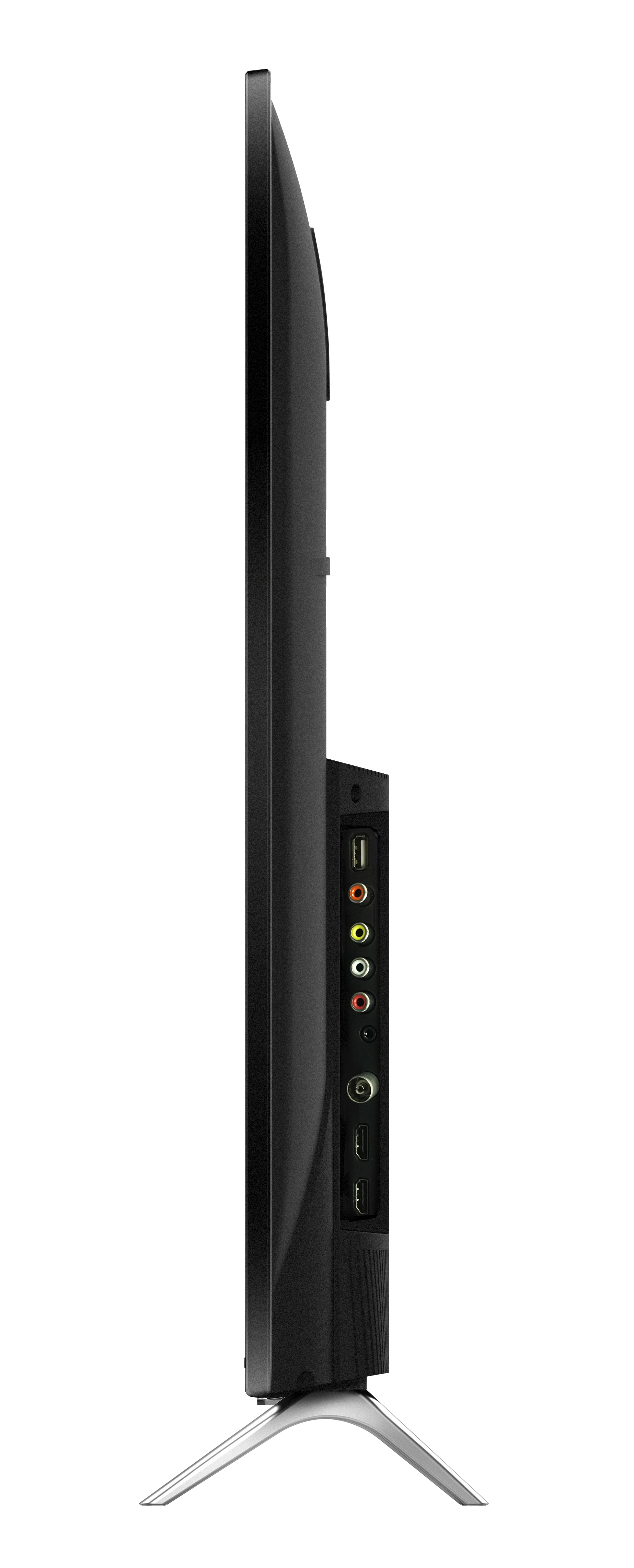

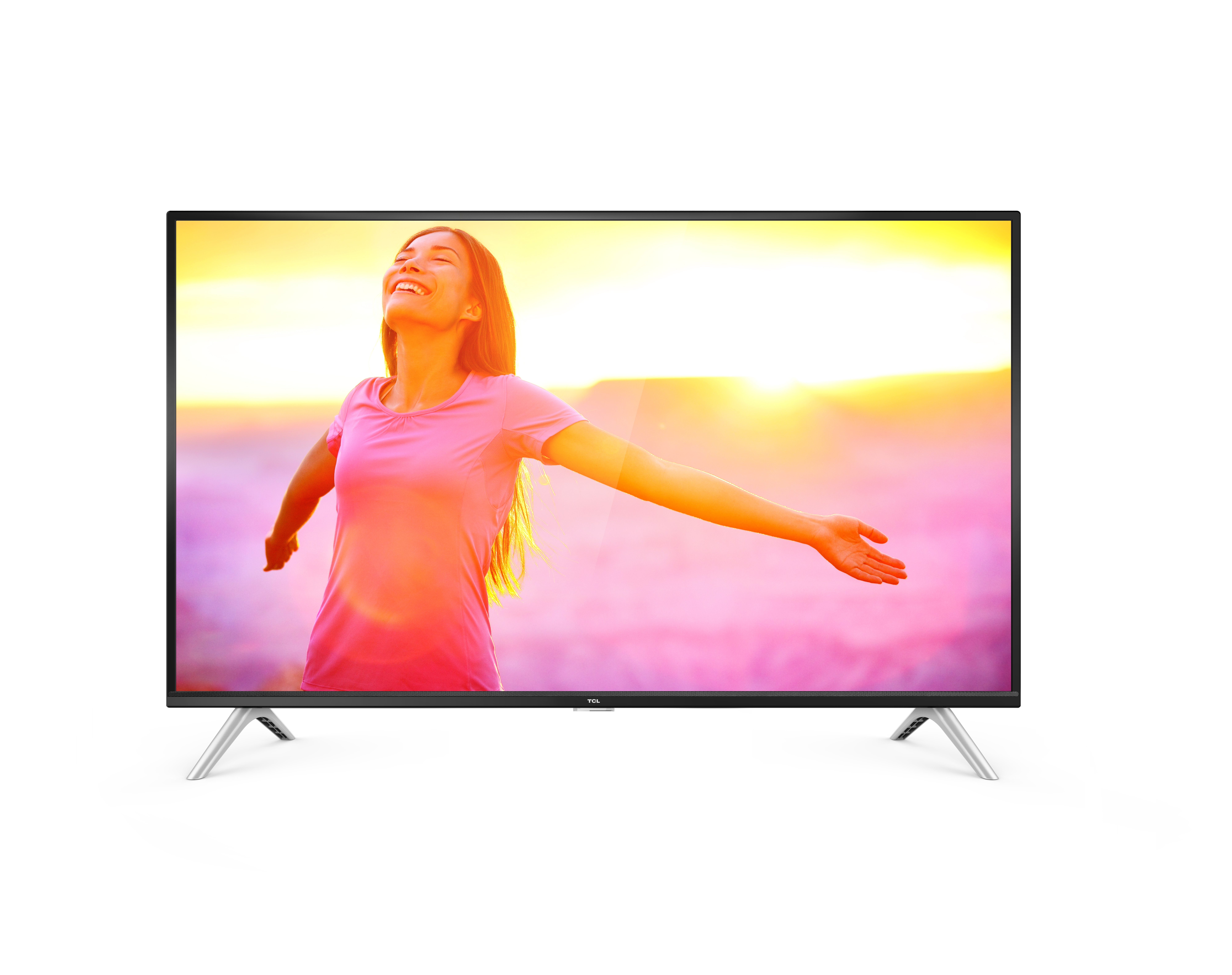

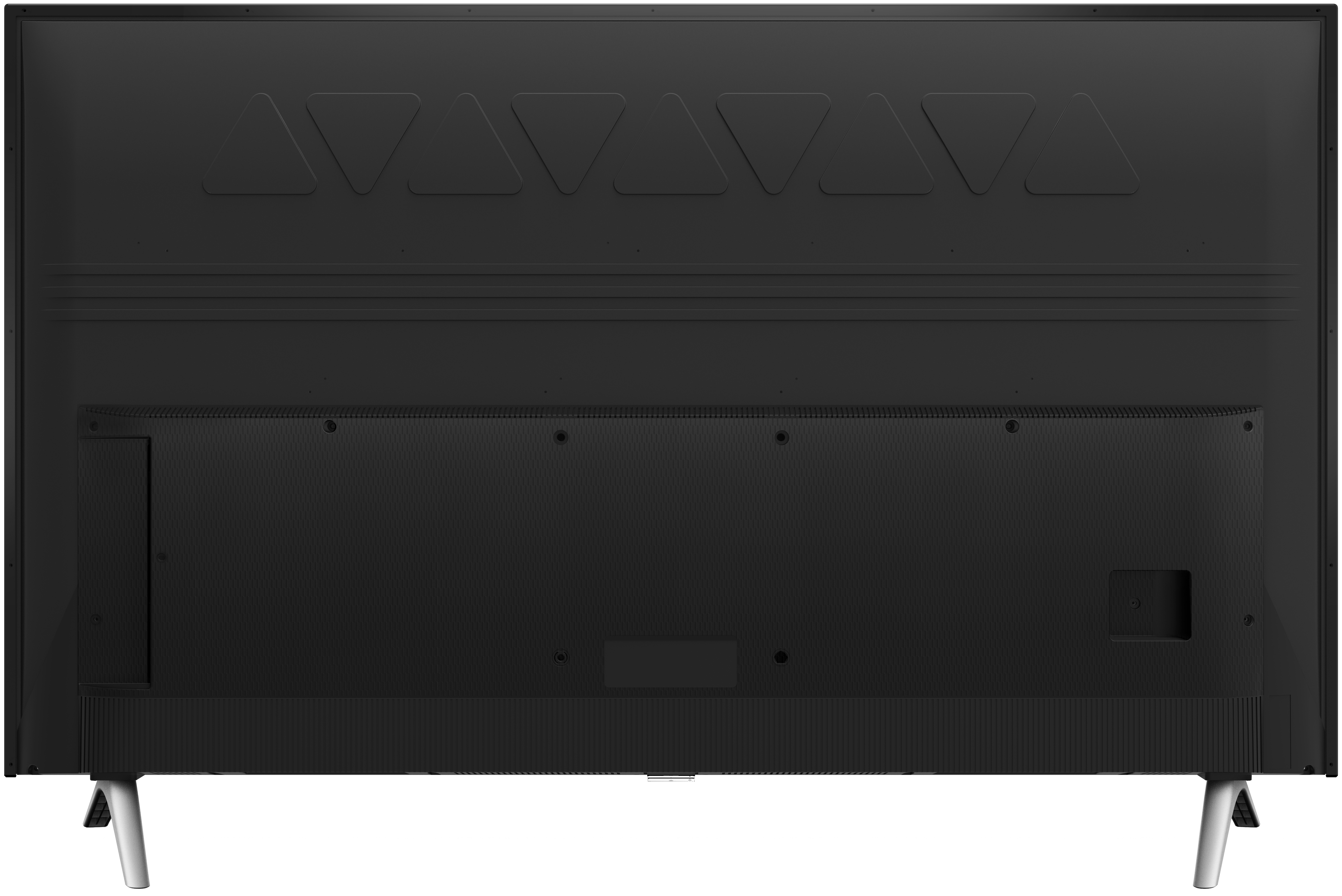

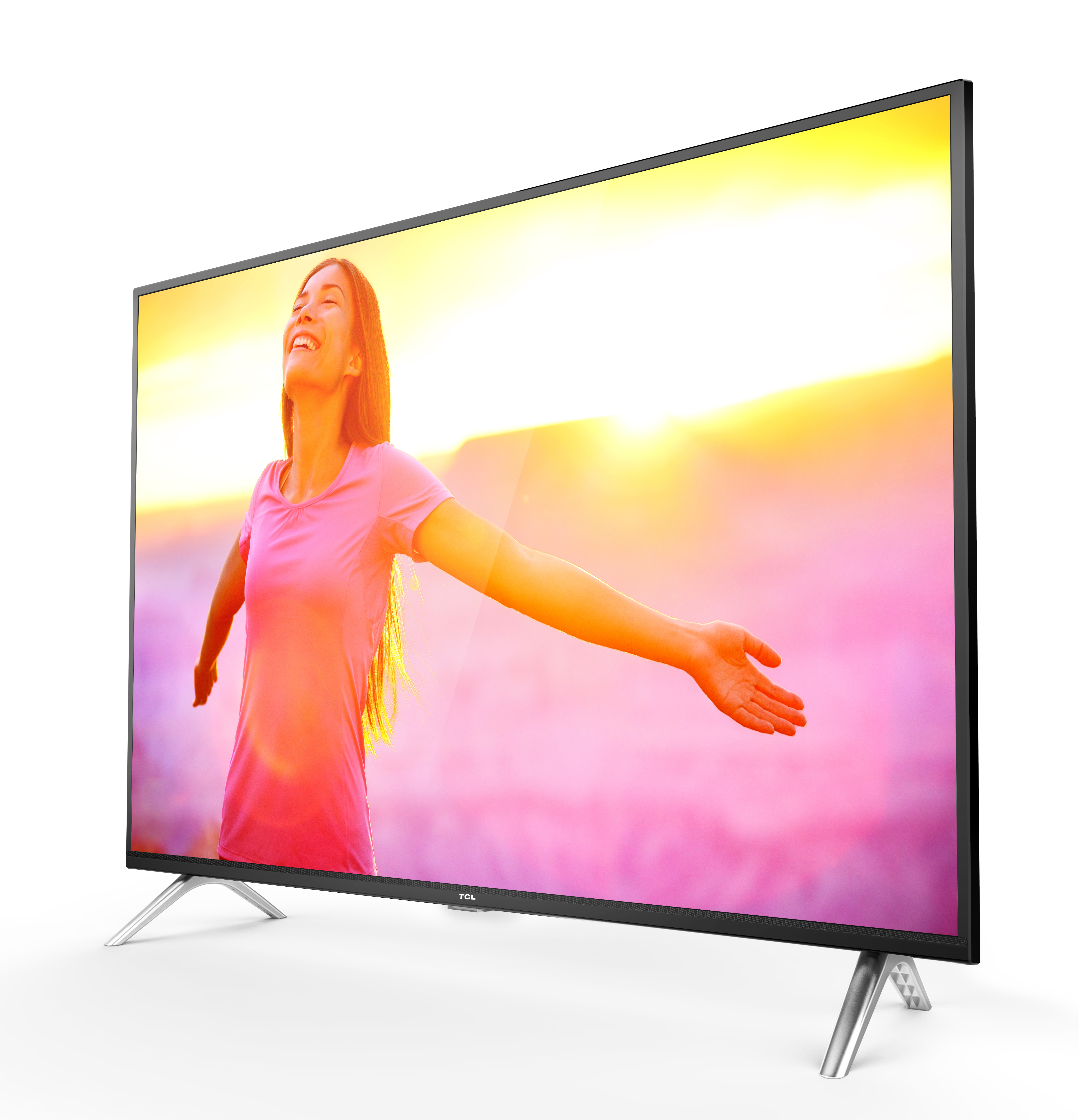

TCL 32DD420 TV 81.3 cm (32") HD Black 240 cd/m²

32DD420 TV 81.3 cm (32") HD Black 240 cd/m²

Model 32DD420

113 specifications Checked today

Display81.3 cm (32")
Resolution1366 x 768 pixels
Energy classD
ColourBlack
Tuner typeAnalog & digital
Smart TVNo

See all specifications

Overview

Display: 81.3 cm (32")
Resolution: 1366 x 768 pixels
Energy class: D
Colour: Black
Tuner type: Analog & digital
Smart TV: No

Brand: TCL
Category: TV
Model: 32DD420
Also known as: TCL 32DD420 TV 81.3 cm (32") HD Black 240 cd/m²

Specifications

113 specifications in 17 groups

Display

Specification	Value
Display diagonal	81.3 cm (32")
HD type	HD
Display resolution	1366 x 768 pixels
Display technology	LCD
LED backlighting type	Direct-LED
Screen shape	Flat
Native aspect ratio	16:9
Supported video modes	768p
Display brightness	240 cd/m²
Response time	30 ms
Motion interpolation technology	PPI (Picture Performance Index) 100
Native refresh rate	60 Hz
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal (metric)	81.3 cm
Peak luminance ratio	80%
Viewable size diagonal	80 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S2, DVB-T2
Auto channel search	Yes

Smart TV

Specification	Value
Smart TV	No

Audio

Specification	Value
Number of speakers	2
RMS rated power	10 W
Audio decoders	Dolby Digital, Dolby Digital Plus
Equalizer	Yes

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	Yes

Design

Specification	Value
Product colour	Black
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Heavy metals free	Hg (mercury)
Mercury content	0 mg

Performance

Specification	Value
High Dynamic Range (HDR) supported	No
Teletext function	Yes
Subtitles function	Yes
Audio formats supported	MP3
Image formats supported	BMP, JPG, PNG
Video formats supported	AVI, MKV, MP4, MPG, OGM, TS
Picture processing technology	TCL Pure Image
Noise reduction	Yes
4K Ultra HD upscaling	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	2
HDMI version	1.4
Audio Return Channel (ARC)	Yes
HDCP	Yes
PC in (D-Sub)	No
DVI port	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
Digital audio coaxial out	1
Headphone outputs	1
RF ports quantity	2
RF connector type	F, IEC
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.3

Management features

Specification	Value
Electronic Programme Guide (EPG)	Yes
Programming period	8 day(s)
On Screen Display (OSD)	Yes
Number of OSD languages	30
On Screen Display (OSD) languages	ALB, BOS, Bulgarian, Croatian, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hungarian, Italian, LAT, Lithuanian, MAC, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Slovenian, Swedish, Turkish, Ukrainian
Hotel mode	Yes
Auto power off	Yes
On/Off timer	Yes
Sleep timer	Yes
Firmware upgradeable	Yes
Firmware upgradeable via	USB

Power

Specification	Value
Power consumption (typical)	31 W
Power consumption (standby)	0.22 W
Power consumption (max)	55 W
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	20 kWh
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Certificates

Specification	Value
Certification	CE

Battery

Specification	Value
Battery weight	15 g
Battery technology	Alkaline

Weight & dimensions

Specification	Value
Width (with stand)	732 mm
Depth (with stand)	175 mm
Height (with stand)	480 mm
Weight (with stand)	4 kg
Width (without stand)	732 mm
Depth (without stand)	80 mm
Height (without stand)	435 mm
Weight (without stand)	3.9 kg
Stand width	61.5 cm

Packaging data

Specification	Value
Package width	800 mm
Package depth	126 mm
Package height	512 mm
Package weight	5.3 kg
Package type	Box

Packaging content

Specification	Value
Desktop stand	Yes
Cables included	AC
Remote control included	Yes
Remote control type	RC300

Logistics data

Specification	Value
Maximum number of stacking cartons	5 pc(s)
Pallet net weight	12.5 kg
Pallet gross width	120 cm
Pallet gross length	80 cm
Pallet gross height	116.4 cm
Pallet gross weight	107.9 kg
Products per pallet	18 pc(s)
Truck type	87 cbm
Quantity per truck	1188 pc(s)
Number of pallets per truck	66 pc(s)

Other features

Specification	Value
Batteries included	Yes
Battery type	AAA
Number of batteries supported	2
Repairability index	6.4
Stackable	Yes
