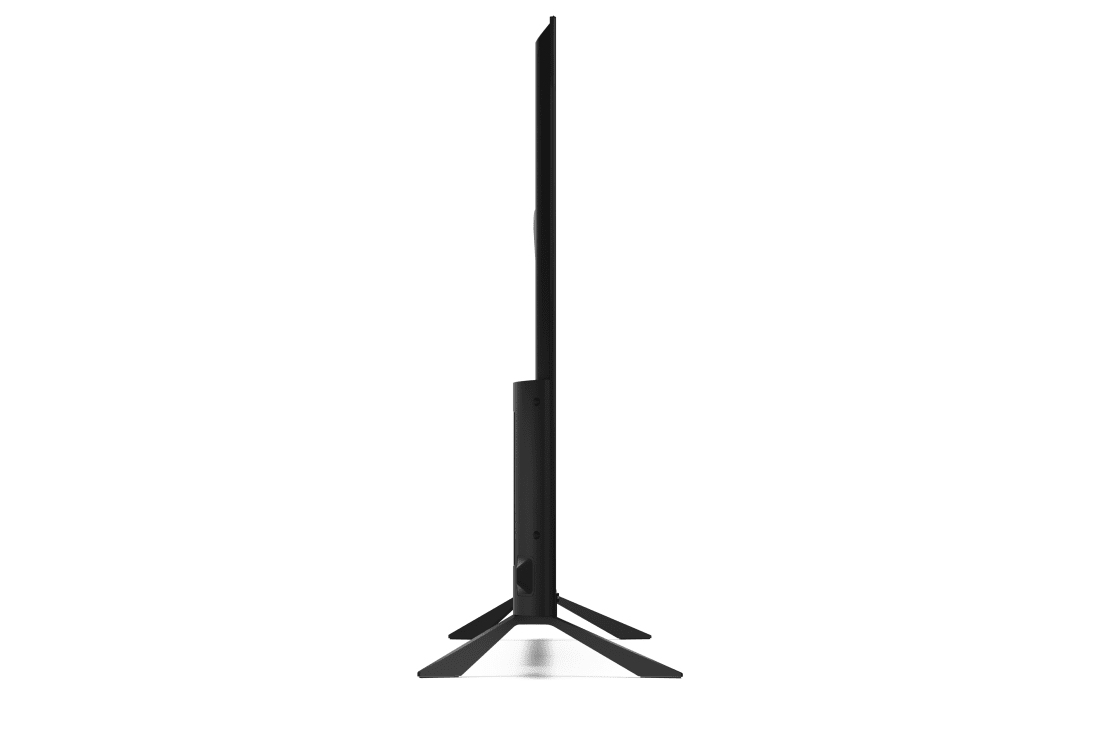

Sharp Aquos 70DN5EA TV

Aquos 70DN5EA TV

177.8 cm (70") 4K Ultra HD Smart TV Wi-Fi Black

Model 70DN5EAEAN 5903802462203

95 specifications Checked today

Display177.8 cm (70")
Resolution3840 x 2160 pixels
Energy classG
OSAndroid TV
ColourBlack
Tuner typeAnalog & digital

See all specifications

Overview

Display: 177.8 cm (70")
Resolution: 3840 x 2160 pixels
Energy class: G
OS: Android TV
Colour: Black
Tuner type: Analog & digital

Brand: Sharp
Category: TV
Model: 70DN5EA
Part number: 70DN5EA
EAN / UPC: 5903802462203
Also known as: Sharp Aquos 70DN5EA TV 177.8 cm (70") 4K Ultra HD Smart TV Wi-Fi Black

Specifications

95 specifications in 17 groups

Display

Specification	Value
Display diagonal	177.8 cm (70")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	LED
Screen shape	Flat
Native aspect ratio	16:9
Automatic brightness control	No
Motion interpolation technology	Aquos Smooth Motion
Native refresh rate	50 Hz
Display diagonal (metric)	177 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Analog signal format system	PAL, PAL BG, PAL DK, PAL L, PAL M, PAL N, SECAM, SECAM B/G, SECAM D/K, SECAM L
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2

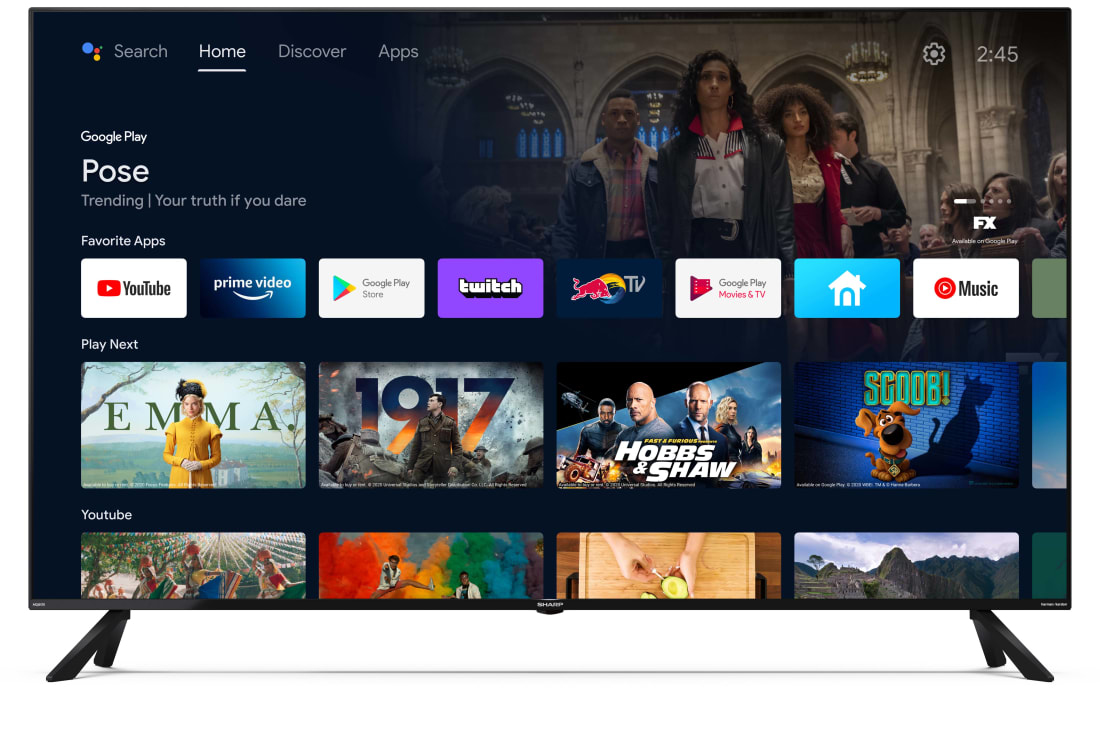

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Android TV
Hybrid Broadcast Broadband TV (HbbTV)	Yes
Hybrid Broadcast Broadband TV (HbbTV) version	2.0.2
Video apps	Amazon Prime Video, Netflix, YouTube

Audio

Specification	Value
Number of speakers	2
RMS rated power	20 W
Built-in subwoofer	Yes
Subwoofer RMS power	20 W
Audio decoders	DTS, Dolby Atmos, DTS Virtual:X, Dolby Digital, Dolby Digital AC4, Dolby Digital Plus
Equalizer	Yes
Enhanced Audio Return Channel (eARC)	Yes

Network

Specification	Value
Wi-Fi	Yes
Bluetooth	Yes
Ethernet LAN	Yes

Design

Specification	Value
Product colour	Black
VESA mounting	Yes
Panel mounting interface	400 x 200 mm
Housing material	Aluminium

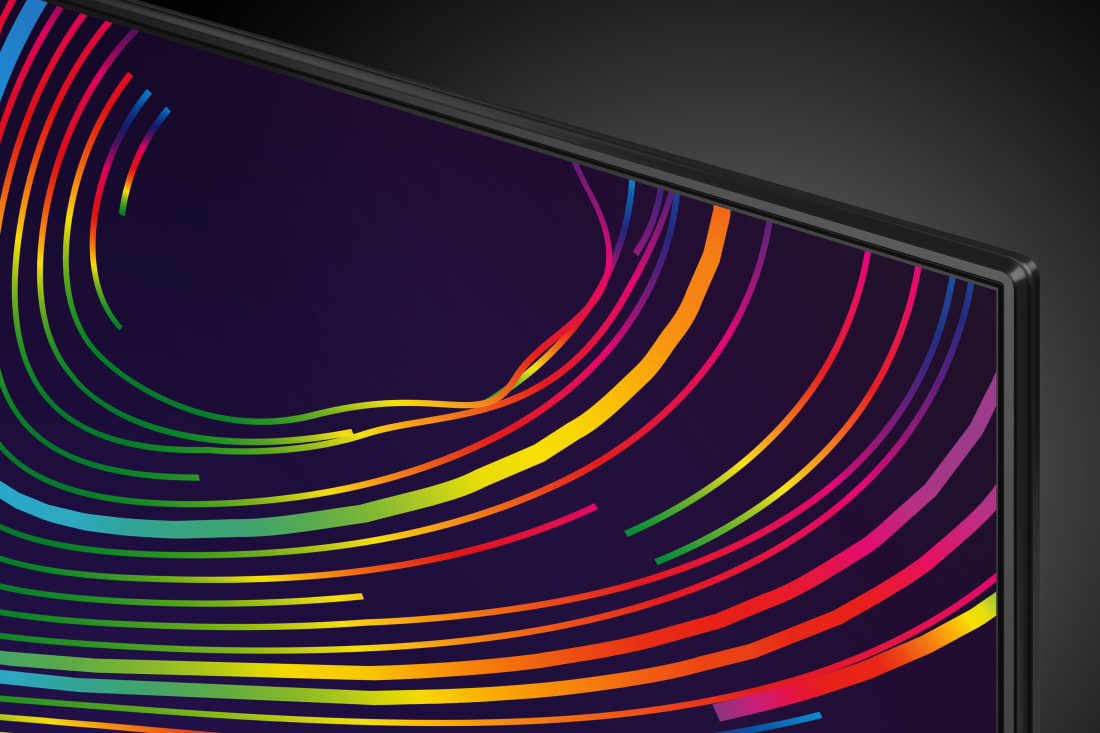

Frameless design	Yes

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Audio formats supported	AAC, AC3, DTS, EAC3, FLAC, LPCM, M4A, MP3, WAV
Image formats supported	BMP, GIF, JPEG, JPG, MPO, PNG
Video compression formats	AVI, H.264, H.265, HEVC, MPEG4, VP9
Video formats supported	3GP, 3GPP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPEG, MPG, TP, TRP, TS, VOB, WEBM
Game features	Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR)

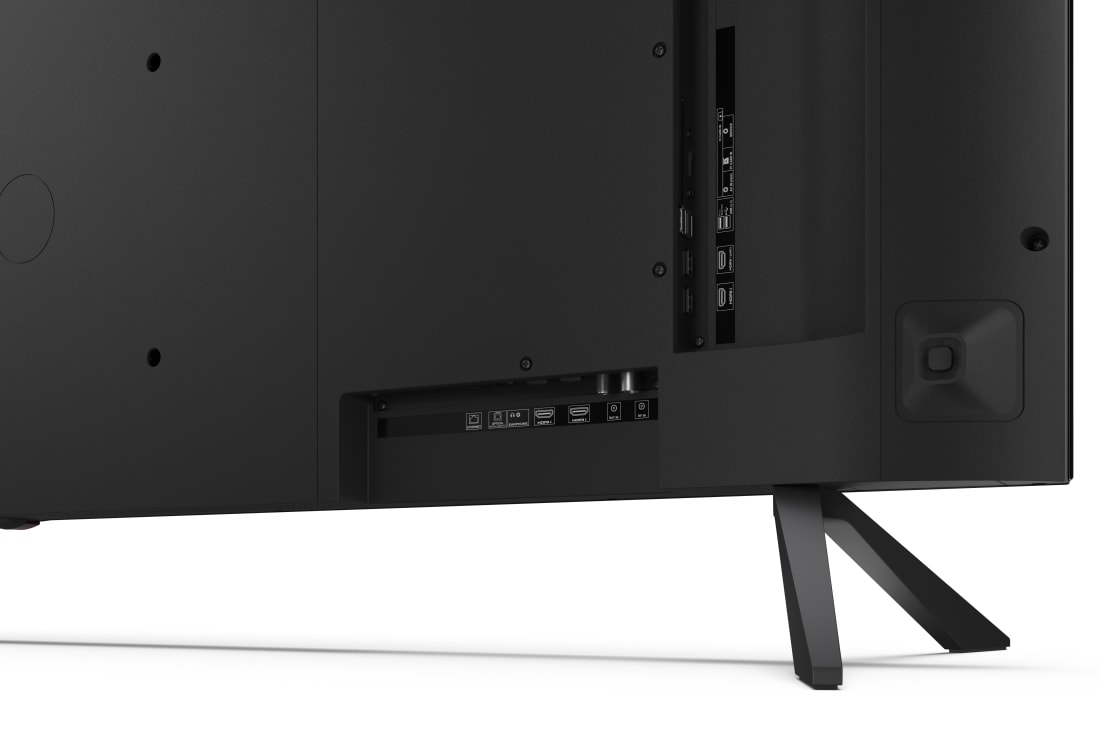

Ports & interfaces

Specification	Value
HDMI ports quantity	4
HDMI version	2.1
PC in (D-Sub)	No
Ethernet LAN (RJ-45) ports	1
Composite video in	1
Digital audio optical out	1
Headphone outputs	1
RF ports quantity	2
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Management features

Specification	Value
Auto power off	Yes
Sleep timer	Yes
Works with the Google Assistant	Yes

Power

Specification	Value
Power consumption (typical)	150 W
Power consumption (standby)	0.5 W
Power consumption (max)	220 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	150 kWh
Energy consumption (HDR) per 1000 hours	180 kWh
Power consumption (off)	0 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz

Certificates

Specification	Value
Compliance certificates	CE, REACH, RoHS
Certification	PAH/SCCP

Sustainability

Specification	Value
Sustainability certificates	ErP
Sustainability compliance	Yes

Technical details

Specification	Value
NICAM/A2	Yes
Processor	AQUOS UltraClear
Sound technology	Harman-Kardon

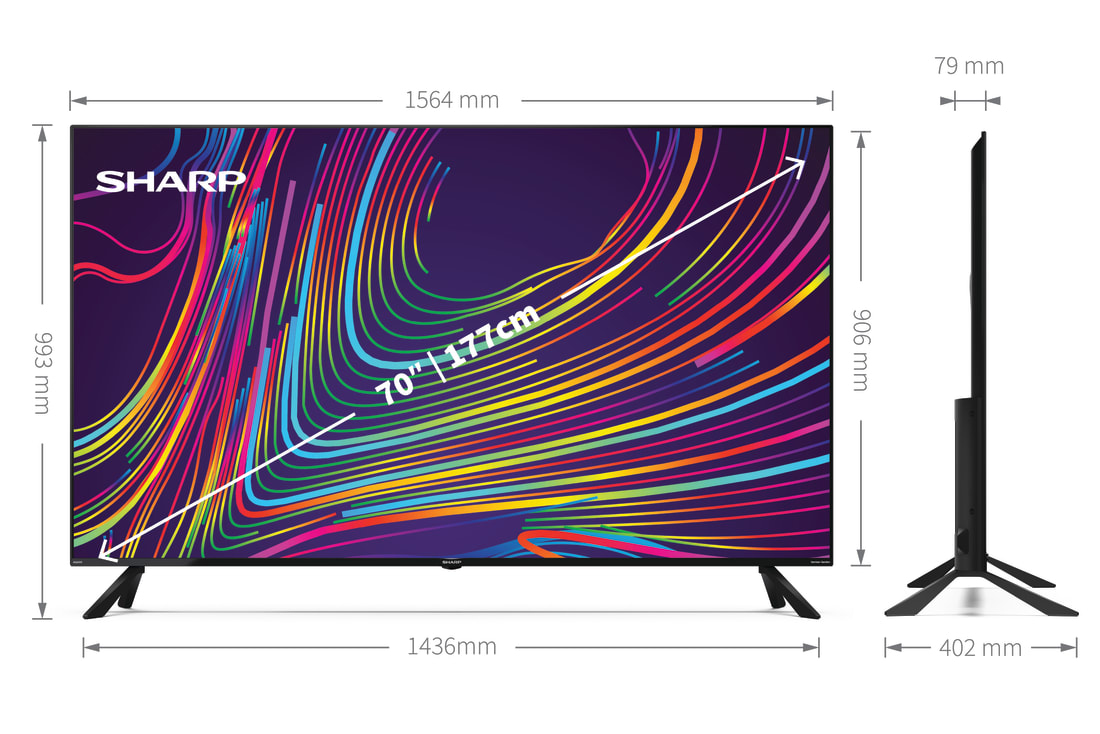

Weight & dimensions

Specification	Value
Width (with stand)	1555.2 mm
Depth (with stand)	402.4 mm
Height (with stand)	993.2 mm
Width (without stand)	1555.2 mm
Depth (without stand)	78.6 mm
Height (without stand)	906.2 mm
Weight (without stand)	24.1 kg

Packaging data

Specification	Value
Quick start guide	Yes
Package width	1855 mm
Package depth	255 mm
Package height	1100 mm
Package weight	35.2 kg

Packaging content

Specification	Value
Remote control included	Yes
Remote control type	IR+BT

Other features

Specification	Value
Batteries included	Yes
Built-in processor	Yes
Satellite speaker impedance	8 Ω
Subwoofer impedance	6 Ω
USB ports quantity	2
Network streaming services supported	Chromecast
Supported file systems	FAT32, NTFS
Built-in microphone	Yes
