Samsung UE55U7022FK 139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Black

UE55U7022FK 139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Black

Model UE55U7022FKPart no. UE55U7022FKXXHEAN 8806097253105

101 specifications Checked today

Display139.7 cm (55")
Resolution3840 x 2160 pixels
Energy classG
OSTizen
ColourBlack
Tuner typeAnalog & digital

See all specifications

Overview

Display: 139.7 cm (55")
Resolution: 3840 x 2160 pixels
Energy class: G
OS: Tizen
Colour: Black
Tuner type: Analog & digital

Brand: Samsung
Category: TV
Model: UE55U7022FK
Part number: UE55U7022FKXXH
EAN / UPC: 8806097253105
Also known as: Samsung UE55U7022FK 139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Black

Specifications

101 specifications in 14 groups

Display

Specification	Value
Display diagonal	139.7 cm (55")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	LED
Screen shape	Flat
Native aspect ratio	16:9
Motion interpolation technology	Motion Xcelerator
Native refresh rate	60 Hz
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal (metric)	139.7 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-T2

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Tizen
Apple AirPlay 2 support	Yes
Sound mirroring	Yes
Hybrid Broadcast Broadband TV (HbbTV)	Yes
Hybrid Broadcast Broadband TV (HbbTV) version	2.0.4
Smart modes	Filmmaker

Audio

Specification	Value
Number of speakers	2
Audio output channels	2.0 channels
RMS rated power	20 W
Adaptive sound	Yes
Audio pre-selection descriptor	Yes
Enhanced Audio Return Channel (eARC)	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.3
Ethernet LAN	Yes
Browsing	Yes
Web browser	Yes

Design

Specification	Value
Product colour	Black
VESA mounting	Yes
Panel mounting interface	200 x 200 mm
Introduction year	2025
Bezel type	3 Bezel-less
Stand type	Legs stand
Stand colour	Grey

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus)
Game mode	Yes
Subtitles function	Yes
Eco sensor	Yes
AI Upscale	Yes
TV key support	Yes
Backlight dimming technology	UHD Dimming
Picture processing technology	Samsung Contrast Enhancer
Game features	Auto Low Latency Mode (ALLM), HGiG, Variable Refresh Rate (VRR)
4K Ultra HD upscaling	Yes
SmartThings app support	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	3
Audio Return Channel (ARC)	Yes
PC in (D-Sub)	No
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
RF ports quantity	3
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.4
Consumer Electronics Control (CEC)	Anynet+

Management features

Specification	Value
Voice control	Yes
Voice guide	Yes
Electronic Programme Guide (EPG)	Yes
On Screen Display (OSD)	Yes
Number of OSD languages	28
Auto power off	Yes
Firmware upgradeable	Yes
Works with Samsung Bixby	Yes

Power

Specification	Value
Power consumption (typical)	79 W
Power consumption (standby)	0.5 W
Power consumption (max)	125 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	79 kWh
Energy consumption (HDR) per 1000 hours	118 kWh
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Energy saving mode	Yes
Energy efficiency scale	A to G

Brand-specific features

Specification	Value
Samsung technologies (AV/TV)	Crystal Processor 4K, Object Tracking Sound Lite, Q-Symphony

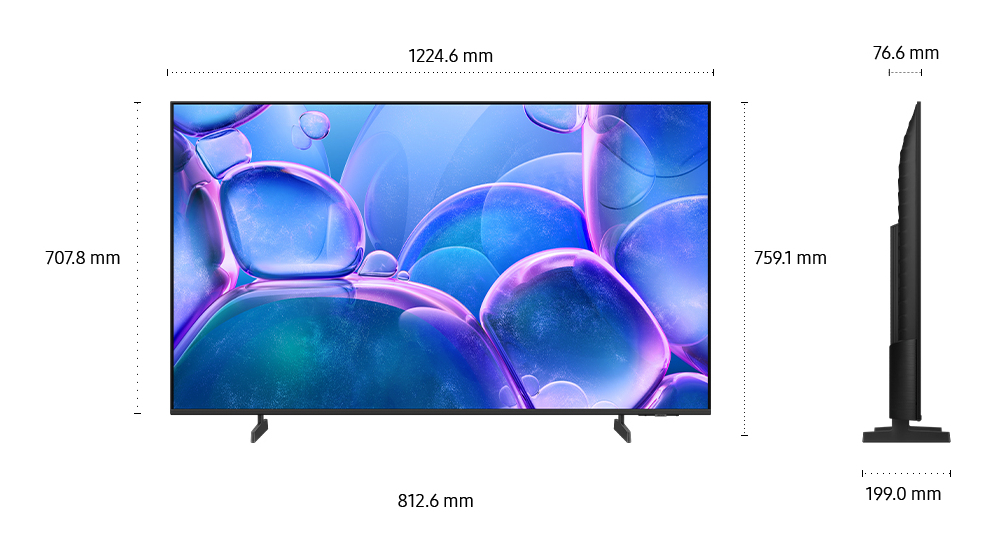

Weight & dimensions

Specification	Value
Width (with stand)	1224.6 mm
Depth (with stand)	199 mm
Height (with stand)	759.1 mm
Weight (with stand)	9.9 kg
Width (without stand)	1224.6 mm
Depth (without stand)	76.6 mm
Height (without stand)	707.8 mm
Weight (without stand)	9.6 kg
Stand width	81.3 cm
Stand depth	19.9 cm

Packaging data

Specification	Value
Package width	1354 mm
Package depth	127 mm
Package height	810 mm
Package weight	14 kg

Packaging content

Specification	Value
Desktop stand	Yes
Cables included	AC
Remote control included	Yes
Remote control type	TM1240A
