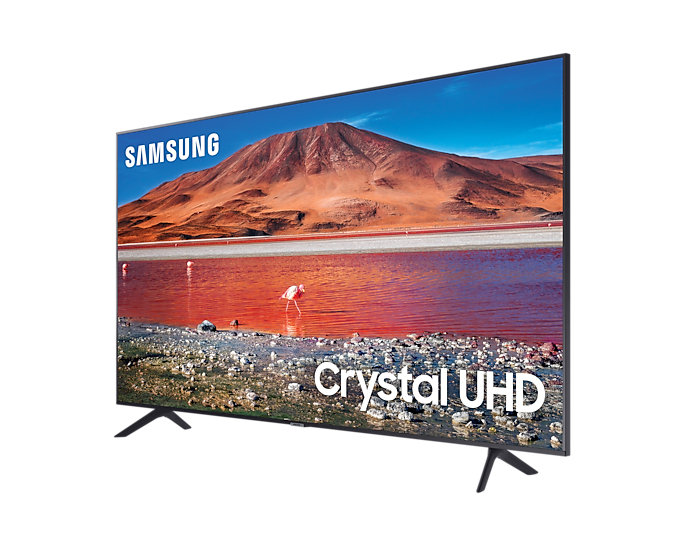

Samsung Series 7 TU7172

Series 7 TU7172

147.3 cm (58") 4K Ultra HD Smart TV Wi-Fi Black, Silver, Titanium

Model TU7172Part no. UE58TU7172UXXHEAN 8806090389894

102 specifications Checked today

Display147.3 cm (58")
Resolution3840 x 2160 pixels
Energy classG
OSTizen
ColourBlack, Silver, Titanium
Tuner typeAnalog & digital

See all specifications

Overview

Display: 147.3 cm (58")
Resolution: 3840 x 2160 pixels
Energy class: G
OS: Tizen
Colour: Black, Silver, Titanium
Tuner type: Analog & digital

Brand: Samsung
Category: TV
Model: TU7172
Part number: UE58TU7172UXXH
EAN / UPC: 8806090389894
Also known as: Samsung Series 7 TU7172 147.3 cm (58") 4K Ultra HD Smart TV Wi-Fi Black, Silver, Titanium

Specifications

102 specifications in 13 groups

Display

Specification	Value
Display diagonal	147.3 cm (58")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	LED
Screen shape	Flat
Native aspect ratio	16:9
Screen format adjustments	16:9
Supported graphics resolutions	3840 x 2160
Supported video modes	2160p
Motion interpolation technology	PQI (Picture Quality Index) 2000
Native refresh rate	60 Hz
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal (metric)	146 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-S2, DVB-T2
Auto channel search	Yes

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Tizen
Sound mirroring	Yes
Hybrid Broadcast Broadband TV (HbbTV)	Yes
Hybrid Broadcast Broadband TV (HbbTV) version	2.01
Smart modes	Movie
Universal guide	Yes

Audio

Specification	Value
Number of speakers	2
RMS rated power	20 W
Audio decoders	Dolby Digital, Dolby Digital Plus
Adaptive sound	Yes
Audio pre-selection descriptor	Yes
Enhanced Audio Return Channel (eARC)	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	4.2
Ethernet LAN	Yes
Wi-Fi Direct	Yes
Web browser	Yes
HID support	Yes

Design

Specification	Value
Product colour	Black, Silver, Titanium
VESA mounting	Yes
Stand type	Connected stand

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Game mode	Yes
Teletext function	Yes
Subtitles function	Yes
Eco sensor	Yes
Brightness detection	Yes
Noise reduction	Yes
Image gallery	Yes
Dialog enhancement	Yes
SmartThings app support	Yes
MBR support	Yes
ConnectShare (HDD)	Yes
ConnectShare (USB)	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	2
Audio Return Channel (ARC)	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Digital audio optical out	1
RF ports quantity	2
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.4
Consumer Electronics Control (CEC)	Anynet+

Management features

Specification	Value
Electronic Programme Guide (EPG)	Yes
On Screen Display (OSD)	Yes
Number of OSD languages	27
Auto power off	Yes
Works with Amazon Alexa	Yes
Works with the Google Assistant	Yes

Power

Specification	Value
Power consumption (typical)	112 W
Power consumption (standby)	0.5 W
Power consumption (max)	170 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	112 kWh
Energy consumption (HDR) per 1000 hours	160 kWh
Power consumption (PowerSave)	48.7 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	1290 mm
Depth (with stand)	250.2 mm
Height (with stand)	823.9 mm
Weight (with stand)	15.4 kg
Width (without stand)	1290 mm
Depth (without stand)	59.5 mm
Height (without stand)	748.2 mm
Weight (without stand)	15.2 kg

Packaging data

Specification	Value
Package width	1448 mm
Package depth	172 mm
Package height	875 mm
Package weight	21.6 kg
Package type	Box

Packaging content

Specification	Value
Desktop stand	Yes
Mounting kit	Yes
Cables included	AC
Remote control included	Yes
Remote control type	TM1240A
E-manual	Yes
