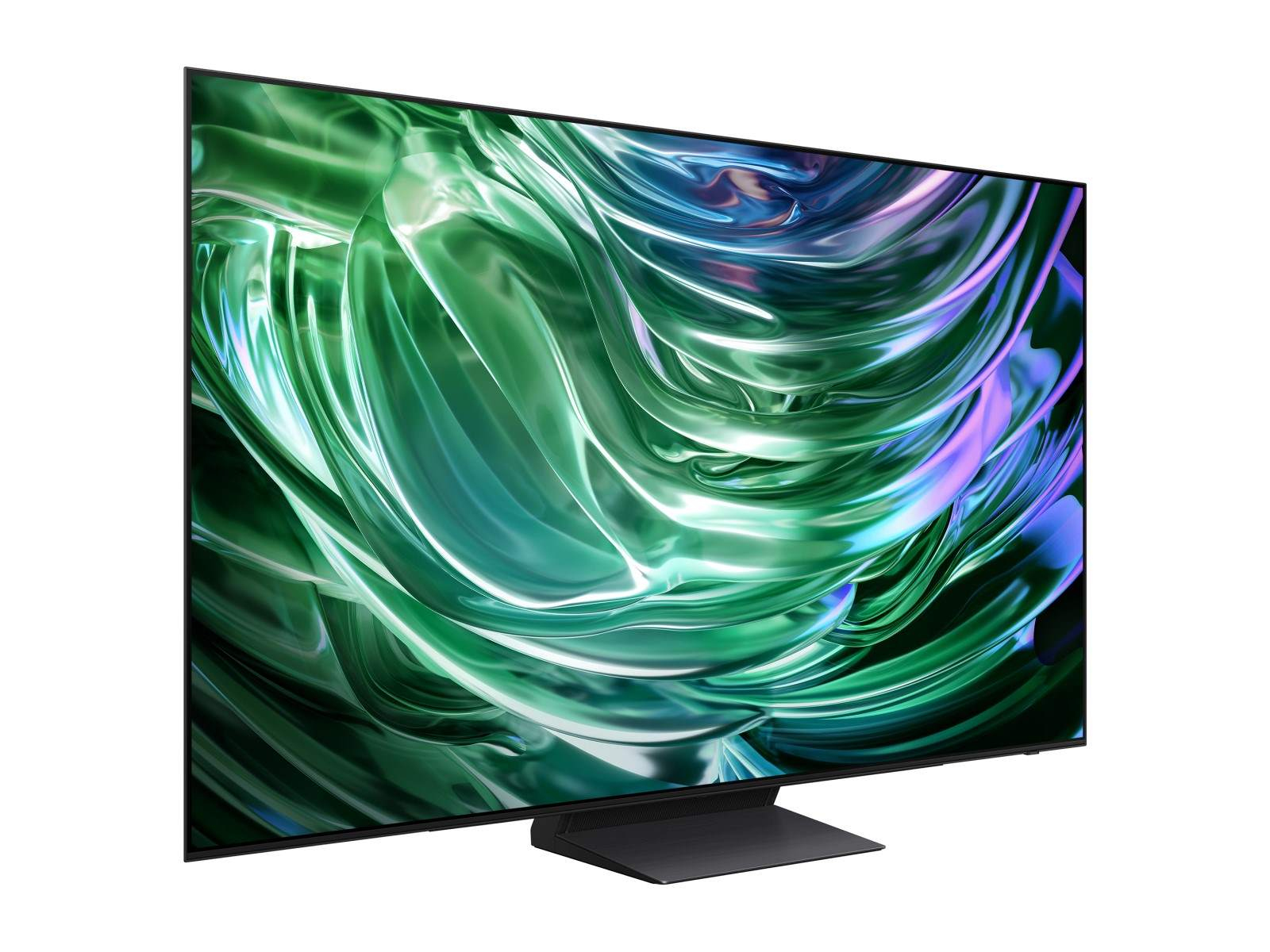

S90D 77" Class OLED S90DD
Model QN77S90DDFXZAEAN 887276821863
90 specifications Checked today
- Display195.6 cm (77")
- Resolution3840 x 2160 pixels
- OSTizen
- ColourBlack
- Tuner typeAnalog & digital
- Smart TVYes
Overview
- Display
- 195.6 cm (77")
- Resolution
- 3840 x 2160 pixels
- OS
- Tizen
- Colour
- Black
- Tuner type
- Analog & digital
- Smart TV
- Yes
- Brand
- Samsung
- Category
- TV
- Model
- QN77S90DDFXZA
- Part number
- QN77S90DDFXZA
- EAN / UPC
- 887276821863
- Also known as
- Samsung S90D 77" Class OLED S90DD
Specifications
90 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 195.6 cm (77") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | OLED |
| Screen shape | Flat |
| Motion interpolation technology | Motion Xcelerator |
| Native refresh rate | 120 Hz |
| Display refresh rates supported | 144 Hz |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | ATSC, QAM |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating system installed | Tizen |
| Screen mirroring | Yes |
| Apple AirPlay 2 support | Yes |
| Smart modes | Filmmaker |
| Far-field voice interaction | Yes |
| Universal guide | Yes |
| Video apps | Samsung TV Plus |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 60 W |
| Audio decoders | Dolby Atmos |
| Active voice amplifier (AVA) | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Web browser | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Colour name | Graphite Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
| Bezel type | 4 Bezel-less |
| Slim fit wall mount support | Yes |
| Stand colour | Titanium |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG), OLED HDR+ |
| Ambient mode | Ambient Mode+ |
| Eco sensor | Yes |
| Picture processing technology | Samsung Real Depth Enhancer, NQ4 AI Gen 2 Processor |
| Picture processor | NQ4 AI Gen2 |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
| Game features | Auto Low Latency Mode (ALLM), Dynamic Black EQ, Game Bar, Game Motion Plus, Gaming Hub, HGiG, Mini Map Zoom, Super Ultra Wide Game View, Surround Sound, Variable Refresh Rate (VRR) |
| 4K Ultra HD upscaling | Yes |
| Adaptive picture | Yes |
| MBR support | Yes |
| Parental control | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) out | 1 |
| Digital audio optical out | 1 |
| RS-232C ports | 1 |
| RF ports quantity | 1 |
| RF connector type | F, IEC |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Voice guide | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 3 |
| On Screen Display (OSD) languages | English, Spanish, French |
| ECO mode | Yes |
| Auto power off | Yes |
| Works with Amazon Alexa | Yes |
| Works with Samsung Bixby | Yes |
| Works with the Google Assistant | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 185 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 475 W |
| AC input voltage | 110 - 120 V |
| AC input frequency | 50/60 Hz |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (AV/TV) | Motion Xcelerator 144Hz, Q-Symphony, Samsung TV Plus, Samsung Knox, Ultra Viewing Angle, Auto HDR Remastering, Smart Calibration, Adaptive Sound Pro, Active Voice Amplifier, Object Tracking Sound, Samsung Health, Buds Auto Switch |

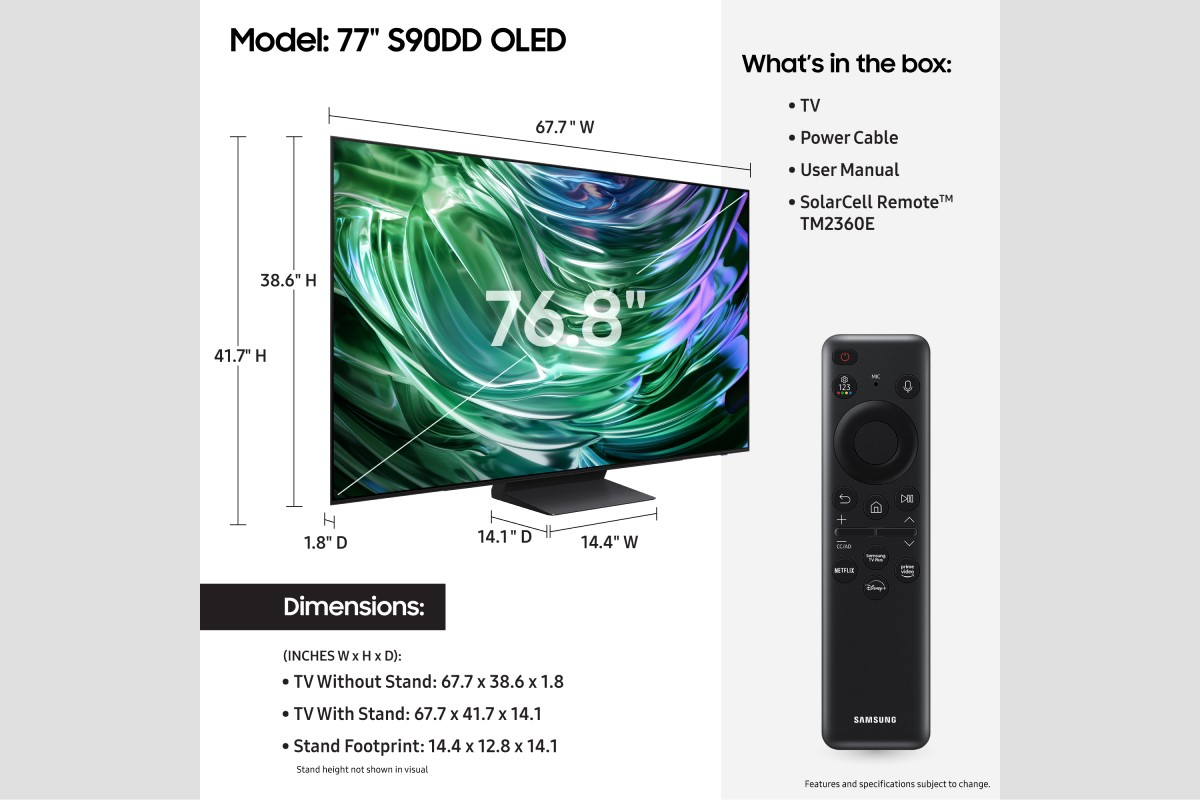

Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1719.5 mm |
| Depth (with stand) | 358.1 mm |
| Height (with stand) | 1059.1 mm |
| Weight (with stand) | 36.6 kg |
| Width (without stand) | 1719.5 mm |
| Depth (without stand) | 45.7 mm |
| Height (without stand) | 980.4 mm |
| Weight (without stand) | 34.8 kg |
| Stand width | 36.6 cm |
| Stand depth | 35.8 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1884.6 mm |
| Package depth | 180.3 mm |
| Package height | 1153.1 mm |
| Package weight | 46.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Remote control included | Yes |
| Remote control type | TM2360E |
| E-manual | Yes |
