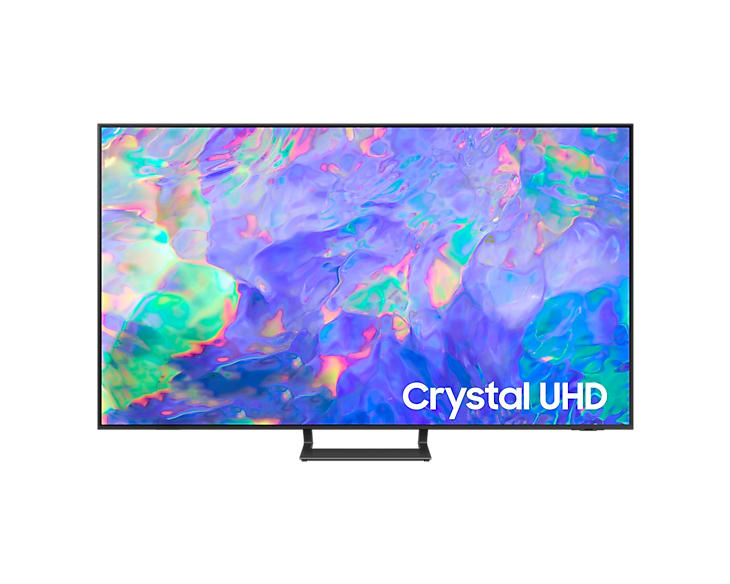

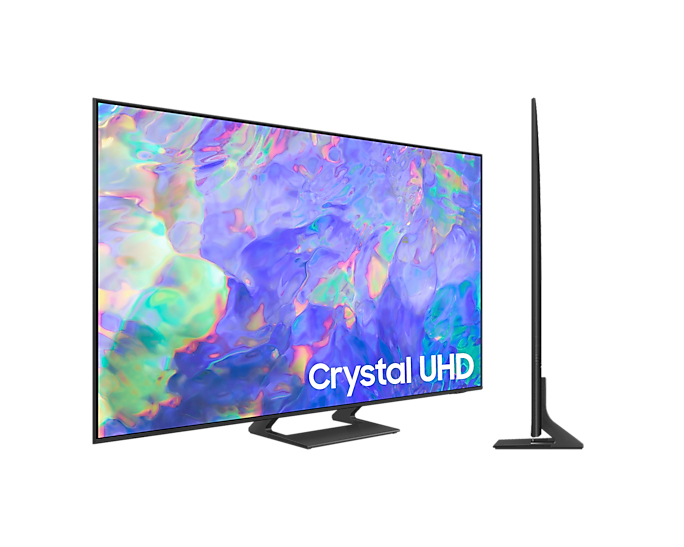

CU8505 190.5 cm (75") 4K Ultra HD Smart TV Wi-Fi Black
Model CU8505Part no. TU75CU8505KXXCEAN 8806094922844
100 specifications Checked today
- Display190.5 cm (75")
- Resolution3840 x 2160 pixels
- Energy classG
- OSTizen
- ColourBlack
- Tuner typeAnalog & digital
Overview
- Display
- 190.5 cm (75")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- OS
- Tizen
- Colour
- Black
- Tuner type
- Analog & digital
- Brand
- Samsung
- Category
- TV
- Model
- CU8505
- Part number
- TU75CU8505KXXC
- EAN / UPC
- 8806094922844
- Also known as
- Samsung CU8505 190.5 cm (75") 4K Ultra HD Smart TV Wi-Fi Black
Specifications
100 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 190.5 cm (75") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| LED backlight | Yes |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Motion interpolation technology | Motion Xcelerator |
| Native refresh rate | 50 Hz |
| Display diagonal (metric) | 189 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-T2 |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | Tizen |
| Operating system version | Tizen Smart TV |
| Sound mirroring | Yes |
| Smart modes | Filmmaker, Game, Movie |
| Video apps | Samsung TV Plus |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| Audio output channels | 2.0 channels |
| RMS rated power | 20 W |
| Adaptive sound | Yes |
| Q-Symphony | Yes |
| Multiroom | Yes |
| Multiroom audio technology | Samsung Multiroom Link |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Web browser | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Rollable display | No |
| Bezel type | 3 Bezel-less |
| Stand type | Center stand |
| Stand colour | Black |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus) |
| Game mode | Yes |
| Teletext function | Yes |
| Subtitles function | Yes |
| Eco sensor | Yes |
| Colour detection | Yes |
| Dynamic Crystal Color technology | Yes |
| TV key support | Yes |
| Picture processing technology | Samsung Contrast Enhancer |
| Game features | Auto Low Latency Mode (ALLM), HGiG |
| Multi View | Yes |
| SmartThings app support | Yes |
| TV sound to mobile device | Yes |
| Tap view | Yes |
| Wireless Dex support | Yes |
| MBR support | Yes |
| ConnectShare (USB) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| Audio Return Channel (ARC) | Yes |
| PC in (D-Sub) | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Digital audio optical out | 1 |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Voice guide | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| Works with Amazon Alexa | Yes |
| Works with Samsung Bixby | Yes |
| Works with the Google Assistant | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 139 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 255 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 139 kWh |
| Energy consumption (HDR) per 1000 hours | 224 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy saving mode | Yes |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1677.5 mm |
| Depth (with stand) | 338.9 mm |
| Height (with stand) | 1029.9 mm |
| Weight (with stand) | 32.5 kg |
| Width (without stand) | 1677.5 mm |
| Depth (without stand) | 26.6 mm |
| Height (without stand) | 960.7 mm |
| Weight (without stand) | 31.4 kg |
| Stand width | 36.3 cm |
| Stand depth | 33.9 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1834 mm |
| Package depth | 190 mm |
| Package height | 1138 mm |
| Package weight | 42.8 kg |
| Package type | Box |
