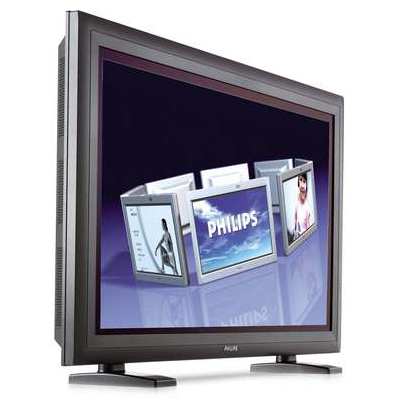

BDH4222V Public Display
Model BDH4222V Public DisplayPart no. BDH4222V/22
25 specifications Checked today
- Display106.7 cm (42")
- Resolution1024 x 1024 pixels
- ColourBlack
- RMS rated power10 W
- Power consumption (typical)390 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Display
- 106.7 cm (42")
- Resolution
- 1024 x 1024 pixels
- Colour
- Black
- RMS rated power
- 10 W
- Power consumption (typical)
- 390 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Philips
- Category
- TV
- Model
- BDH4222V Public Display
- Part number
- BDH4222V/22
- Also known as
- Philips BDH4222V Public Display 106.7 cm (42") Black 1100 cd/m²
Specifications
25 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 106.7 cm (42") |
| Display resolution | 1024 x 1024 pixels |
| Display technology | Plasma |
| Native aspect ratio | 16:9 |
| Display brightness | 1100 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Comb filter | 3D |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 390 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 1040 mm |
| Depth (without stand) | 287.5 mm |
| Height (without stand) | 690 mm |
| Weight (without stand) | 31.2 kg |
Other features
| Specification | Value |
|---|---|
| Display | plasma |
| Operating relative humidity (H-H) | 20 - 80% |
| Pixel pitch | 0.9 x 0.51 mm |
| Storage temperature (T-T) | -5 - 45 °C |
| Horizontal scan range | 15 - 91 kHz |
| Vertical scan range | 50 - 85 Hz |
| I/O ports | DVI-D x1 RS232 D-Sub9 VGA-in D-Sub 15HD VGA-out D-Sub 15HD Component (YPbPr) 2x S-video x1 Composite (CVBS) x1 Audio (L/R) |
| User controls | Power on / off, Left / right, Up / down, Menu (OK), Volume control, Source Select |
