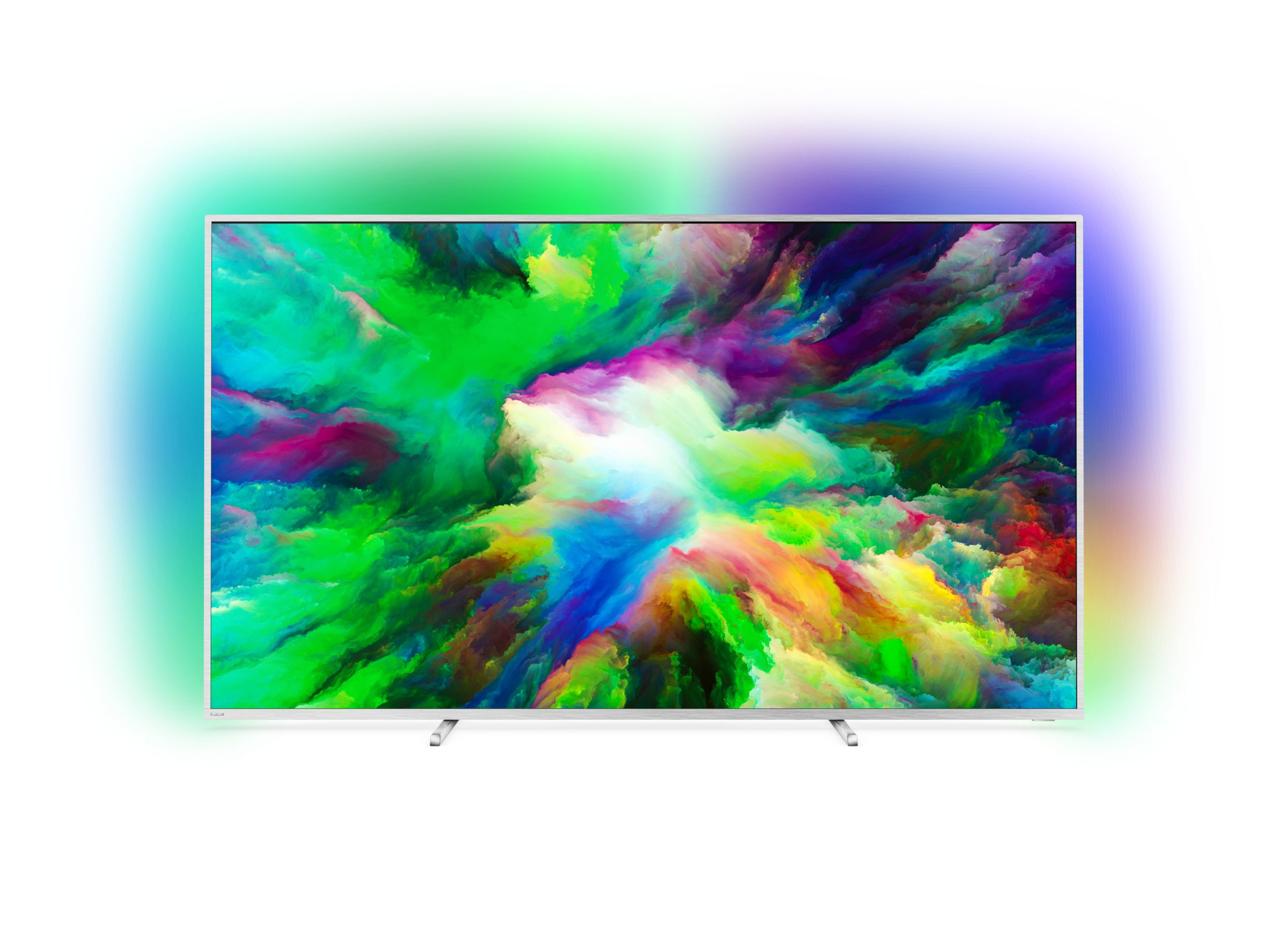

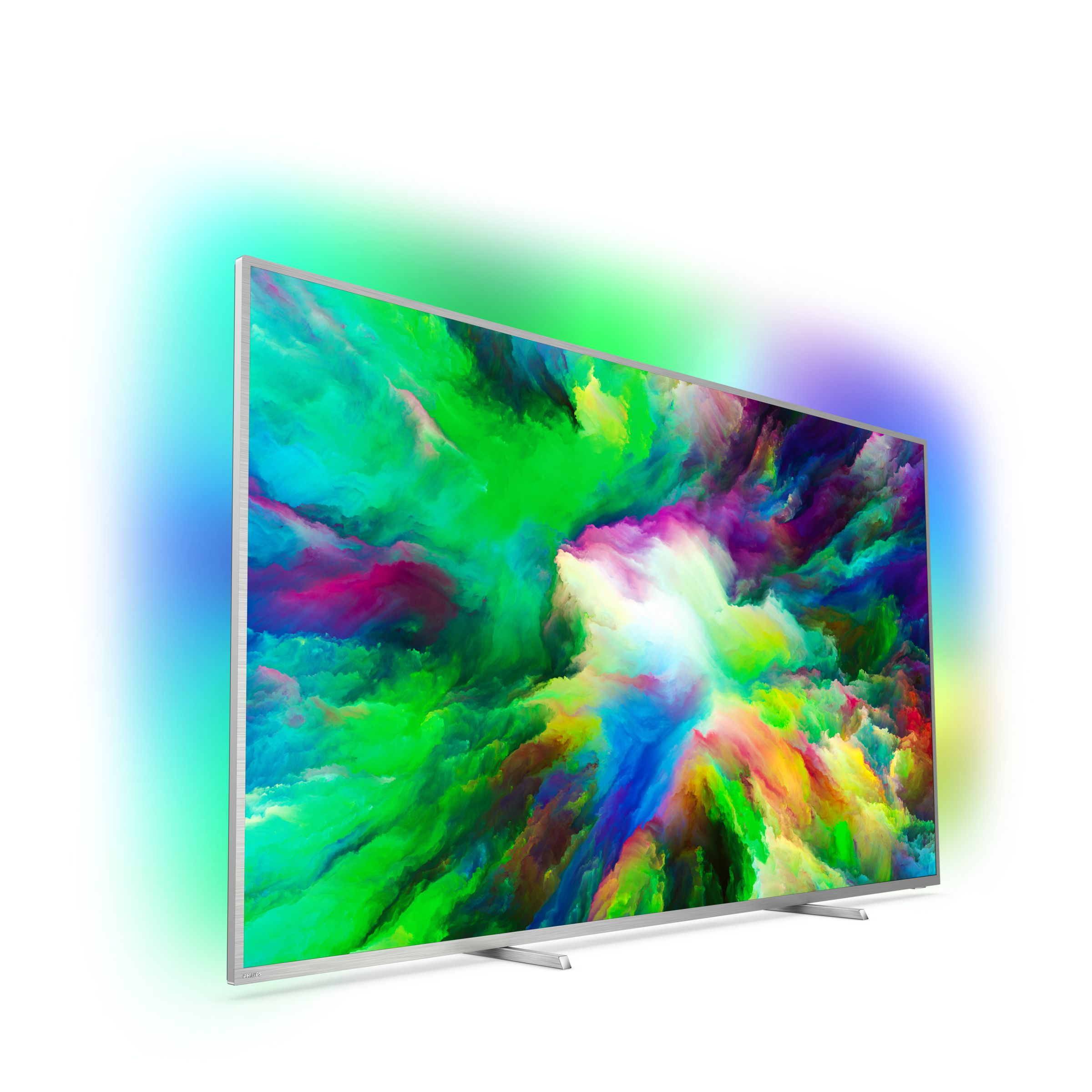

Philips 7800 series Ultra Slim 4K UHD LED Android TV 75PUS7803/12

7800 series Ultra Slim 4K UHD LED Android TV 75PUS7803/12

Model 75PUS7803/12EAN 8718863015155

110 specifications Checked today

Display190.5 cm (75")
Resolution3840 x 2160 pixels
Energy classA+
OSAndroid TV
ColourMetallic, Silver
Tuner typeAnalog & digital

See all specifications

Overview

Display: 190.5 cm (75")
Resolution: 3840 x 2160 pixels
Energy class: A+
OS: Android TV
Colour: Metallic, Silver
Tuner type: Analog & digital

Brand: Philips
Category: TV
Model: 75PUS7803/12
Part number: 75PUS7803/12
EAN / UPC: 8718863015155
Also known as: Philips 7800 series Ultra Slim 4K UHD LED Android TV 75PUS7803/12

Specifications

110 specifications in 16 groups

Display

Specification	Value
Display diagonal	190.5 cm (75")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	LED
Screen shape	Flat
Native aspect ratio	16:9
Screen format adjustments	16:9, Zoom
Supported graphics resolutions	3840 x 2160
Display refresh rates supported	30 Hz, 60 Hz
Display diagonal (metric)	189 cm
Peak luminance ratio	65%

TV tuner

Specification	Value
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T HD, DVB-T2

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Android TV
Operating system version	Nougat
Video on Demand (VOD) support	Yes
Hybrid Broadcast Broadband TV (HbbTV)	Yes
Video apps	YouTube

Audio

Specification	Value
RMS rated power	20 W
Audio decoders	DTS, DTS-HD
Multiroom	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Web browser	Yes

Design

Specification	Value
Product colour	Metallic, Silver
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
On/off switch	Yes
Ambient lighting	Yes
Signal strength indication	Yes
Heavy metals free	Hg (mercury)
Mercury content	0 mg

Performance

Specification	Value
Game mode	Yes
Teletext function	Yes
Teletext	1000 pages
Teletext standards	Hyper-text
Subtitles function	Yes
Audio formats supported	AAC, MP3, WAV, WMA, WMA-PRO
Image formats supported	BMP, GIF, JPEG, PNG
Subtitle formats supported	SMI, SRT, SUB, TXT
Video formats supported	AVC, AVI, H.264, H.265, HEVC, MKV, MPEG1, MPEG2, MPEG4, VC-1, VP9, WMV9
Processor cores	4
USB recording	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	4
Audio Return Channel (ARC)	Yes
HDCP	Yes
PC in (D-Sub)	No
DVI port	No
DVI-D ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Component video (YPbPr/YCbCr) in	1
Audio (L/R) in	1
Digital audio optical out	1
Headphone outputs	1
RF connector type	IEC
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Consumer Electronics Control (CEC)	EasyLink

Management features

Specification	Value
Electronic Programme Guide (EPG)	Yes
Programming period	8 day(s)
Picture mute (for radio)	Yes
Auto power off	Yes
On/Off timer	Yes
Sleep timer	Yes
Firmware upgradeable	Yes
Firmware upgradeable via	Auto upgrade wizard, Network, USB

Power

Specification	Value
Power consumption (typical)	123 W
Power consumption (standby)	0.3 W
Power consumption (off)	0.3 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Brand-specific features

Specification	Value
Philips technologies (AV/TV)	Ambilight

Weight & dimensions

Specification	Value
Width (with stand)	1678.8 mm
Depth (with stand)	314.6 mm
Height (with stand)	985.5 mm
Weight (with stand)	46 kg
Width (without stand)	1678.8 mm
Depth (without stand)	68.4 mm
Height (without stand)	964.3 mm
Weight (without stand)	43 kg
Stand width	75 cm

Packaging data

Specification	Value
Quick start guide	Yes
Package width	1600 mm
Package depth	242 mm
Package height	995 mm
Package weight	51 kg
Package type	Box

Packaging content

Specification	Value
Desktop stand	Yes
Cables included	AC, Component
Remote control included	Yes

Other features

Specification	Value
Light sensor	Yes
3D	No
Batteries included	Yes
Battery type	AA
Number of batteries supported	2
Interactive TV	Yes
Built-in speaker(s)	Yes
Ambient lighting type	3-sided
Annual energy consumption	180 kWh
Energy efficiency class (legacy scale)	A+
Playback modes	Pause
Google applications	Google Music, Google Play, YouTube
User memory	16 GB
