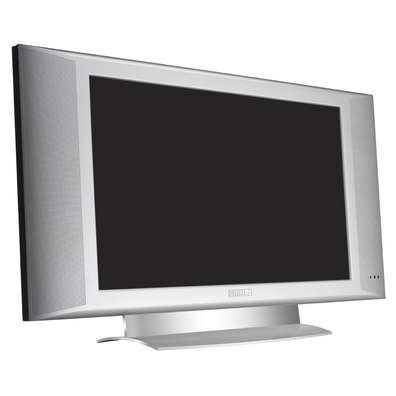

23" Widescreen LCD Flat TV
Model 23" Widescreen LCD Flat TVPart no. 23PF8946EAN 8710895809016
29 specifications Checked today
- Display58.4 cm (23")
- Resolution1280 x 768 pixels
- ColourSilver
- Analog signal format systemNTSC, PAL, SECAM
- Number of speakers2
- Sleep timerYes
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1280 x 768 pixels
- Colour
- Silver
- Analog signal format system
- NTSC, PAL, SECAM
- Number of speakers
- 2
- Sleep timer
- Yes
- Brand
- Philips
- Category
- TV
- Model
- 23" Widescreen LCD Flat TV
- Part number
- 23PF8946
- EAN / UPC
- 8710895809016
- Also known as
- Philips 23" Widescreen LCD Flat TV 58.4 cm (23") WXGA Silver 450 cd/m²
Specifications
29 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| HD type | WXGA |
| Display resolution | 1280 x 768 pixels |
| Display technology | LCD |
| Zoom capability | Zoom 14:9, Zoom 16:9, Subtitle zoom |
| Display brightness | 450 cd/m² |
| Response time | 21 ms |
| Contrast ratio (typical) | 450:1 |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 135° |
| Comb filter | 2D |
| Viewable size diagonal | 58 cm |
TV tuner
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Audio system | Virtual Dolby Surroud, Nicam stereo |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Panel mounting interface | 100 x 100 mm |
Management features
| Specification | Value |
|---|---|
| Sleep timer | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 80 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 704 mm |
| Depth (without stand) | 92 mm |
| Height (without stand) | 373 mm |
| Weight (without stand) | 10.2 kg |
Other features
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Display | LCD WXGA TFT |
| I/O ports | Scart1: CVBS in/out, RGB, Audio L/R PC-In VGA Antenna input FM Antenna Audio L/R in CVBS S-video Audio in Headphone out |
