4000 series LED TV 22PFL4507/F7
Model 22PFL4507/F7EAN 609585223189
68 specifications Checked today
- Display55.9 cm (22")
- Resolution1366 x 768 pixels
- ColourBlack
- Tuner typeAnalog & digital
- Internet TVNo
- Number of speakers2
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1366 x 768 pixels
- Colour
- Black
- Tuner type
- Analog & digital
- Internet TV
- No
- Number of speakers
- 2
- Brand
- Philips
- Category
- TV
- Model
- 22PFL4507/F7
- Part number
- 22PFL4507/F7
- EAN / UPC
- 609585223189
- Also known as
- Philips 4000 series LED TV 22PFL4507/F7
Specifications
68 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| HD type | HD |
| Display resolution | 1366 x 768 pixels |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Screen format adjustments | 4:3, 16:9, Zoom |
| Supported graphics resolutions | 720 x 480, 1024 x 768 (XGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 720p |
| Display brightness | 250 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Comb filter | 3D |
| Display diagonal (metric) | 56 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Analog signal format system | NTSC |
| Digital signal format system | ATSC |
| Supported TV bands | UHF, VHF |
Smart TV
| Specification | Value |
|---|---|
| Internet TV | No |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Equalizer | Yes |
| Equalizer bands quantity | 5 |
| Audio system | SRS TruSurround XT |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
Performance
| Specification | Value |
|---|---|
| Audio formats supported | PCM |
| Image formats supported | JPG |
| Video formats supported | M-JPEG |
| Noise reduction | Yes |
| Child lock | Yes |
| Parental control | Yes |

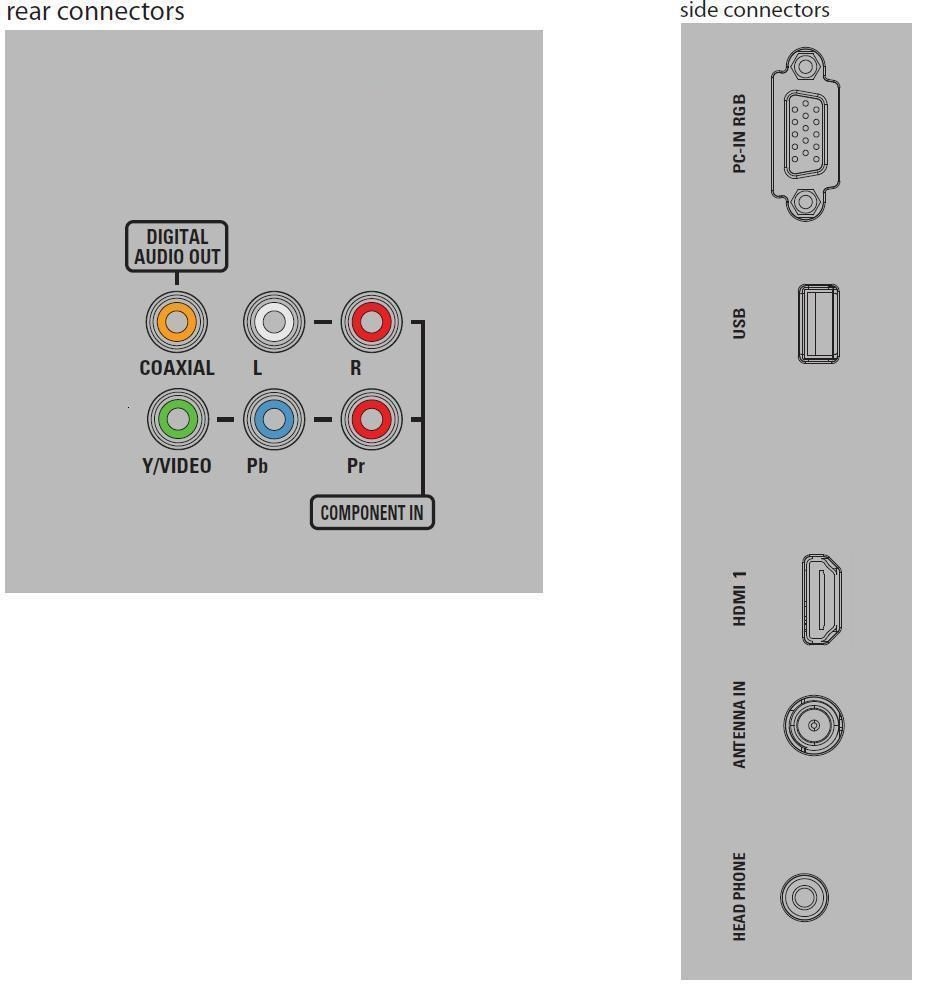

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| PC in (D-Sub) | Yes |
| USB 2.0 ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Digital audio coaxial out | 1 |
| Headphone outputs | 1 |
| Card reader integrated | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 V |
| AC input frequency | 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 532.9 mm |
| Depth (with stand) | 142.5 mm |
| Height (with stand) | 376.4 mm |
| Weight (with stand) | 3.25 kg |
| Width (without stand) | 532.9 mm |
| Depth (without stand) | 53.6 mm |
| Height (without stand) | 341.4 mm |
| Weight (without stand) | 3.15 kg |
| Package dimensions (WxDxH) | 594.10 x 99.05 x 391.92 mm |
Packaging data
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| Package weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |

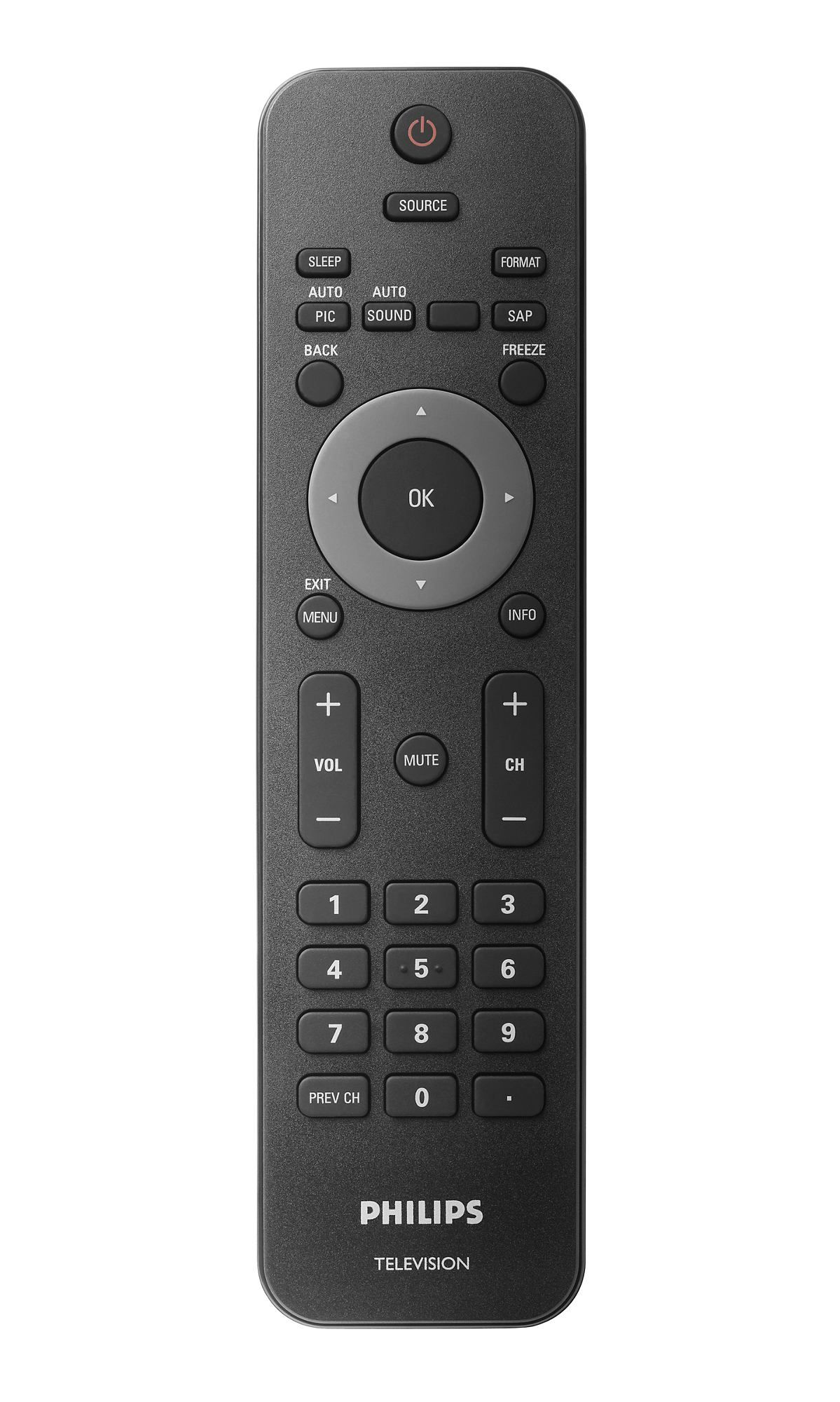

| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Wi-Fi ready | No |
| Batteries included | Yes |
| Built-in speaker(s) | Yes |
