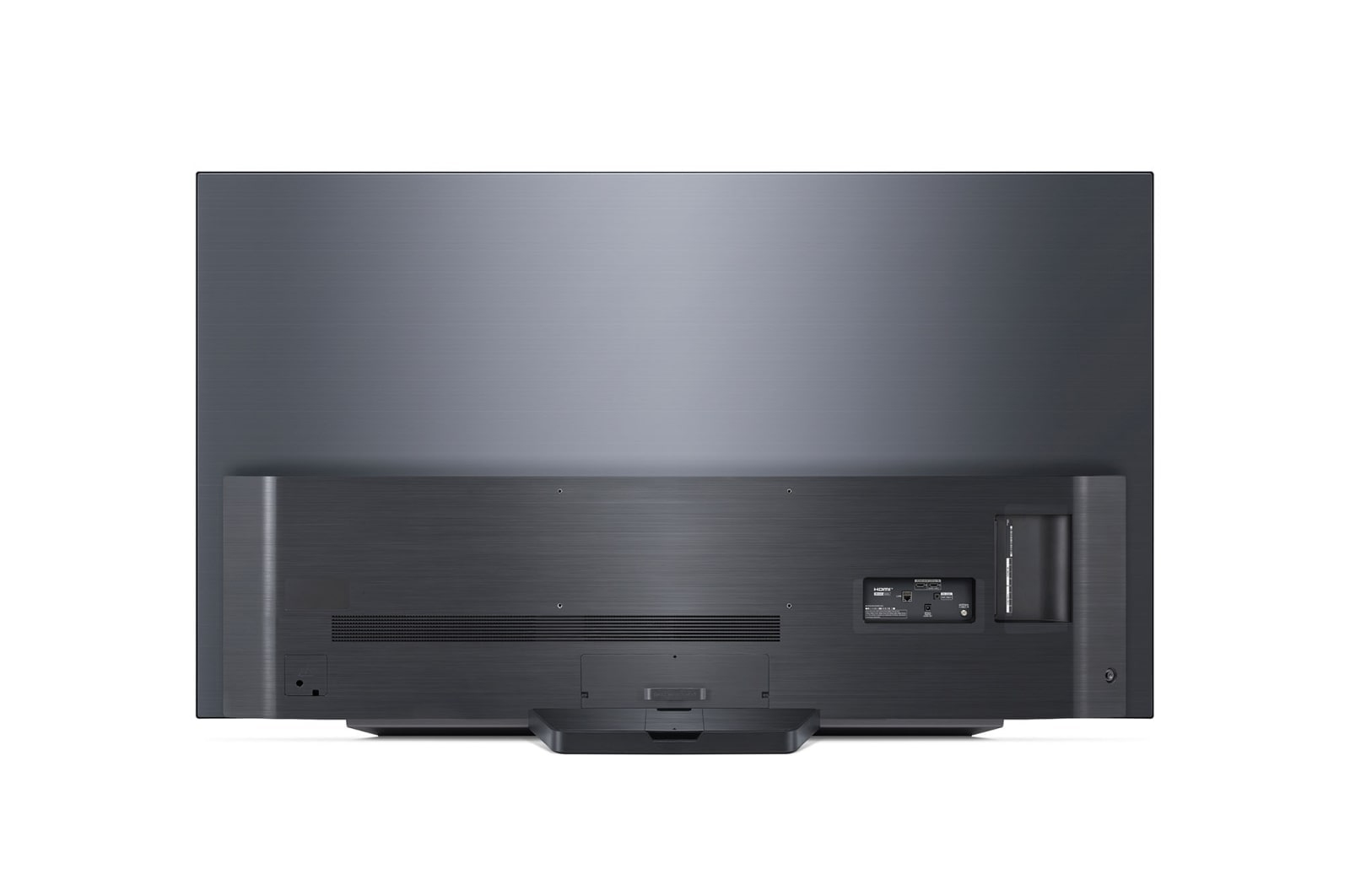

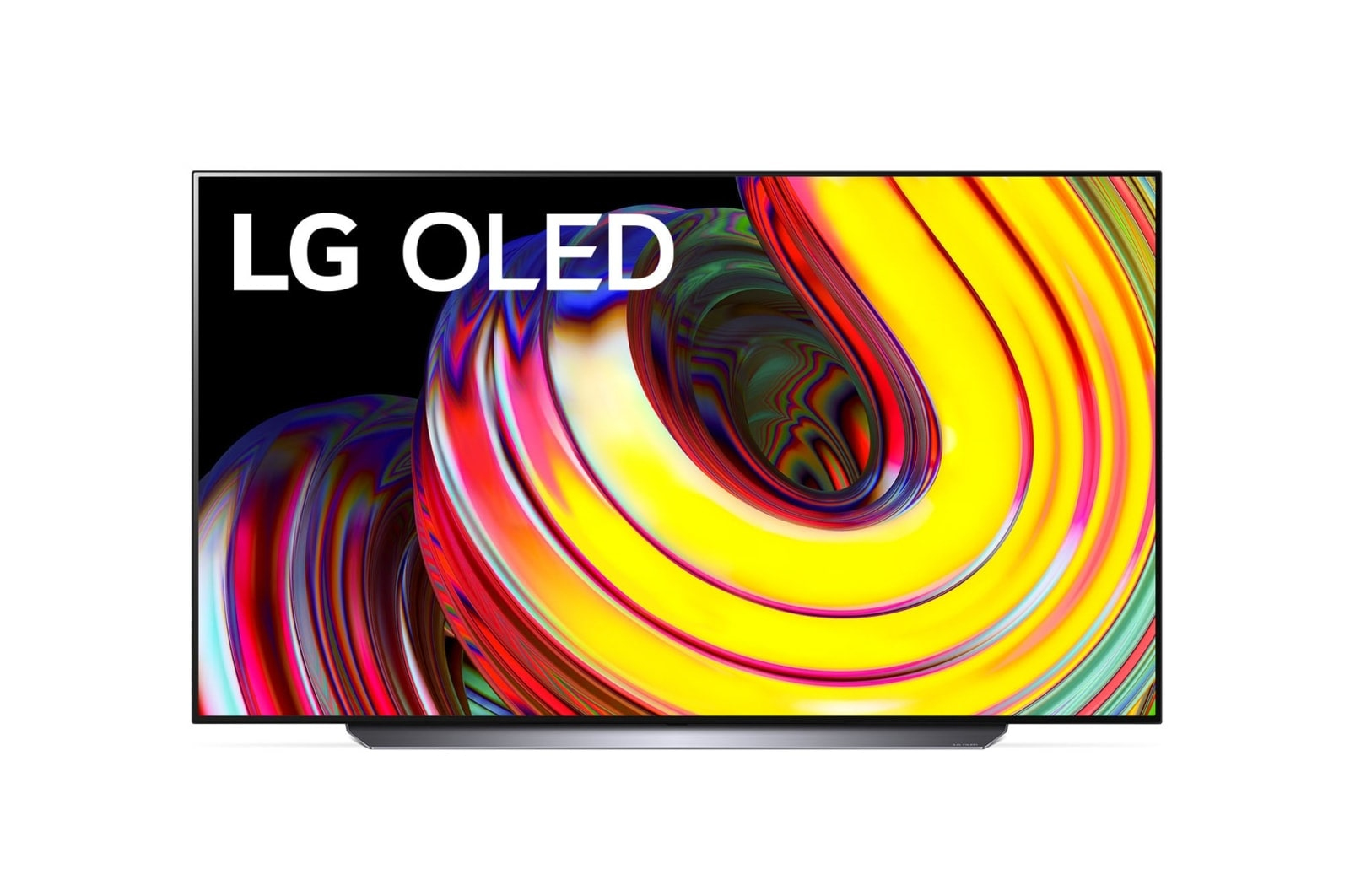

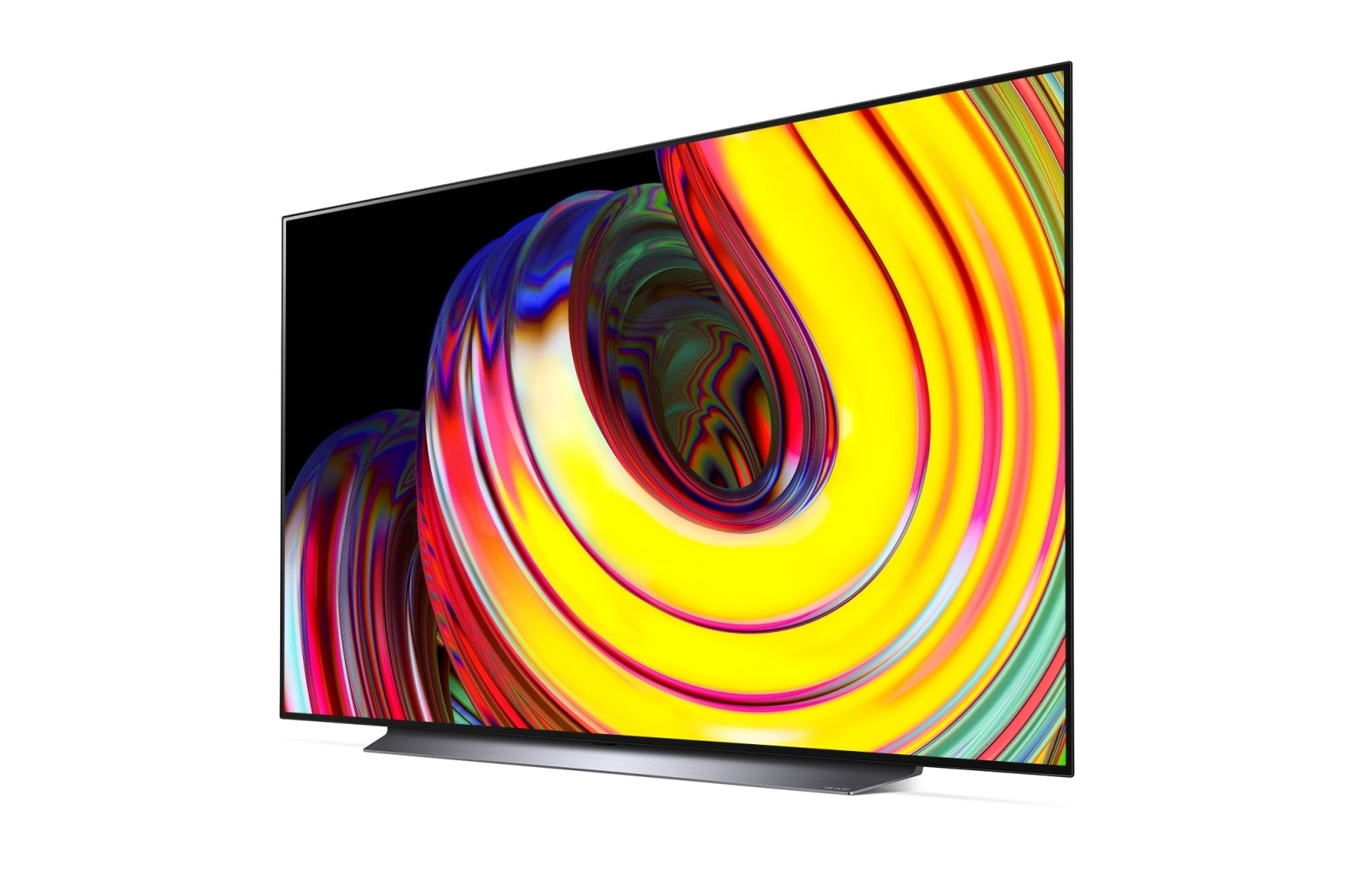

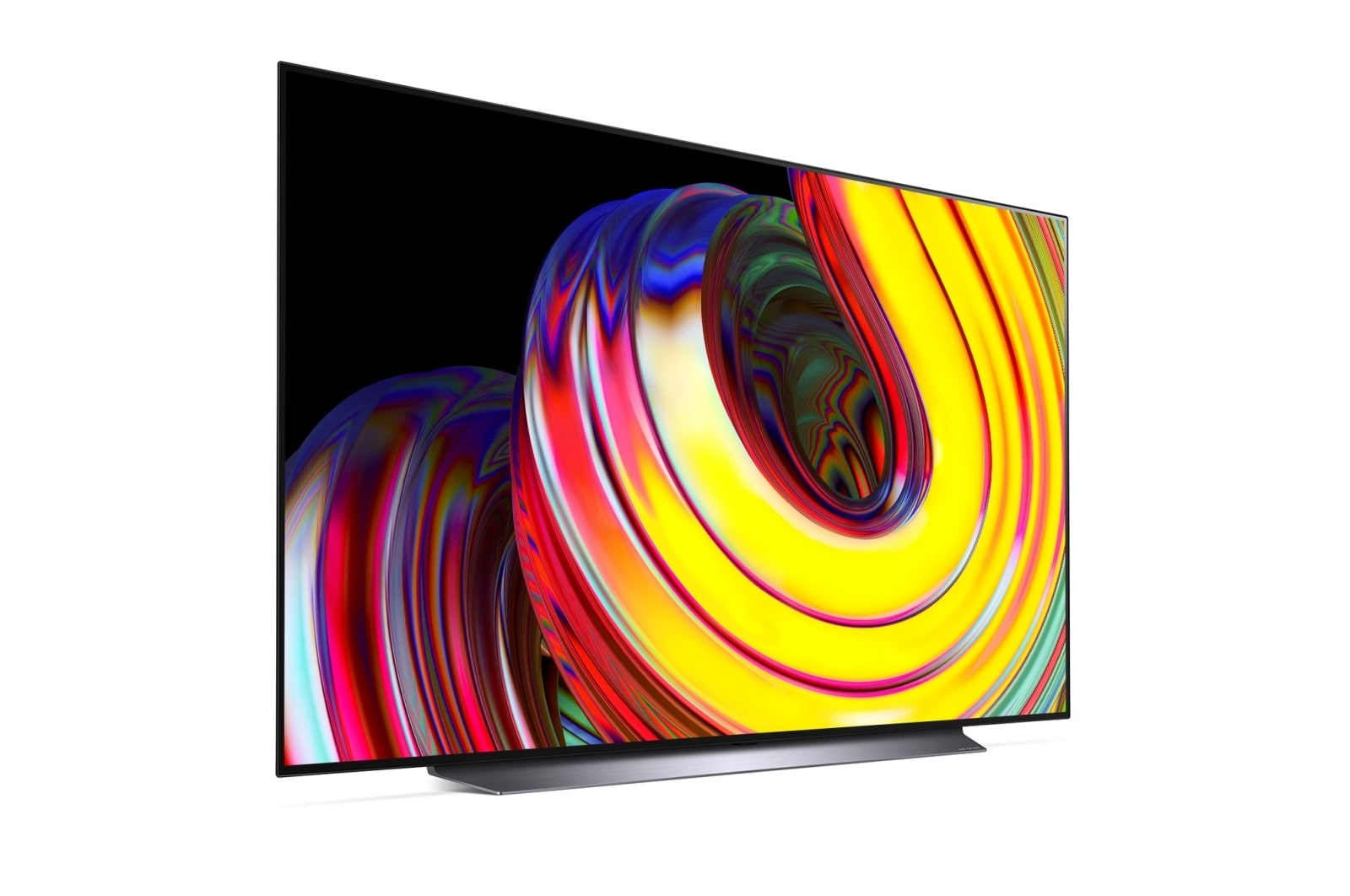

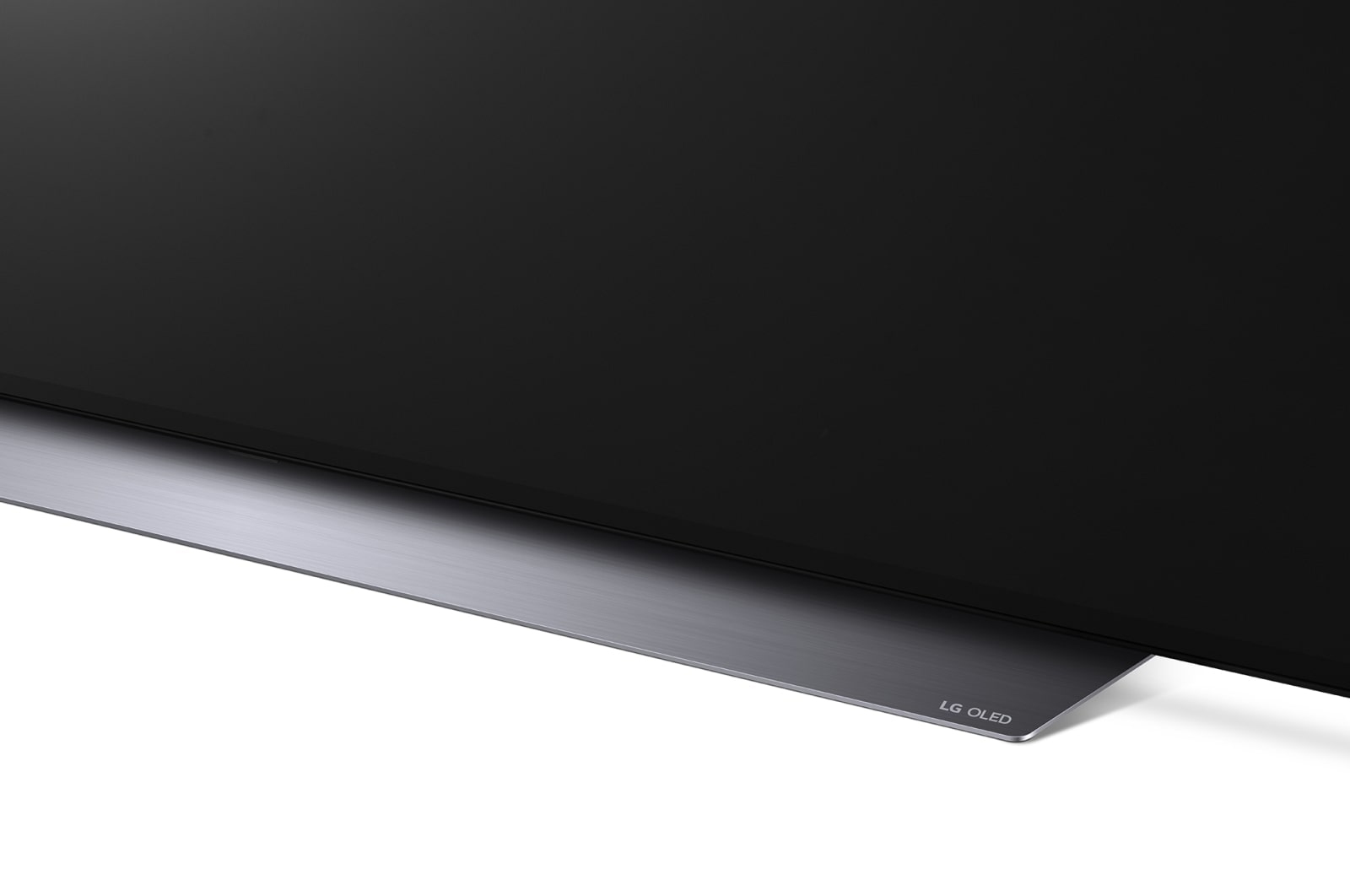

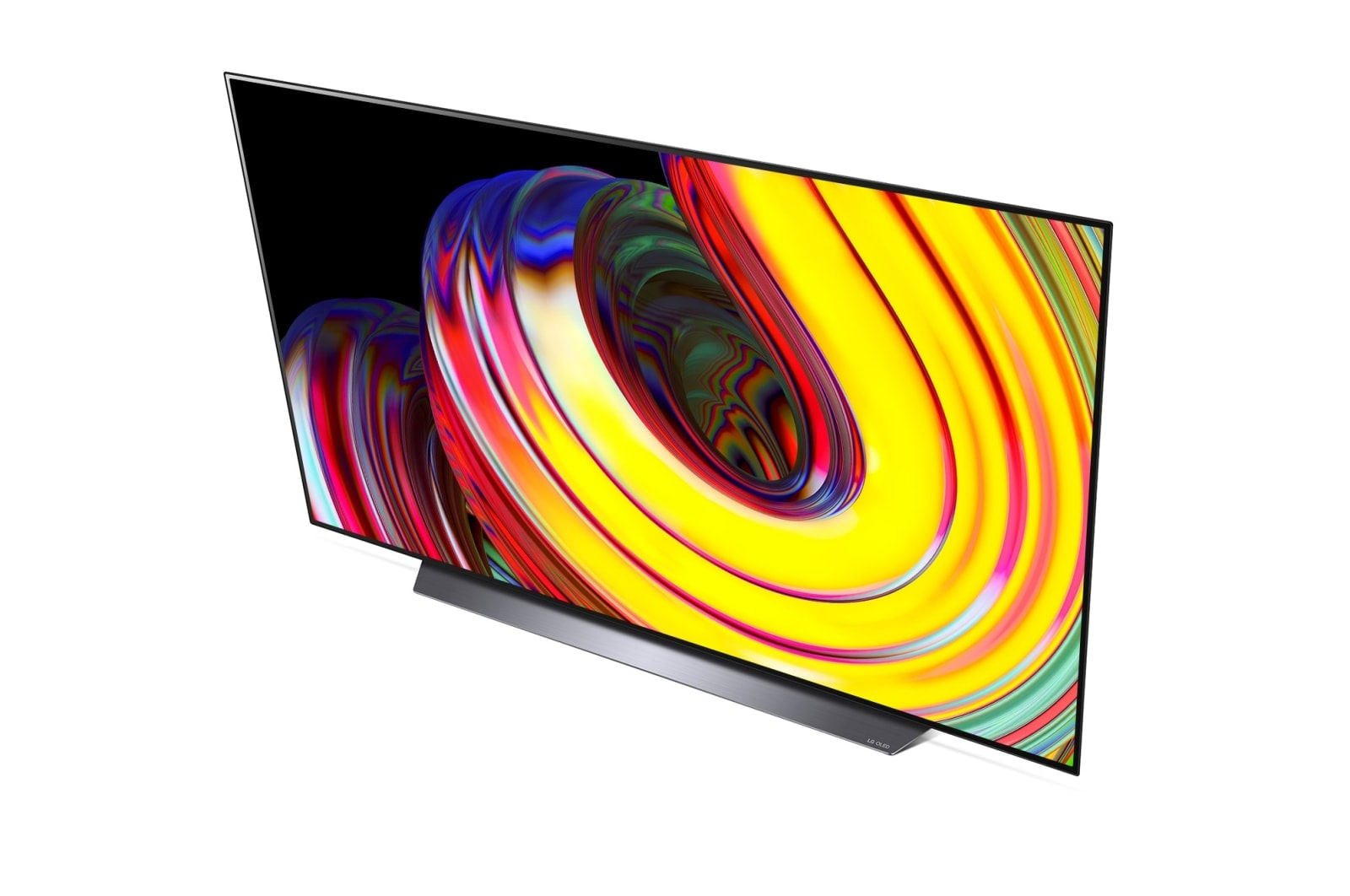

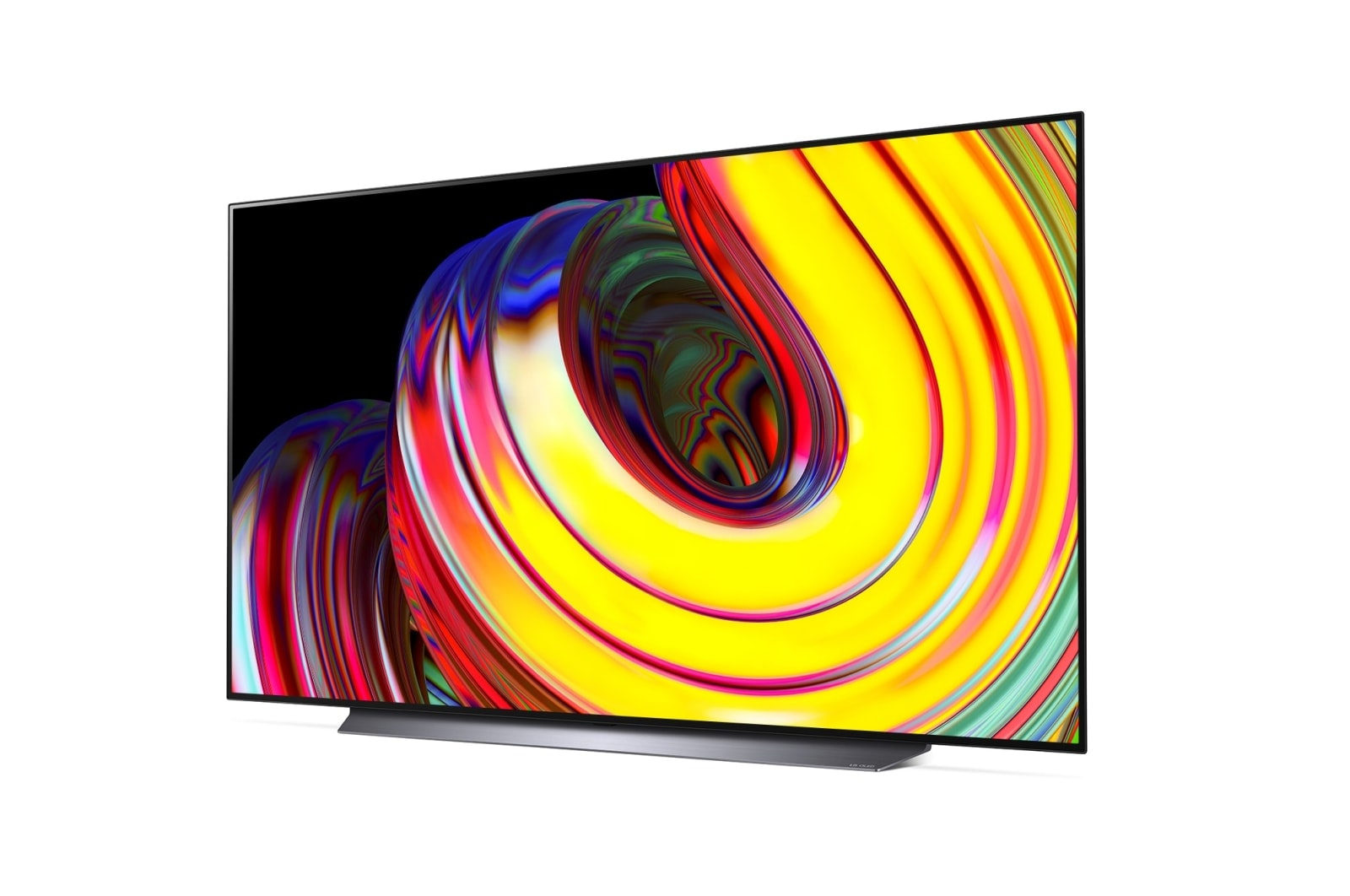

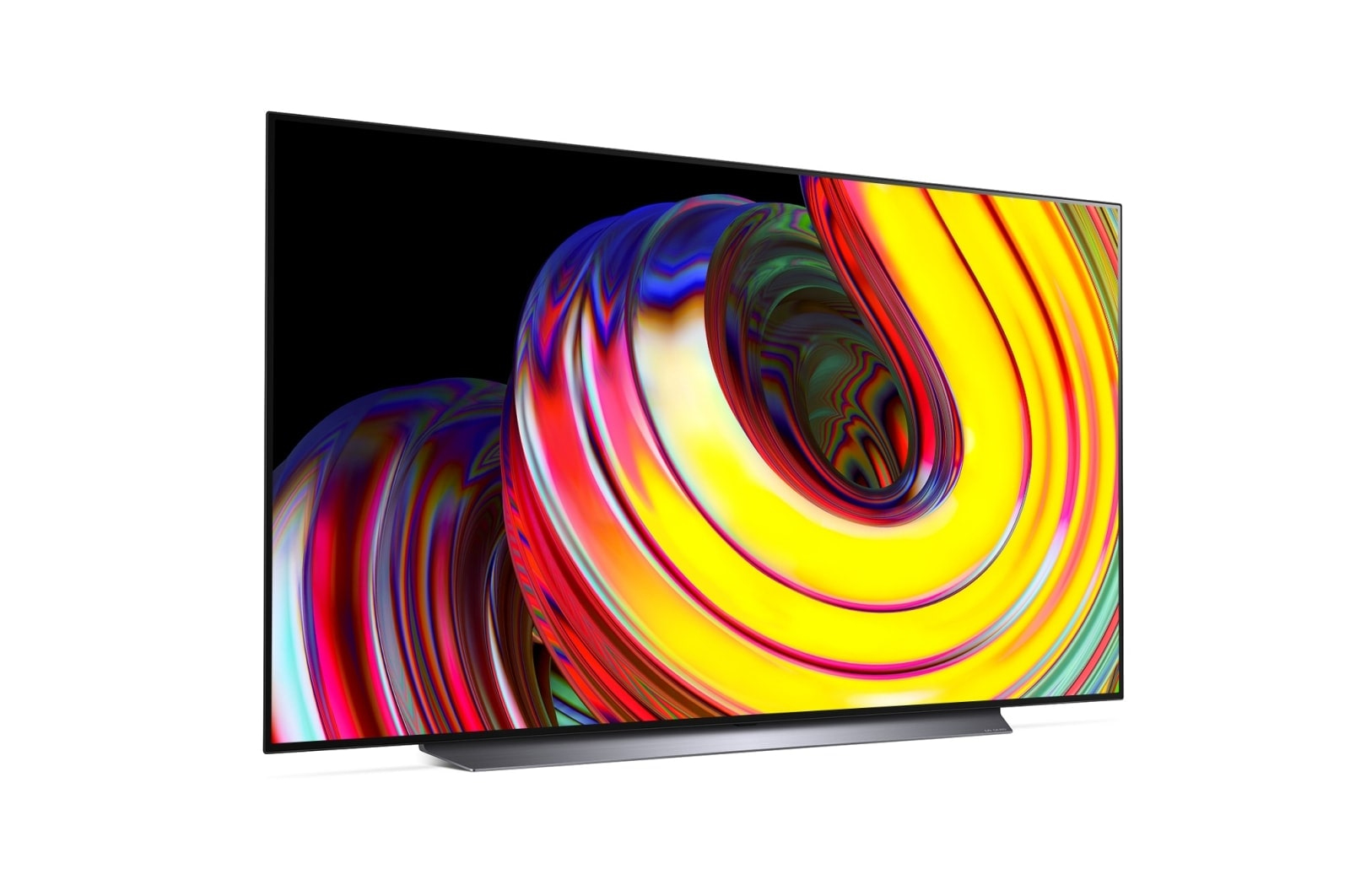

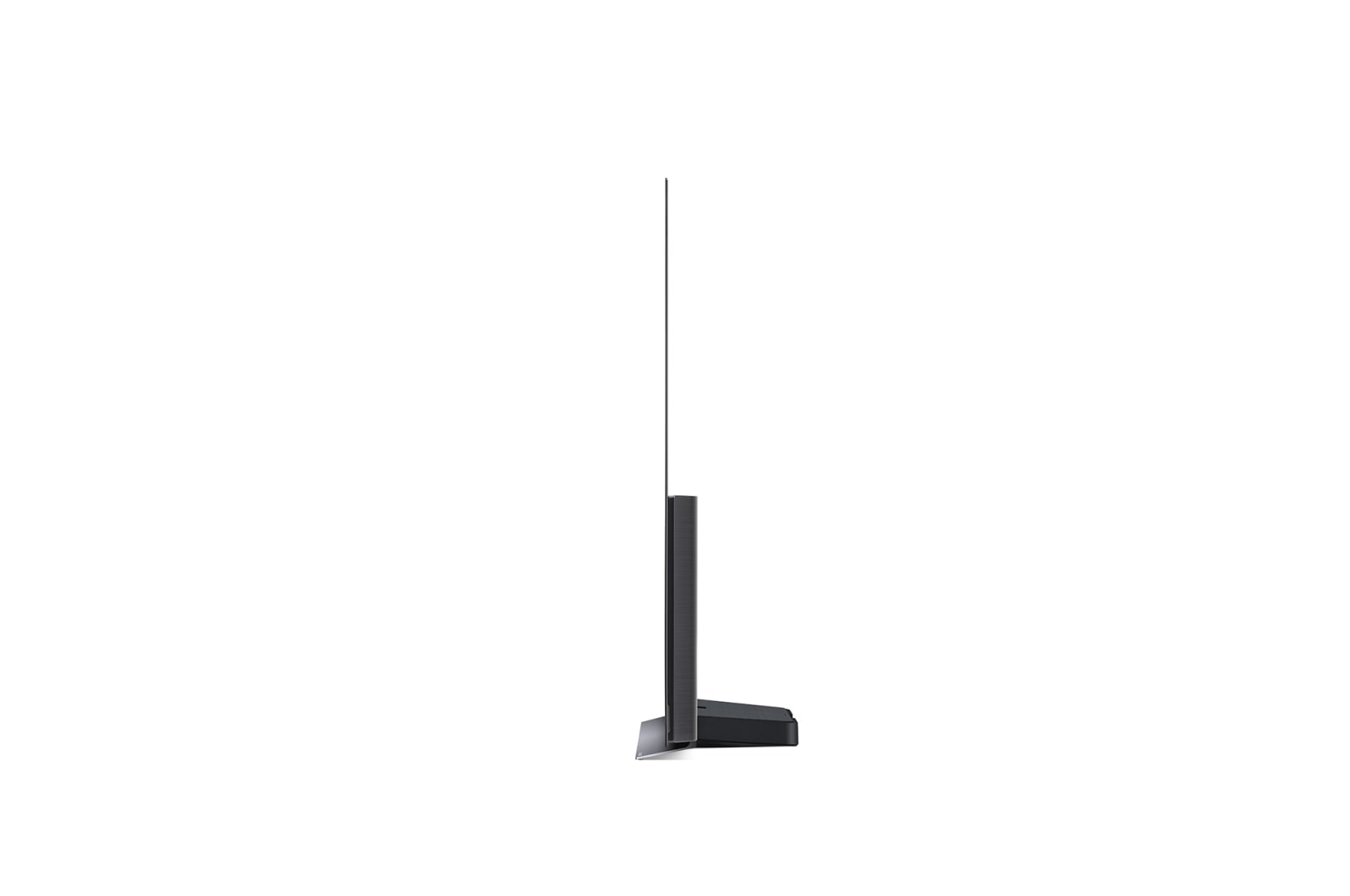

LG OLED OLED77CS6LA

OLED OLED77CS6LA

195.6 cm (77") 4K Ultra HD Smart TV Wi-Fi Grey

Model OLED77CS6LAPart no. OLED77CS6LA.AEUEAN 8806091448972

103 specifications Checked today

Display195.6 cm (77")
Resolution3840 x 2160 pixels
Energy classF
OSWebOS
ColourGrey
Tuner typeAnalog & digital

See all specifications

Overview

Display: 195.6 cm (77")
Resolution: 3840 x 2160 pixels
Energy class: F
OS: WebOS
Colour: Grey
Tuner type: Analog & digital

Brand: LG
Category: TV
Model: OLED77CS6LA
Part numbers: OLED77CS6LA.AEU, OLED77CS6LA
EAN / UPC: 8806091448972, 8806091535443
Also known as: LG OLED OLED77CS6LA 195.6 cm (77") 4K Ultra HD Smart TV Wi-Fi Grey

Specifications

103 specifications in 13 groups

Display

Specification	Value
Display diagonal	195.6 cm (77")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	OLED
Screen shape	Flat
Native aspect ratio	16:9
Response time	1 ms
Native refresh rate	120 Hz
Display diagonal (metric)	195 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	WebOS
Operating system version	22
Timeshift	Yes
Apple AirPlay 2 support	Yes
Hybrid Broadcast Broadband TV (HbbTV)	Yes
Smart modes	Filmmaker

Audio

Specification	Value
Number of speakers	2
Audio output channels	2.2 channels
RMS rated power	40 W
Built-in subwoofer	Yes
Subwoofer RMS power	20 W
Audio decoders	Dolby Atmos
Sound modes	AI Sound Pro, Clear Voice Pro
Enhanced Audio Return Channel (eARC)	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Ethernet LAN	Yes
Miracast	Yes
Browsing	Yes
Web browser	Yes
HID support	Yes

Design

Specification	Value
Product colour	Grey
VESA mounting	Yes
Panel mounting interface	400 x 200 mm
Introduction year	2022
Stand type	Center stand
Stand colour	Grey
Heavy metals free	Hg (mercury)

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Cinema HDR, Dolby Vision IQ, High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro), Hybrid Log-Gamma (HLG)
Game mode	Yes
Teletext function	Yes
Teletext	2000 pages
Subtitles function	Yes
Audio formats supported	AAC, AC3, AC4, EAC3, HE-AAC, MP2, MP3, PCM, WMA
Video formats supported	AVC, H.264, HEVC, M-JPEG, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Brightness detection	Yes
AI Upscale	Yes
Processor cores	4
Image gallery	Yes
Multi-screen	Yes
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium
NVIDIA G-SYNC	Yes
Game features	Auto Low Latency Mode (ALLM), Game Optimizer, Variable Refresh Rate (VRR)
Multi View	Yes
Child lock	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	4
HDMI version	2.1
Audio Return Channel (ARC)	Yes
PC in (D-Sub)	No
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Digital audio optical out	1
Headphone outputs	0
RF ports quantity	3
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.4
Consumer Electronics Control (CEC)	SimpLink

Management features

Specification	Value
Voice control	Yes
Electronic Programme Guide (EPG)	Yes
Basic hotel mode	Yes
Works with Amazon Alexa	Yes
Works with the Google Assistant	Yes

Power

Specification	Value
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	131 kWh
Energy consumption (HDR) per 1000 hours	269 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	1723 mm
Depth (with stand)	269 mm
Height (with stand)	1023 mm
Weight (with stand)	35.9 kg
Width (without stand)	1723 mm
Depth (without stand)	55.3 mm
Height (without stand)	993 mm
Weight (without stand)	26.7 kg

Packaging data

Specification	Value
Package width	285 mm
Package depth	1879 mm
Package height	1130 mm
Package weight	49.3 kg

Packaging content

Specification	Value
Desktop stand	Yes
Remote control included	Yes
