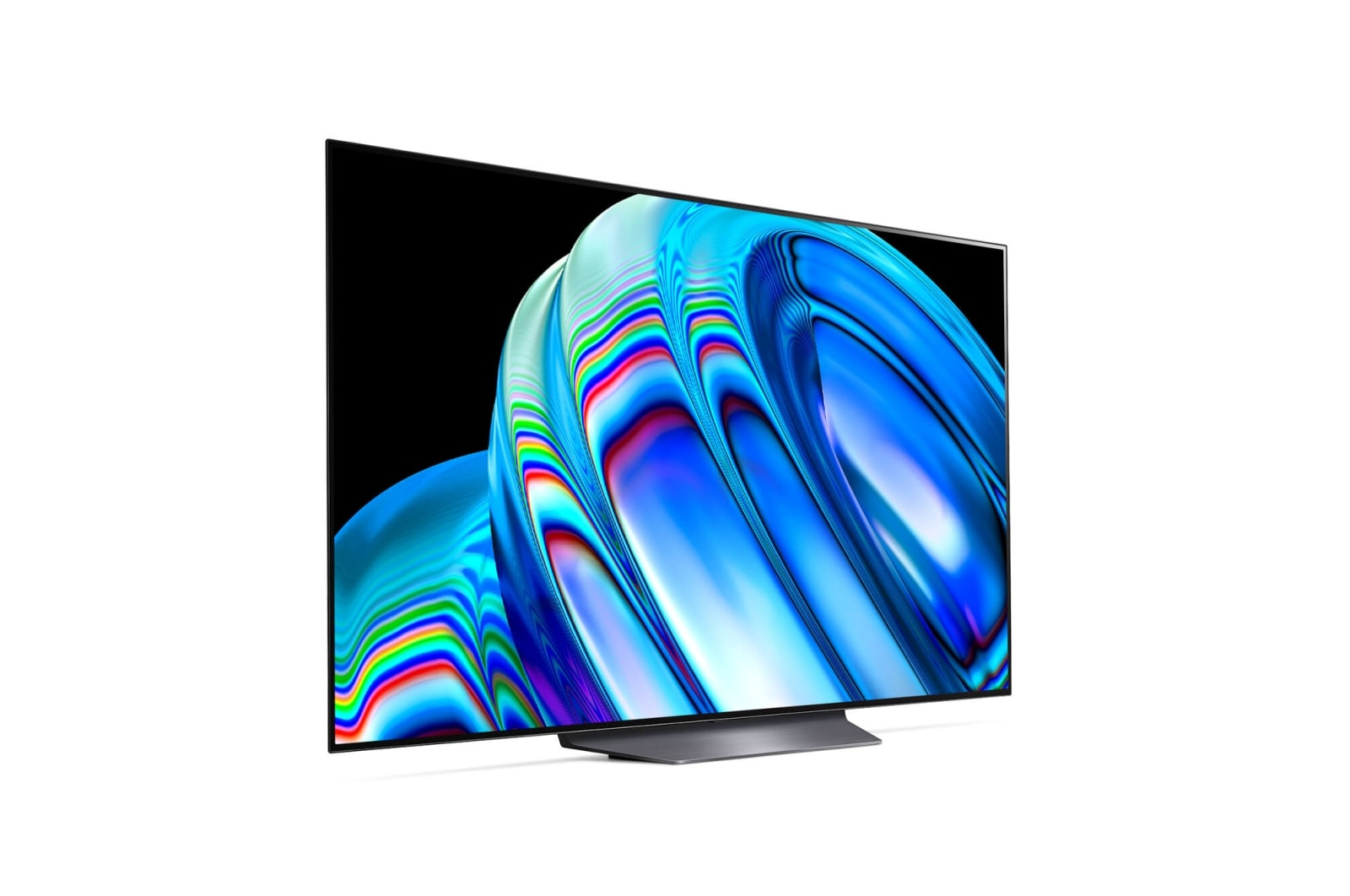

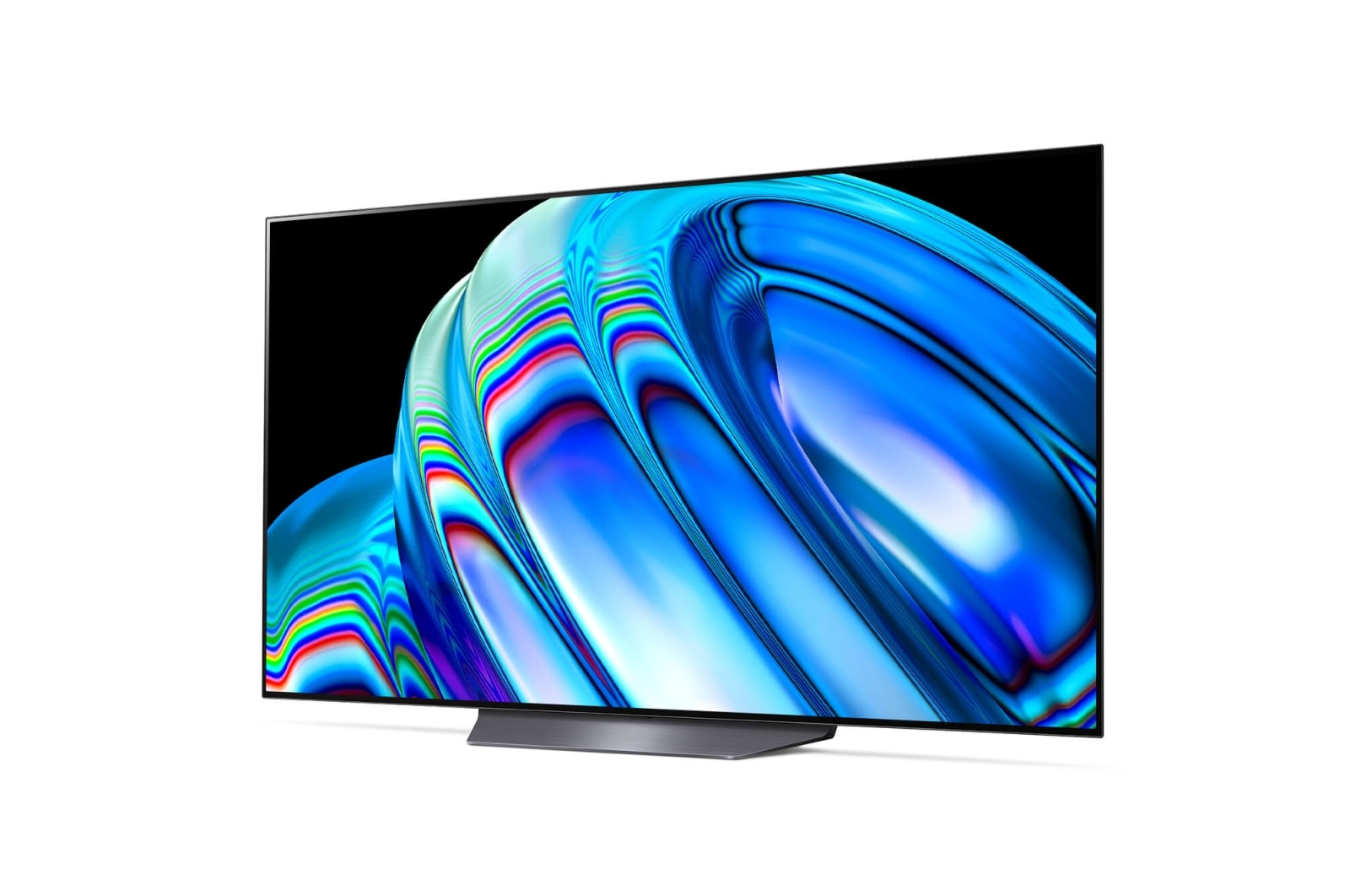

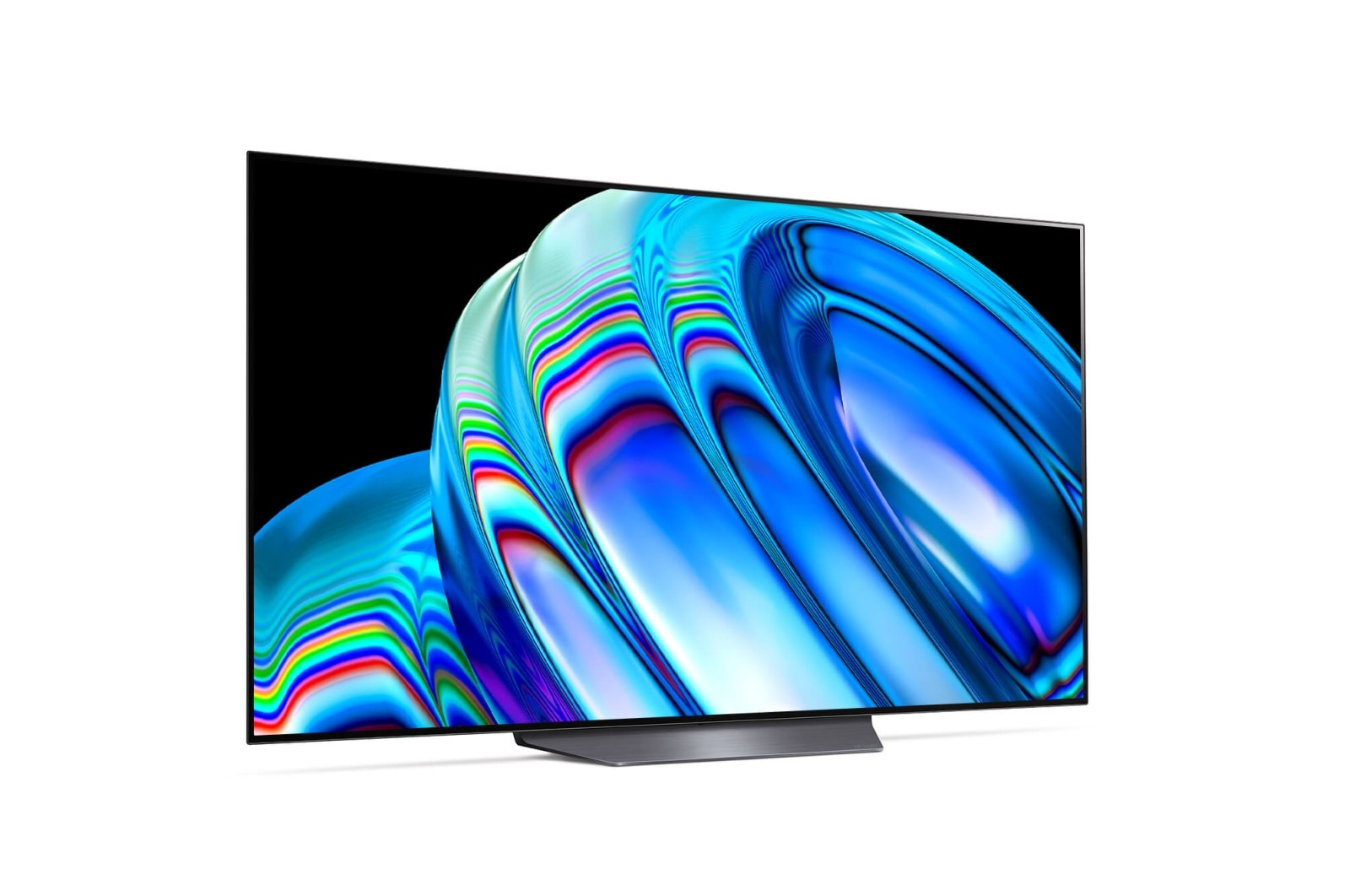

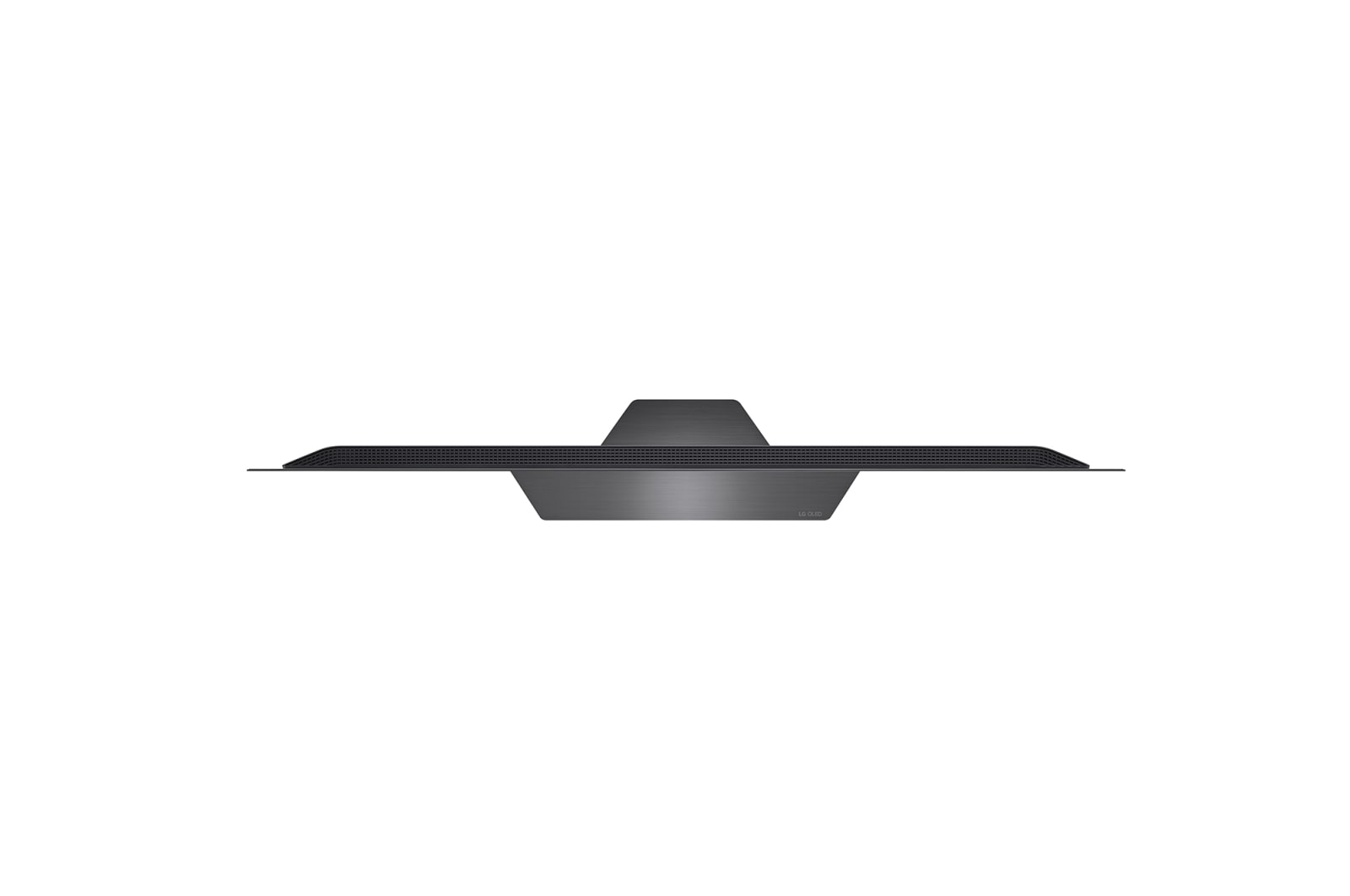

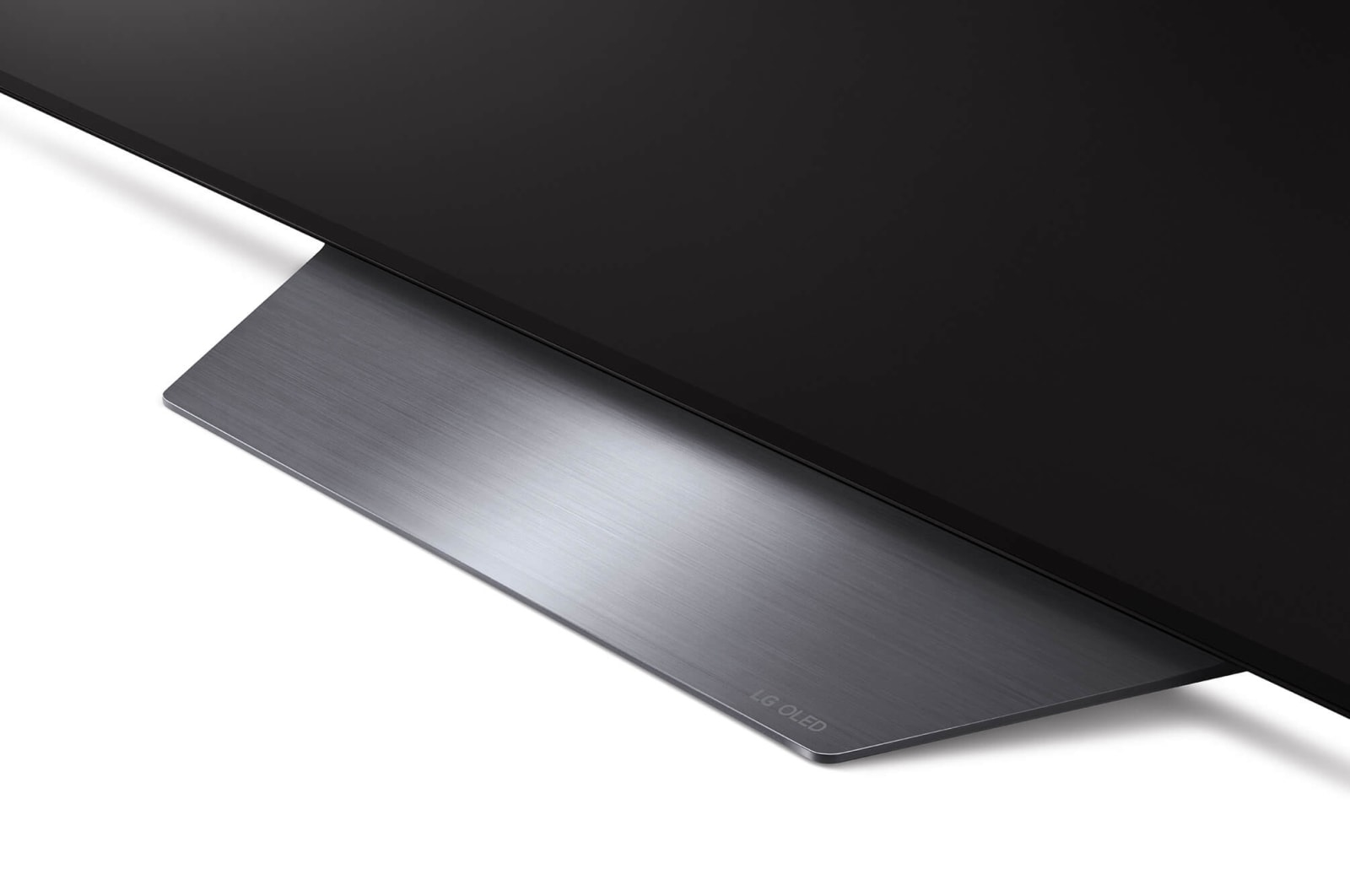

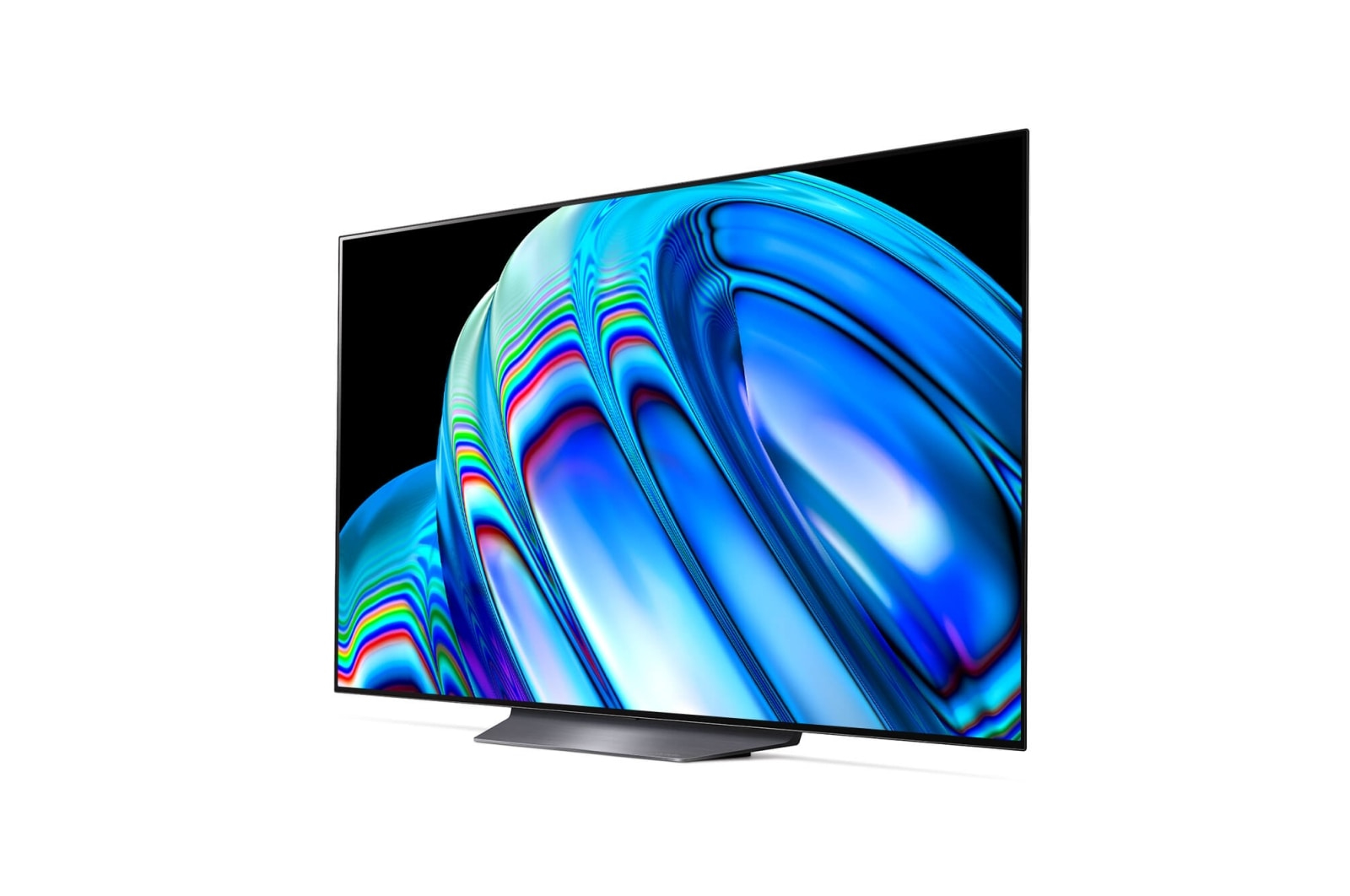

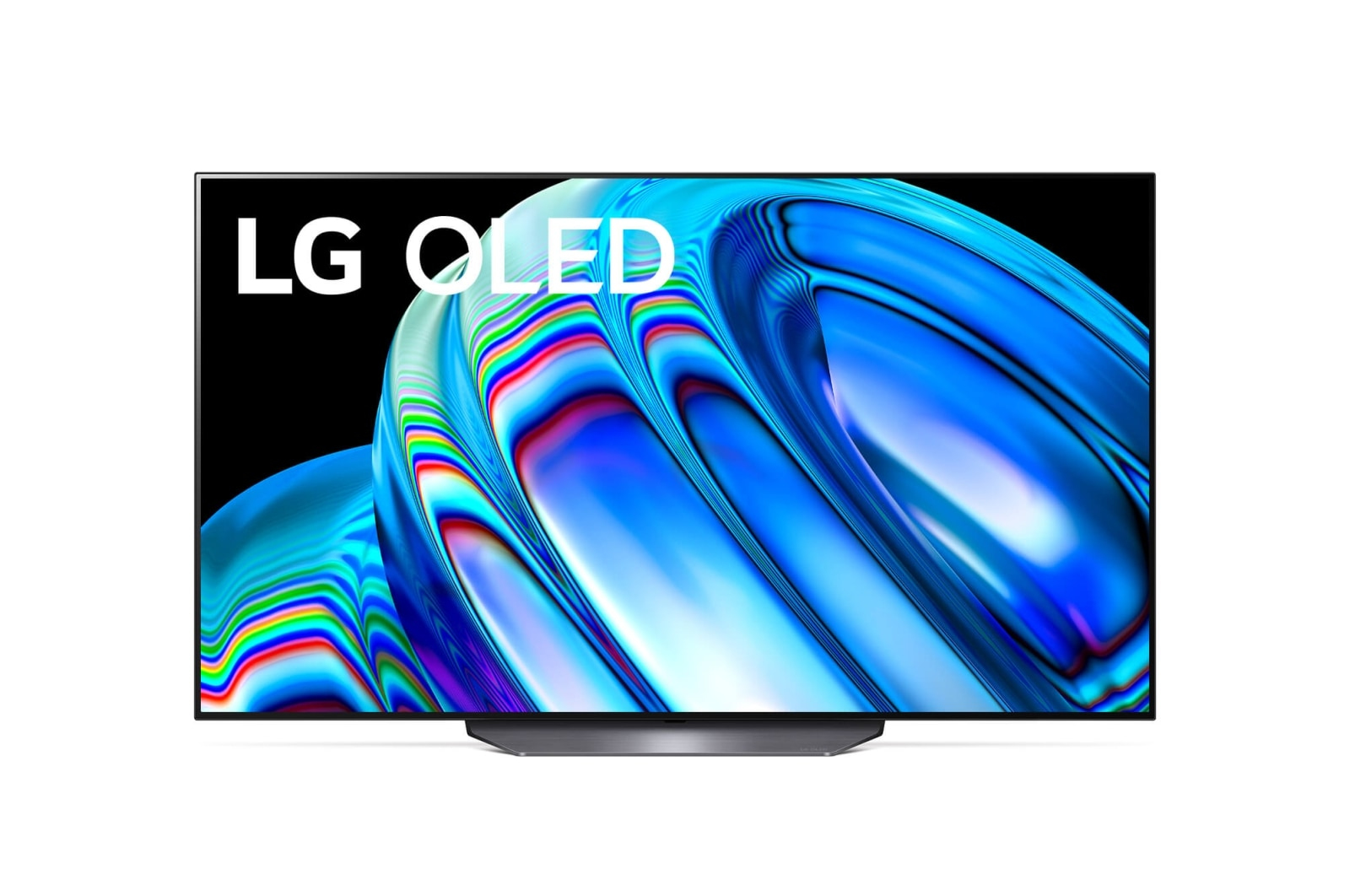

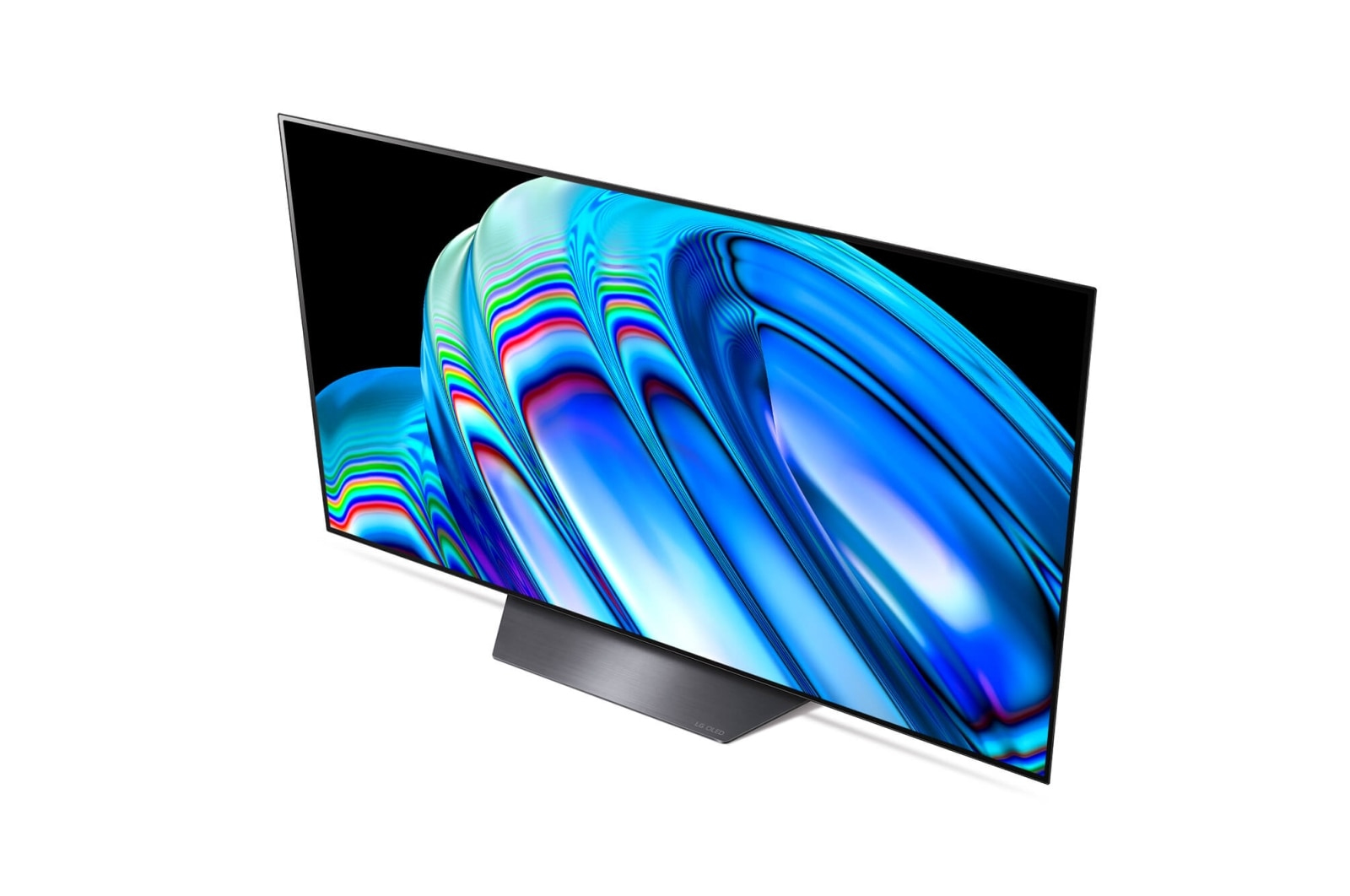

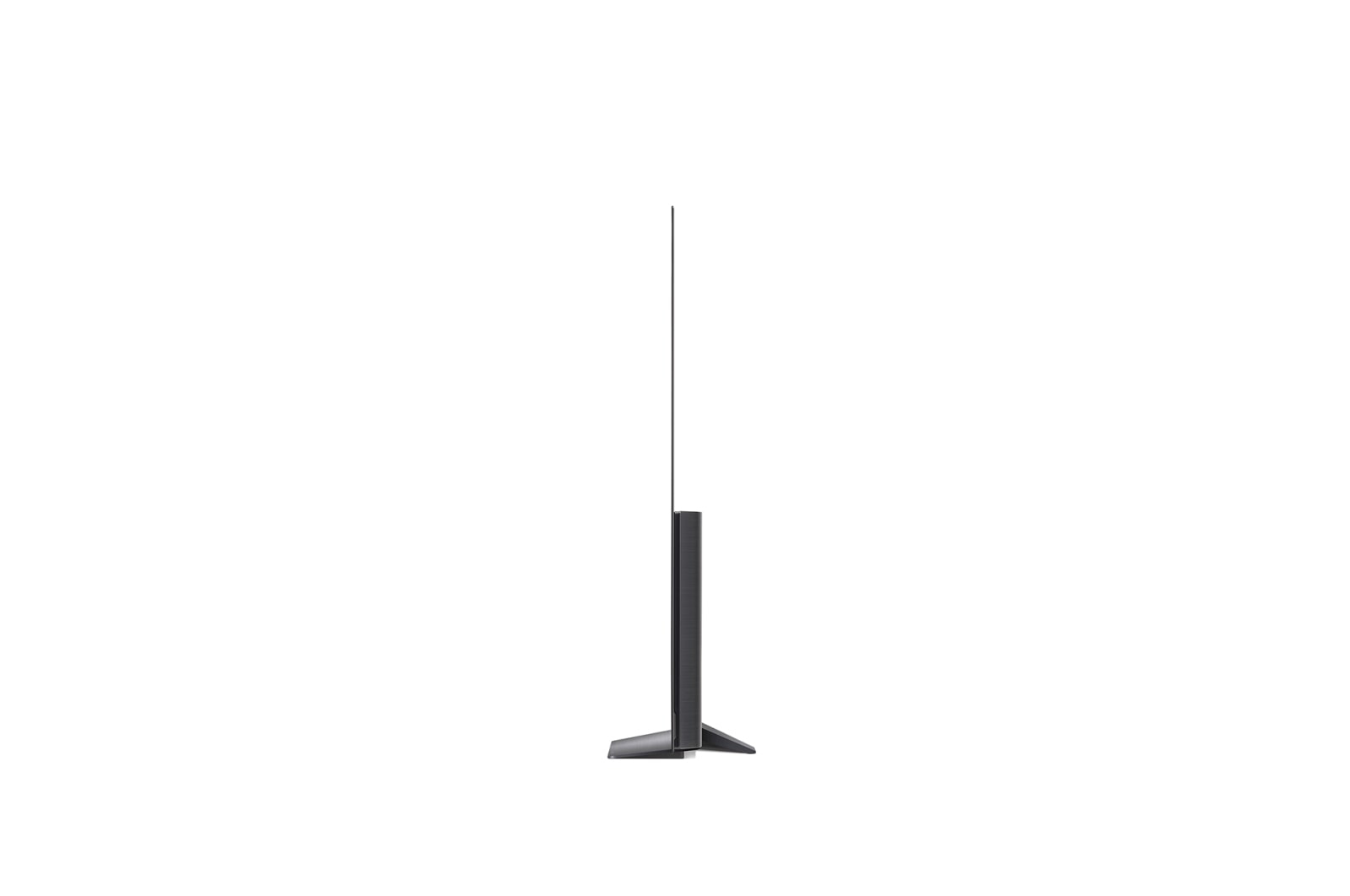

OLED77B23LA TV
195.6 cm (77") 4K Ultra HD Smart TV Wi-Fi Black
Model OLED77B23LAEAN 8806091616340
79 specifications Checked today
- Display195.6 cm (77")
- Resolution3840 x 2160 pixels
- Energy classF
- OSWebOS
- ColourBlack
- Tuner typeDigital
Overview
- Display
- 195.6 cm (77")
- Resolution
- 3840 x 2160 pixels
- Energy class
- F
- OS
- WebOS
- Colour
- Black
- Tuner type
- Digital
- Brand
- LG
- Category
- TV
- Model
- OLED77B23LA
- Part number
- OLED77B23LA
- EAN / UPC
- 8806091616340
- Also known as
- LG OLED77B23LA TV 195.6 cm (77") 4K Ultra HD Smart TV Wi-Fi Black
Specifications
79 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 195.6 cm (77") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | OLED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Automatic brightness control | Yes |
| Native refresh rate | 120 Hz |
| Display diagonal (metric) | 195 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | WebOS |
| Timeshift | Yes |
| Apple AirPlay 2 support | Yes |
| Video apps | Netflix |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Audio decoders | Dolby Atmos |
| Sound modes | Clear Voice Pro |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Miracast | Yes |
| Web browser | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 200 mm |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Cinema HDR, High Dynamic Range 10 Pro (HDR10 Pro), Hybrid Log-Gamma (HLG) |
| Game mode | Yes |
| Teletext function | Yes |
| Subtitles function | Yes |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
| NVIDIA G-SYNC | Yes |
| Game features | Variable Refresh Rate (VRR) |
| 4K Ultra HD upscaling | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| Audio Return Channel (ARC) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Digital audio optical out | 1 |
| Headphone outputs | 0 |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Consumer Electronics Control (CEC) | SimpLink |
Management features
| Specification | Value |
|---|---|
| Voice control | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| ECO mode | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 131 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 131 kWh |
| Energy consumption (HDR) per 1000 hours | 269 kWh |
| Power supply type | Internal |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1723 mm |
| Depth (with stand) | 270 mm |
| Height (with stand) | 1043 mm |
| Weight (with stand) | 30 kg |
| Width (without stand) | 1723 mm |
| Depth (without stand) | 55.3 mm |
| Height (without stand) | 992 mm |
| Weight (without stand) | 26.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1879 mm |
| Package depth | 285 mm |
| Package height | 1130 mm |
| Package weight | 43 kg |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Cables included | AC |
| Smart Remote included | Yes |
| E-manual | Yes |
