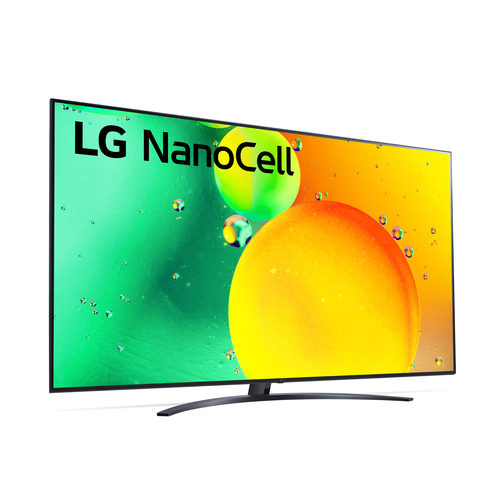

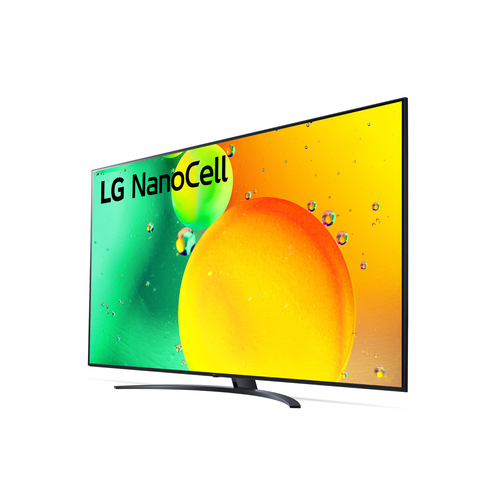

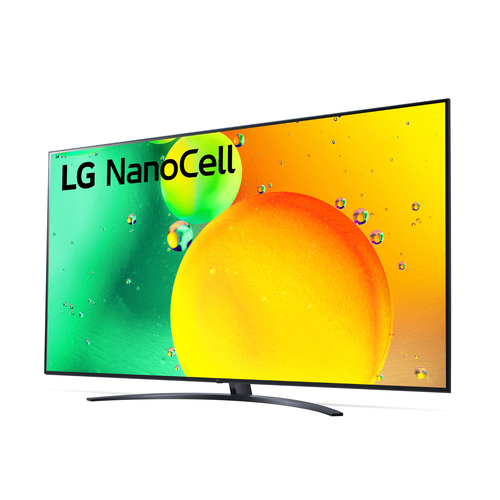

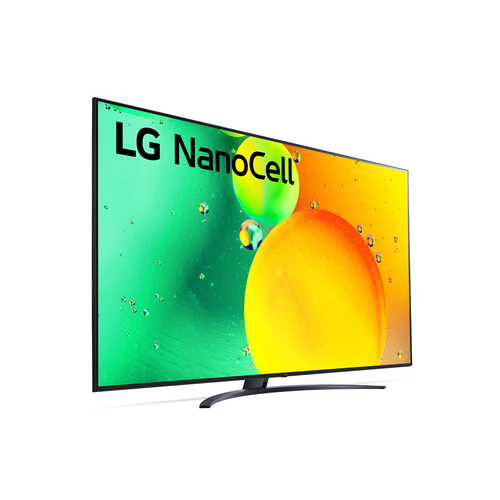

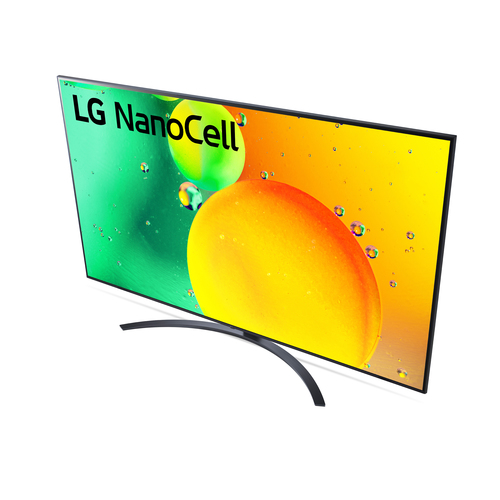

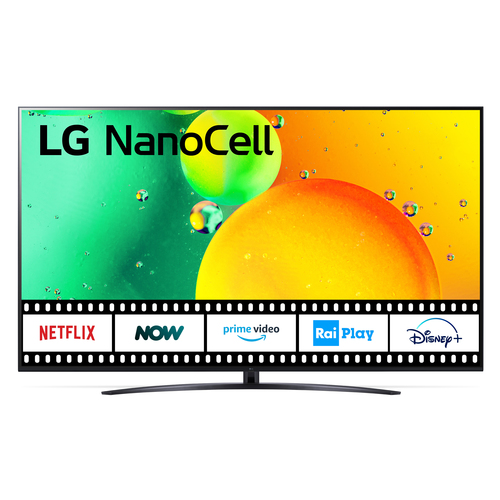

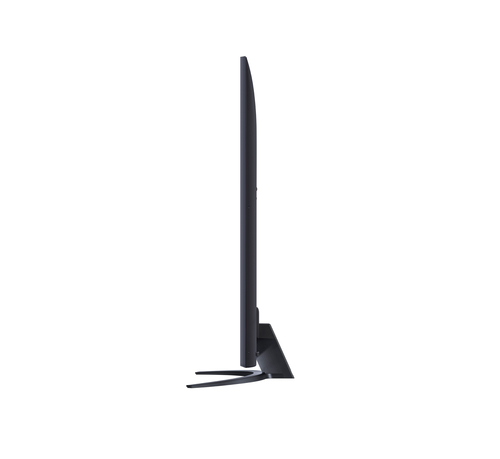

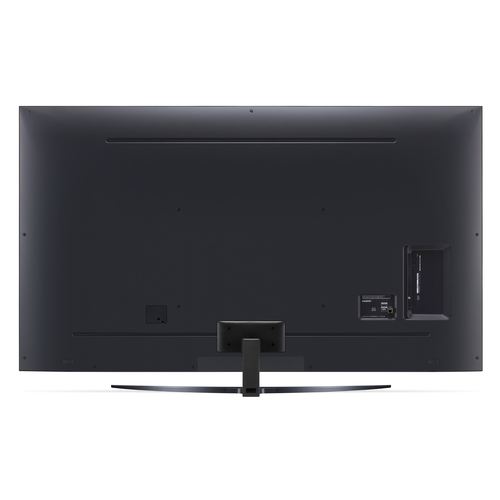

NanoCell 86NANO766QA.API TV 2.18 m (86") 4K Ultra HD Smart TV Wi-Fi Blue
Model 86NANO766QA.APIEAN 8806091629227
156 specifications Checked today
- Display2.18 m (86")
- Resolution3840 x 2160 pixels
- Energy classG
- OSWebOS
- ColourBlue
- Tuner typeDigital
Overview
- Display
- 2.18 m (86")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- OS
- WebOS
- Colour
- Blue
- Tuner type
- Digital
- Brand
- LG
- Category
- TV
- Model
- 86NANO766QA.API
- Part number
- 86NANO766QA.API
- EAN / UPC
- 8806091629227
- Also known as
- LG NanoCell 86NANO766QA.API TV 2.18 m (86") 4K Ultra HD Smart TV Wi-Fi Blue
Specifications
156 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 2.18 m (86") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | NanoCell |
| LED backlighting type | Direct-LED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Screen format adjustments | 4:3, 16:9, Zoom |
| Progressive scan | Yes |
| Native refresh rate | 50 Hz |
| Display diagonal (metric) | 218.44 cm |
| Viewable size diagonal | 2.18 m |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Digital |
| Digital signal format system | DVB-S2, DVB-T2 |
| Number of tuners | 1 tuner(s) |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | WebOS |
| Operating system version | 22 |
| Timeshift | No |
| Screen mirroring | Yes |
| Apple AirPlay 2 support | Yes |
| Video on Demand (VOD) support | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Smart modes | Cinema, Filmmaker, Sports, Standard |
| Lifestyle apps | Sedition Art |
| Music apps | Spotify |
| Sports apps | DAZN, Sports Alerts |
| Video apps | Amazon Prime Video, Apple TV, DAZN, Disney+, NOW TV, Netflix, RaiPlay, Rakuten TV, YouTube |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 20 W |
| Built-in subwoofer | No |
| Wireless subwoofer | No |
| Audio decoders | Dolby Atmos, Dolby Digital |
| Sound modes | AI Sound Pro |
| Adaptive sound | Yes |
| Auto volume leveller | Yes |
| Multiroom | No |
| Enhanced Audio Return Channel (eARC) | Yes |
| Adaptive Sound Control (ASC) | Yes |
| Object Tracking Sound+ (OTS+) | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Wi-Fi Direct | No |
| Bluetooth Low Energy (BLE) | Yes |
| Miracast | Yes |
| Browsing | Yes |
| Web browser | Yes |
| HID support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Blue |
| Colour name | Ashed Blue |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| On/off switch | No |
| Rollable display | No |
| Refurbished | No |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Filmmaker Mode, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Game mode | Yes |
| Teletext function | Yes |
| Teletext | 2000 pages |
| Teletext standards | EPG, Mega TTX |
| Subtitles function | Yes |
| Audio formats supported | AAC, AC3, AC4, EAC3, HE-AAC, MP2, MP3, PCM, WMA, apt-X |
| Subtitle formats supported | DVB |
| Video compression formats | H.265, HEVC, MPEG2, MPEG4, VP9 |
| Video formats supported | HEVC, VP9 |
| Ambient light sensor | Yes |
| Picture processing technology | LG AI Picture Pro |
| Noise reduction | Yes |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
| NVIDIA G-SYNC | No |
| Game features | Auto Low Latency Mode (ALLM), Game Dashboard, Game Optimizer, Variable Refresh Rate (VRR) |
| 4K Ultra HD upscaling | Yes |
| Video upscaling | Yes |
| Parental control | Yes |
| Smartphone/tablet remote support | Yes |
| USB cloning | No |
| USB recording | No |
| DVD player | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| HDMI version | 2.1 |
| Audio Return Channel (ARC) | Yes |
| Mobile High-Definition Link (MHL) | No |
| HDCP | Yes |
| PC in (D-Sub) | No |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video out | 0 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 0 |
| PC Audio in | No |
| Digital audio optical out | 1 |
| Digital audio coaxial out | 0 |
| Headphone outputs | 0 |
| RS-232 ports | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 1 |
| RF connector type | F, IEC |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| S-Video inputs quantity | 0 |
| AC (power) in | Yes |
| Consumer Electronics Control (CEC) | SimpLink |
| Intel® Wireless Display (Intel® WiDi) | No |
| RGB ports quantity | 0 |
Management features
| Specification | Value |
|---|---|
| Voice control | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 37 |
| Picture-in-Picture | Yes |
| Hotel mode | Yes |
| Basic hotel mode | Yes |
| ECO mode | Yes |
| Auto power off | Yes |
| On/Off timer | Yes |
| Sleep timer | Yes |
| Firmware upgradeable | Yes |
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 166 kWh |
| Energy consumption (HDR) per 1000 hours | 255 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy saving mode | Yes |
| Energy efficiency scale | A to G |
Certificates
| Specification | Value |
|---|---|
| Certification | Lativù 4K / Tivusat 4K |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1927 mm |
| Depth (with stand) | 425 mm |
| Height (with stand) | 1178 mm |
| Weight (with stand) | 48.9 kg |
| Width (without stand) | 1927 mm |
| Depth (without stand) | 59.9 mm |
| Height (without stand) | 1104 mm |
| Weight (without stand) | 45.2 kg |
| Stand width | 119.6 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2116 mm |
| Package depth | 285 mm |
| Package height | 1217 mm |
| Package weight | 62.4 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Remote control included | Yes |
| Smart Remote included | Yes |
| Soundbar included | No |
| E-manual | Yes |
| Subwoofer included | No |
