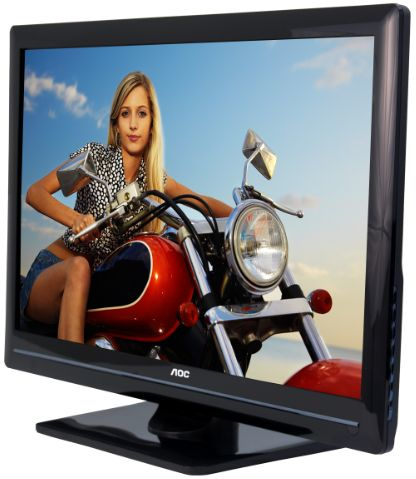

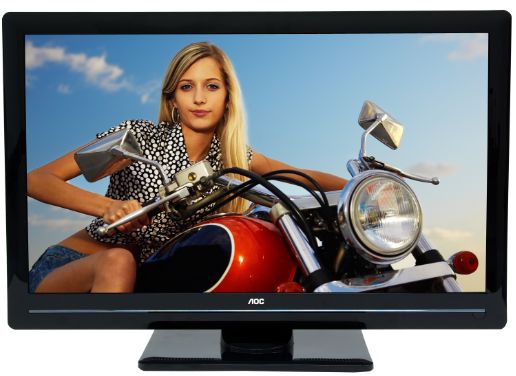

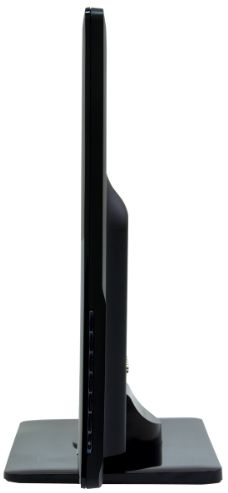

LE23H062 TV 58.4 cm (23") Full HD Black 300 cd/m²
Model LE23H062
69 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ColourBlack
- Tuner typeAnalog & digital
- RMS rated power10 W
- Wi-FiNo
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Tuner type
- Analog & digital
- RMS rated power
- 10 W
- Wi-Fi
- No
- Brand
- AOC
- Category
- TV
- Model
- LE23H062
- Part number
- LE23H062
- Also known as
- AOC LE23H062 TV 58.4 cm (23") Full HD Black 300 cd/m²
Specifications
69 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Display brightness | 300 cd/m² |
| Progressive scan | Yes |
| Contrast ratio (dynamic) | 2000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Analog signal format system | NTSC |
| Digital signal format system | ATSC |
| Auto channel search | Yes |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 10 W |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| LED indicators | Stand-by |
Performance
| Specification | Value |
|---|---|
| Game mode | Yes |
| Teletext function | No |
| Image formats supported | JPG |
| Plug and Play | Yes |
| Child lock | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDCP | No |
| PC in (D-Sub) | No |
| USB 2.0 ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Composite video out | 0 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 0 |
| PC Audio in | No |
| RS-232 ports | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 0 |
| Common interface (CI) | No |
| S-Video inputs quantity | 1 |
| Card reader integrated | No |
Management features
| Specification | Value |
|---|---|
| Electronic Programme Guide (EPG) | No |
| Picture-in-Picture | No |
| Sleep timer | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 45 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, cULus, RoHS, EPA4.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 561 mm |
| Depth (with stand) | 190 mm |
| Height (with stand) | 389 mm |
| Weight (with stand) | 4.5 kg |
| Width (without stand) | 561 mm |
| Depth (without stand) | 38 mm |
| Height (without stand) | 356 mm |
| Weight (without stand) | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 616 mm |
| Package depth | 445 mm |
| Package height | 118 mm |
| Package weight | 6.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Built-in speaker(s) | Yes |
| Backlight | Yes |
| IFU / User manual | Yes |
| Integrated clock | Yes |
