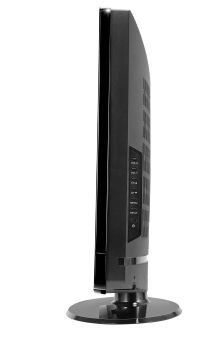

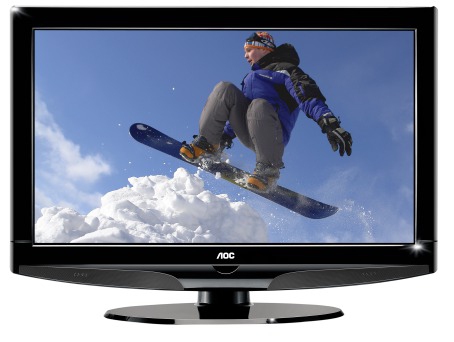

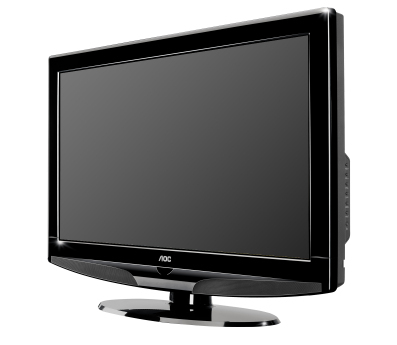

AOC L47H861 TV 119.4 cm (47") Full HD Black 500 cd/m²

L47H861 TV 119.4 cm (47") Full HD Black 500 cd/m²

Model L47H861

76 specifications Checked today

Display119.4 cm (47")
Resolution1920 x 1080 pixels
ColourBlack
Tuner typeAnalog & digital
Smart modesCinema
Number of speakers2

See all specifications

Overview

Display: 119.4 cm (47")
Resolution: 1920 x 1080 pixels
Colour: Black
Tuner type: Analog & digital
Smart modes: Cinema
Number of speakers: 2

Brand: AOC
Category: TV
Model: L47H861
Part number: L47H861
Also known as: AOC L47H861 TV 119.4 cm (47") Full HD Black 500 cd/m²

Specifications

76 specifications in 15 groups

Display

Specification	Value
Display diagonal	119.4 cm (47")
HD type	Full HD
Display resolution	1920 x 1080 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes	1080p, 480i, 480p, 720p
Zoom capability	Yes
Display brightness	500 cd/m²
Progressive scan	Yes
Response time	6.5 ms
Native refresh rate	60 Hz
Contrast ratio (dynamic)	6000:1
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°

TV tuner

Specification	Value
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Auto channel search	Yes

Smart TV

Specification	Value
Smart modes	Cinema

Audio

Specification	Value
Number of speakers	2
RMS rated power	20 W

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	No

Design

Specification	Value
Product colour	Black
VESA mounting	Yes
Panel mounting interface	400 x 200 mm
LED indicators	Stand-by

Performance

Specification	Value
Teletext function	No
Plug and Play	Yes
Parental control	Yes

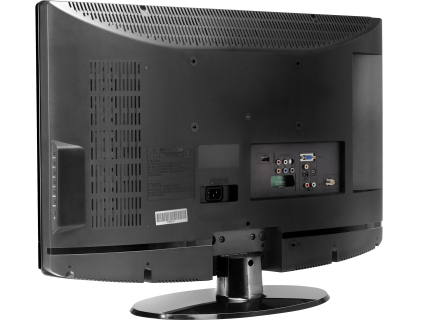

Ports & interfaces

Specification	Value
HDMI ports quantity	3
HDCP	No
PC in (D-Sub)	Yes
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) in	2
Composite video in	1
Composite video out	0
Audio (L/R) out	0
PC Audio in	No
Digital audio optical out	1
Headphone outputs	1
RS-232 ports	0
SCART ports quantity	0
Common interface (CI)	No
S-Video inputs quantity	1
Card reader integrated	No
AC (power) in	Yes

Management features

Specification	Value
On Screen Display (OSD)	Yes
Picture-in-Picture	No
Sleep timer	Yes

Power

Specification	Value
Power consumption (typical)	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Safety regulation & standards

Specification	Value
Safety	FCC, cULus, RoHS

Weight & dimensions

Specification	Value
Width (with stand)	1125.2 mm
Depth (with stand)	312 mm
Height (with stand)	767 mm
Weight (with stand)	26.9 kg
Width (without stand)	1125.2 mm
Depth (without stand)	101.6 mm
Height (without stand)	701 mm

Packaging data

Specification	Value
Package width	1280.2 mm
Package depth	279.4 mm
Package height	899.2 mm
Package weight	31.9 kg

Packaging content

Specification	Value
Remote control included	Yes

Other features

Specification	Value
Built-in speaker(s)	Yes
Backlight	Yes
HDMI	Yes
Pixel pitch	0.5415 x 0.5415 mm
Power LED	Yes
Power requirements	100-240V AC, 50/60Hz
Digital horizontal frequency	31.5 - 60 kHz
Digital vertical frequency	56 - 75 Hz
