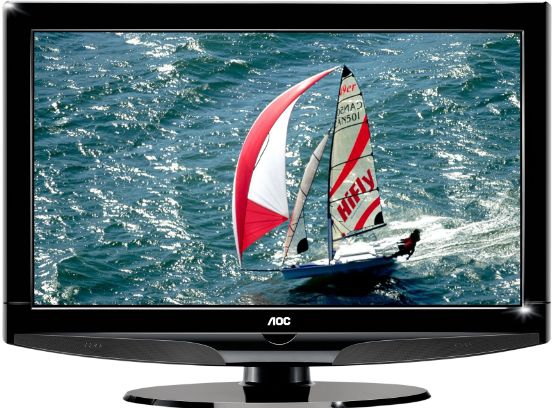

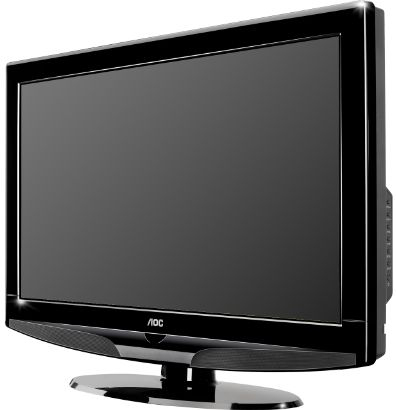

L22W861 TV 54.9 cm (21.6") WSXGA+ Black 300 cd/m²
Model L22W861
53 specifications Checked today
- Display54.9 cm (21.6")
- Resolution1680 x 1050 pixels
- ColourBlack
- Analog signal format systemNTSC
- RMS rated power6 W
- Teletext functionNo
Overview
- Display
- 54.9 cm (21.6")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- Analog signal format system
- NTSC
- RMS rated power
- 6 W
- Teletext function
- No
- Brand
- AOC
- Category
- TV
- Model
- L22W861
- Part number
- L22W861
- Also known as
- AOC L22W861 TV 54.9 cm (21.6") WSXGA+ Black 300 cd/m²
Specifications
53 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.9 cm (21.6") |
| HD type | WSXGA+ |
| Display resolution | 1680 x 1050 pixels |
| Display technology | LCD |
| Native aspect ratio | 16:10 |
| Zoom capability | Yes |
| Display brightness | 300 cd/m² |
| Progressive scan | No |
| Response time | 5 ms |
| Contrast ratio (dynamic) | 3000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
TV tuner
| Specification | Value |
|---|---|
| Analog signal format system | NTSC |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 6 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Stand-by |
Performance
| Specification | Value |
|---|---|
| Teletext function | No |
| Plug and Play | Yes |
| Child lock | Yes |

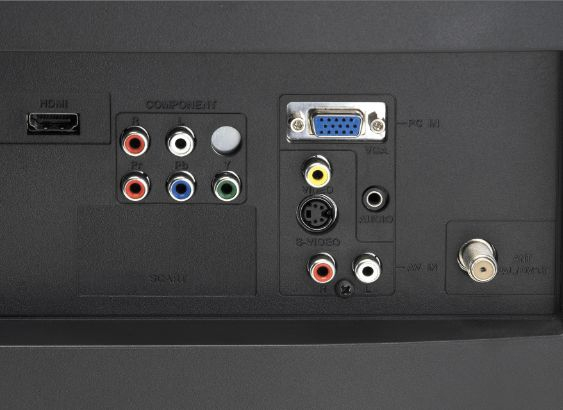

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDCP | No |
| PC in (D-Sub) | Yes |
| USB 2.0 ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Composite video out | 0 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 0 |
| PC Audio in | No |
| Digital audio coaxial out | 1 |
| RS-232 ports | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 0 |
| Common interface (CI) | No |
| S-Video inputs quantity | 0 |
| AC (power) in | Yes |
Management features
| Specification | Value |
|---|---|
| Picture-in-Picture | No |
| Sleep timer | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | cULus, RoHS, FCC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 513 mm |
| Depth (with stand) | 145 mm |
| Height (with stand) | 399 mm |
| Width (without stand) | 513 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 363 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 14.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Display | LCD |
| Pixel pitch | 0.277 x 0.277 mm |
| Power requirements | 100-240V, 50/60Hz |
