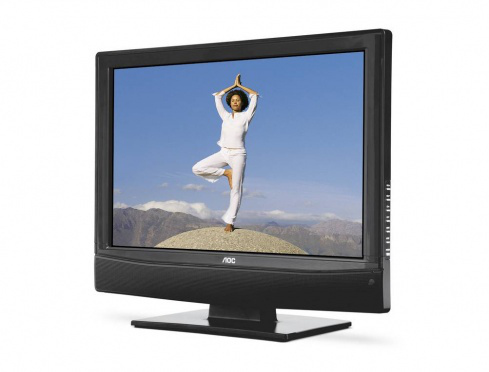

L22W631 TV 55.9 cm (22") WSXGA+ Black 500 cd/m²
Model L22W631
61 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- Tuner typeAnalog
- Number of speakers2
- Wi-FiNo
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- Tuner type
- Analog
- Number of speakers
- 2
- Wi-Fi
- No
- Brand
- AOC
- Category
- TV
- Model
- L22W631
- Part number
- L22W631
- Also known as
- AOC L22W631 TV 55.9 cm (22") WSXGA+ Black 500 cd/m²
Specifications
61 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| HD type | WSXGA+ |
| Display resolution | 1680 x 1050 pixels |
| Display technology | LCD |
| Native aspect ratio | 16:10 |
| Supported graphics resolutions | 1366 x 768, 1680 x 1050 (WSXGA+) |
| Supported video modes | 1080i, 480i, 480p, 576i, 576p, 720p |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog |
| Analog signal format system | NTSC, PAL M, PAL N |
| Auto channel search | Yes |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 4 W |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Yes, Stand-by |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| PC in (D-Sub) | Yes |
| Ethernet LAN (RJ-45) ports | 0 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Composite video out | 0 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 0 |
| PC Audio in | No |
| Headphone outputs | 1 |
| RS-232 ports | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 1 |
| S-Video inputs quantity | 1 |
| Card reader integrated | No |
| RGB ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Sleep timer | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 75 W |
| Power consumption (standby) | 3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 539 mm |
| Depth (without stand) | 209 mm |
| Height (without stand) | 447 mm |
| Weight (without stand) | 8 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Built-in speaker(s) | Yes |
| Compatible operating systems | Windows OS Mac OS |
| Display sRGB | Yes |
| HDMI | Yes |
| Headphone connectivity | 3.5 mm |
| Pixel pitch | 0.282 x 0.282 mm |
| Power LED | Yes |
