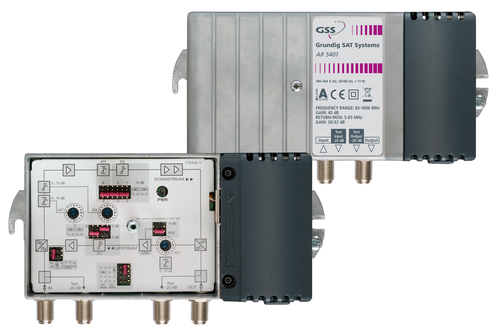

AR 5401
Model AR 5401Part no. G.AA 06-00EAN 4045861008969
11 specifications
- Weight750 g
- ColourBlack
- Frequency range (forward path)47 - 1006 MHz
- Connector(s)F
- Input voltage190 - 264 V
- Operating temperature (T-T)-25 - 55 °C
Overview
- Weight
- 750 g
- Colour
- Black
- Frequency range (forward path)
- 47 - 1006 MHz
- Connector(s)
- F
- Input voltage
- 190 - 264 V
- Operating temperature (T-T)
- -25 - 55 °C
- Brand
- Grundig
- Category
- TV Signal Amplifier
- Model
- AR 5401
- Part number
- G.AA 06-00
- EAN / UPC
- 4045861008969
- Also known as
- Grundig AR 5401 TV signal amplifier
Specifications
11 specifications in 5 groups
Technical details
| Specification | Value |
|---|---|
| Frequency range (forward path) | 47 - 1006 MHz |
| Gain (forward path) | 40 dB |
| Gain (return path) | 18 dB |
| Noise figure | 6.5 dB |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connector(s) | F |
Power
| Specification | Value |
|---|---|
| Input voltage | 190 - 264 V |
| Power consumption (typical) | 11 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 170 x 90 x 65 mm |
| Weight | 750 g |
