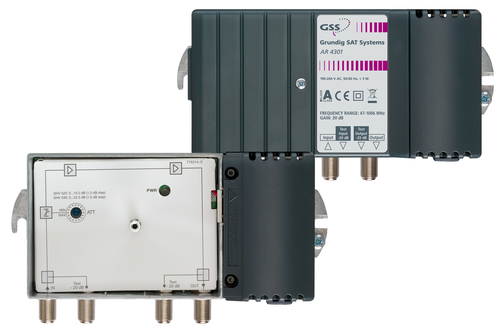

AR 4301
Model AR 4301Part no. G.AA 03-00EAN 4045861008921
11 specifications
- Weight750 g
- ColourBlack
- Frequency range (forward path)47 - 1006 MHz
- Connector(s)F
- Input voltage190 - 264 V
- Operating temperature (T-T)-25 - 55 °C
Overview
- Weight
- 750 g
- Colour
- Black
- Frequency range (forward path)
- 47 - 1006 MHz
- Connector(s)
- F
- Input voltage
- 190 - 264 V
- Operating temperature (T-T)
- -25 - 55 °C
- Brand
- Grundig
- Category
- TV Signal Amplifier
- Model
- AR 4301
- Part number
- G.AA 03-00
- EAN / UPC
- 4045861008921
- Also known as
- Grundig AR 4301 TV signal amplifier
Specifications
11 specifications in 5 groups
Technical details
| Specification | Value |
|---|---|
| Frequency range (forward path) | 47 - 1006 MHz |
| Gain (forward path) | 30 dB |
| Gain (return path) | 18 dB |
| Noise figure | 4.5 dB |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connector(s) | F |
Power
| Specification | Value |
|---|---|
| Input voltage | 190 - 264 V |
| Power consumption (typical) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 170 x 90 x 65 mm |
| Weight | 750 g |
Similar products
All tv signal amplifiers
Hama
7122498 TV signal amplifier 47 - 862 MHz
Model 7122498
- Colour
- Yes
- Connector(s)
- Coaxial Socket / Plug
- Power source type
- AC
Hama

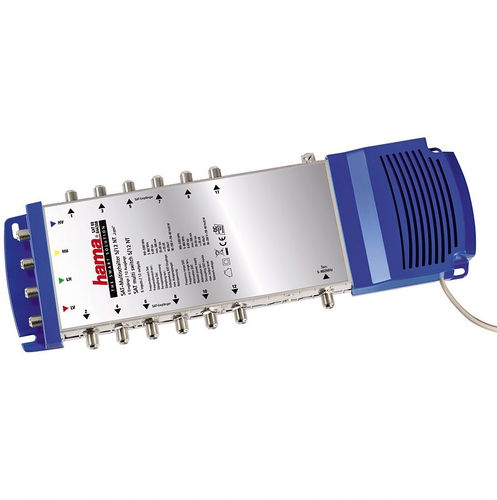

Lypsi SE 5/12NT
- Colour
- Blue, Silver
- Frequency range (forward path)
- 950 - 2200 MHz
- Connector(s)
- 4 x SAT, 1 x Ter
Hama
123395 TV signal amplifier 86 - 862 MHz
Model 123395
- Colour
- Ivory
- Frequency range (return path)
- 4 - 65 MHz
- Power source type
- AC
Hama

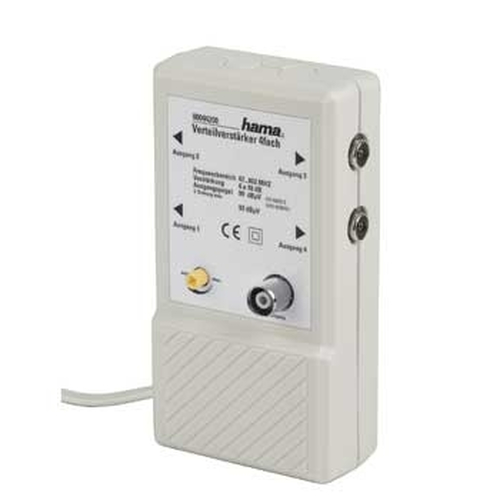

00044200 TV signal amplifier 47 - 862 MHz
