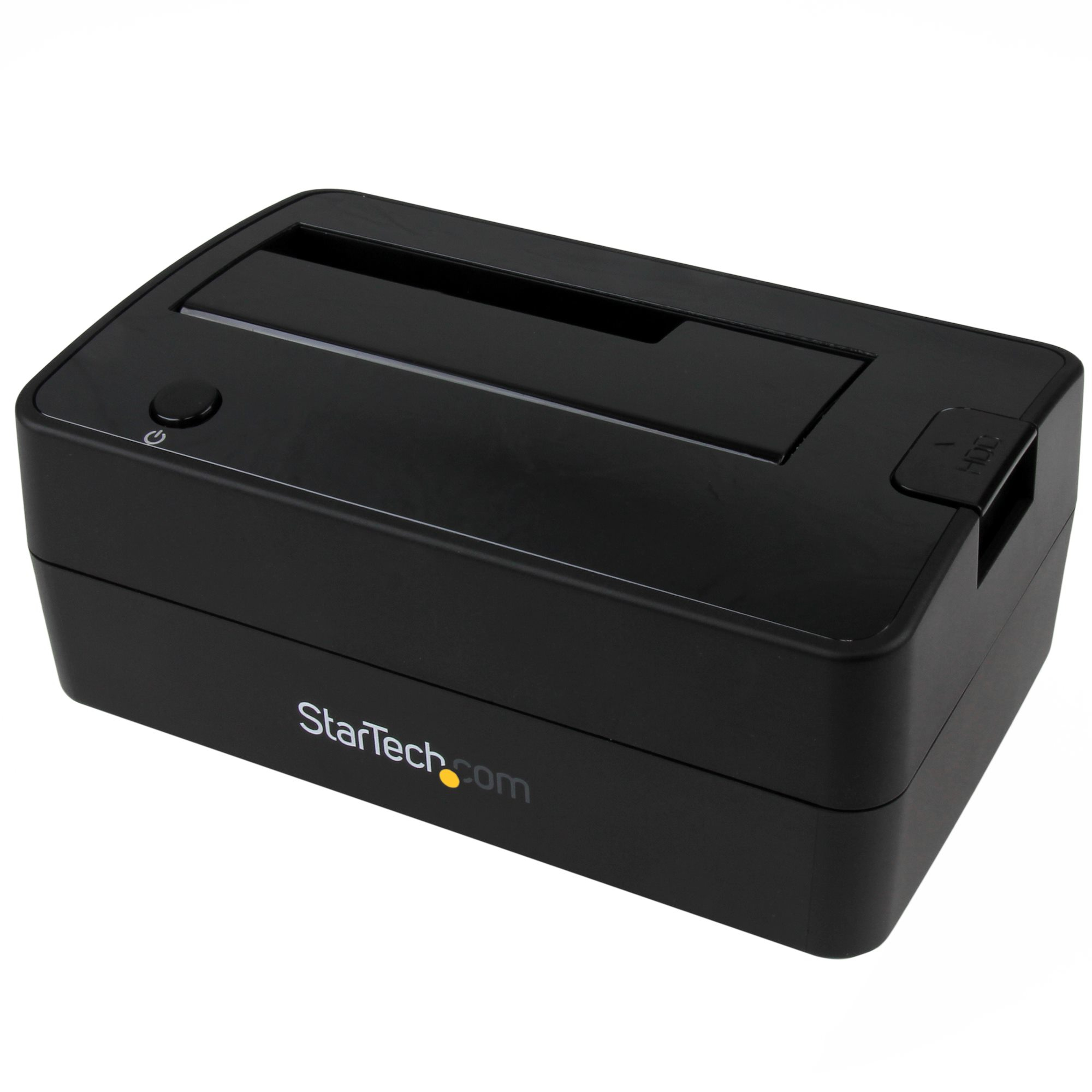

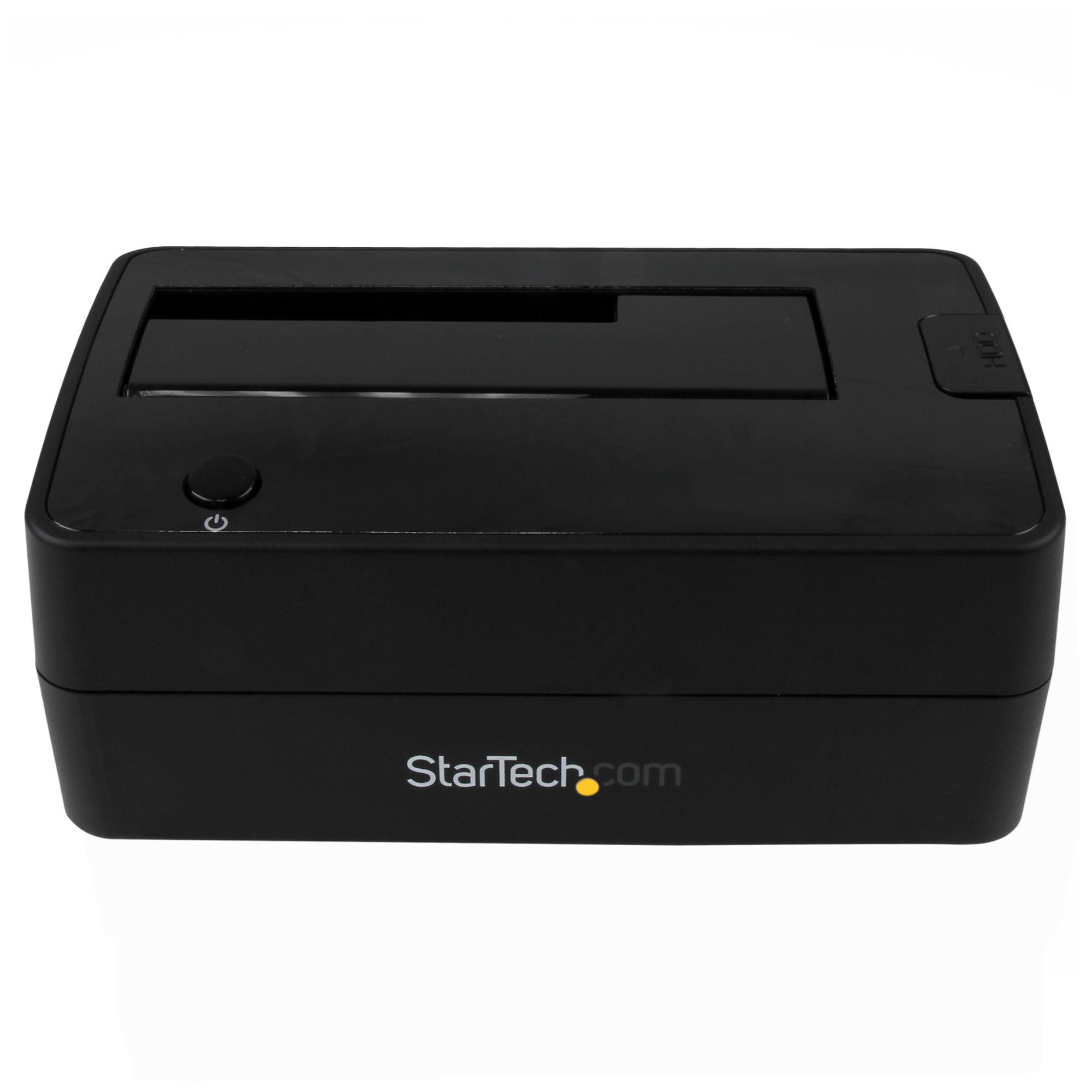

Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L
Model SDOCKU313EAN 5054629804339
42 specifications
- Speed10 Gbit/s
- Weight392 g
- ColourBlack
- Storage media typeHDD, SSD
- USB 3.2 Gen 2 (3.1 Gen 2) ports quantity1
- Built-in fanNo
Overview
- Speed
- 10 Gbit/s
- Weight
- 392 g
- Colour
- Black
- Storage media type
- HDD, SSD
- USB 3.2 Gen 2 (3.1 Gen 2) ports quantity
- 1
- Built-in fan
- No
- Brand
- StarTech.com
- Category
- Storage Drive Docking Station
- Model
- SDOCKU313
- Part number
- SDOCKU313
- EAN / UPC
- 5054629804339, 065030861656, 738878296934, 4058829201739 +2 more
- Also known as
- StarTech.com Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L
Specifications
42 specifications in 11 groups
Hard drive
| Specification | Value |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 6 TB |

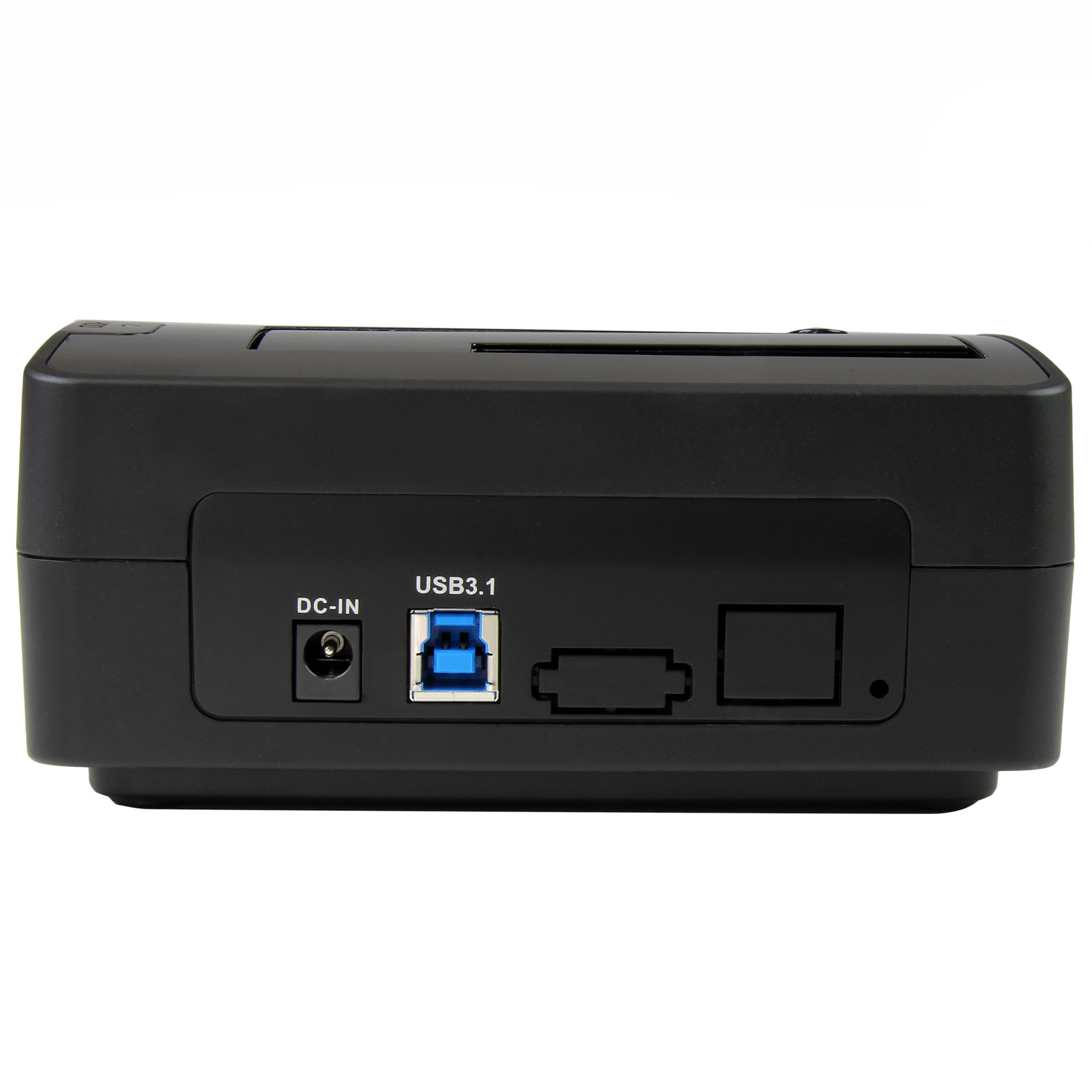

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Plastic |
| Maximum data transfer rate | 10 Gbit/s |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
Cooling
| Specification | Value |
|---|---|
| Built-in fan | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Power plug type | Type M |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.7 mm |
| Depth | 145 mm |
| Height | 64 mm |
| Weight | 392 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 163 mm |
| Package depth | 91 mm |
| Package height | 171 mm |
| Package weight | 758 g |

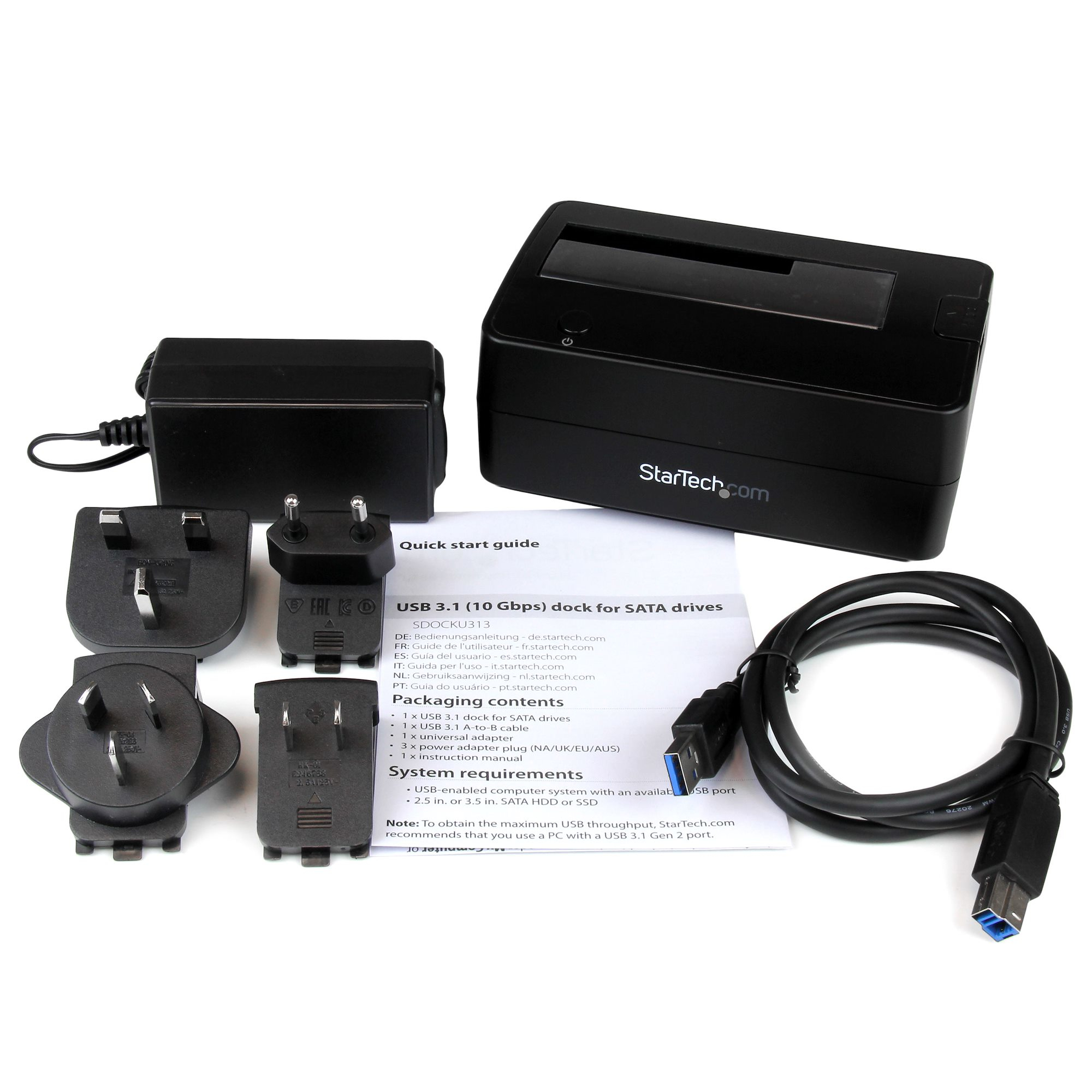

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Included power plug types | AU, EU, NA, UK |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1351 |
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 475 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 10 pc(s) |
