Product comparison · 2 storage drive docking stations

StarTech.com 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps) vs StarTech.com Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L

33specifications compared
18differ
15identical
16known for one product only

Key differences

Number of storage drives supported

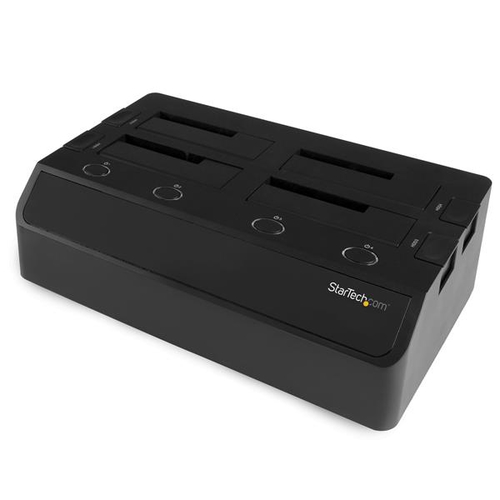

- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):4
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:1
Certification
- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):CE, FCC
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:CE, FCC, REACH
Built-in fan
- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):Yes
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:No
AC input voltage
- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):100-240 V
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:110 - 240 V
Input current
- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):2 A
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:0.6 A
Output current
- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):6.5 A
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:2 A
Width
- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):171.2 mm
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:92.7 mm
Depth
- 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps):290.5 mm
- Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L:145 mm

Side by side

Differences highlightedShow differences only

Comparison of SDOCK4U33E, SDOCKU313
49 specifications	A StarTech.com 4-Bay Hard Drive Docking Station for 2.5”/3.5” SSDs and HDDs - eSATA/USB 3.0 to SATA (6Gbps) Model SDOCK4U33E View product	B StarTech.com Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-L Model SDOCKU313 View product
Hard drive2 differ
Storage media type	HDD, SSD	HDD, SSD
Storage drive interfaceDiffers	Serial ATA, Serial ATA II, Serial ATA III	Serial ATA III
Storage drive sizes supported	2.5,3.5"	2.5,3.5"
Number of storage drives supportedDiffers	4	1
Maximum storage capacity	6 TB	6 TB
Ports & interfaces1 differ
Host interfaceDiffers	USB 3.2 Gen 1 (3.1 Gen 1) Type-B + eSATA	USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B
USB 3.2 Gen 2 (3.1 Gen 2) ports quantityKnown for one	Unknown — not stated by the source	1
DC-in jack	Yes	Yes
Features1 differ
Product colour	Black	Black
Material	Plastic	Plastic
Maximum data transfer rateKnown for one	Unknown — not stated by the source	10 Gbit/s
LED indicators	Activity, Power	Activity, Power
UASP support	Yes	Yes
CertificationDiffers	CE, FCC	CE, FCC, REACH
Hot-swapKnown for one	Yes	Unknown — not stated by the source
Plug and PlayKnown for one	Yes	Unknown — not stated by the source
Cooling1 differ
Built-in fanDiffers	Yes	No
Number of fansKnown for one	2 fan(s)	Unknown — not stated by the source
Fan diameterKnown for one	6 cm	Unknown — not stated by the source
Power3 differ
AC input voltageDiffers	100-240 V	110 - 240 V
Input currentDiffers	2 A	0.6 A
Output voltage	12 V	12 V
Output currentDiffers	6.5 A	2 A
Power plug typeKnown for one	Unknown — not stated by the source	Type M
Weight & dimensions4 differ
WidthDiffers	171.2 mm	92.7 mm
DepthDiffers	290.5 mm	145 mm
HeightDiffers	87.3 mm	64 mm
WeightDiffers	1.03 kg	392 g
Packaging data4 differ
Package widthDiffers	215 mm	163 mm
Package depthDiffers	343 mm	91 mm
Package heightDiffers	170 mm	171 mm
Package weightDiffers	2.4 kg	758 g
Package dimensions (WxDxH)Known for one	168 x 340 x 213 mm	Unknown — not stated by the source
Packaging content1 differ
AC adapter included	Yes	Yes
Cables includedDiffers	AC, USB, eSATA	USB
Included power plug typesKnown for one	Unknown — not stated by the source	AU, EU, NA, UK
Quick installation guide	Yes	Yes
Operational conditionsidentical
Operating temperature (T-T)	5 - 35 °C	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%	20 - 80%
Other features1 differ
ChipsetDiffers	JMicron - JMS567, JMicron - JBM575	ASMedia - ASM1351
Compliance certificates	RoHS	RoHS
Data transfer rateKnown for one	5000 Mbit/s	Unknown — not stated by the source
Mean time between failures (MTBF)Known for one	30000 h	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	84733080
Master (outer) case widthKnown for one	Unknown — not stated by the source	385 mm
Master (outer) case lengthKnown for one	Unknown — not stated by the source	475 mm
Master (outer) case heightKnown for one	Unknown — not stated by the source	185 mm
Products per master (outer) caseKnown for one	Unknown — not stated by the source	10 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
