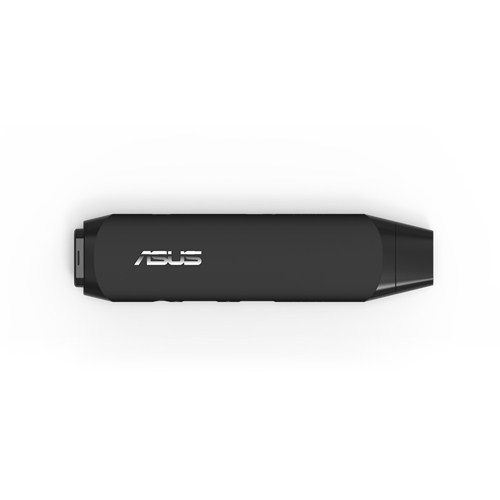

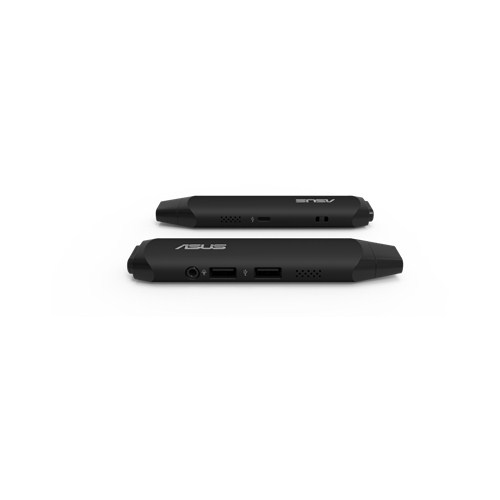

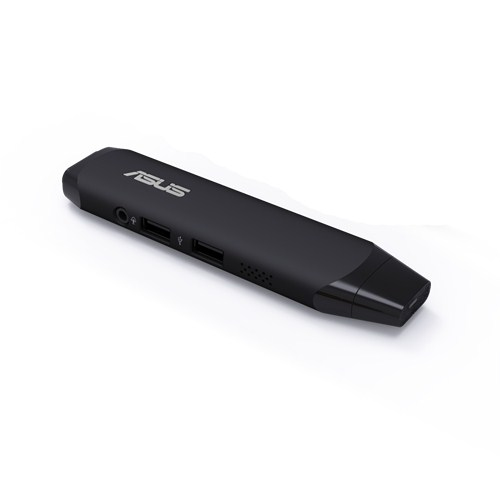

TS10 1.44 GHz Intel Atom® Windows 10 Home HDMI Black
Model TS10Part no. TS10-B068DEAN 889349869505
42 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage32 GB
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC (<= 3L)
- OSWindows 10 Home
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 32 GB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC (<= 3L)
- OS
- Windows 10 Home
- Brand
- ASUS
- Category
- Stick PC
- Model
- TS10
- Part numbers
- TS10-B068D, TS10-VIVOSTICK, TS10-VIVOSTICK-M4S64, 90MA0021-M00240, TS10-B016D
- EAN / UPC
- 889349869505, 4712900869507, 4712900362510
- Also known as
- ASUS TS10 1.44 GHz Intel Atom® Windows 10 Home HDMI Black
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.44 GHz |
| Processor family | Intel Atom® |
| Processor model | x5-Z8350 |
| Processor boost frequency | 1.92 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 2 MB |
| Processor lithography | 14 nm |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Internal storage capacity | 32 GB |
| Storage media | eMMC |
| Memory card slot | No |
Graphics
| Specification | Value |
|---|---|
| Graphics card | HD Graphics |
Network
| Specification | Value |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Device interface | HDMI |
| USB ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | Mini PC (<= 3L) |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Embedded options available | No |
| Certification | CB/CE/FCC/UL/WiFi/RF |
Processor special features
| Specification | Value |
|---|---|
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |

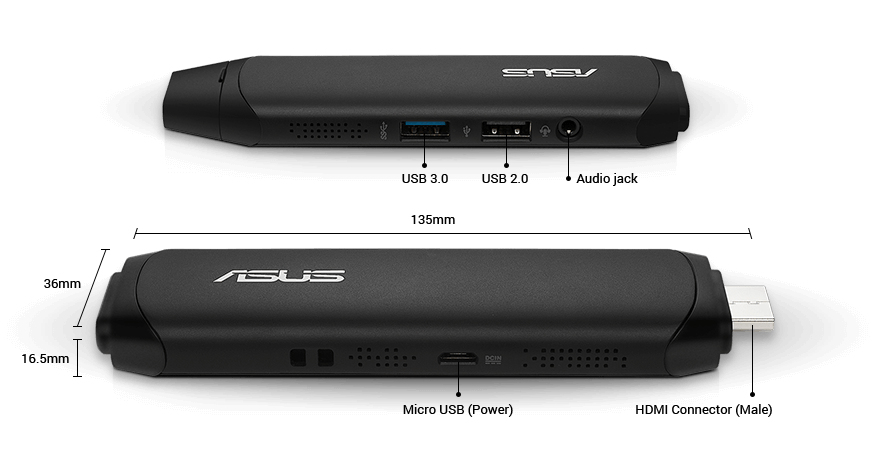

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 36 mm |
| Height | 16.5 mm |
| Weight | 75 g |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Adobe Acrobat Reader Remote GO! ASUS Business Manager ASUS Product Registration Program (APRP) ASUS WebStorage Cloud Storage Space － 100G ASUS Webstorage for 1 Year free usage EZ Update Media Streamer |
| AC adapter included | Yes |
| Cables included | AC |
| Manual | Yes |
