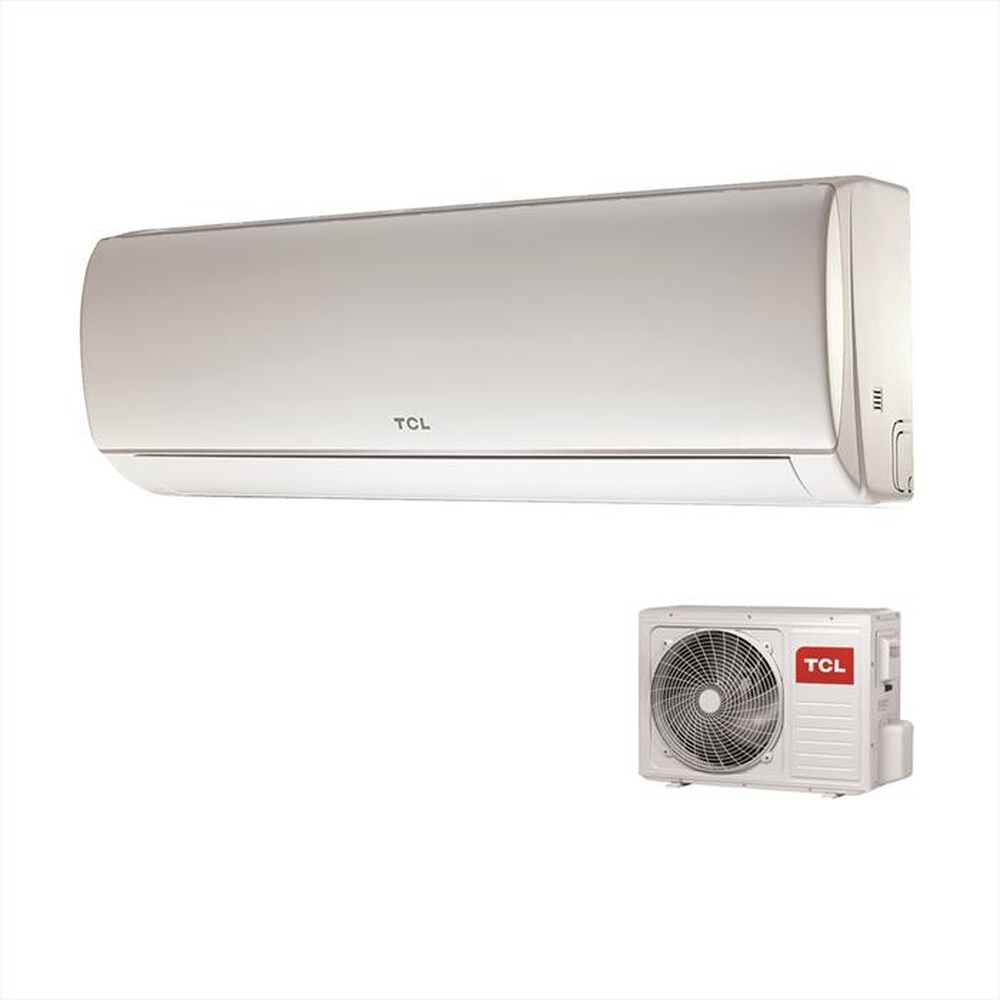

SN12F1S0T + ST12F1S0T
Model SN12F1S0T + ST12F1S0TPart no. KIT12F1S0T
66 specifications
- Energy classA+
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
- Outdoor unit noise level50 dB
Overview
- Energy class
- A+
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 50 dB
- Brand
- TCL
- Category
- Split-System Air Conditioner
- Model
- SN12F1S0T + ST12F1S0T
- Part number
- KIT12F1S0T
- Also known as
- TCL SN12F1S0T + ST12F1S0T Split system White
Specifications
66 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Seasonal efficiency rating (cooling) (SEER) | 6.1 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4 |
| Cooling energy efficiency (EER, W/W) | 3.01 |
| Heating energy efficiency (COP, W/W) | 3.71 |
| Cooling capacity in watts (nominal) | 2400 W |
| Cooling capacity in watts (min) | 1000 W |
| Cooling capacity in watts (max) | 3770 W |
| Heating capacity in watts (nominal) (Average heating season) | 3420 W |
| Heating capacity in watts (min) | 1000 W |
| Heating capacity in watts (max) | 3810 W |
| Cooling capacity (nominal) | 12000 BTU/h |
| Heating capacity (nominal) | 12000 BTU/h |
| Timer | Yes |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 570 g |
| Auto fan | Yes |
| Compressor type | Rotary |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Dehumidifying capacity | 1.2 l/h |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | -15 - 53 °C |
| Operating temperature (heating) (T-T) | -20 - 30 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Annual energy consumption (cooling) | 195 kWh |
| Annual energy consumption (heating) (Average heating season) | 840 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Current | 1 A |
| Design load (cooling) | 3.4 kW |
| Design load (heating) (Average heating season) | 2.4 kW |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 25 dB |
| Indoor unit noise level (high speed) | 37 dB |
| Indoor unit sound power level | 50 dB |
| Cooling airflow (indoor unit) | 550 m³/h |
| Heating airflow (indoor unit) | 550 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 77.7 cm |
| Indoor unit depth | 20.1 cm |
| Indoor unit height | 25 cm |
| Indoor unit weight | 8 kg |
| Indoor unit package width | 85 cm |
| Indoor unit package depth | 27.5 cm |
| Indoor unit package height | 32 cm |
| Indoor unit package weight | 10.5 kg |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 50 dB |
| Outdoor unit sound power level | 60 dB |
| Outdoor units quantity | 1 |
| Outdoor unit width | 77.7 cm |
| Outdoor unit depth | 29 cm |
| Outdoor unit height | 49.8 cm |
| Outdoor unit weight | 24 kg |
| Outdoor unit package width | 81.8 cm |
| Outdoor unit package depth | 32.5 cm |
| Outdoor unit package height | 52 cm |
| Outdoor unit package weight | 26 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Remote control included | Yes |
