Elite XA73 S09F2S0 air conditioner Split system White
Model S09F2S0EAN 8720568102771
103 specifications
- Energy classA++
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
- Outdoor unit sound power level62 dB
Overview
- Energy class
- A++
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Outdoor unit sound power level
- 62 dB
- Brand
- TCL
- Category
- Split-System Air Conditioner
- Model
- S09F2S0
- Part number
- S09F2S0
- EAN / UPC
- 8720568102771
- Also known as
- TCL Elite XA73 S09F2S0 air conditioner Split system White
Specifications
103 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Heating |
| Inverter technology | Yes |
| Split system type | Mono split |
| Ionizer | No |
| Comfort sleeping mode | Yes |
| Turbo mode | Yes |
| Wind deflector adjustment | No |
| Suitable for room volume up to | 550 m³ |
| Suitable for room area up to | 16 m² |
| Seasonal efficiency rating (cooling) (SEER) | 6.1 |
| Seasonal efficiency rating (heating) (SCOP) (Warmer heating season) | 5.1 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4 |
| Cooling energy efficiency (EER, W/W) | 3.25 |
| Heating energy efficiency (COP, W/W) | 3.73 |
| Cooling capacity in watts (nominal) | 2630 W |
| Cooling capacity in watts (min) | 940 W |
| Cooling capacity in watts (max) | 3400 W |
| Heating capacity in watts (nominal) (Warmer heating season) | 2750 W |
| Heating capacity in watts (nominal) (Average heating season) | 2400 W |
| Heating capacity in watts (min) | 940 W |
| Heating capacity in watts (max) | 3500 W |
| Cooling capacity (nominal) | 9000 BTU/h |
| Built-in display | Yes |
| Timer | Yes |
| Timer duration (maximum) | 24 h |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 570 g |
| Hose length (max) | 25 m |
| Air filter | Yes |
| Filter type | Permanent |
| Anti-bacterial filter | No |
| Deodorizing filter | No |
| Dehumidifying capacity | 1 l/h |
| Heat pump type | Reversible |
| Number of heat settings | 5 |
| Remotely operated | Yes |
| Smartphone/tablet remote support | Yes |
| Operating temperature (cooling) (T-T) | 16 - 31 °C |
| Operating temperature (heating) (T-T) | 16 - 31 °C |
| Special features | Fast Cooling & Heating; Smart Airflow; 3D Airflow; 4-way Airflow; I Feel; Extreme Climates; Deep Clean; Healthly Filter; ECO mode |
| Auto diagnostic | Yes |
| Auto-restart | Yes |
| Automatic hot/cold switching | Yes |
| Quick connect fitting | No |
| Removable front panel | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (cooling) | A++ |
| Energy efficiency class (heating) (Average heating season) | A+ |
| Energy efficiency class (heating) (Warmer heating season) | A+++ |
| Annual energy consumption (cooling) | 149 kWh |
| Annual energy consumption (heating) (Warmer heating season) | 659 kWh |
| Annual energy consumption (heating) (Average heating season) | 840 kWh |
| Power consumption (cooling) (min) | 240 W |
| Power consumption (cooling) (max) | 1380 W |
| Power consumption (heating) (min) | 240 W |
| Power consumption (heating) (max) | 1552 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 4.6 A |
| Current (heating) | 4.1 A |
| Design load (cooling) | 2.6 kW |
| Design load (heating) (Average heating season) | 2.4 kW |
| Design load (heating) (Warmer heating season) | 2.4 kW |
| Energy efficiency scale | A+++ to D |
| Energy saving mode | Yes |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | No |
| MIMO | Yes |

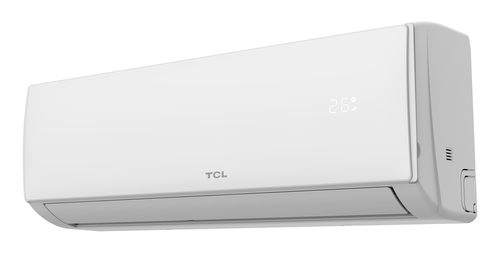

Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit sound power level | 52 dB |
| Indoor units quantity | 1 |
| Indoor unit width | 77.7 cm |
| Indoor unit depth | 20.1 cm |
| Indoor unit height | 25 cm |
| Indoor unit weight | 8 kg |
| Indoor unit fan speed (cooling, high speed) | 1250 RPM |
| Indoor unit fan speed (cooling, low speed) | 700 RPM |
| Indoor unit fan speed (heating, high speed) | 1250 RPM |
| Indoor unit fan speed (heating, low speed) | 800 RPM |
| Indoor unit package width | 84 cm |
| Indoor unit package depth | 26 cm |
| Indoor unit package height | 31.5 cm |
| Indoor unit package weight | 10.5 kg |

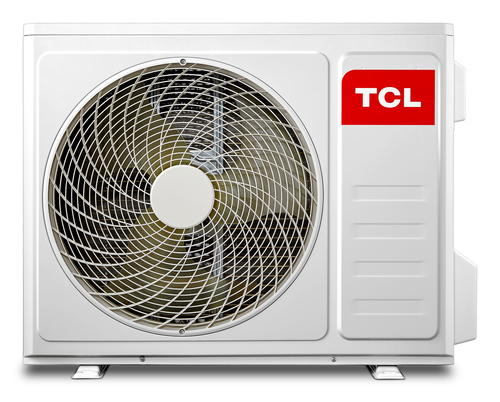

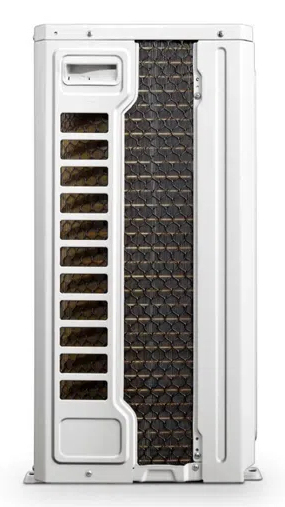

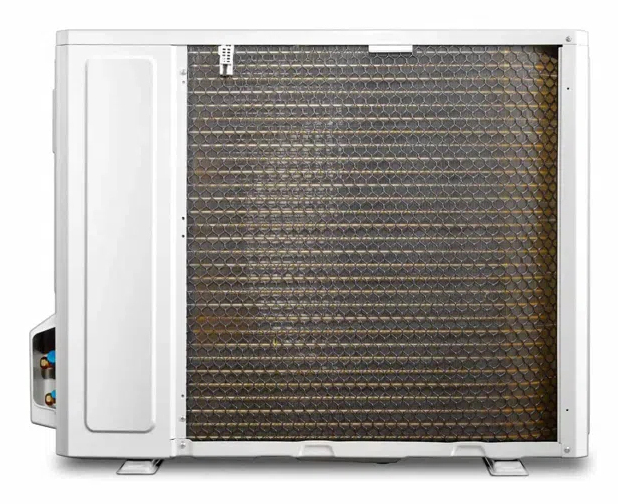

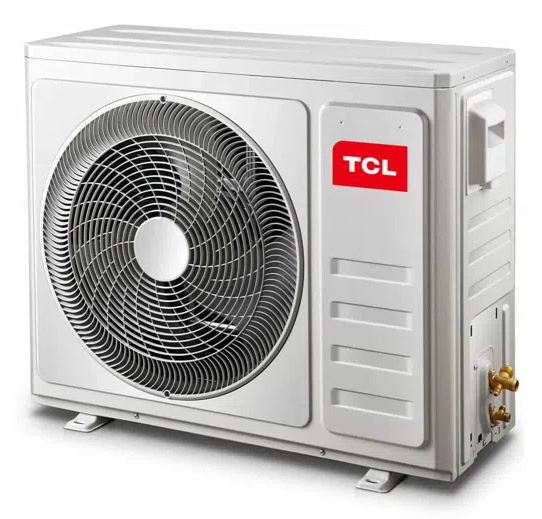

Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit sound power level | 62 dB |
| Cooling airflow (outdoor unit) | 1900 m³/h |
| Heating airflow (outdoor unit) | 1900 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 77.7 cm |
| Outdoor unit depth | 29 cm |
| Outdoor unit height | 49.8 cm |
| Outdoor unit weight | 24 kg |
| Fan motor type (outdoor unit) | AC |
| Outdoor unit package width | 81.8 cm |
| Outdoor unit package depth | 32.5 cm |
| Outdoor unit package height | 52 cm |
| Outdoor unit package weight | 26 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4 |
| Warranty period | 2 year(s) |
