Elite F1 S12F1S0 air conditioner Split system White

Model S12F1S0EAN 8720568103075

75 specifications

Overview

75 specifications in 6 groups

Specification	Value
Type	Split system
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Comfort sleeping mode	Yes
Suitable for room area up to	22 m²
Thermostat range	16 - 31 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.71
Cooling capacity in watts (nominal)	3400 W
Cooling capacity in watts (min)	1000 W
Cooling capacity in watts (max)	3770 W
Heating capacity in watts (nominal) (Colder heating season)	3430 W
Heating capacity in watts (min)	1000 W
Heating capacity in watts (max)	3810 W
Cooling capacity (nominal)	12000 BTU/h
Built-in display	Yes
Refrigerating medium	R32
Refrigerating medium weight	570 g
Compressor type	Rotary
Hose length (min)	5 m
Hose length (max)	25 m
Gas hose diameter	9.5 mm
Liquid hose diameter	6.35 mm
Dehumidifying capacity	1.2 l/h
Remotely operated	Yes
Operating temperature range indoor unit (cooling)	17 - 32 °C
Operating temperature range indoor unit (heating)	0 - 30 °C
Operating temperature range outdoor unit (cooling)	-15 - 53 °C
Operating temperature range outdoor unit (heating)	20 - 30 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (cooling)	195 kWh
Power consumption (cooling) (min)	290 W
Power consumption (cooling) (max)	1500 W
Power consumption (heating) (min)	290 W
Power consumption (heating) (max)	1730 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	5.1 A
Current (heating)	4.6 A
Design load (cooling)	3.4 kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	22 dB
Indoor unit noise level (high speed)	42 dB
Indoor unit sound power level	52 dB
Cooling airflow (indoor unit)	550 m³/h
Heating airflow (indoor unit)	550 m³/h
Indoor units quantity	1

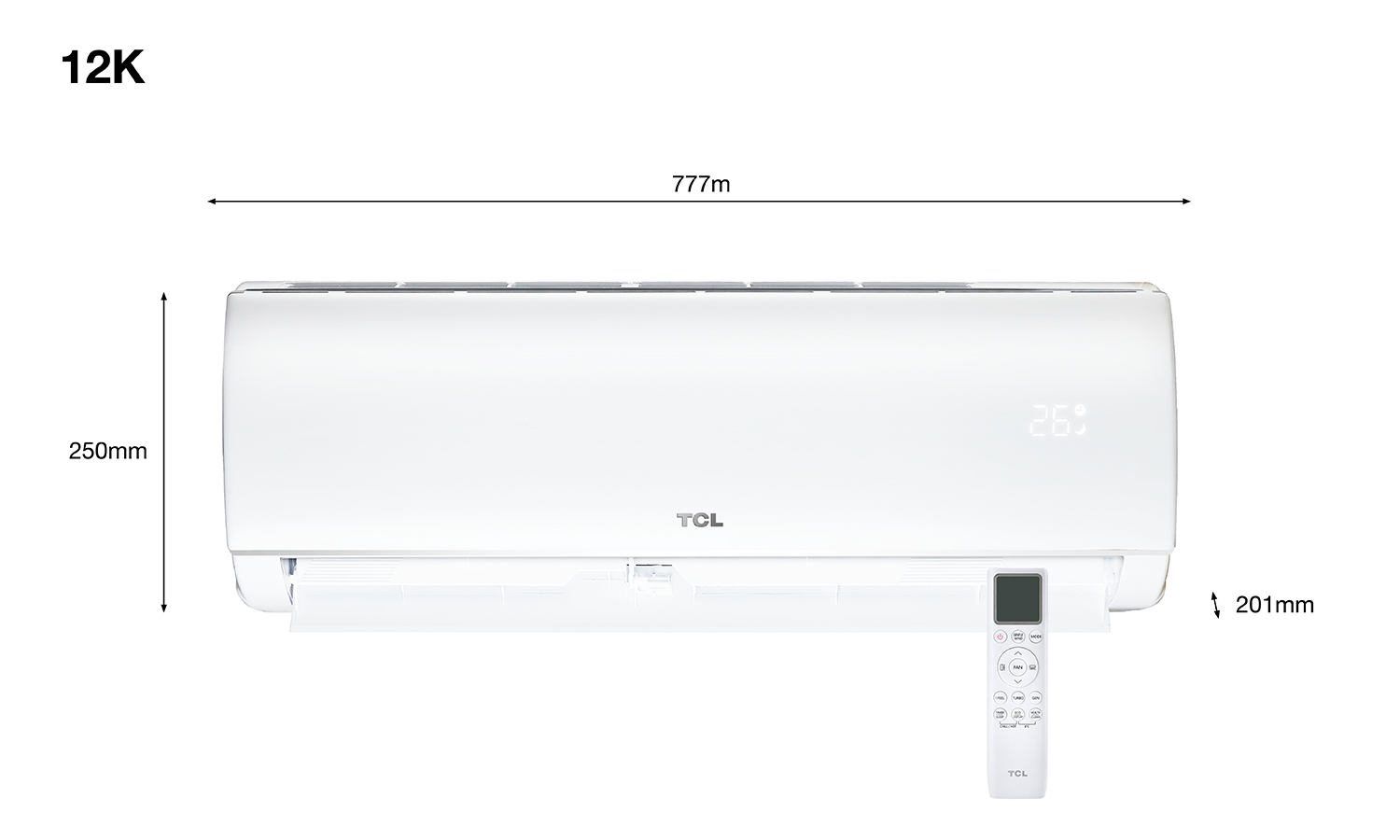

Indoor unit width	77.7 cm
Indoor unit depth	20.1 cm
Indoor unit height	25 cm
Indoor unit weight	7.5 kg
Indoor unit package width	85 cm
Indoor unit package depth	27.5 cm
Indoor unit package height	32 cm
Indoor unit package weight	9.5 kg

Specification	Value
Outdoor unit noise level	52 dB
Outdoor unit sound power level	62 dB
Cooling airflow (outdoor unit)	1900 m³/h
Heating airflow (outdoor unit)	1900 m³/h
Outdoor units quantity	1
Outdoor unit width	77.7 cm
Outdoor unit depth	29 cm
Outdoor unit height	49.8 cm
Outdoor unit weight	22.5 kg
Outdoor unit package width	81.8 cm
Outdoor unit package depth	32.5 cm
Outdoor unit package height	51.5 cm
Outdoor unit package weight	24.5 kg

Specification	Value
Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4
