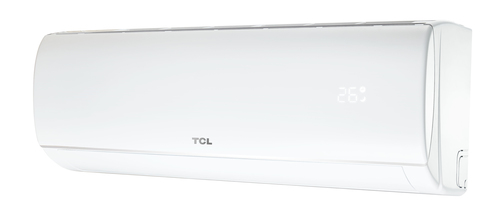

Elite F1 S09F1S10T air conditioner Air conditioner indoor unit White

Model S09F1S10TEAN 8720568101064

54 specifications

Overview

Brand: TCL
Category: Split-System Air Conditioner
Model: S09F1S10T
Part number: S09F1S10T
EAN / UPC: 8720568101064
Also known as: TCL Elite F1 S09F1S10T air conditioner Air conditioner indoor unit White

54 specifications in 7 groups

Specification	Value
Type	Air conditioner indoor unit
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Comfort sleeping mode	Yes
Suitable for room volume up to	420 m³
Suitable for room area up to	16 m²
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.25
Heating energy efficiency (COP, W/W)	3.73
Cooling capacity in watts (nominal)	2600 W
Heating capacity in watts (nominal) (Average heating season)	2100 W
Heating capacity in watts (nominal) (Colder heating season)	2750 W
Cooling capacity (nominal)	9000 BTU/h
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	570 g
Hose length (max)	25 m
Air filter	Yes
Smartphone/tablet remote support	Yes

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Colder heating season)	No
Energy efficiency class (heating) (Warmer heating season)	No
Annual energy consumption (cooling)	149 kWh
Annual energy consumption (heating) (Average heating season)	840 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	4.6 A
Current (heating)	4.1 A
Design load (cooling)	2.6 kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (high speed)	52 dB
Indoor units quantity	1
Indoor unit width	69.8 cm
Indoor unit depth	19 cm
Indoor unit height	25.5 cm
Indoor unit weight	6.5 kg
Indoor unit fan speed (cooling, high speed)	1400 RPM
Indoor unit fan speed (cooling, low speed)	900 RPM
Indoor unit package width	76.4 cm
Indoor unit package depth	25.7 cm
Indoor unit package height	32.5 cm
Indoor unit package weight	8.5 kg

Specification	Value
Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4
