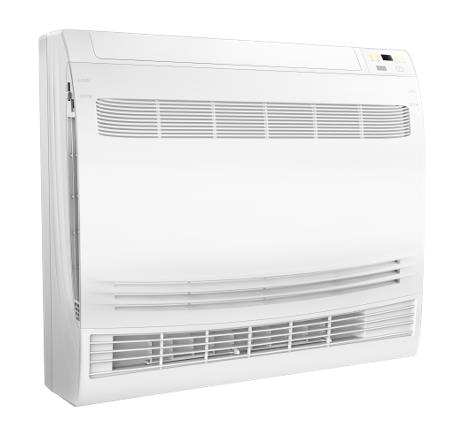

MN18Z0 air conditioner Air conditioner indoor unit White

Model MN18Z0EAN 8720568103259

63 specifications

Overview

63 specifications in 4 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	6.1
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.71
Cooling capacity in watts (nominal)	5100 W
Cooling capacity in watts (min)	1250 W
Cooling capacity in watts (max)	5900 W
Heating capacity in watts (nominal) (Average heating season)	5130 W
Heating capacity in watts (nominal) (Colder heating season)	5130 W
Heating capacity in watts (min)	1250 W
Heating capacity in watts (max)	6080 W
Cooling capacity (nominal)	17400 BTU/h
Cooling capacity (min)	4270 BTU/h
Cooling capacity (max)	20130 BTU/h
Heating capacity (nominal)	17500 BTU/h
Heating capacity (min)	4270 BTU/h
Heating capacity (max)	20740 BTU/h
Refrigerating medium	R32
Refrigerating medium weight	960 g
Compressor type	Rotary
Hose length (max)	25 m
Gas hose diameter	9.525 mm
Liquid hose diameter	6.35 mm
Dehumidifying capacity	1.5 l/h
Operating temperature (cooling) (T-T)	17 - 32 °C
Operating temperature (heating) (T-T)	0 - 30 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (cooling)	293 kWh
Annual energy consumption (heating) (Average heating season)	1575 kWh
Power consumption (cooling) (max)	48 W
Power consumption (heating) (max)	48 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current	13 A
Current (cooling)	0.21 A
Current (heating)	0.21 A
Design load (cooling)	5100 kW
Design load (heating) (Average heating season)	4500 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Indoor unit type	Cassette
Cooling airflow (indoor unit)	850 m³/h
Heating airflow (indoor unit)	850 m³/h
Indoor units quantity	1
Indoor unit width	70 cm
Indoor unit depth	21.5 cm
Indoor unit height	60 cm
Indoor unit weight	16 kg
Indoor unit fan speed (cooling, high speed)	880 RPM
Indoor unit fan speed (cooling, low speed)	550 RPM
Indoor unit fan speed (cooling, medium speed)	700 RPM
Indoor unit fan speed (heating, high speed)	880 RPM
Indoor unit fan speed (heating, low speed)	550 RPM
Indoor unit fan speed (heating, medium speed)	700 RPM
Indoor unit package width	77.5 cm
Indoor unit package depth	28 cm
Indoor unit package height	72.5 cm

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4
