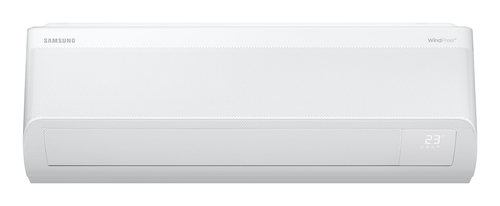

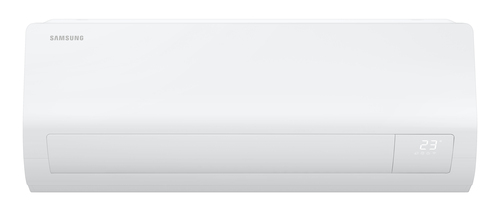

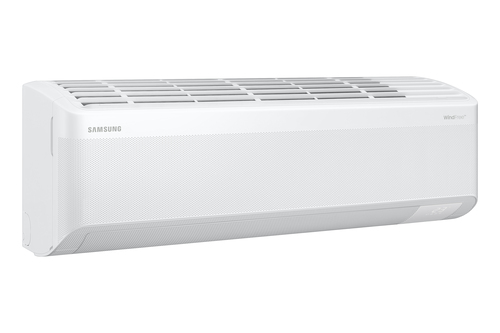

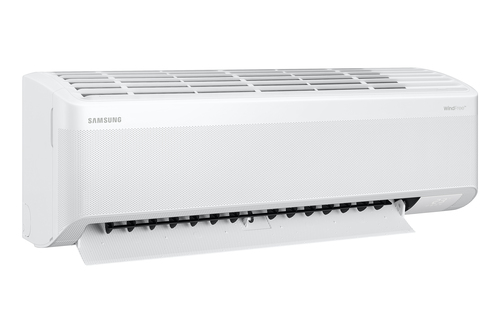

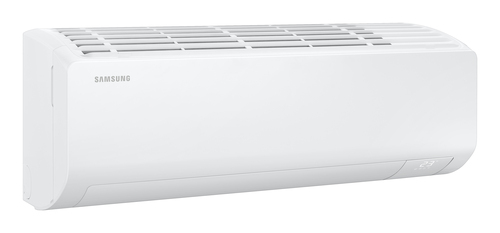

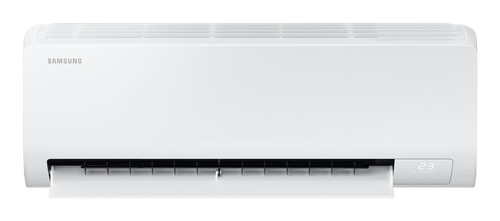

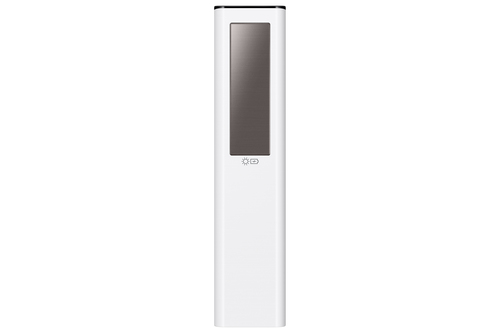

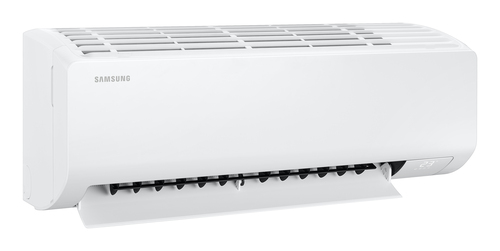

KITFAR12LZ2 Split system White
Model KITFAR12LZ2Part no. SAMKITFAR12LZ2
61 specifications
- Energy classA++
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
- Outdoor unit sound power level63 dB
Overview
- Energy class
- A++
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Outdoor unit sound power level
- 63 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- KITFAR12LZ2
- Part number
- SAMKITFAR12LZ2
- Also known as
- Samsung KITFAR12LZ2 Split system White
Specifications
61 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Split system type | Mono split |
| Seasonal efficiency rating (cooling) (SEER) | 6.6 |
| Seasonal efficiency rating (heating) (SCOP) (Warmer heating season) | 4.7 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4 |
| Cooling energy efficiency (EER, W/W) | 2.6 |
| Heating energy efficiency (COP, W/W) | 3.61 |
| Cooling capacity in watts (nominal) | 3500 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 3800 W |
| Heating capacity in watts (nominal) (Warmer heating season) | 1200 W |
| Heating capacity in watts (nominal) (Average heating season) | 2300 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 4700 W |
| Cooling capacity (nominal) | 11942 BTU/h |
| Cooling capacity (min) | 3071 BTU/h |
| Cooling capacity (max) | 12966 BTU/h |
| Heating capacity (nominal) | 11942 BTU/h |
| Heating capacity (min) | 3071 BTU/h |
| Heating capacity (max) | 16037 BTU/h |
| Refrigerating medium | R32 |
| Gas hose diameter | 9.52 mm |
| Drain hose diameter | 1.63 cm |
| Liquid hose diameter | 6.35 mm |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (cooling) | A++ |
| Energy efficiency class (heating) (Average heating season) | A+ |
| Energy efficiency class (heating) (Warmer heating season) | A+++ |
| Annual energy consumption (cooling) | 186 kWh |
| Annual energy consumption (heating) (Warmer heating season) | 357 kWh |
| Annual energy consumption (heating) (Average heating season) | 805 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Design load (cooling) | 3.5 kW |
| Design load (heating) (Average heating season) | 2.3 kW |
| Design load (heating) (Warmer heating season) | 1.2 kW |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit sound power level | 56 dB |
| Indoor units quantity | 1 |
| Indoor unit width | 82 cm |
| Indoor unit depth | 21.5 cm |
| Indoor unit height | 29.9 cm |
| Indoor unit weight | 9.1 kg |
| Indoor unit package width | 88 cm |
| Indoor unit package depth | 37.5 cm |
| Indoor unit package height | 29 cm |
| Indoor unit package weight | 11 kg |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit sound power level | 63 dB |
| Outdoor units quantity | 1 |
| Outdoor unit width | 71 cm |
| Outdoor unit depth | 22 cm |
| Outdoor unit height | 54 cm |
| Outdoor unit weight | 22.6 kg |
| Outdoor unit package width | 83.4 cm |
| Outdoor unit package depth | 32.3 cm |
| Outdoor unit package height | 62 cm |
| Outdoor unit package weight | 24.8 kg |
