KITFAR09LZ2 Split system White

Model KITFAR09LZ2Part no. SAMKITFAR09LZ2

62 specifications

Overview

62 specifications in 5 groups

Specification	Value
Type	Split system
Product colour	White
Air conditioner functions	Cooling, Heating
Split system type	Mono split
Seasonal efficiency rating (cooling) (SEER)	6.7
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	4.7
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.29
Heating energy efficiency (COP, W/W)	3.64
Cooling capacity in watts (nominal)	2500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	3350 W
Heating capacity in watts (nominal) (Average heating season)	3200 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	4300 W
Cooling capacity (nominal)	8530 BTU/h
Cooling capacity (min)	3071 BTU/h
Cooling capacity (max)	11431 BTU/h
Heating capacity (nominal)	10919 BTU/h
Heating capacity (min)	3071 BTU/h
Heating capacity (max)	14672 BTU/h
Refrigerating medium	R32
Gas hose diameter	9.52 mm
Drain hose diameter	1.63 cm
Liquid hose diameter	6.35 mm
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A++
Annual energy consumption (cooling)	131 kWh
Annual energy consumption (heating) (Warmer heating season)	357 kWh
Annual energy consumption (heating) (Average heating season)	735 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	5.5 A
Current (heating)	6.3 A
Design load (cooling)	2.5 kW
Design load (heating) (Average heating season)	2.1 kW
Design load (heating) (Warmer heating season)	1.2 kW

Specification	Value
Wi-Fi	Yes

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit sound power level	54 dB
Indoor units quantity	1
Indoor unit width	82 cm
Indoor unit depth	21.5 cm
Indoor unit height	29.9 cm
Indoor unit weight	9.1 kg
Indoor unit package width	88 cm
Indoor unit package depth	37.5 cm
Indoor unit package height	29 cm
Indoor unit package weight	11 kg

Specification	Value

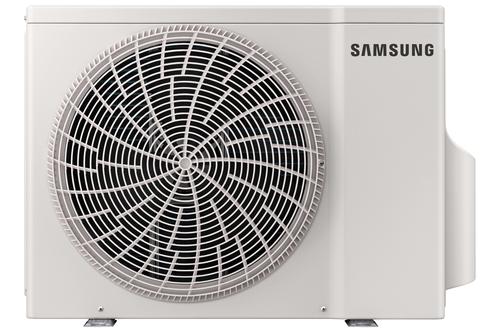

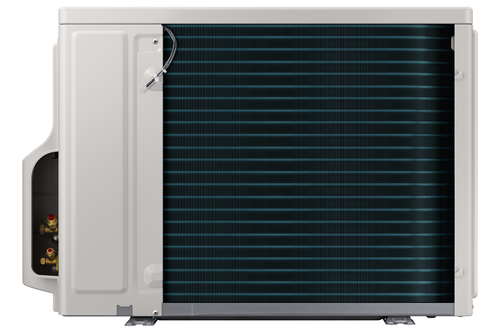

Outdoor unit sound power level	63 dB
Outdoor units quantity	1
Outdoor unit width	71 cm
Outdoor unit depth	22 cm
Outdoor unit height	54 cm
Outdoor unit weight	22.6 kg
Outdoor unit package width	83.4 cm
Outdoor unit package depth	32.3 cm
Outdoor unit package height	62 cm
Outdoor unit package weight	24.8 kg
