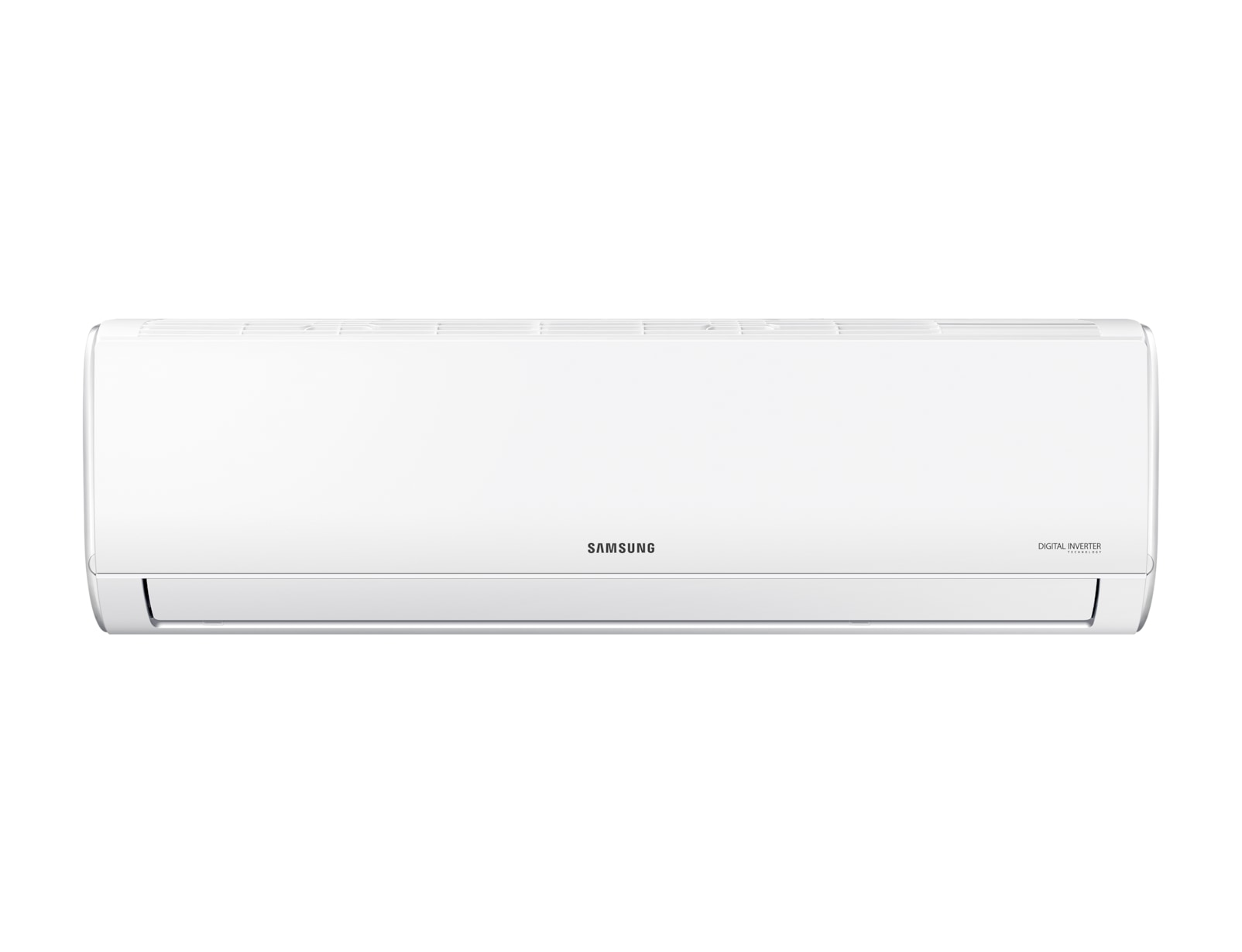

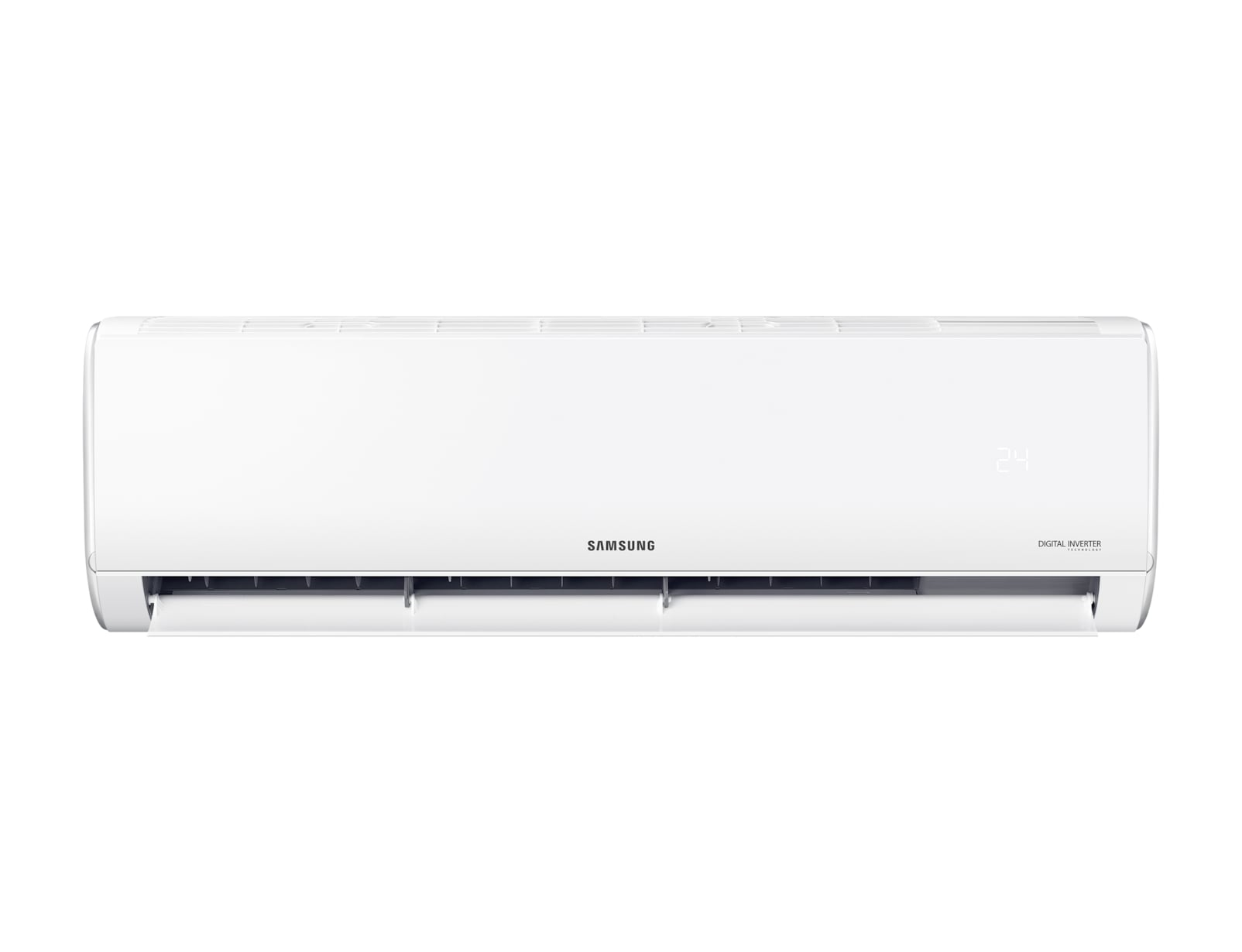

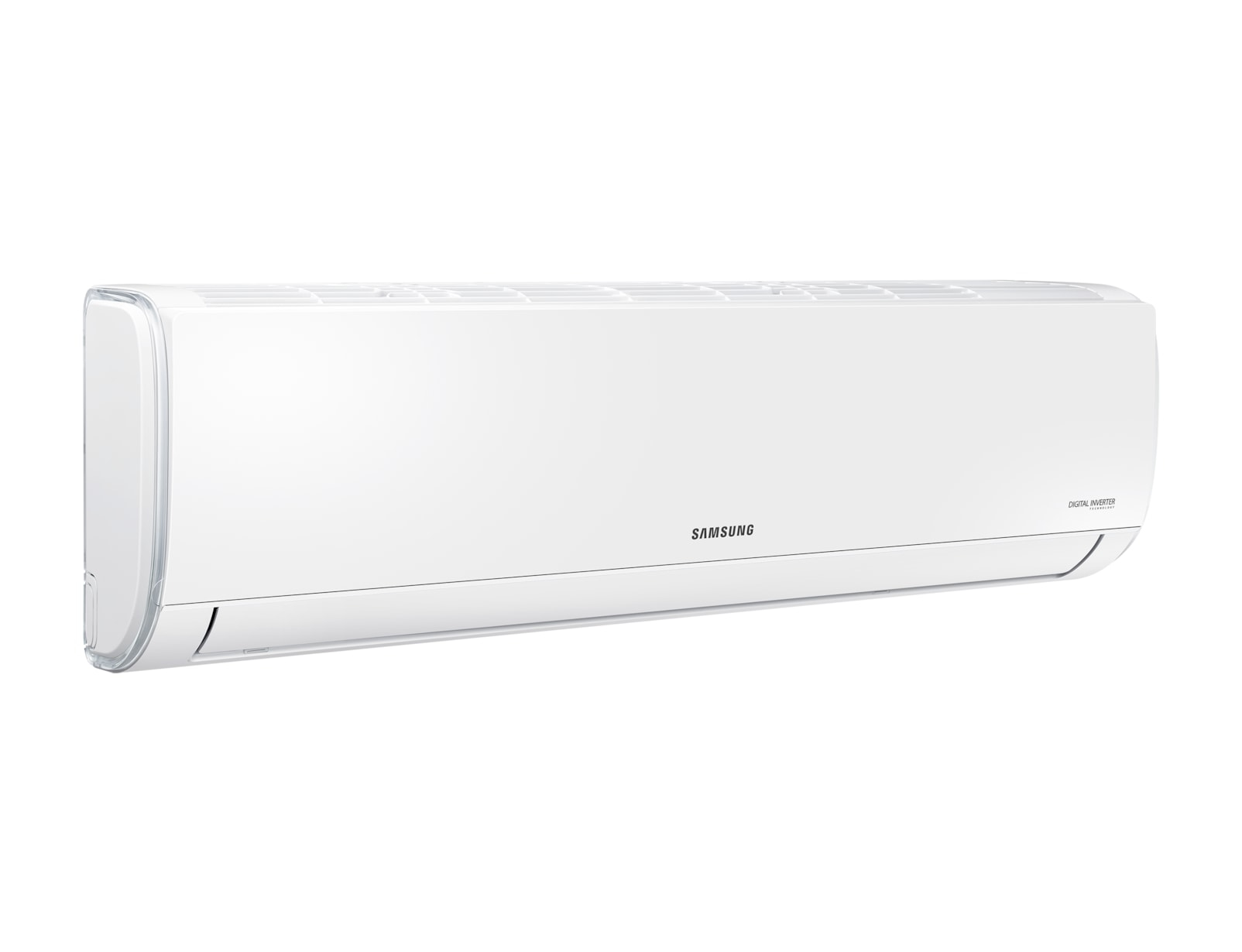

F-AR09ART air conditioner Split system White

Model F-AR09ARTEAN 8806090379062

69 specifications

Overview

69 specifications in 6 groups

Specification	Value
Type	Split system
Multi-split	Yes
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	6.3
Cooling energy efficiency (EER, W/W)	3.43
Heating energy efficiency (COP, W/W)	3.91
Cooling capacity in watts (nominal)	2640 W
Cooling capacity in watts (min)	910 W
Cooling capacity in watts (max)	3400 W
Heating capacity in watts (nominal) (Warmer heating season)	2930 W
Heating capacity in watts (nominal) (Average heating season)	820 W
Heating capacity in watts (nominal) (Colder heating season)	3370 W
Cooling capacity (nominal)	9000 BTU/h
Cooling capacity (min)	3100 BTU/h
Cooling capacity (max)	11600 BTU/h
Heating capacity (nominal)	10000 BTU/h
Heating capacity (min)	2800 BTU/h
Heating capacity (max)	11500 BTU/h
Built-in display	Yes
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Auto fan	Yes
Hose length (max)	25 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Dehumidifying capacity	1 l/h
Smartphone/tablet remote support	No
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A++
Power consumption (cooling) (max)	770 W
Power consumption (heating) (max)	750 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	3.3 A
Current (heating)	3.18 A
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	No

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	28 dB
Indoor unit noise level (high speed)	55 dB
Indoor unit sound power level	36 dB
Cooling airflow (indoor unit)	7.8 m³/h
Indoor units quantity	1
Indoor unit width	80.5 cm
Indoor unit depth	19.4 cm
Indoor unit height	28.5 cm
Indoor unit weight	8.1 kg
Indoor unit package width	88 cm
Indoor unit package depth	28.5 cm
Indoor unit package height	36 cm
Indoor unit package weight	11.5 kg

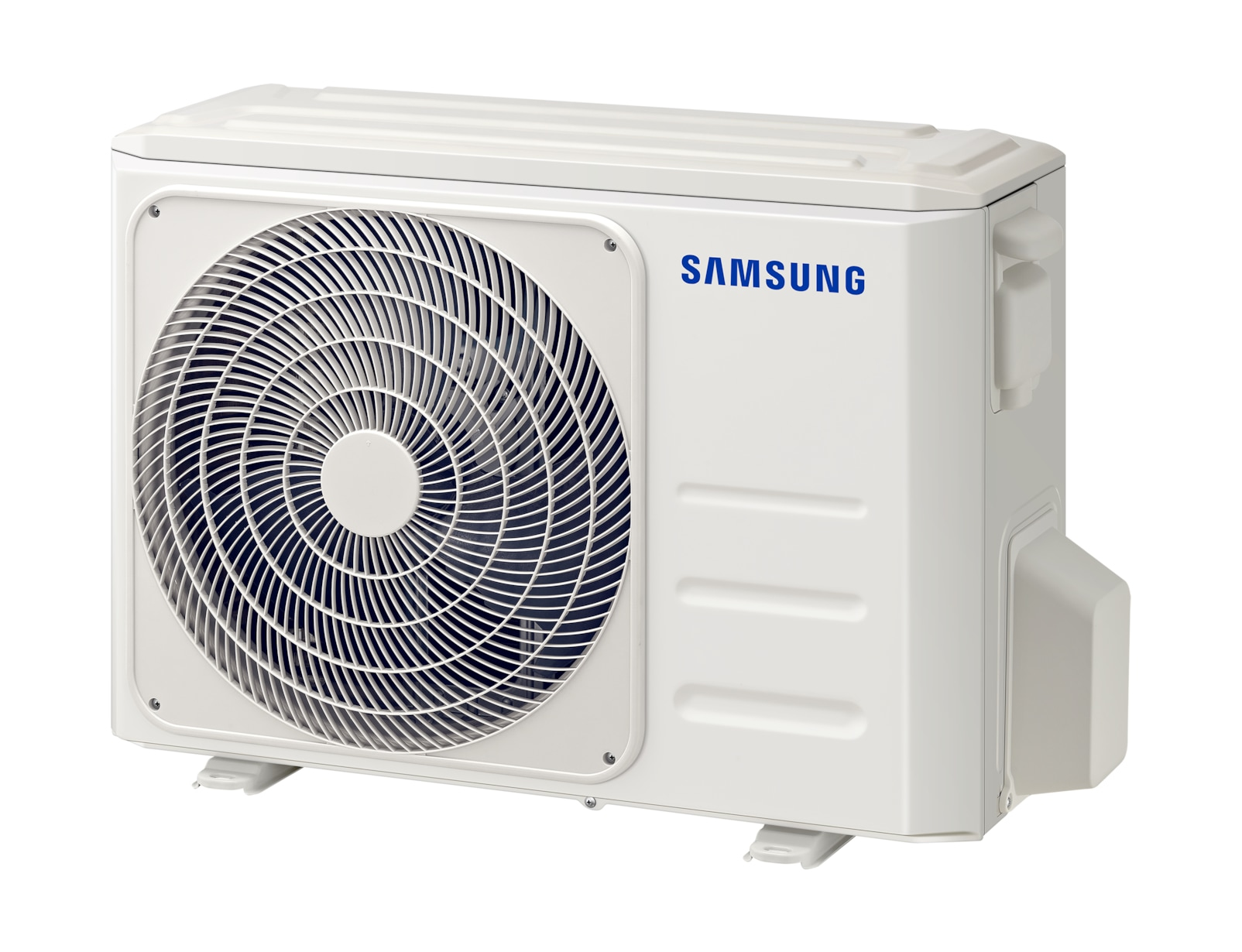

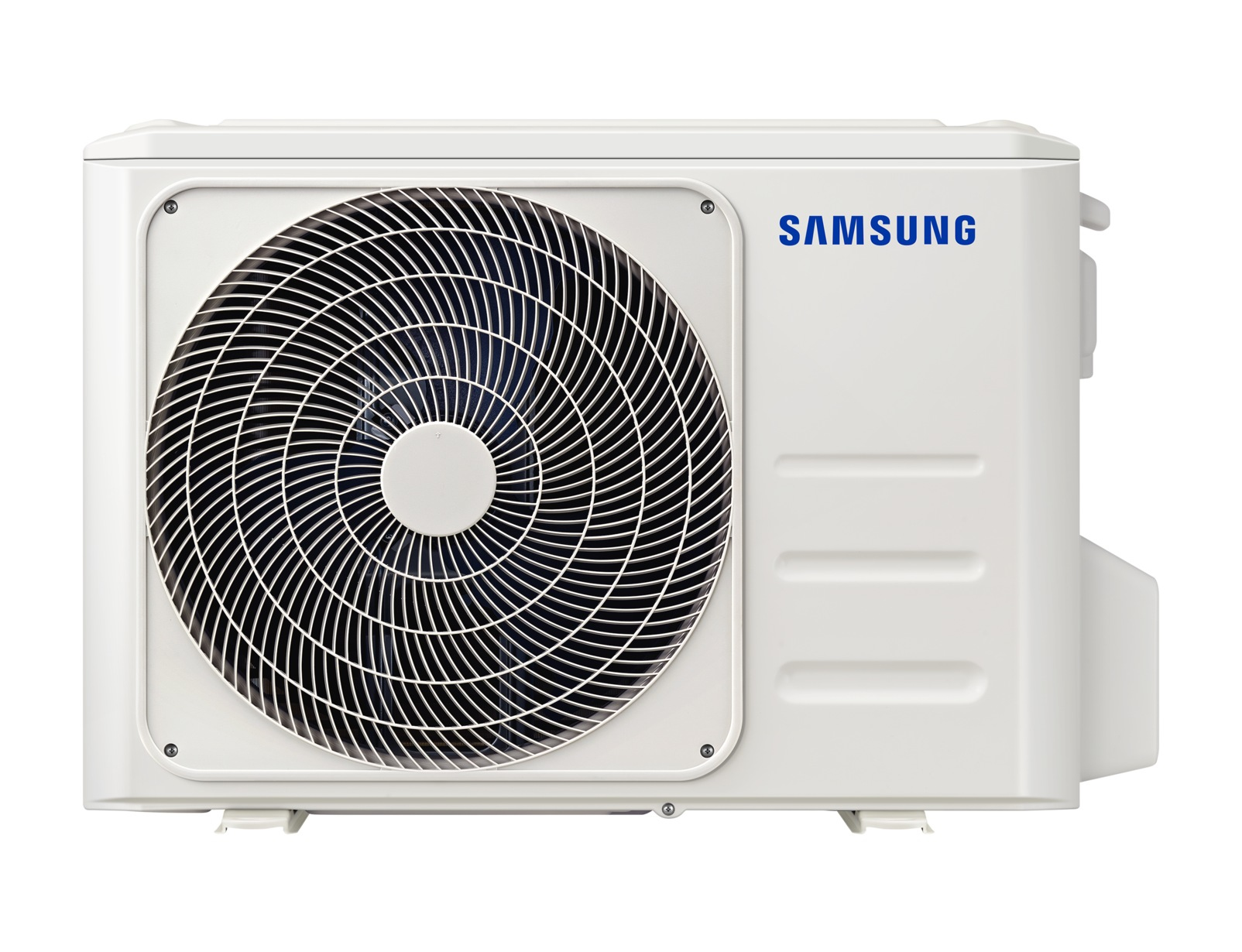

Specification	Value
Outdoor unit noise level	49 dB
Outdoor unit sound power level	62 dB
Outdoor units quantity	1
Outdoor unit width	72 cm
Outdoor unit depth	27 cm
Outdoor unit height	49.5 cm
Outdoor unit weight	23.2 kg
Outdoor unit package width	83.5 cm
Outdoor unit package depth	30 cm
Outdoor unit package height	54 cm
Outdoor unit package weight	25.5 kg

Specification	Value
Manual	Yes
Remote control included	Yes
