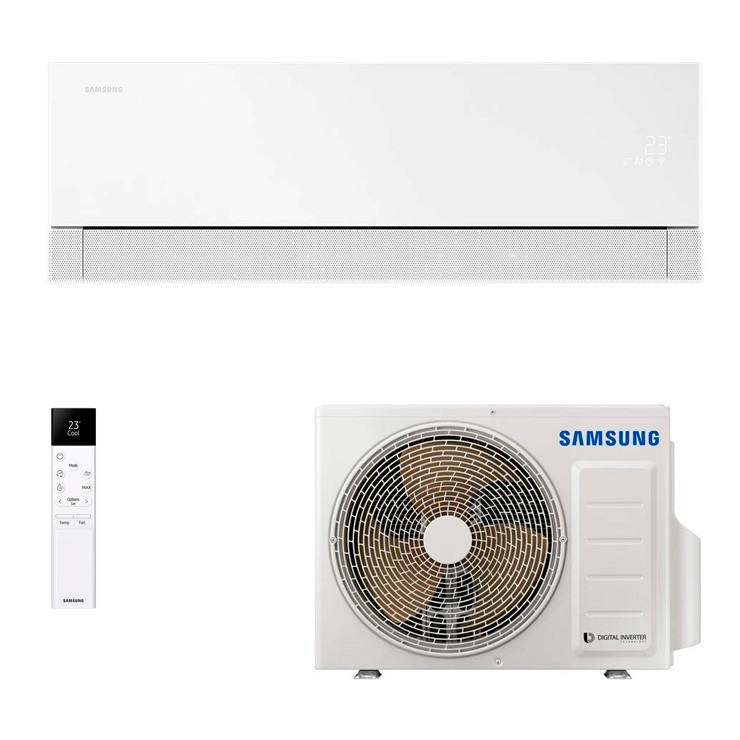

AR70H09CAAWNEU + AR70H09CAAWXEU
Model AR70H09CAAWNEU + AR70H09CAAWXEUPart no. SAMKITFAR09PPLUSW
47 specifications
- Energy classA+++
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit sound power level56 dB
- Outdoor unit sound power level59 dB
Overview
- Energy class
- A+++
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit sound power level
- 56 dB
- Outdoor unit sound power level
- 59 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AR70H09CAAWNEU + AR70H09CAAWXEU
- Part number
- SAMKITFAR09PPLUSW
- Also known as
- Samsung AR70H09CAAWNEU + AR70H09CAAWXEU Split system White
Specifications
47 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Heating, Dehumidifying, Fan |
| Inverter technology | Yes |
| Split system type | Mono split |
| Seasonal efficiency rating (cooling) (SEER) | 9.7 |
| Seasonal efficiency rating (heating) (SCOP) (Warmer heating season) | 6 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 5.1 |
| Cooling energy efficiency (EER, W/W) | 4.81 |
| Heating energy efficiency (COP, W/W) | 4.74 |
| Cooling capacity in watts (min) | 1000 W |
| Cooling capacity in watts (max) | 4000 W |
| Heating capacity in watts (min) | 800 W |
| Heating capacity in watts (max) | 7100 W |
| Cooling capacity (nominal) | 9000 BTU/h |
| Refrigerating medium | R32 |
| Gas hose diameter | 6.35 mm |
| Liquid hose diameter | 9.52 mm |
| Dehumidifying capacity | 0.9 l/h |
| Operating temperature range outdoor unit (cooling) | -10 - 46 °C |
| Operating temperature range outdoor unit (heating) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (cooling) | A+++ |
| Energy efficiency class (heating) (Average heating season) | A+++ |
| Energy efficiency class (heating) (Warmer heating season) | A+++ |
| Annual energy consumption (cooling) | 90 kWh |
| Annual energy consumption (heating) (Warmer heating season) | 303 kWh |
| Annual energy consumption (heating) (Average heating season) | 659 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Design load (cooling) | 2.5 kW |
| Design load (heating) (Average heating season) | 2.4 kW |
| Design load (heating) (Warmer heating season) | 1.3 kW |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit sound power level | 56 dB |
| Indoor units quantity | 1 |
| Indoor unit width | 88.9 cm |
| Indoor unit depth | 23 cm |
| Indoor unit height | 29.9 cm |
| Indoor unit weight | 11.3 kg |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit sound power level | 59 dB |
| Outdoor units quantity | 1 |
| Outdoor unit width | 79 cm |
| Outdoor unit depth | 28.5 cm |
| Outdoor unit height | 54.8 cm |
| Outdoor unit weight | 30.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
