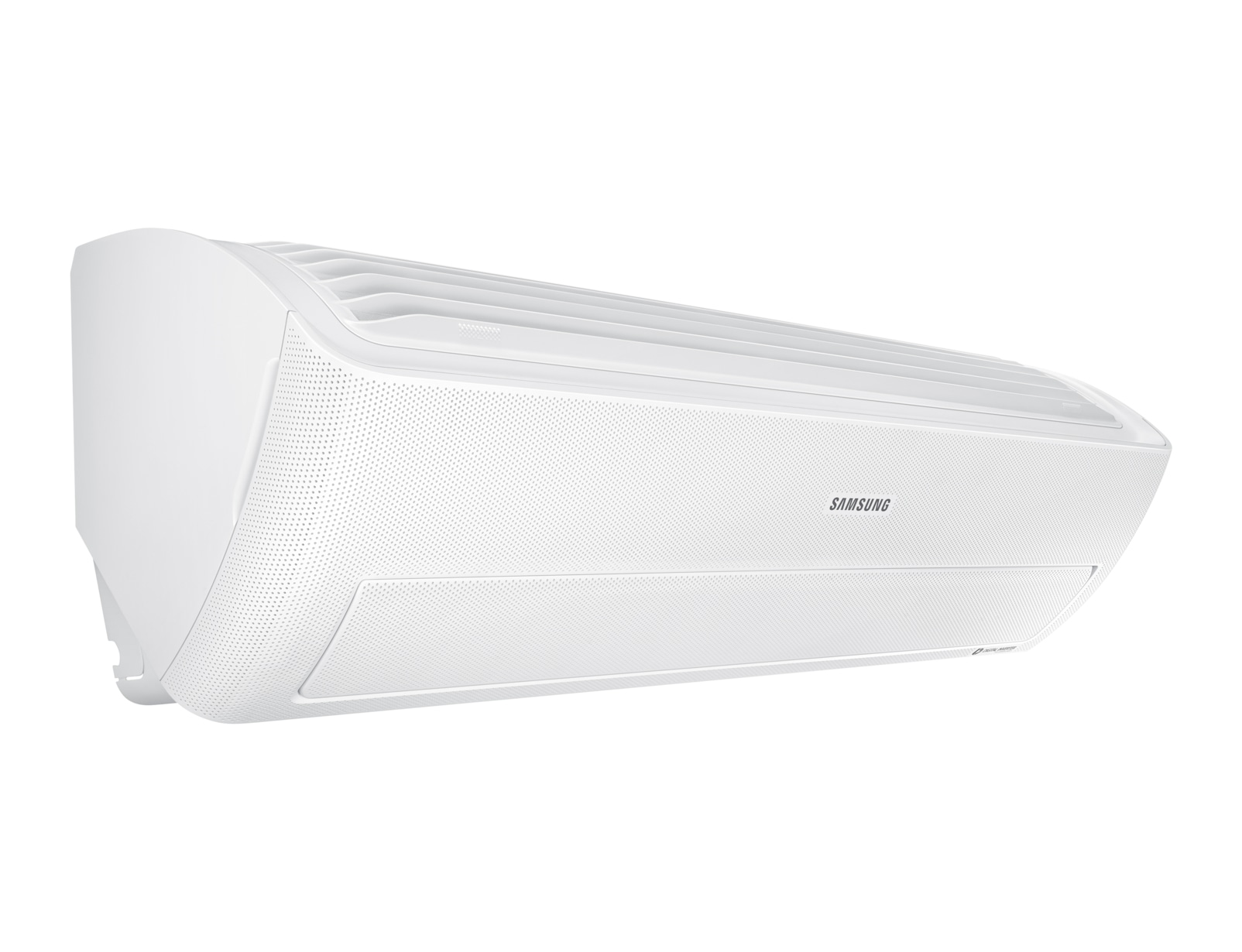

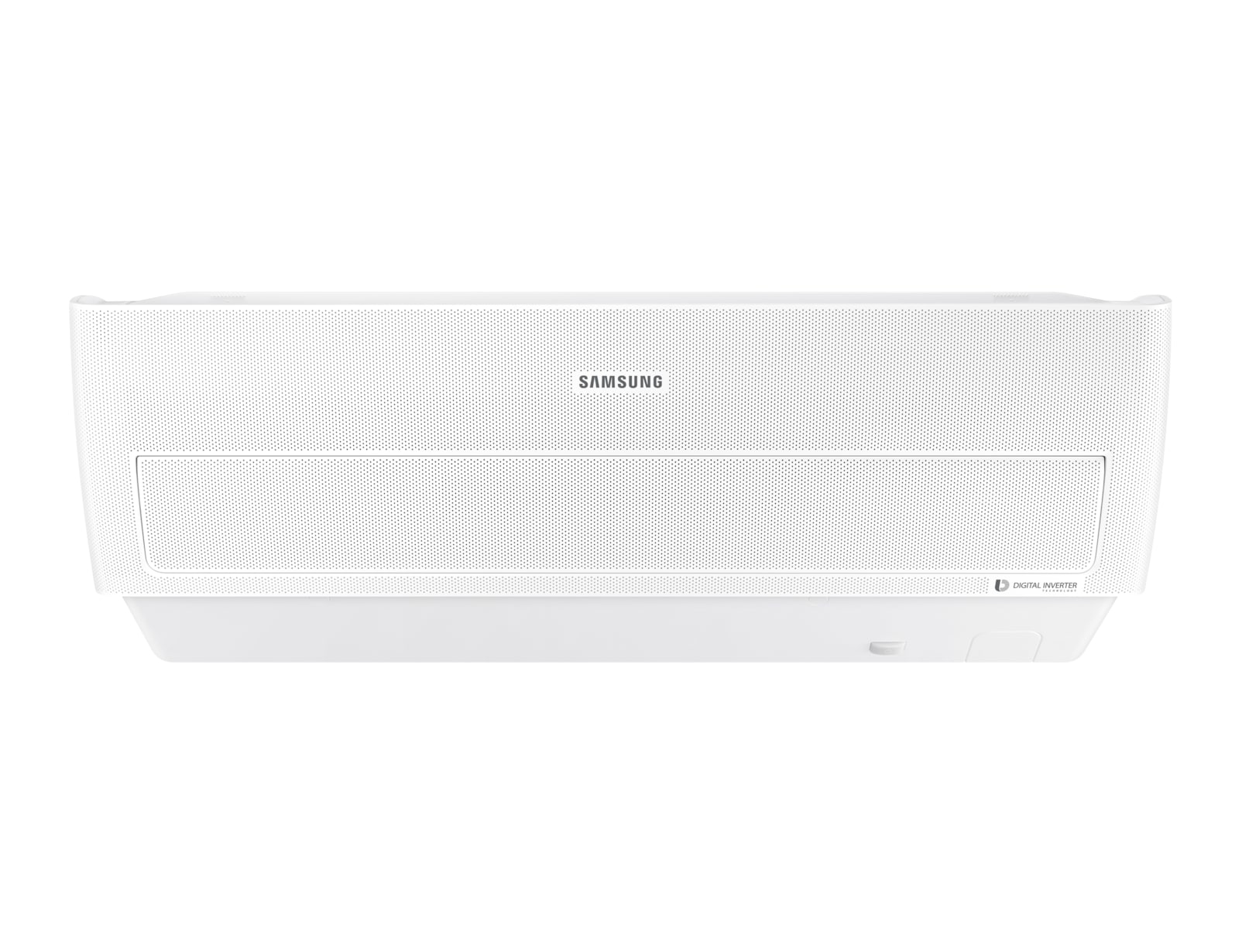

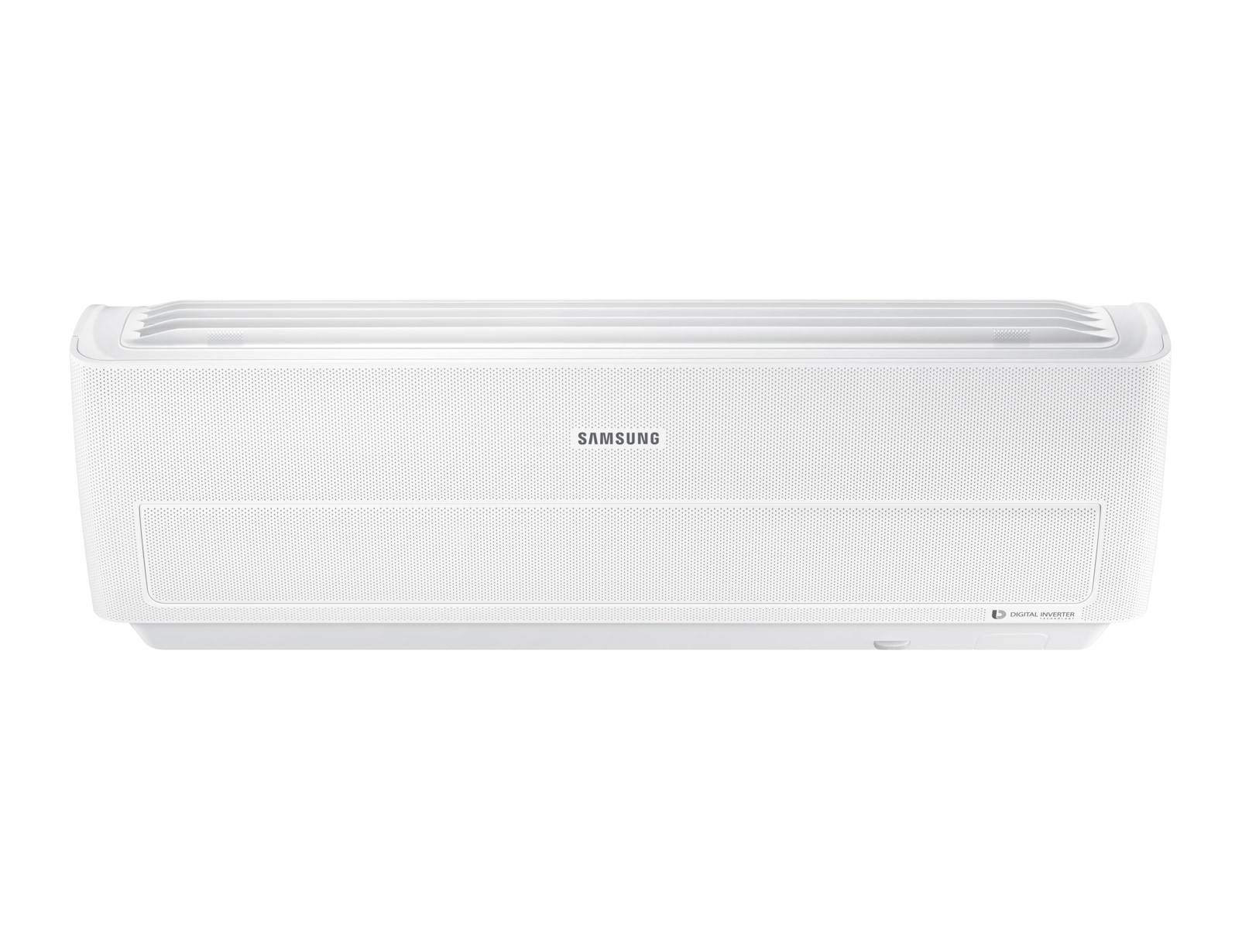

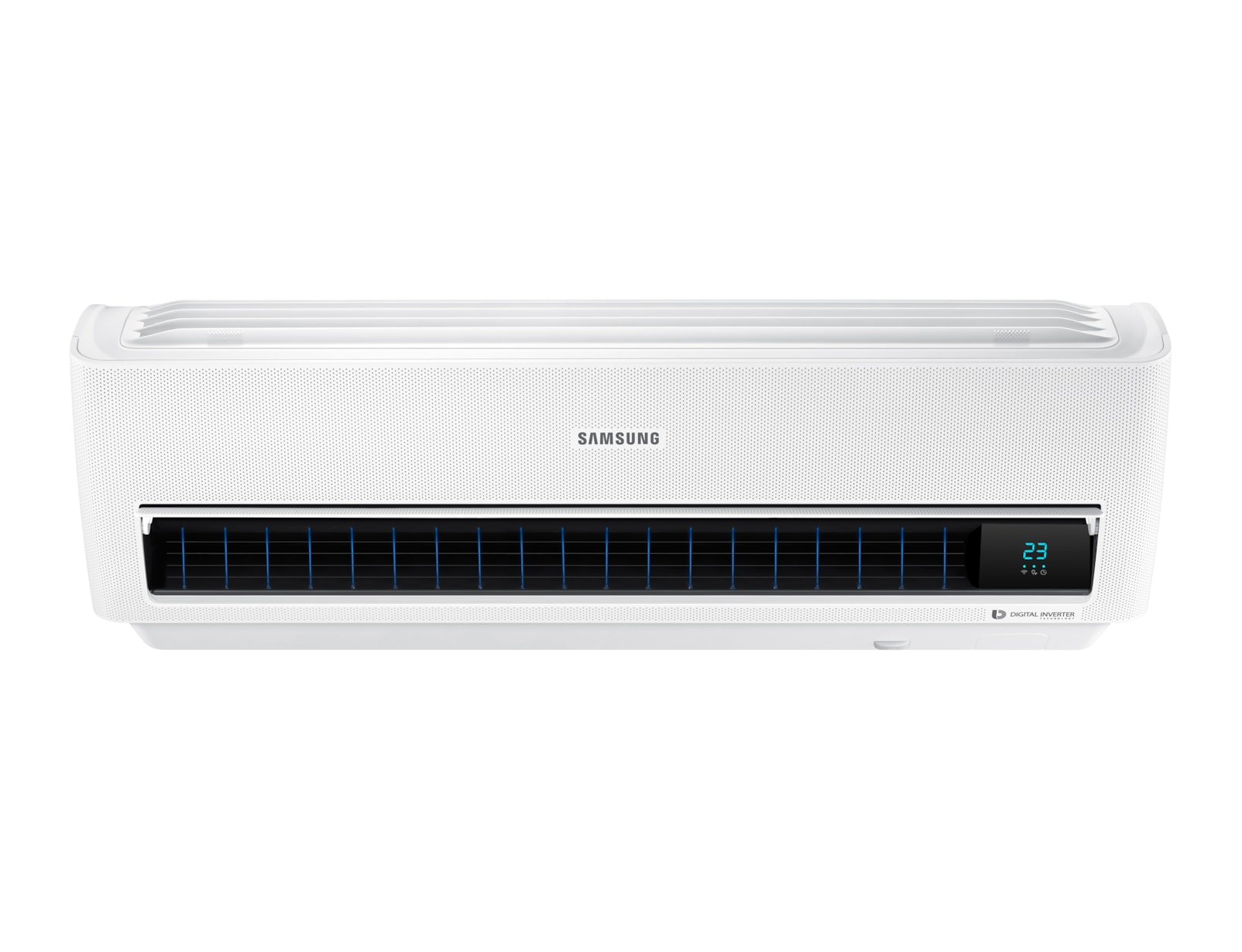

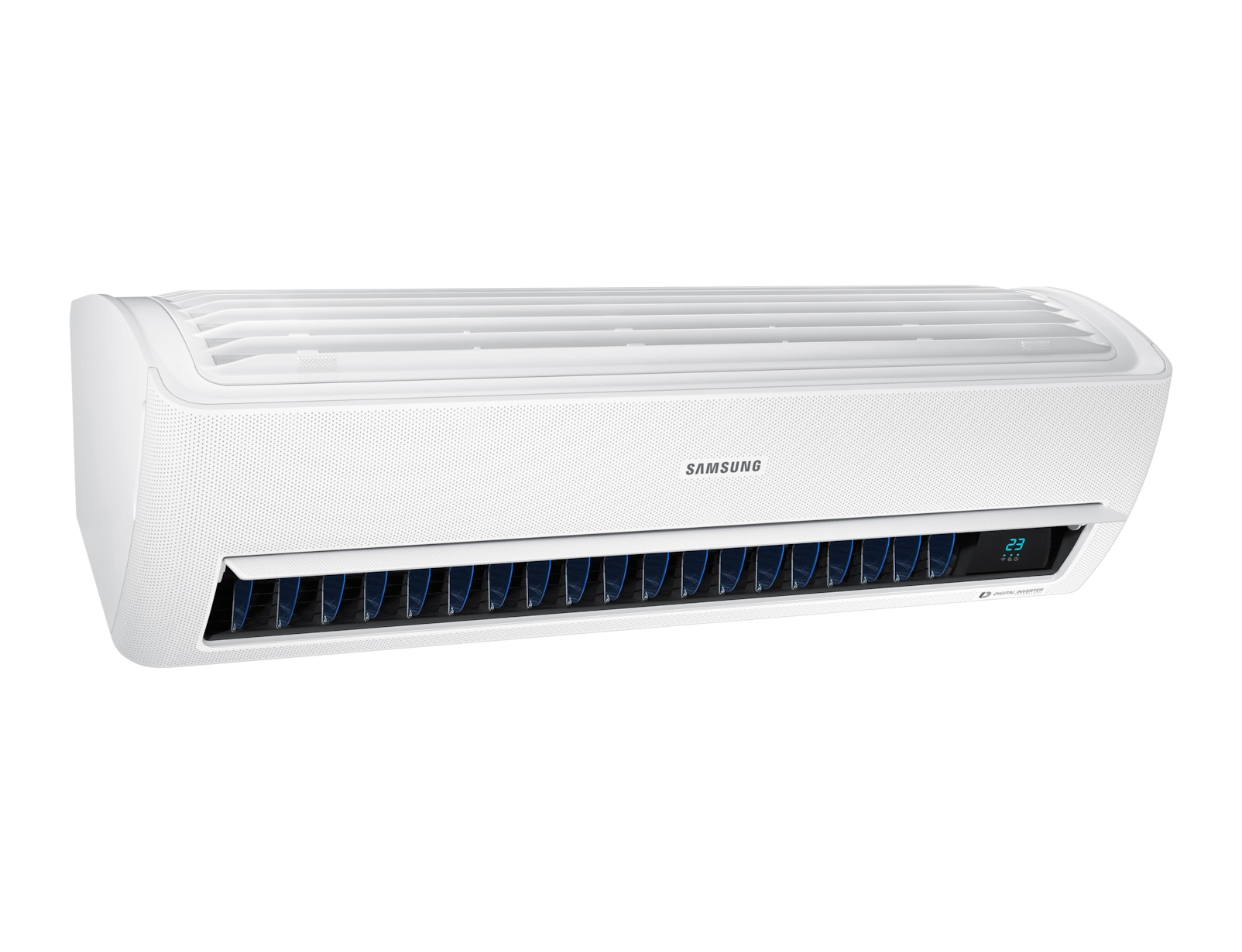

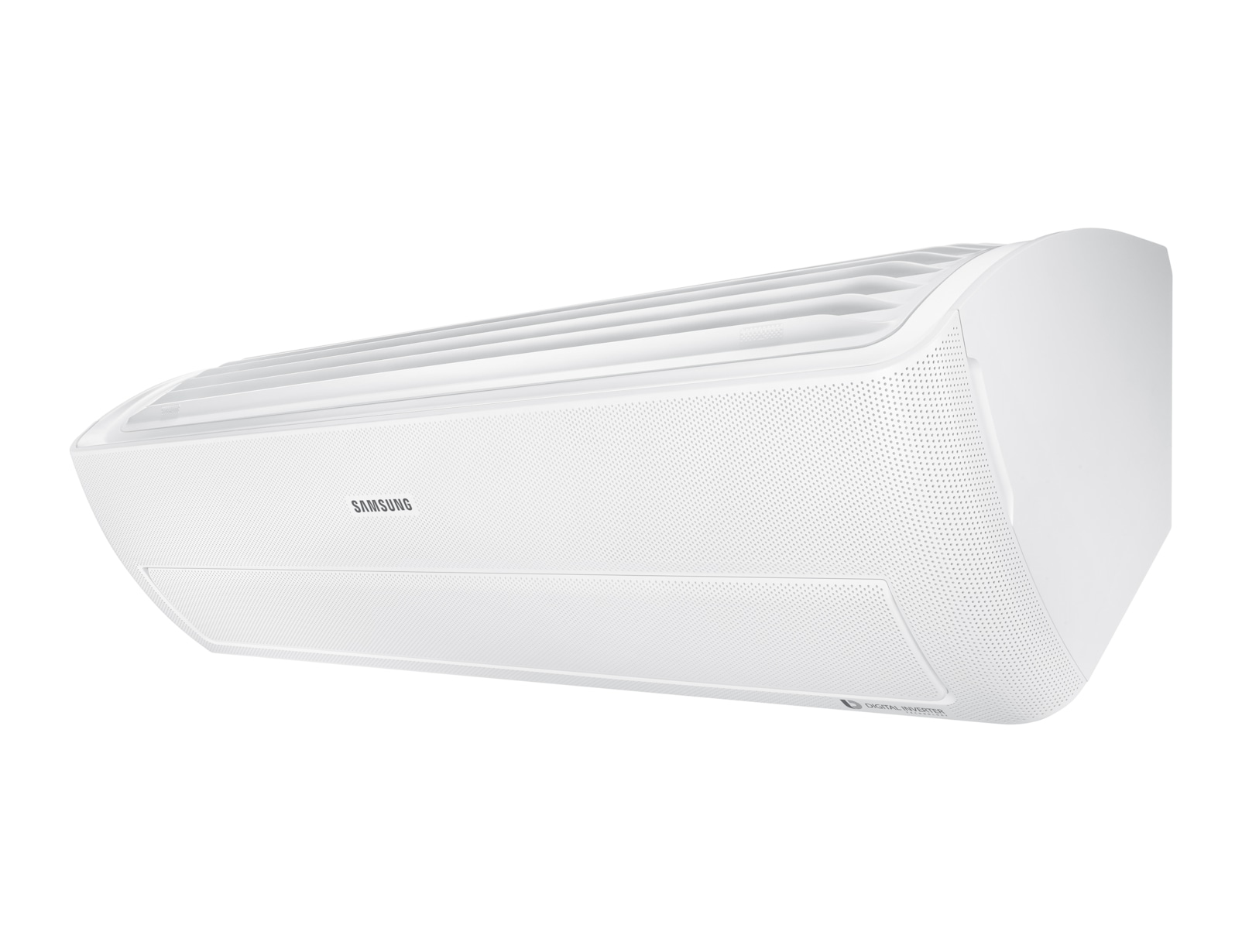

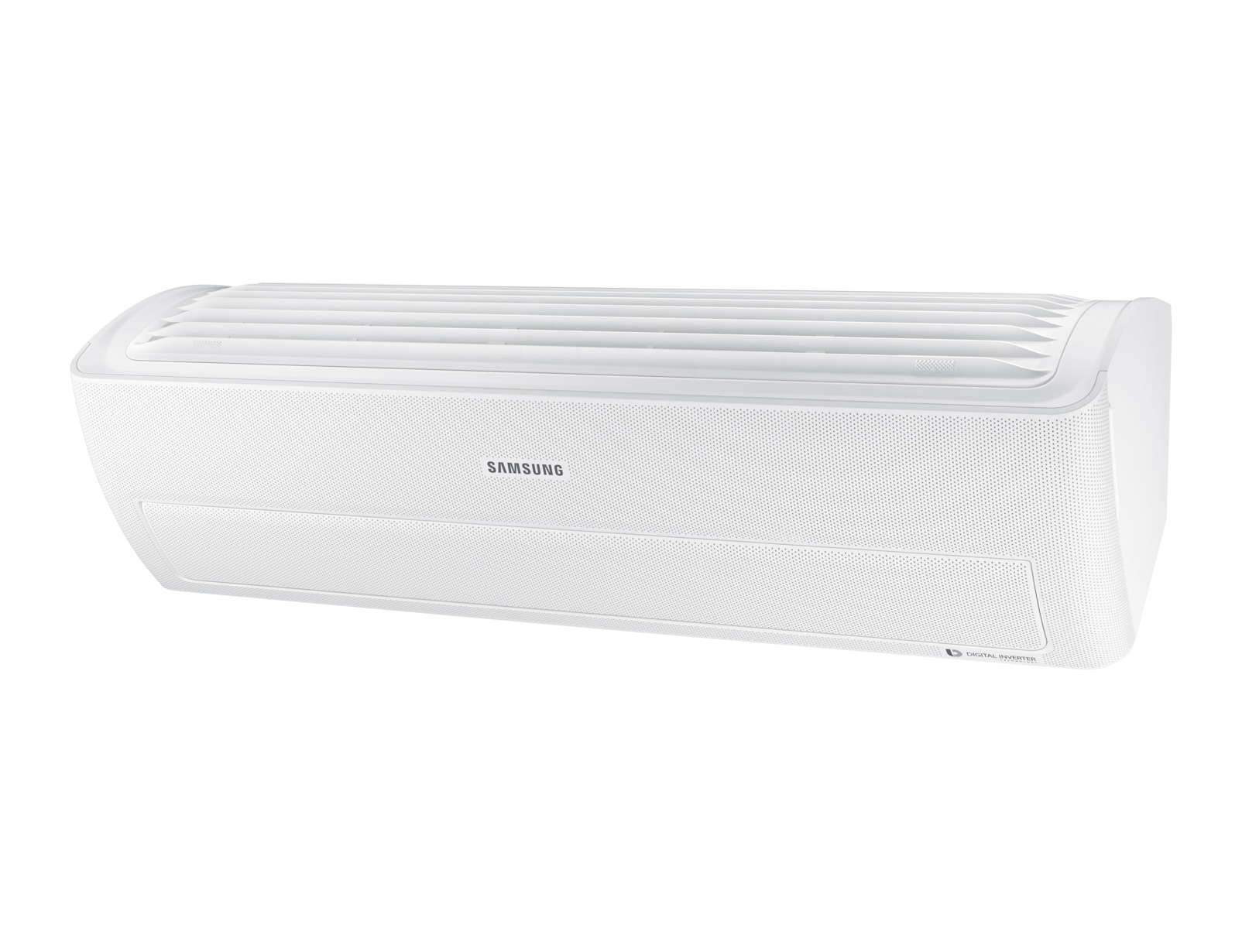

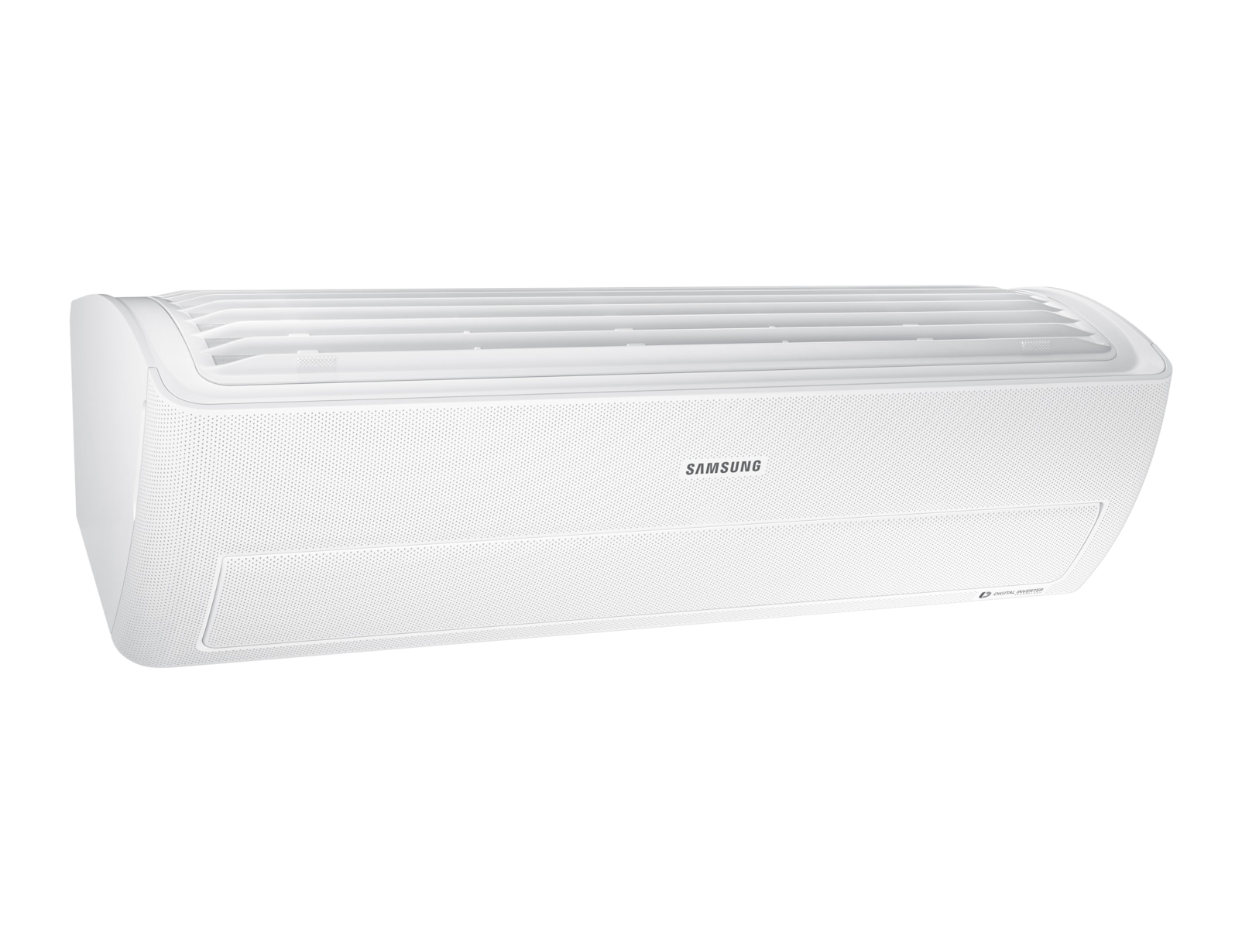

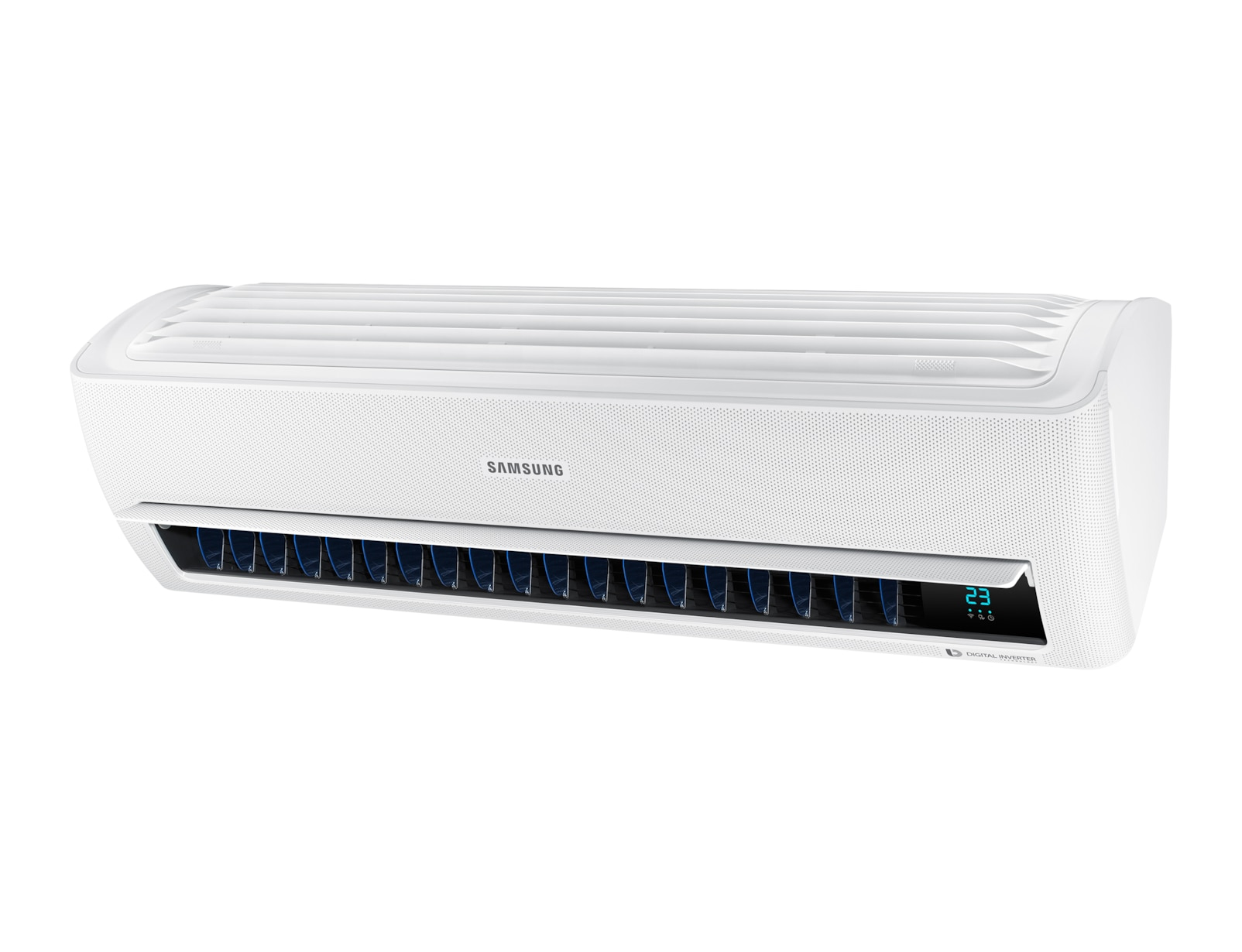

AR24NSWXBWKX Air conditioner indoor unit White

Model AR24NSWXBWKXPart no. AR24NSWXBWKXEUEAN 8801643091101

59 specifications

Overview

59 specifications in 4 groups

Specification	Value
Type	Air conditioner indoor unit
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Fan, Heating
Ionizer	No
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	3.8
Cooling energy efficiency (EER, W/W)	2.85
Heating energy efficiency (COP, W/W)	2.85
Cooling capacity in watts (nominal)	6500 W
Cooling capacity in watts (min)	1400 W
Cooling capacity in watts (max)	7600 W
Heating capacity in watts (nominal) (Average heating season)	7400 W
Heating capacity in watts (min)	1200 W
Heating capacity in watts (max)	9200 W
Cooling capacity (min)	4777 BTU/h
Cooling capacity (max)	25932 BTU/h
Heating capacity (min)	4095 BTU/h
Heating capacity (max)	31392 BTU/h
Built-in display	Yes
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R410A
Refrigerating medium weight	1.45 kg
Hose length (max)	30 m
Gas hose diameter	1.59 cm
Drain hose diameter	1.8 cm
Liquid hose diameter	6.35 mm
Air filter	Yes
Anti-bacterial filter	Yes
Dehumidifying capacity	2.5 l/h
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A
Annual energy consumption (cooling)	373 kWh
Annual energy consumption (heating) (Average heating season)	1511 kWh
Power consumption (cooling) (max)	2280 W
Power consumption (heating) (max)	2595 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	10.2 A
Current (heating)	11.5 A
Design load (cooling)	6.5 kW
Design load (heating) (Average heating season)	4.1 kW
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	26 dB
Indoor unit noise level (high speed)	45 dB
Indoor unit sound power level	62 dB
Indoor unit width	106.5 cm
Indoor unit depth	30.1 cm
Indoor unit height	31.1 cm
Indoor unit weight	13.4 kg
Fan motor type (indoor unit)	DC
Indoor unit package width	113 cm
Indoor unit package depth	37.4 cm
Indoor unit package height	38.4 cm
Indoor unit package weight	16.5 kg
