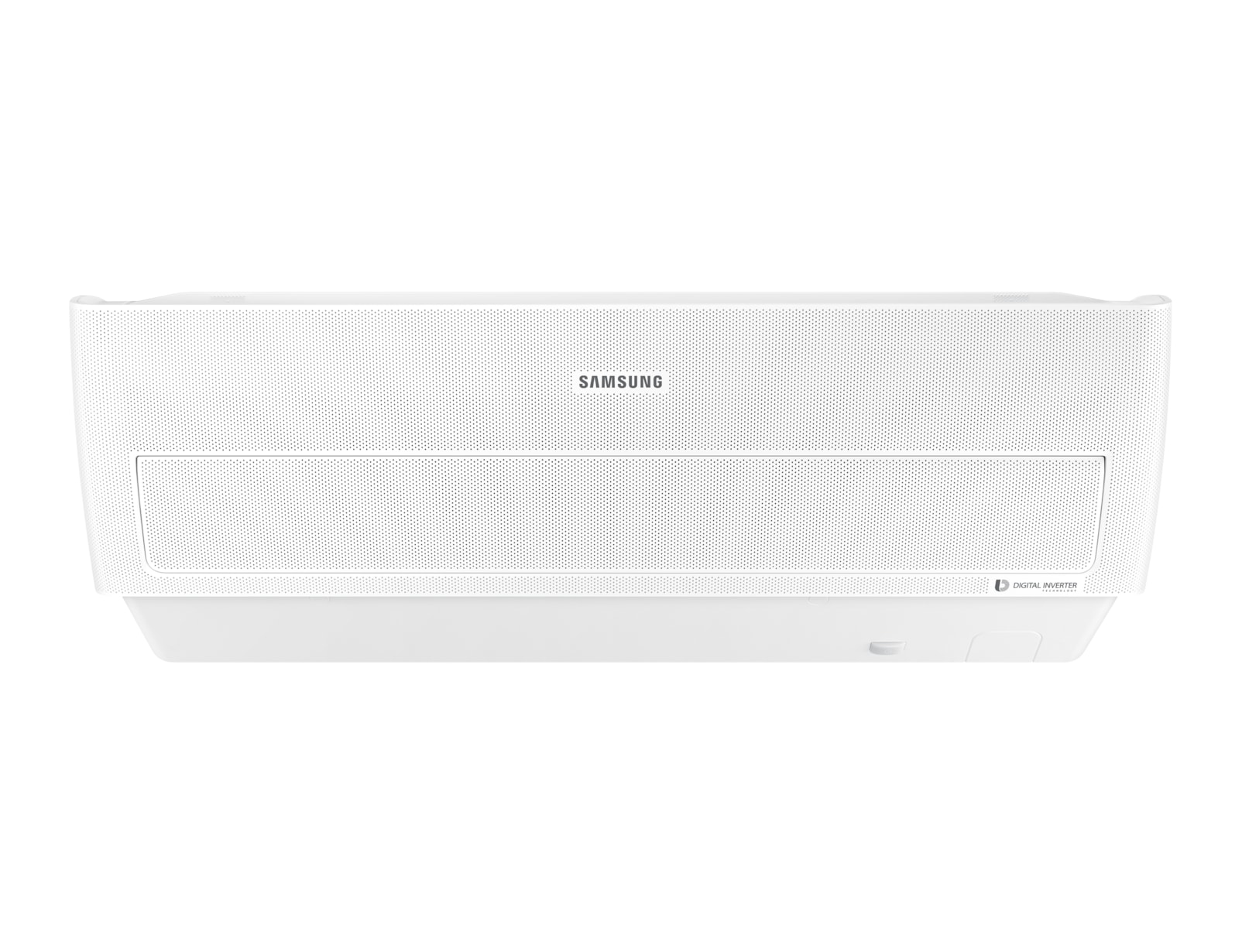

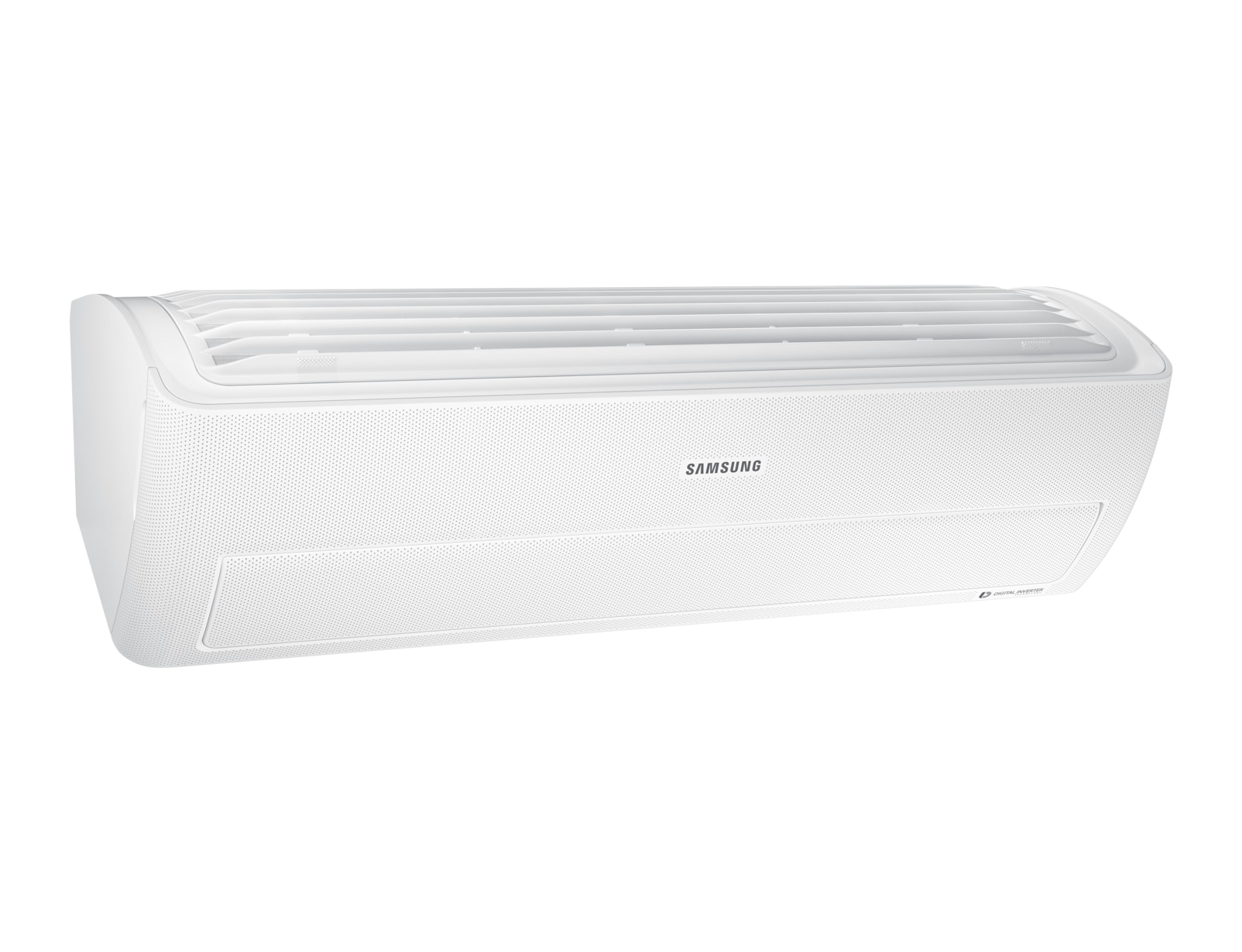

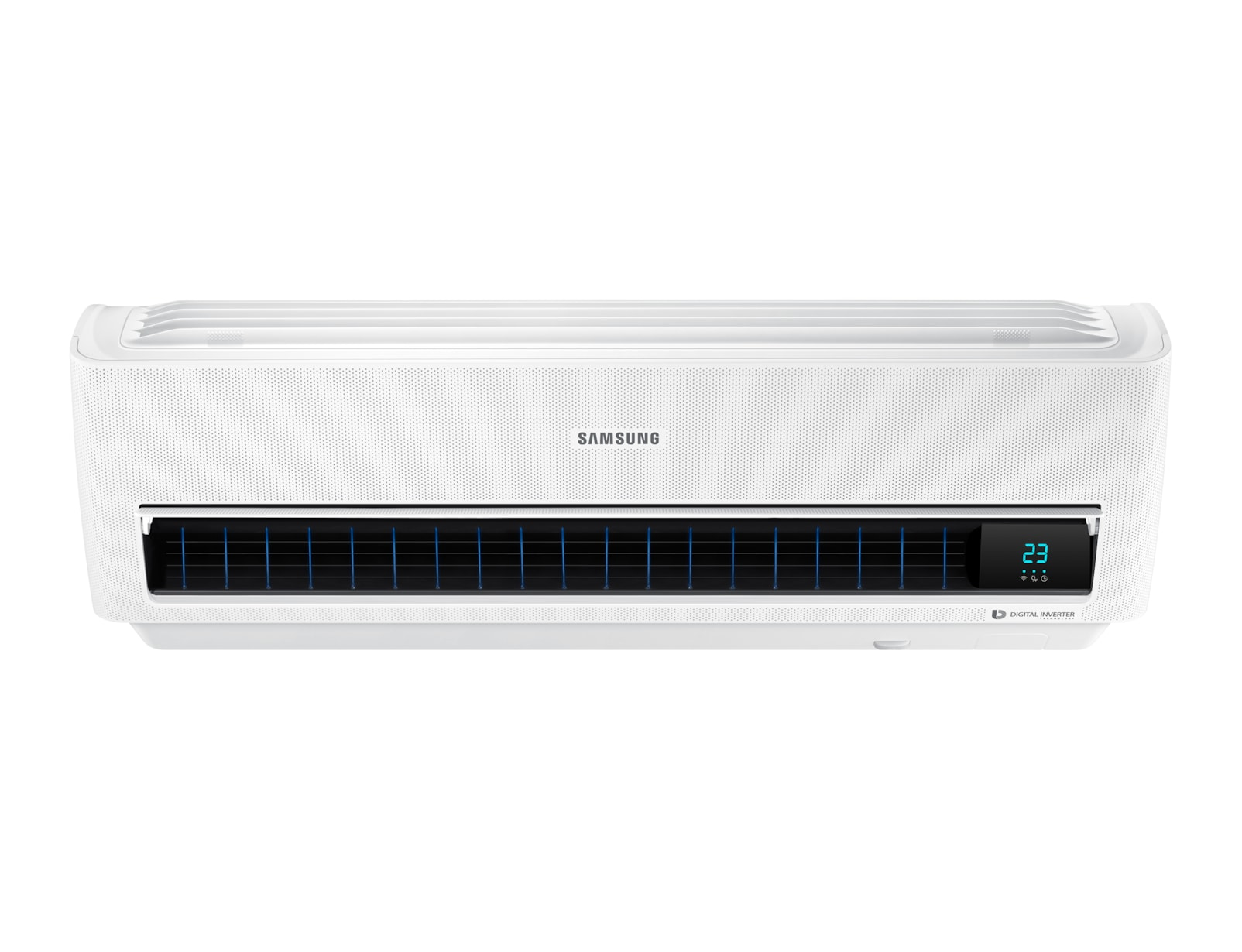

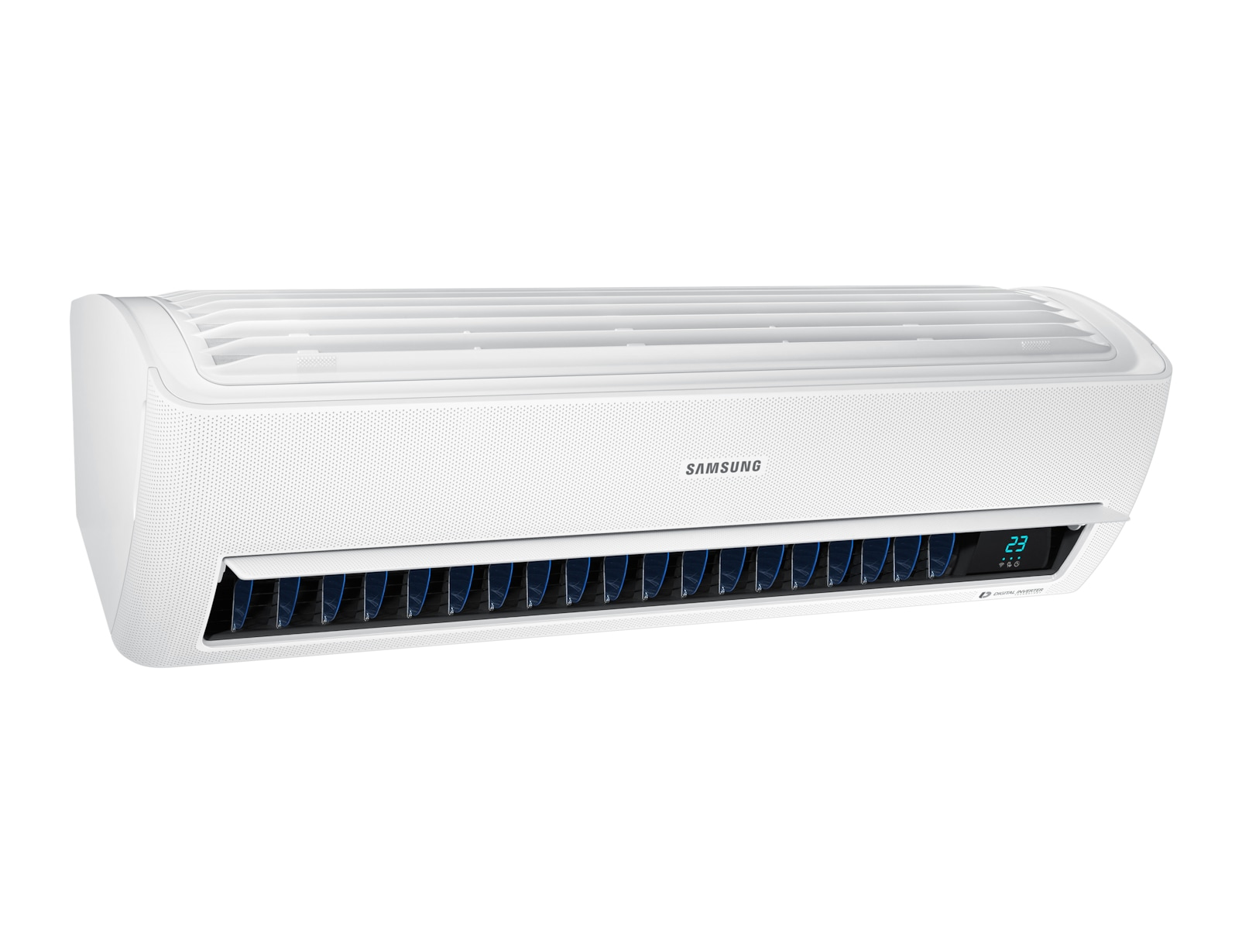

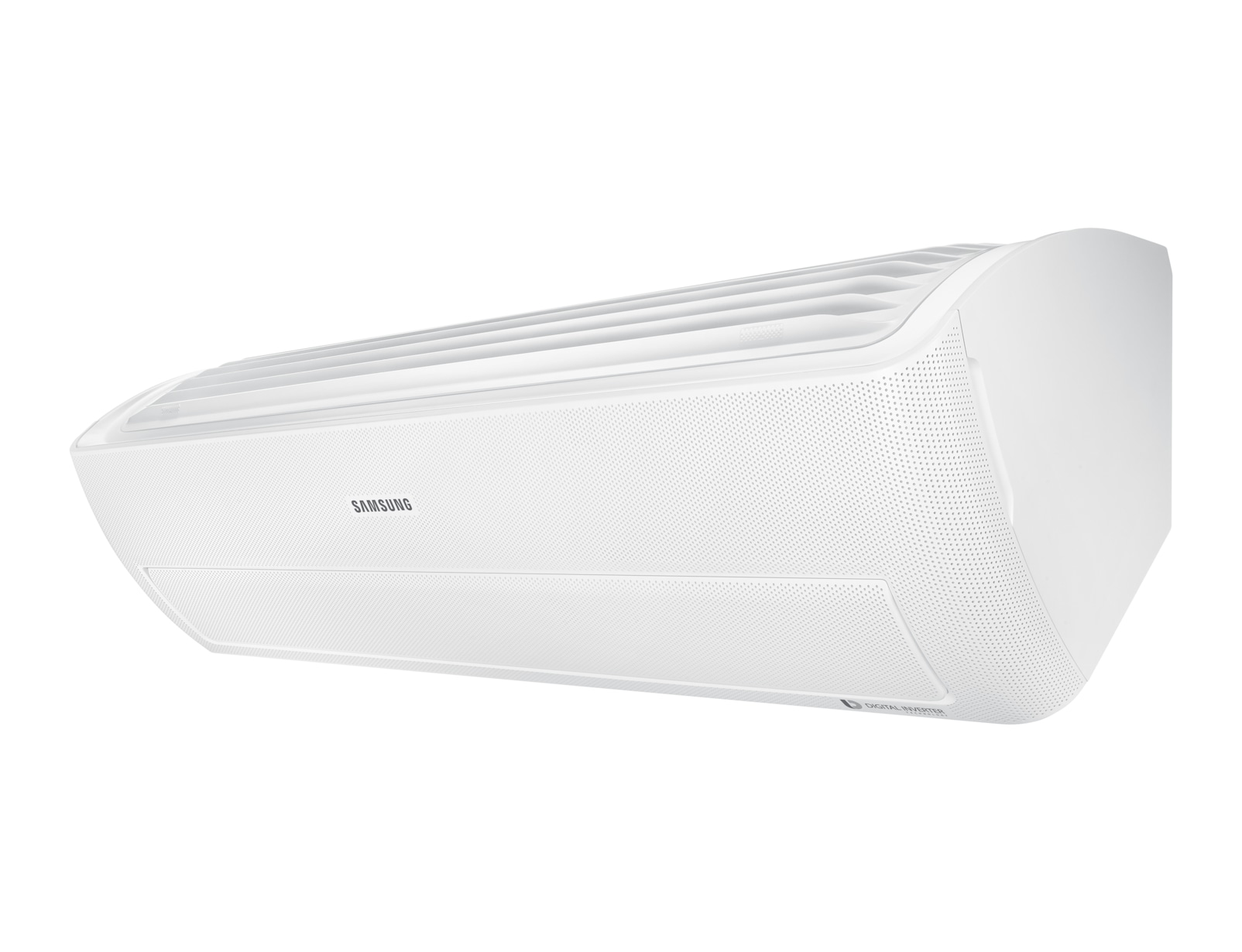

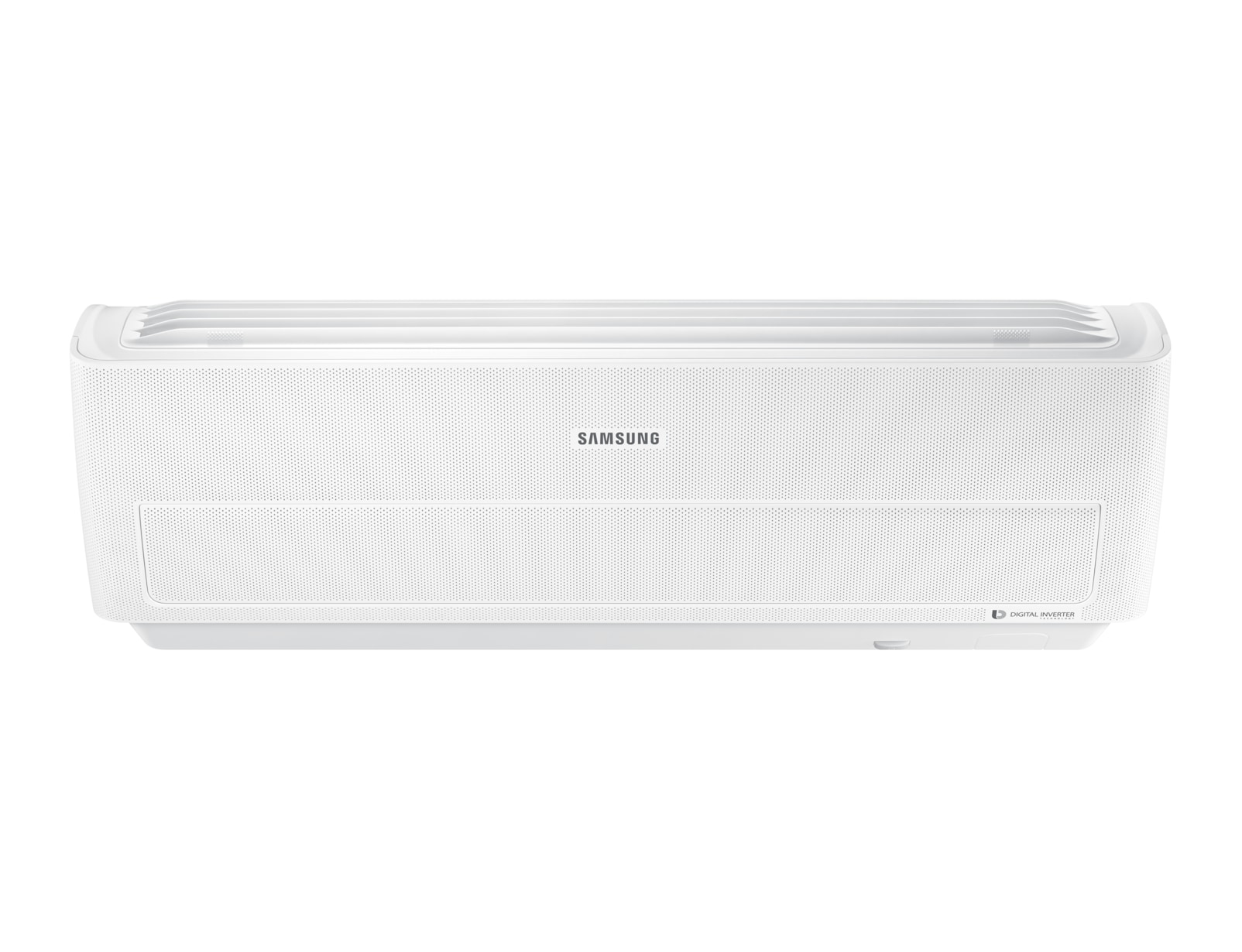

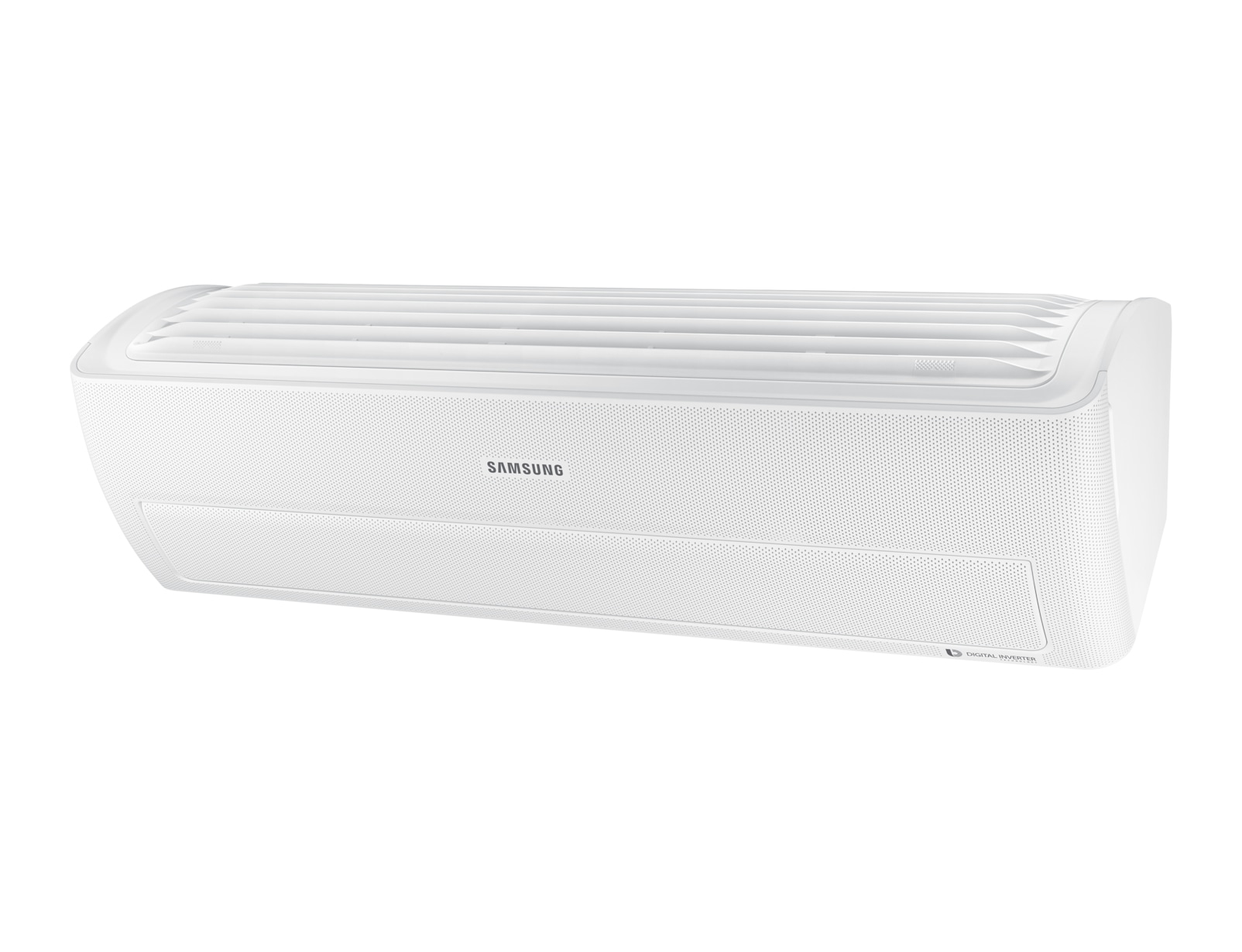

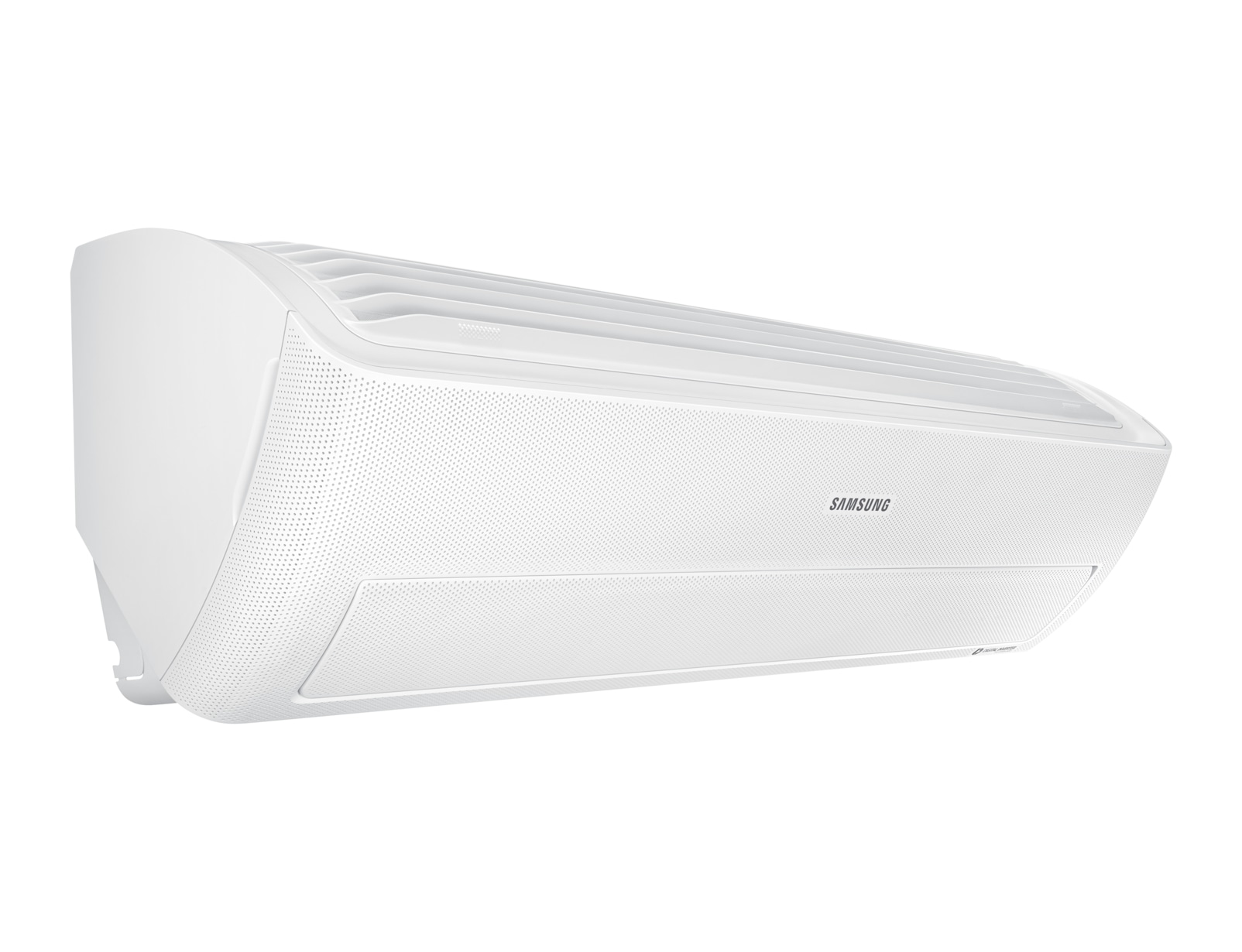

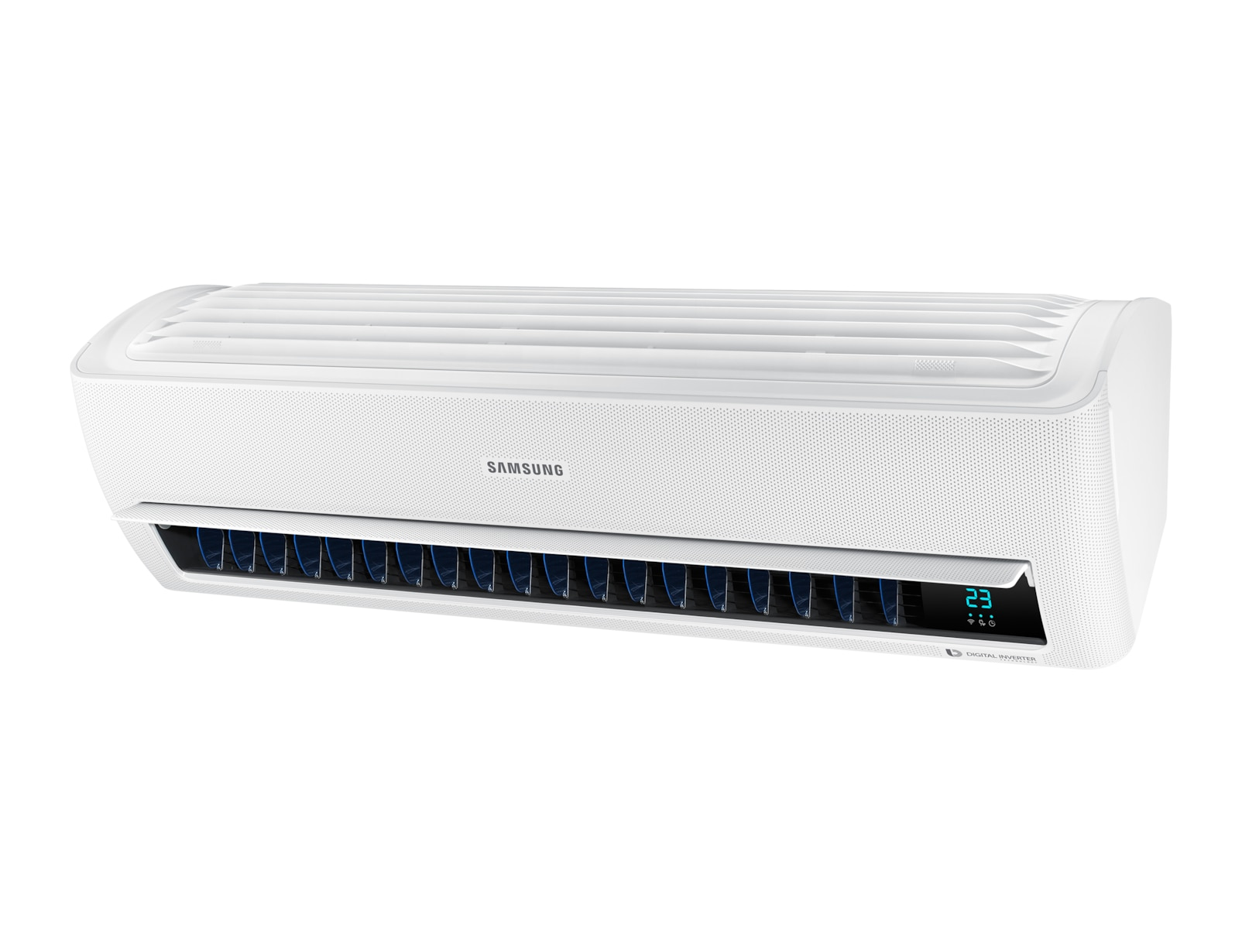

AR12NXWXCWKN Air conditioner indoor unit White

Model AR12NXWXCWKNPart no. AR12NXWXCWKNEUEAN 8801643090999

62 specifications

Overview

62 specifications in 5 groups

Specification	Value
Type	Air conditioner indoor unit
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Fan, Heating
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	6.1
Cooling energy efficiency (EER, W/W)	2.87
Heating energy efficiency (COP, W/W)	3.68
Cooling capacity in watts (nominal)	3500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	4000 W
Heating capacity in watts (nominal) (Average heating season)	3500 W
Heating capacity in watts (min)	1300 W
Heating capacity in watts (max)	5000 W
Cooling capacity (min)	3071 BTU/h
Cooling capacity (max)	13649 BTU/h
Heating capacity (min)	4436 BTU/h
Heating capacity (max)	17061 BTU/h
Built-in display	Yes
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	700 g
Auto fan	Yes
Hose length (min)	8 m
Hose length (max)	15 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Anti-bacterial filter	Yes
Dehumidifying capacity	1.5 l/h
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A
Annual energy consumption (cooling)	201 kWh
Annual energy consumption (heating) (Average heating season)	811 kWh
Power consumption (cooling) (max)	1220 W
Power consumption (heating) (max)	950 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	5.6 A
Current (heating)	4.3 A
Design load (cooling)	3.5 kW
Design load (heating) (Average heating season)	2.2 kW
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	40 dB
Indoor unit sound power level	59 dB
Cooling airflow (indoor unit)	648 m³/h
Indoor units quantity	1
Indoor unit width	82.8 cm
Indoor unit depth	26.7 cm
Indoor unit height	26.5 cm
Indoor unit weight	9.4 kg
Indoor unit package width	88.6 cm
Indoor unit package depth	31.7 cm
Indoor unit package height	33.5 cm
Indoor unit package weight	11.9 kg

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4.5
