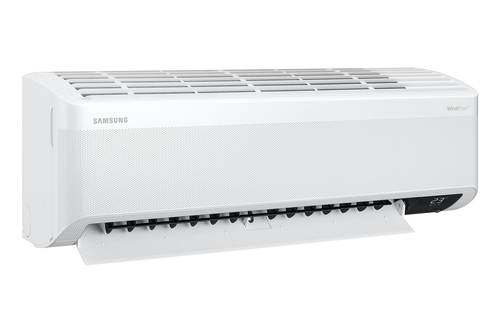

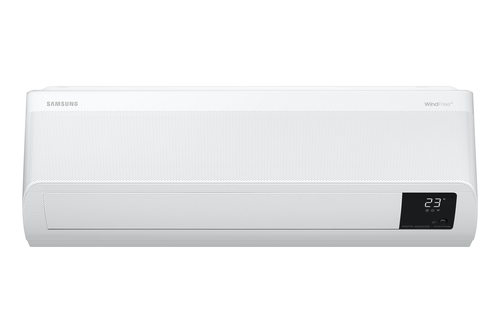

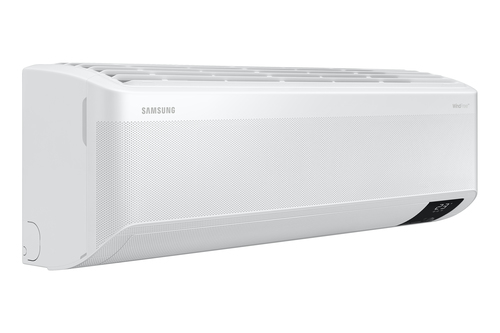

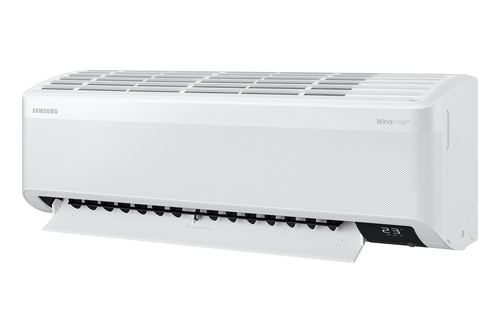

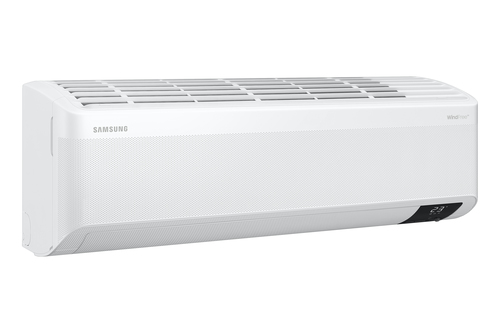

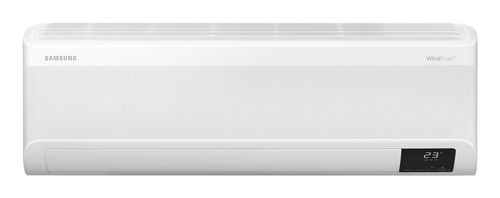

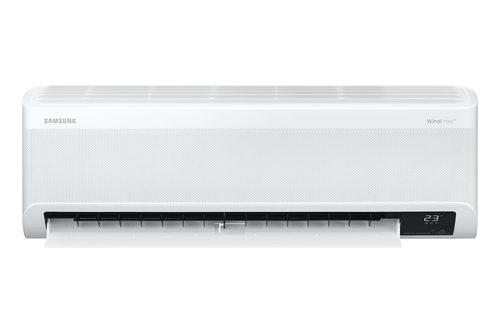

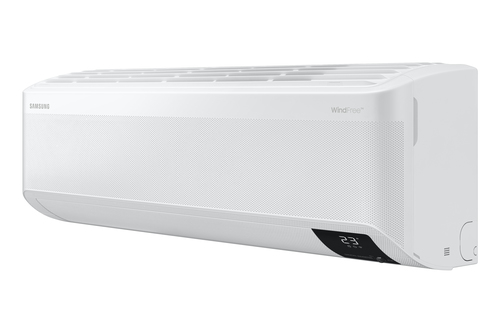

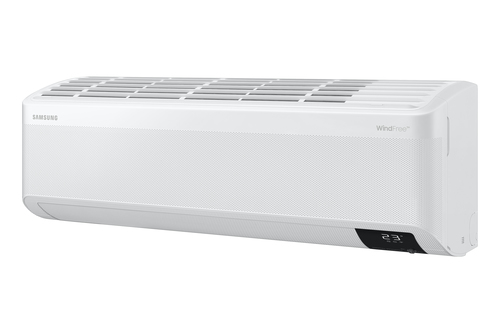

AR12CXCAAWKN Split system White
Model AR12CXCAAWKNPart no. AR12CXCAAWKNEUEAN 8806094752694
76 specifications
- Energy classA+++
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
- Outdoor unit noise level46 dB
Overview
- Energy class
- A+++
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 46 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AR12CXCAAWKN
- Part number
- AR12CXCAAWKNEU
- EAN / UPC
- 8806094752694
- Also known as
- Samsung AR12CXCAAWKN Split system White
Specifications
76 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Heating, Ventilating |
| Inverter technology | Yes |
| Ionizer | No |
| Comfort sleeping mode | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 8.5 |
| Cooling energy efficiency (EER, W/W) | 3.95 |
| Heating energy efficiency (COP, W/W) | 4.26 |
| Cooling capacity in watts (nominal) | 3500 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 4800 W |
| Heating capacity in watts (nominal) (Warmer heating season) | 4000 W |
| Heating capacity in watts (min) | 800 W |
| Heating capacity in watts (max) | 7300 W |
| Cooling capacity (nominal) | 11942 BTU/h |
| Cooling capacity (min) | 3071 BTU/h |
| Cooling capacity (max) | 16378 BTU/h |
| Heating capacity (nominal) | 13649 BTU/h |
| Heating capacity (min) | 2730 BTU/h |
| Heating capacity (max) | 24909 BTU/h |
| Built-in display | Yes |
| Display type | LED |
| Timer | Yes |
| Timer duration (maximum) | 24 h |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 965 g |
| Hose length (min) | 8 m |
| Hose length (max) | 15 m |
| Air filter | Yes |
| Anti-bacterial filter | Yes |
| Dehumidifying capacity | 1.5 l/h |
| Remotely operated | Yes |
| Smartphone/tablet remote support | Yes |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
| Virtual assistant | Samsung Bixby |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (cooling) | A+++ |
| Energy efficiency class (heating) (Average heating season) | A+++ |
| Energy efficiency class (heating) (Warmer heating season) | A+++ |
| Annual energy consumption (cooling) | 144 kWh |
| Annual energy consumption (heating) (Warmer heating season) | 659 kWh |
| Power consumption (cooling) (max) | 885 W |
| Power consumption (heating) (max) | 940 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 4.1 A |
| Current (heating) | 4.4 A |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | No |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 16 dB |
| Indoor unit noise level (high speed) | 40 dB |
| Indoor unit sound power level | 58 dB |
| Indoor unit width | 88.9 cm |
| Indoor unit depth | 21.5 cm |
| Indoor unit height | 29.9 cm |
| Indoor unit weight | 10.5 kg |
| Indoor unit package width | 95 cm |
| Indoor unit package depth | 37.5 cm |
| Indoor unit package height | 29 cm |
| Indoor unit package weight | 12.5 kg |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 46 dB |
| Outdoor unit sound power level | 62 dB |
| Outdoor unit width | 79 cm |
| Outdoor unit depth | 28.5 cm |
| Outdoor unit height | 54.8 cm |
| Outdoor unit weight | 32.5 kg |
| Outdoor unit package width | 91.3 cm |
| Outdoor unit package depth | 37.1 cm |
| Outdoor unit package height | 62.2 cm |
| Outdoor unit package weight | 34.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 5.1 |
Technical details
| Specification | Value |
|---|---|
| Airflow | 12.1 m³/h |
