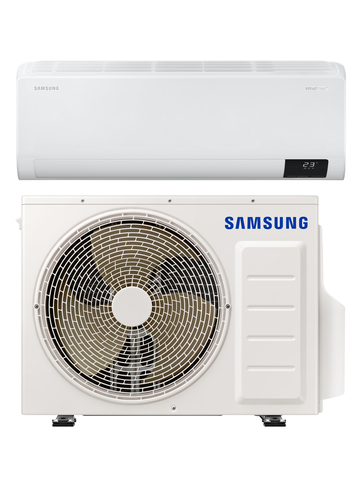

AR12BXFCAWKNEU + AR12BXFCAWKXEU

Model AR12BXFCAWKNEU + AR12BXFCAWKXEUPart no. F-AR12NEXEAN 8806092997523

84 specifications

Overview

Brand: Samsung
Category: Split-System Air Conditioner
Model: AR12BXFCAWKNEU + AR12BXFCAWKXEU
Part number: F-AR12NEX
EAN / UPC: 8806092997523
Also known as: Samsung Wind-Free Comfort Next AR12BXFCAWKNEU + AR12BXFCAWKXEU Split system White

84 specifications in 6 groups

Specification	Value
Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Split system type	Mono split
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	7
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	4.9
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.2
Cooling energy efficiency (EER, W/W)	3.43
Heating energy efficiency (COP, W/W)	3.89
Cooling capacity in watts (nominal)	3500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	4000 W
Heating capacity in watts (nominal) (Average heating season)	3500 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	5000 W
Cooling capacity (nominal)	11942 BTU/h
Cooling capacity (min)	3071 BTU/h
Cooling capacity (max)	13649 BTU/h
Heating capacity (nominal)	11942 BTU/h
Heating capacity (min)	3071 BTU/h
Heating capacity (max)	17061 BTU/h
Built-in display	Yes
Display type	LED
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	750 g
Auto fan	Yes
Hose length (max)	15 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Anti-bacterial filter	Yes
Dehumidifying capacity	1.5 l/h
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A++
Hourly energy consumption (cooling)	1020 kWh
Hourly energy consumption (heating)	900 kWh
Annual energy consumption (cooling)	175 kWh
Annual energy consumption (heating) (Warmer heating season)	343 kWh
Annual energy consumption (heating) (Average heating season)	733 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	4.7 A
Current (heating)	4.2 A
Design load (cooling)	3.5 kW
Design load (heating) (Average heating season)	2.2 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes

Specification	Value

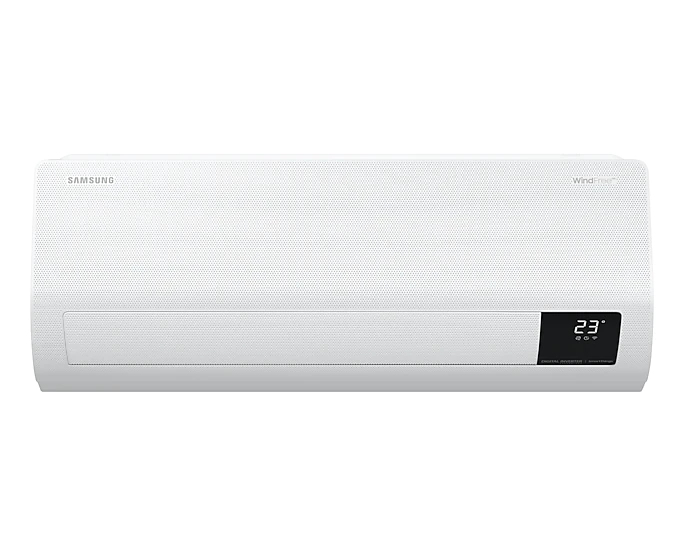

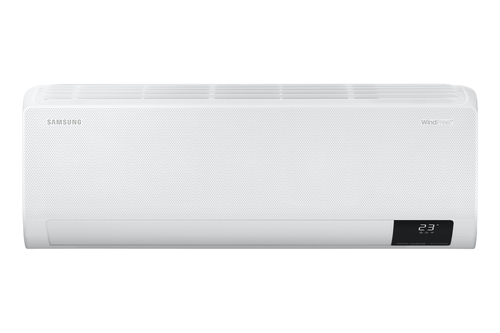

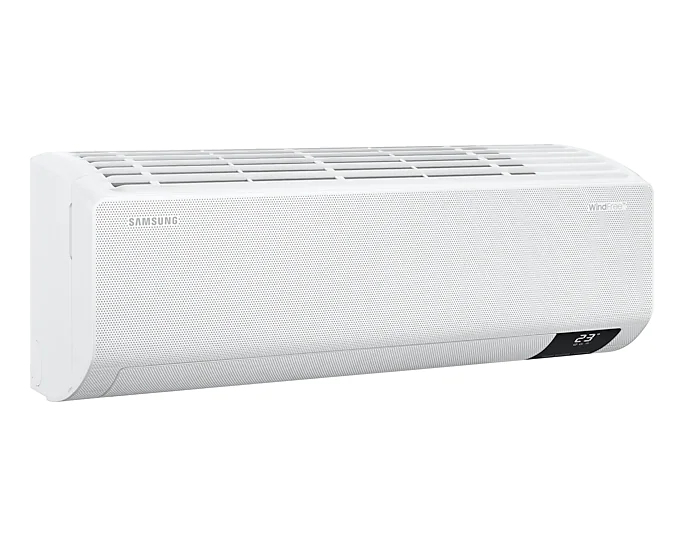

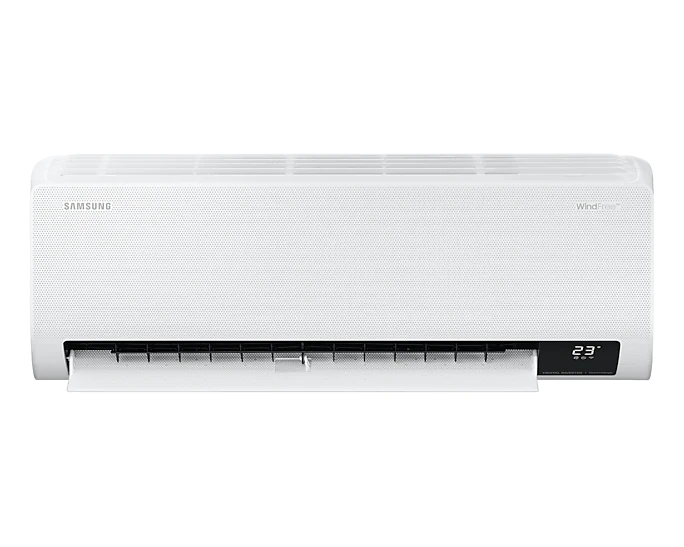

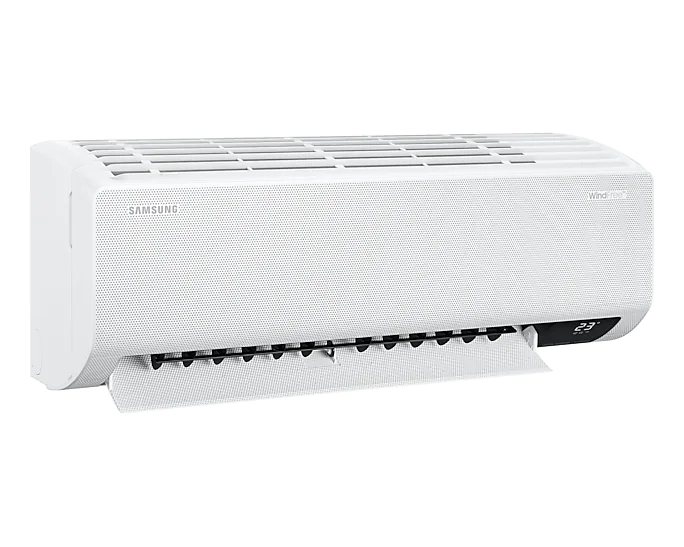

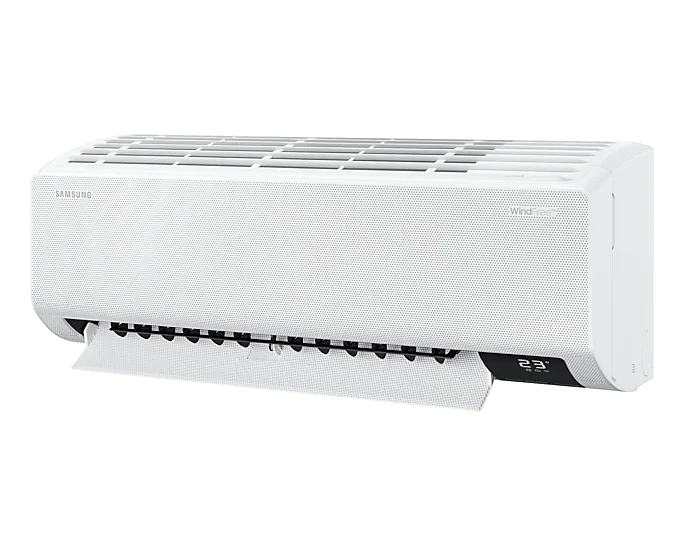

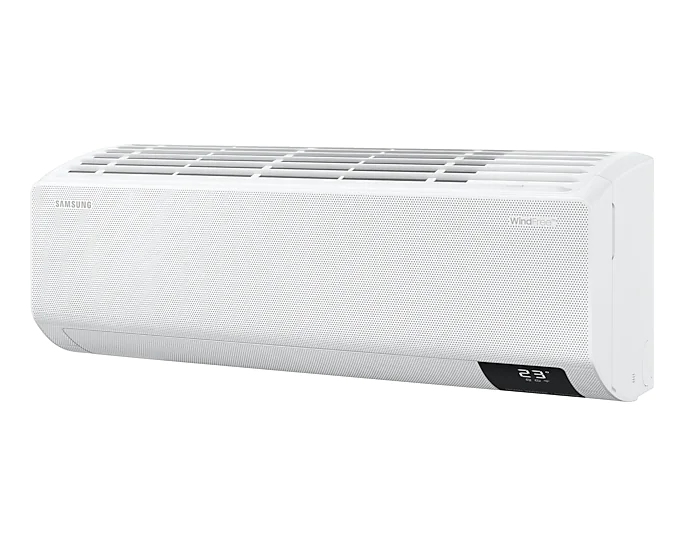

Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	38 dB
Indoor unit sound power level	56 dB
Cooling airflow (indoor unit)	642 m³/h
Indoor units quantity	1
Indoor unit width	82 cm
Indoor unit depth	21.5 cm
Indoor unit height	29.9 cm
Indoor unit weight	9 kg
Indoor unit package width	88 cm
Indoor unit package depth	37.5 cm
Indoor unit package height	29 cm
Indoor unit package weight	10.9 kg

Specification	Value

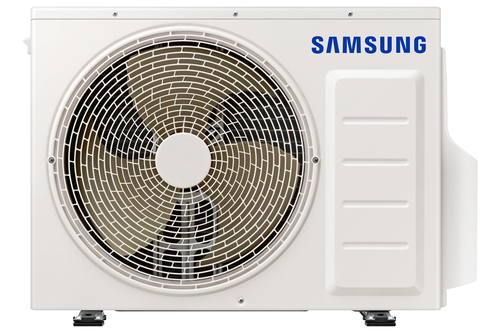

Outdoor unit noise level	46 dB
Outdoor unit sound power level	62 dB
Outdoor units quantity	1
Outdoor unit width	72 cm
Outdoor unit depth	26.5 cm
Outdoor unit height	54.8 cm
Outdoor unit weight	28 kg
Outdoor unit package width	84.4 cm
Outdoor unit package depth	35.3 cm
Outdoor unit package height	62.2 cm
Outdoor unit package weight	30 kg

Specification	Value
Manual	Yes
Remote control included	Yes
