AR09TXCAAWKNEU + AR09TXCAAWKXEU

Model AR09TXCAAWKNEU + AR09TXCAAWKXEUPart no. F-AR09ELTEAN 8806090378874

84 specifications

Overview

Brand: Samsung
Category: Split-System Air Conditioner
Model: AR09TXCAAWKNEU + AR09TXCAAWKXEU
Part number: F-AR09ELT
EAN / UPC: 8806090378874
Also known as: Samsung Wind-Free Elite AR09TXCAAWKNEU + AR09TXCAAWKXEU Split system White

84 specifications in 7 groups

Specification	Value
Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Fan, Heating
Inverter technology	Yes
Split system type	Mono split
Comfort sleeping mode	Yes
Suitable for room area up to	25 m²
Seasonal efficiency rating (cooling) (SEER)	8.8
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.5
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	5.1
Cooling energy efficiency (EER, W/W)	4.63
Heating energy efficiency (COP, W/W)	4.74
Cooling capacity in watts (nominal)	2500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	3600 W
Heating capacity in watts (nominal) (Average heating season)	3200 W
Heating capacity in watts (min)	800 W
Heating capacity in watts (max)	7100 W
Cooling capacity (nominal)	8530 BTU/h
Cooling capacity (min)	3071 BTU/h
Cooling capacity (max)	12284 BTU/h
Heating capacity (nominal)	10919 BTU/h
Heating capacity (min)	2730 BTU/h
Heating capacity (max)	24226 BTU/h
Built-in display	Yes
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	965 g
Auto fan	Yes
Hose length (max)	15 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Anti-bacterial filter	Yes
Dehumidifying capacity	1 l/h
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+++
Energy efficiency class (heating) (Warmer heating season)	A+++
Hourly energy consumption (cooling)	0.54 kWh
Hourly energy consumption (heating)	0.68 kWh
Annual energy consumption (cooling)	99 kWh
Annual energy consumption (heating) (Warmer heating season)	331 kWh
Annual energy consumption (heating) (Average heating season)	631 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	2.9 A
Current (heating)	3.4 A
Design load (cooling)	2.5 kW
Design load (heating) (Average heating season)	2.3 kW
Design load (heating) (Warmer heating season)	1.3 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value
Wi-Fi	Yes

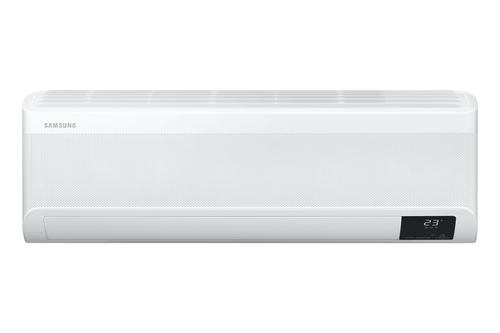

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	16 dB
Indoor unit noise level (high speed)	39 dB
Indoor unit sound power level	56 dB
Cooling airflow (indoor unit)	666 m³/h
Indoor units quantity	1
Indoor unit width	88.9 cm
Indoor unit depth	21.5 cm
Indoor unit height	29.9 cm
Indoor unit weight	10.6 kg
Indoor unit package width	95 cm
Indoor unit package depth	29 cm
Indoor unit package height	37.5 cm
Indoor unit package weight	12.7 kg

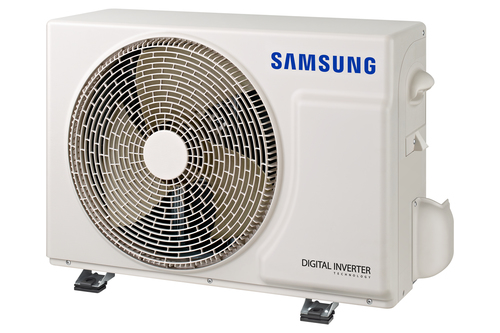

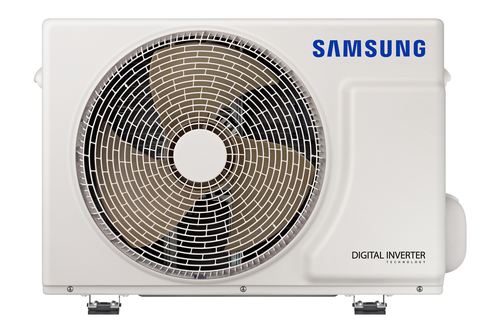

Specification	Value
Outdoor unit noise level	45 dB
Outdoor unit sound power level	59 dB
Outdoor units quantity	1
Outdoor unit width	79 cm
Outdoor unit depth	28.5 cm
Outdoor unit height	54.8 cm
Outdoor unit weight	32.5 kg
Outdoor unit package width	91.3 cm
Outdoor unit package depth	37.1 cm
Outdoor unit package height	62.2 cm
Outdoor unit package weight	34.8 kg

Specification	Value

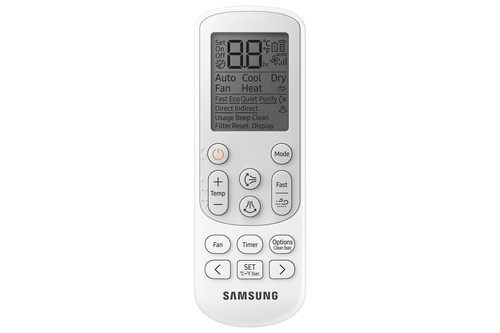

Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	5.1
