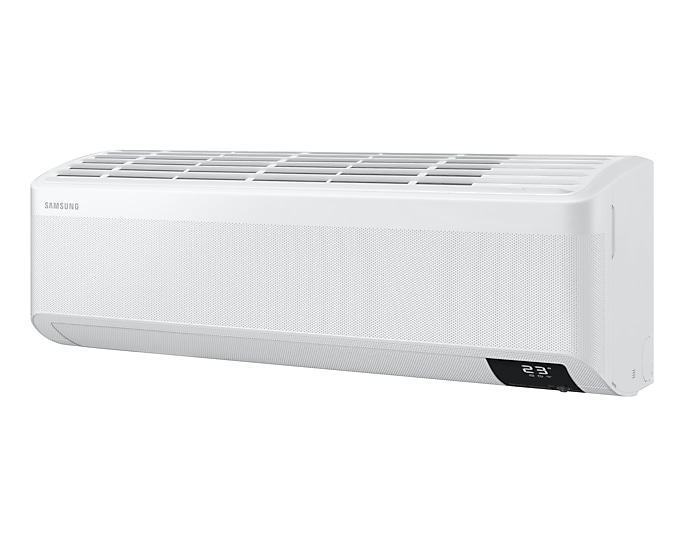

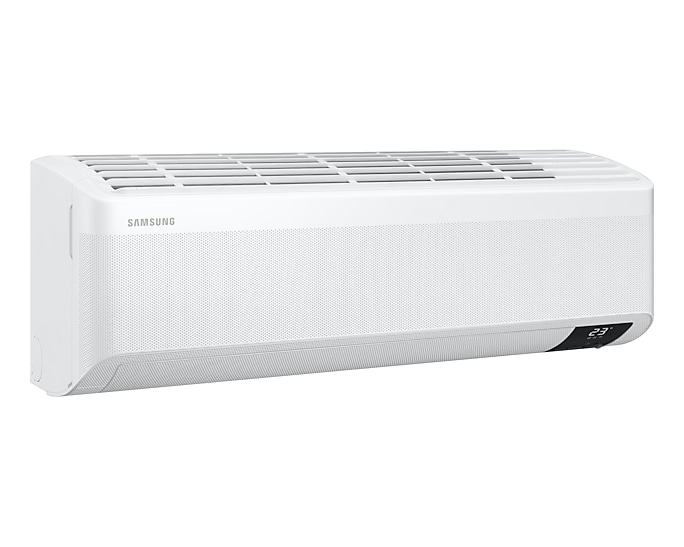

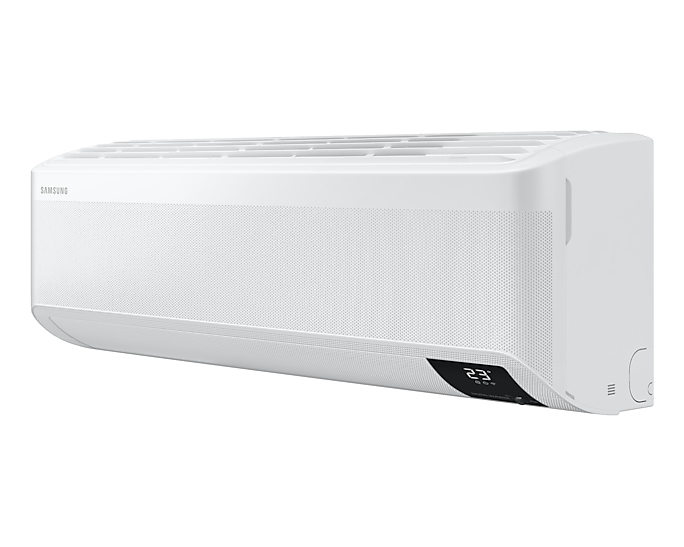

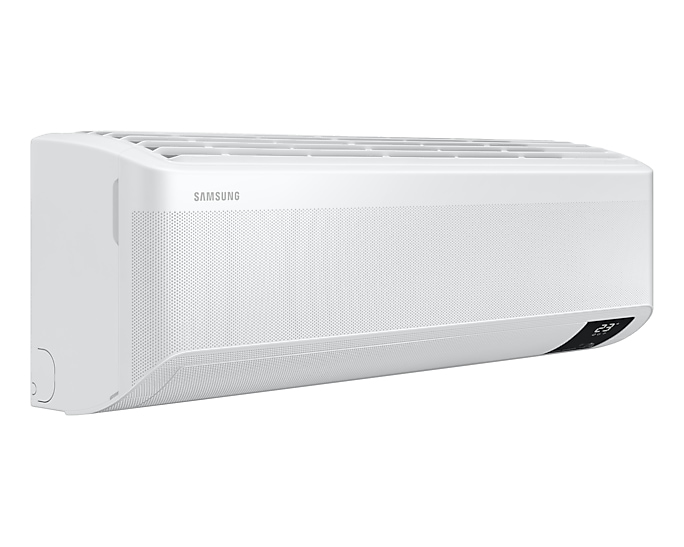

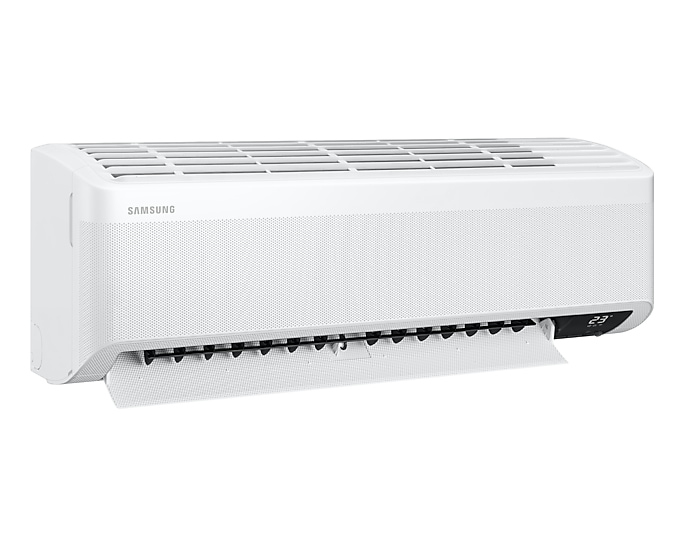

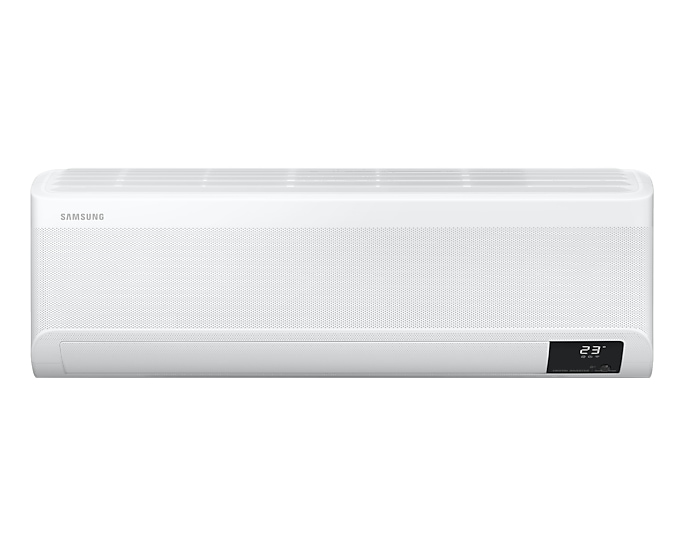

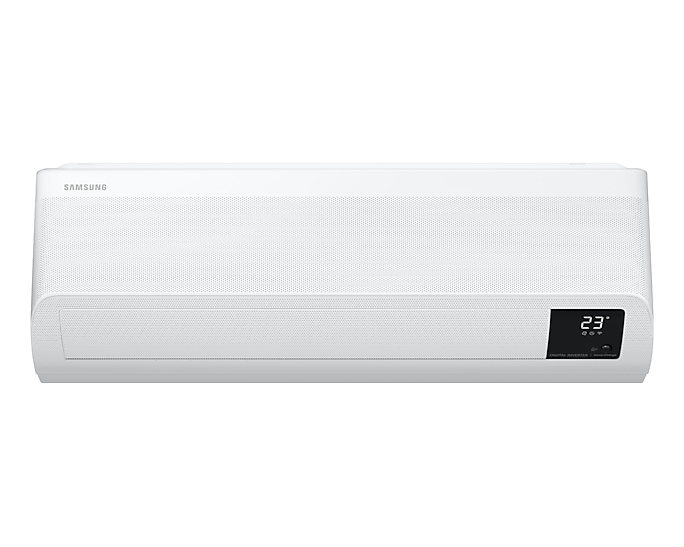

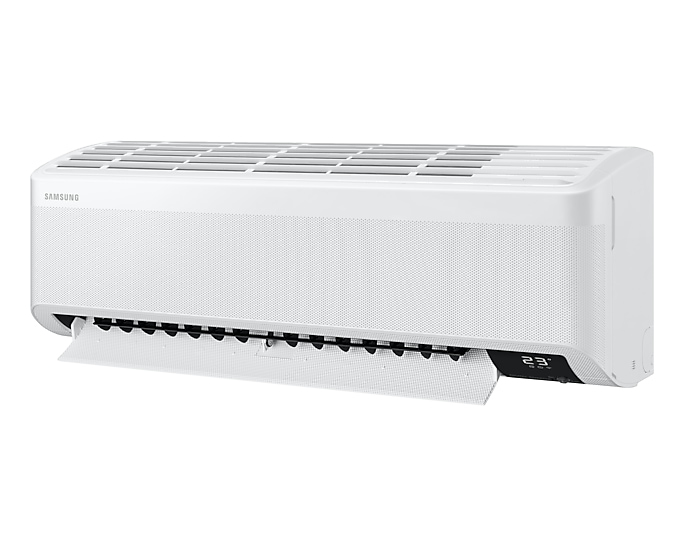

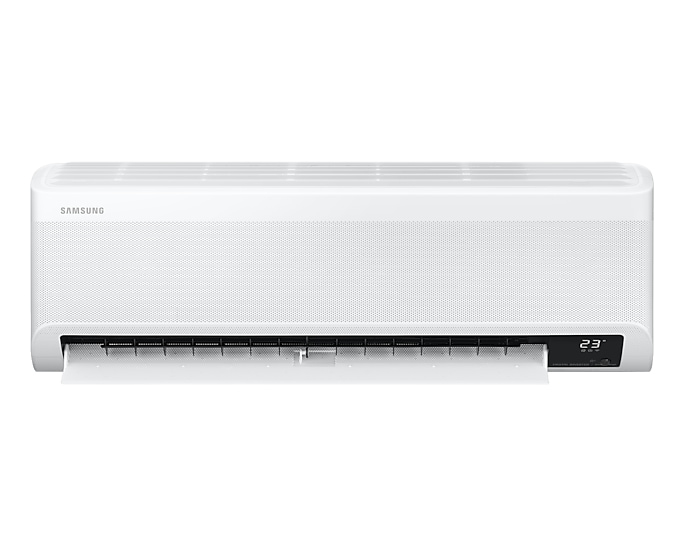

Wind-Free Elite AR09TXCAAWKNEU air conditioner Air conditioner indoor unit White

Model AR09TXCAAWKNEUEAN 8806090235016

69 specifications

Overview

Brand: Samsung
Category: Split-System Air Conditioner
Model: AR09TXCAAWKNEU
Part number: AR09TXCAAWKNEU
EAN / UPC: 8806090235016
Also known as: Samsung Wind-Free Elite AR09TXCAAWKNEU air conditioner Air conditioner indoor unit White

69 specifications in 5 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Fan, Heating
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	8.8
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.5
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	5.1
Cooling energy efficiency (EER, W/W)	4.63
Heating energy efficiency (COP, W/W)	4.74
Cooling capacity in watts (nominal)	2500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	3600 W
Heating capacity in watts (nominal) (Average heating season)	3200 W
Heating capacity in watts (min)	800 W
Heating capacity in watts (max)	7100 W
Cooling capacity (nominal)	8530 BTU/h
Cooling capacity (min)	3071 BTU/h
Cooling capacity (max)	12284 BTU/h
Heating capacity (nominal)	10919 BTU/h
Heating capacity (min)	2730 BTU/h
Heating capacity (max)	24226 BTU/h
Built-in display	Yes
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	965 g
Auto fan	Yes
Hose length (max)	15 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Anti-bacterial filter	Yes
Dehumidifying capacity	1 l/h
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+++
Energy efficiency class (heating) (Colder heating season)	No
Energy efficiency class (heating) (Warmer heating season)	A+++
Annual energy consumption (cooling)	99 kWh
Annual energy consumption (heating) (Warmer heating season)	331 kWh
Annual energy consumption (heating) (Average heating season)	631 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	2.9 A
Current (heating)	3.4 A
Design load (cooling)	2.5 kW
Design load (heating) (Average heating season)	2.3 kW
Design load (heating) (Warmer heating season)	1.3 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value
Wi-Fi	Yes

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	16 dB
Indoor unit noise level (high speed)	39 dB
Indoor unit sound power level	56 dB
Cooling airflow (indoor unit)	666 m³/h
Indoor units quantity	1
Indoor unit width	88.9 cm
Indoor unit depth	21.5 cm
Indoor unit height	29.9 cm
Indoor unit weight	10.6 kg
Indoor unit package width	95 cm
Indoor unit package depth	37.5 cm
Indoor unit package height	29 cm
Indoor unit package weight	12.7 kg

Specification	Value
Remote control included	Yes
